Forwarding this bug from Ubuntu reporter dn: http://bugs.launchpad.net/ubuntu/+source/xserver-xorg-video-ati/+bug/543489 [Problem] When the brightness changes the gnome panel pops up a window (the brightness applet presumably) but the window shows only corruption (see attached images). [Original Description] In Karmic, whenever the screen brightness changes (manually via hotkeys or automatically after the laptop is left idle), a blank white square covers the upper left corner of the screen and then disappears. In Lucid (testing beta 1 livecd), instead of a white square, what looks like a corrupted notification window shows up. Architecture: amd64 Date: Sun Mar 21 11:27:41 2010 DistroRelease: Ubuntu 10.04 DkmsStatus: Error: [Errno 2] No such file or directory GdmLog1: Error: command ['gksu', '-D', 'Apport', '--', 'cat', '/var/log/gdm/:0.log.1'] failed with exit code 1: cat: /var/log/gdm/:0.log.1: No such file or directory GdmLog2: Error: command ['gksu', '-D', 'Apport', '--', 'cat', '/var/log/gdm/:0.log.2'] failed with exit code 1: cat: /var/log/gdm/:0.log.2: No such file or directory LiveMediaBuild: Ubuntu 10.04 "Lucid Lynx" - Beta amd64 (20100318) Lsusb: Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 002 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 001 Device 003: ID 0bda:8187 Realtek Semiconductor Corp. RTL8187 Wireless Adapter Bus 001 Device 002: ID 05dc:a410 Lexar Media, Inc. JumpDrive 128MB/256MB Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub MachineType: Gateway MT6457 Package: xorg 1:7.5+3ubuntu1 PccardctlIdent: Socket 0: no product info available PccardctlStatus: Socket 0: no card ProcCmdLine: BOOT_IMAGE=/casper/vmlinuz noprompt cdrom-detect/try-usb=true file=/cdrom/preseed/hostname.seed boot=casper initrd=/casper/initrd.lz quiet splash -- ProcEnviron: LANG=en_US.UTF-8ProcVersionSignature: Ubuntu 2.6.32-16.25-generic SourcePackage: xorg Uname: Linux 2.6.32-16-generic x86_64 dmi.bios.date: 11/01/2006 dmi.bios.vendor: Phoenix Technologies LTD dmi.bios.version: 84.05 dmi.board.vendor: Gateway dmi.board.version: 84.05 dmi.chassis.asset.tag: No Asset Tag dmi.chassis.type: 8 dmi.chassis.vendor: Gateway dmi.chassis.version: Rev.1 dmi.modalias: dmi:bvnPhoenixTechnologiesLTD:bvr84.05:bd11/01/2006:svnGateway:pnMT6457:pvr3408447R:rvnGateway:rn:rvr84.05:cvnGateway:ct8:cvrRev.1: dmi.product.name: MT6457 dmi.product.version: 3408447R dmi.sys.vendor: Gateway glxinfo: Error: [Errno 2] No such file or directory system: codename: lucid architecture: x86_64 kernel: 2.6.32-16-generic [lspci] 01:05.0 VGA compatible controller [0300]: ATI Technologies Inc RS482 [Radeon Xpress 200M] [1002:5975] Subsystem: Gateway 2000 Device [107b:0367]
Created attachment 34568 [details] XorgLog.txt
Created attachment 34569 [details] xdpyinfo.txt
Created attachment 34570 [details] CurrentDmesg.txt
Created attachment 34571 [details] BootDmesg.txt

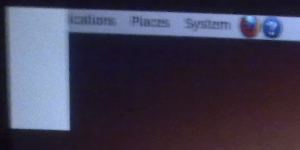

Created attachment 34572 [details] karmic-brightness3.png

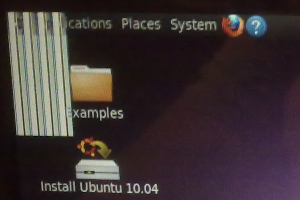

Created attachment 34573 [details] lucid-brightness3.png
Is the white square really a feature of the GNOME panel applet (or anything else in Ubuntu), not the BIOS? If the former, does disabling compositing / RENDER acceleration / ... have any impact on the problem?
On Wed, Mar 31, 2010 at 01:33:08AM -0700, bugzilla-daemon@freedesktop.org wrote: > http://bugs.freedesktop.org/show_bug.cgi?id=27383 > > > > > > --- Comment #7 from Michel Dänzer <michel@daenzer.net> 2010-03-31 01:33:06 PST --- > Is the white square really a feature of the GNOME panel applet (or anything > else in Ubuntu), not the BIOS? If it was the bios, wouldn't it look the same in either karmic or lucid? In the two screenshots for the two different releases, the corruption is somewhat different. > If the former, does disabling compositing / RENDER acceleration / ... have any > impact on the problem? I've asked the reporter to join the discussion here to give this test feedback. Thanks, Bryce
(In reply to comment #8) > If it was the bios, wouldn't it look the same in either karmic or lucid? *If* it's the BIOS, it's touching the GPU behind the backs of any of our drivers, and basically all bets are off. > In the two screenshots for the two different releases, the corruption is > somewhat different. So do you know which component of Ubuntu is producing that notification, and what it's supposed to look like?
Hmm, well the only thing that normally displays in that space is the Applications menu, but the white box is far too small. The Ubuntu OSD's for volume, brightness, power management, etc. all display elsewhere on the screen. dn, can you give some further insights into what this might be? Could it just be that your hardware's BIOS is buggy?
> If the former, does disabling compositing / RENDER acceleration / ... have any > impact on the problem? Original reporter here -- I did set "Visual Effects: None" to disable compositing, and it still happened just the same. Are there any further tests I should try to see if it's the BIOS?
(In reply to comment #11) > Are there any further tests I should try to see if it's the BIOS? Some ideas: * Does the popup appear in console? * Is the popup captured in screenshots taken e.g. with the GNOME screenshot tool? * Does the popup also appear in other operating systems? * …
(In reply to comment #12) > * Does the popup appear in console? Yeah. (tested with Lucid beta1 with kernel modesetting on) Once I switched to a console and pressed the brightness-adjust hotkeys, it came up as a white square. When I switched back to the desktop, when it appeared it was a white square instead of the corruption that was there before I changed to a console. > * Is the popup captured in screenshots taken e.g. with the GNOME screenshot > tool? No, nothing. (again, Lucid beta1, kms on) > * Does the popup also appear in other operating systems? I'm downloading a Fedora livecd image now.
I found a workaround: Just suspending and resuming, with KMS enabled. Tested with Lucid and Karmic. After suspending and resuming, it starts showing the same notification as when running Windows (so... BIOS-related?): a blue rectangle in the upper left corner showing 'bars' (like a wireless signal) representing the current brightness level. (The bug happens in the Fedora 12 LiveCD too, in the few seconds before it threw a "No root device found" error that stopped it from booting.)
So it's clearly a BIOS feature. It'll be hard to do anything about it without more information about how it works, maybe Alex knows something.
(In reply to comment #15) > So it's clearly a BIOS feature. It'll be hard to do anything about it without > more information about how it works, maybe Alex knows something. I'll ask the bios guys.
Original reporter hasn't responded to information request in 2 years.
