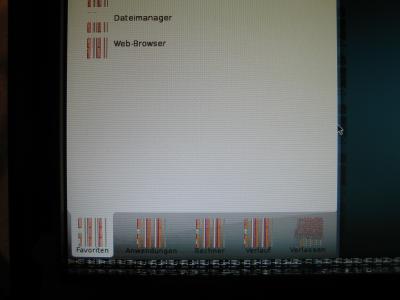

Created attachment 42971 [details] Image disturbances (KDE Kickoff) Update the xf86-video-ati from version 6.13.2 to 6.14.0 results in image disturbances on the KDE desktop. Steps to Reproduce (on my computer): PC configuration: Radeon HD5830, AMD X6, dual screen both over DVI 1) Update xf86-video-ati from 6.13.2 to 6.14.0 on 64bit Arch Linux 2) Start KDE (kdm) 3) User login Actual Results: Image disturbance in KDE, see attachment Expected Results: Nice KDE desktop Build Date & Platform: Fre 04 Feb 2011 14:05:30 CET (xf86-video-ati 6.14.0) Additional Builds and Platforms: Doesn't occur on build xf86-video-ati 6.13.2-2 (Arch Linux version) build date Sam 09 Oct 2010 15:52:37 CEST Additional Information: + Add Option "EXAPixmaps" "Off" to xorg.conf resolves the image disturbances, but KDE slows down and other screen refresh disturbance occure - Clean pixmap caches (kpc directory in /tmp/var and ~/.kde4) in KDE doesn't solve the problem - Turn on/off KDE composite doesn't solve the problem + Reinstall xf86-video-ati 6.13.2-2 resolves the image disturbances

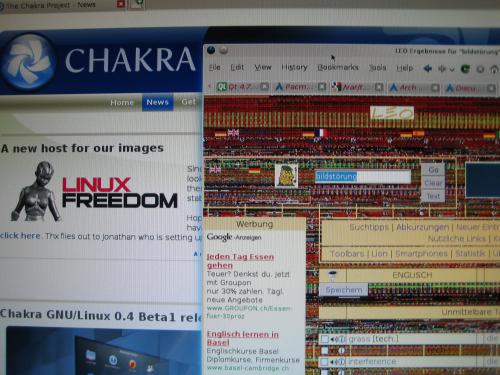

Created attachment 42972 [details] Image disturbances (web page dict.leo.org)
Created attachment 42973 [details] xorg configuration in xorg.conf.d/
Created attachment 42974 [details] Xorg.0.log
Some information about the older xf86-video-ati driver in Arch Linux: Arch Linux xf86-video-ati version 6.13.2-2 is the 6.13.2 version (http://xorg.freedesktop.org/releases/individual/driver/xf86-video-ati -6.13.2.tar.bz2) , it is just a safety rebuild for new libdrm Arch Linux package file in git: http://projects.archlinux.org/svntogit/packages.git/commit/xf86-video-ati/trunk/PKGBUILD?id=e924af0a311e2716db9fdfb80464b7dad97eb01a
Can you try to isolate which driver change introduced the problem with git bisect?
I have updated yesterday to xf86-video-ati 6.14.0. Steps to repeat the problem: startx opening xterm, aterm or eterm output: http://i.imgur.com/midmJ.jpg xorg cannot be used after and must be killed However, after downgrading to xf86-video-ati-6.13.2-2 the problem goes away. [2011-02-08 12:02] Running 'pacman -U xf86-video-ati-6.13.2-2-i686.pkg.tar.xz' [2011-02-08 12:02] upgraded xf86-video-ati (6.14.0-1 -> 6.13.2-2) My WM: openbox My video card: 01:00.0 VGA compatible controller: ATI Technologies Inc RV350 AS [Radeon 9550] uname -a Linux p4p 2.6.37-ARCH #1 SMP PREEMPT Sat Jan 29 19:40:04 UTC 2011 i686 Intel(R) Pentium(R) 4 CPU 2.66GHz GenuineIntel GNU/Linux
Does: Option "ColorTiling" "False" in the device section of your xorg.conf fix the issue? I think the following bugs are probably the same issue: bug 33929 bug 33952 bug 33943 bug 33963
(In reply to comment #7) > Does: > Option "ColorTiling" "False" > in the device section of your xorg.conf fix the issue? Yes! I can now open any xterms with no problems. > > I think the following bugs are probably the same issue: > bug 33929 > bug 33952 > bug 33943 > bug 33963
Hmm, the attached log file claimed tiling was disabled... *** This bug has been marked as a duplicate of bug 33929 ***
(In reply to comment #9) > Hmm, the attached log file claimed tiling was disabled... I think there are two issues on this bug. Jonathan has an evergreen card which did not support acceleration until 6.14.0, so his issue is probably related to no accel (6.13.x) vs. accel (6.14.x). Alex's issue is a dup of bug 33929.
Sorry, failed to notice Alex wasn't the original reporter.
What should I try to find the source of this error? Did you need any other log files?
Hallo again I sticked around with the closed source driver for a while (Arch Linux). But now I switched back to the open source driver (new installation, probelem still exist). I tried the Kubuntu 11.04 live DVD and I had the same problem. So I think there is a driver or a hardware problem. Is there such a thing like a text bench for EXA or how can I try to track down the problem? Hardware configuration: -HIS HD 5830 iCooler V 1GB (single screen for the moment) -Asus M4A89GTD Pro/USB3 with AMD 890GX/SB850 chipset (890GX/Radeon HD4290 VGA controller not visible with lspci) -AMD Phenom II X6 1055T Any help is appreciated. Jonathan
With the latest radeon git version (one commite after xf86-video-ati-6.14.2). I get [ 102.453] (II) RADEON(0): VRAM usage limit set to 222991K in Xorg.0.log but my card has 1GB of VRAM in the older Xorg.0.log (2011-02-05) file it reports [ 2666.329] (II) RADEON(0): VRAM usage limit set to 921888K Is this normal or can it be an initialisation problem? Can it be a conflict with the internal GPU in the northbridge (should be disabled, not visible with lspci)? Maybe next week I can test this HIS HD 5830 card in a sandy bridge system (with kubuntu 11.04 live CD). Greeting Jonathan
Created attachment 47408 [details] Xorg.0.log with driver version 6.14.2 Strange VRAM report in Xorg.0.log file. Driver version 6.14.2
(In reply to comment #14) > With the latest radeon git version (one commite after xf86-video-ati-6.14.2). > > I get > > [ 102.453] (II) RADEON(0): VRAM usage limit set to 222991K > > in Xorg.0.log but my card has 1GB of VRAM in the older Xorg.0.log (2011-02-05) > file it reports > > [ 2666.329] (II) RADEON(0): VRAM usage limit set to 921888K > > Is this normal or can it be an initialisation problem? > Can it be a conflict with the internal GPU in the northbridge (should be > disabled, not visible with lspci)? > > Maybe next week I can test this HIS HD 5830 card in a sandy bridge system (with > kubuntu 11.04 live CD). > > Greeting > Jonathan ok dmesg report: [ 5.991245] [drm] radeon: 1024M of VRAM memory ready
With the git driver from 6. jan 2012 the disturbance are gone. Maybe this is relatede to the solved bug #42913. But now the mouse cursor is gone :/ in KDE (in xfce the cursor is visible) I think this is an other problem. Some people on http://forums.opensuse.org/english/get-technical-help-here/install-boot-login/469968-mouse-cursor-disappears-when-hovering.html have the same problem. So I will close this bug, many thanks for continuously improving the open source driver Jonathan
