cat /sys/kernel/debug/dri/0/radeon_pm_info is reporting default clocks at 400/900 mhz. Changing power profile to high (which is actually 725/1000 according to bios) only increases the voltage, but clocks are still limited at 400/900. Also, these values 400/900 match only UVD mode in the graphics card bios. I suspect the driver uses incorrect bios readings, because the default "boot" value is 725/1000 for my HD5850.
Please attach a copy of your vbios. (as root) (use lspci to get the bus id) cd /sys/bus/pci/devices/<pci bus id> echo 1 > rom cat rom > /tmp/vbios.rom echo 0 > rom
Created attachment 61456 [details] hd5850 bios vbios attached
Created attachment 61457 [details] boot clocks
Created attachment 61458 [details] UVD clocks

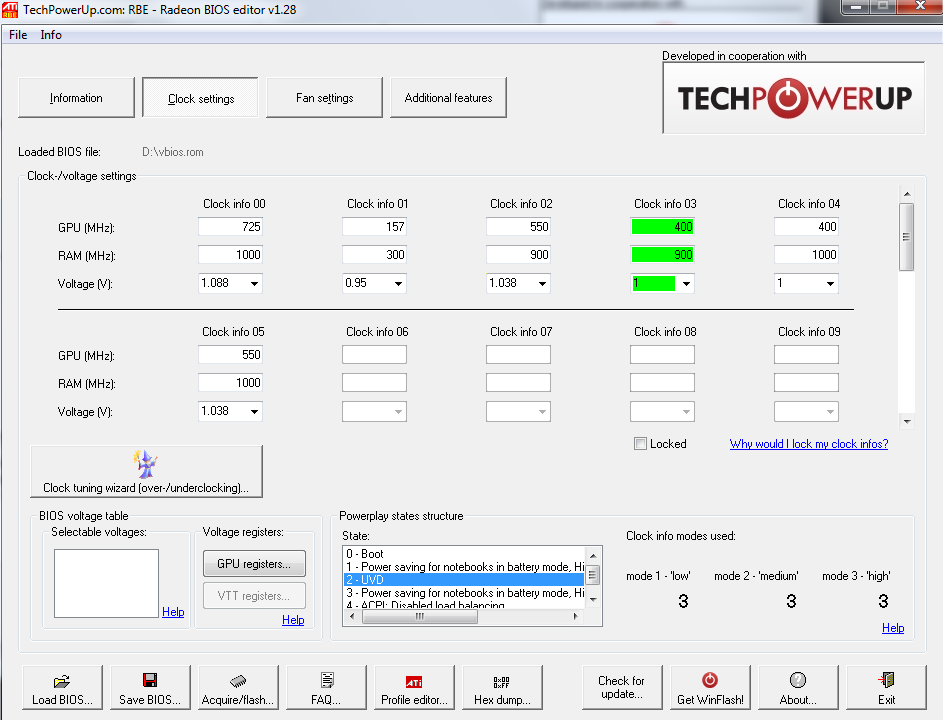

I also attched RBE screenshots with opened vbios.rom
Any updates on this? Did the attached bios help?
Created attachment 61719 [details] Overclocked Radeon HD 5850 BIOS Same problem here. The only difference is in vendor of videocard and frequencies(I have HIS Radeon HD 5850 with 850/1200, BIOS attached). System uses only limited 400/900(399990 kHz/900000 kHz to be correct). kernel: 3.3.6 xf86-video-ati: 6.14.4
Created attachment 61732 [details] HIS Radeon HD 5850 BIOS Oops, attached correct rom
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/drm/amd/issues/270.
