I have Dell Precision M4800 with FireGL HD 8870M and Intel Haswell on Fedora 20. Windows 7 works fine. On Fedora external monitor is always corrupted in addition to getting EDID checksum errors that I can overcome with xrandr --off/--auto. Below are pictures of the monitor corruption (screenshot comes out to be fine). There are basically screen erasure issues: mouse cursor leaves traces, window resizing leaves pieces of window lying around, weird triangles coming and going all over. I'm using opensource radeon with latest 1.0.4 intel display drivers.
Created attachment 96062 [details] Xorg.0.log

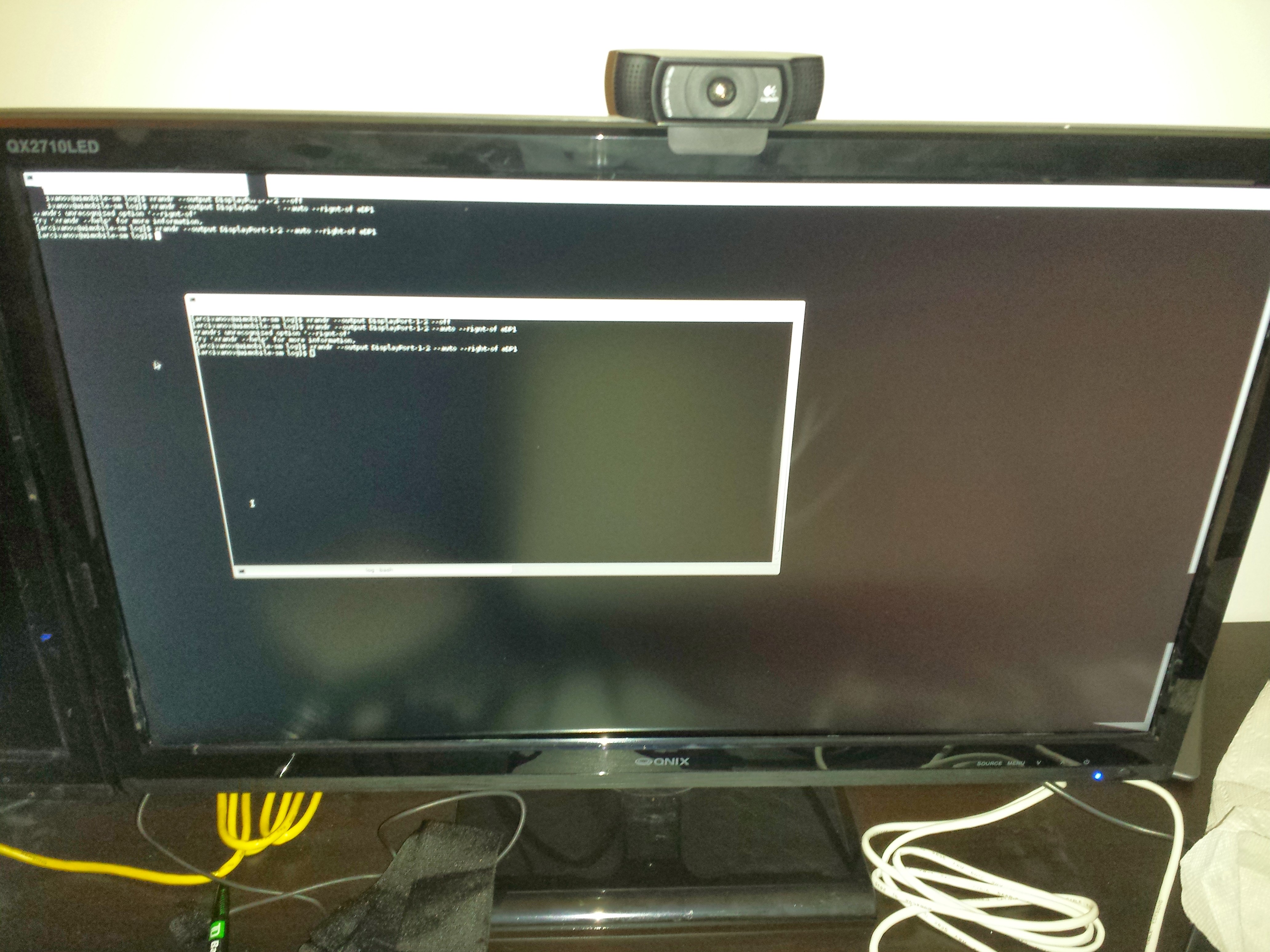

Created attachment 96063 [details] Screenshot 1

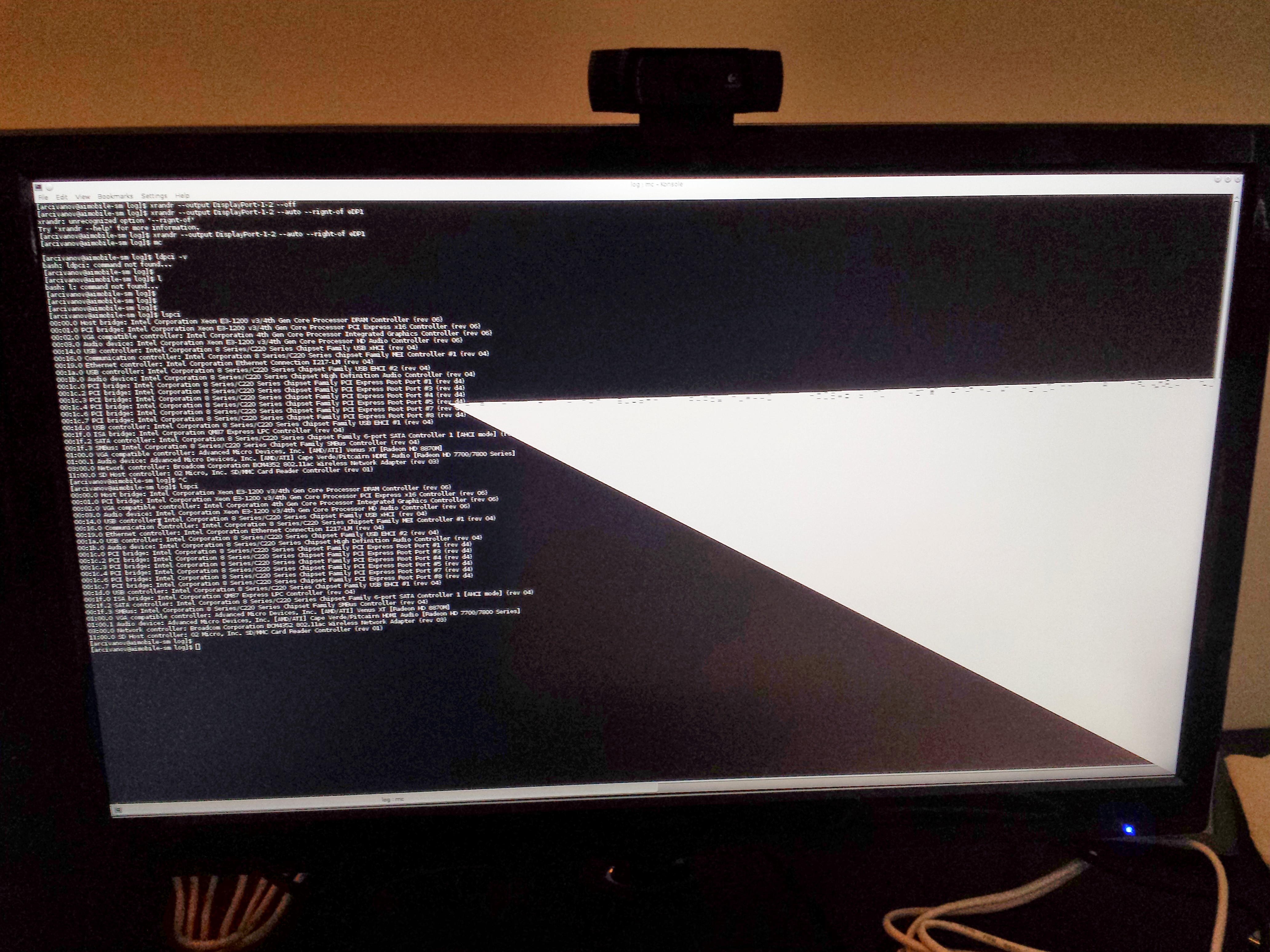

Created attachment 96064 [details] Screenshot 2
$ xrandr --verbose Screen 0: minimum 320 x 200, current 1920 x 1080, maximum 8192 x 8192 eDP1 connected 1920x1080+0+0 (0xa1) normal (normal left inverted right x axis y axis) 344mm x 194mm Identifier: 0x9c Timestamp: 9781 Subpixel: unknown Gamma: 1.0:1.0:1.0 Brightness: 1.0 Clones: CRTC: 0 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: EDID: 00ffffffffffff0030e42c0300000000 00150104902213780aaf559c5b529626 0e505400000001010101010101010101 0101010101014c3680a070381f402040 360058c210000018323280b072389640 a0f0e80058c210000018000000fe0044 4339594a803135365746430a00000000 000041319e0000000002010a20200084 BACKLIGHT: 95 range: (0, 95) Backlight: 95 range: (0, 95) scaling mode: Full aspect supported: NoneFullCenterFull aspect Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon 1920x1080 (0xa1) 139.0MHz -HSync -VSync *current +preferred h: width 1920 start 1952 end 2016 total 2080 skew 0 clock 66.8KHz v: height 1080 start 1083 end 1089 total 1111 clock 60.2Hz 1920x1080 (0xa2) 128.5MHz -HSync -VSync h: width 1920 start 2080 end 2320 total 2608 skew 0 clock 49.3KHz v: height 1080 start 1094 end 1102 total 1230 clock 40.1Hz 1400x1050 (0xa3) 122.0MHz +HSync +VSync h: width 1400 start 1488 end 1640 total 1880 skew 0 clock 64.9KHz v: height 1050 start 1052 end 1064 total 1082 clock 60.0Hz 1280x1024 (0x6a) 108.0MHz +HSync +VSync h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 1280x960 (0xa4) 108.0MHz +HSync +VSync h: width 1280 start 1376 end 1488 total 1800 skew 0 clock 60.0KHz v: height 960 start 961 end 964 total 1000 clock 60.0Hz 1024x768 (0x70) 65.0MHz -HSync -VSync h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 800x600 (0x73) 40.0MHz +HSync +VSync h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 800x600 (0xa5) 36.0MHz +HSync +VSync h: width 800 start 824 end 896 total 1024 skew 0 clock 35.2KHz v: height 600 start 601 end 603 total 625 clock 56.2Hz 640x480 (0x79) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz VGA1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9d Timestamp: 9781 Subpixel: unknown Clones: CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: DP1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9e Timestamp: 9781 Subpixel: unknown Clones: HDMI1 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon HDMI1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9f Timestamp: 9781 Subpixel: unknown Clones: DP1 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon DisplayPort-1-1 disconnected (normal left inverted right x axis y axis) Identifier: 0x55 Timestamp: 2428131 Subpixel: horizontal rgb Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) DisplayPort-1-2 connected (normal left inverted right x axis y axis) Identifier: 0x56 Timestamp: 2428131 Subpixel: horizontal rgb Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: EDID: 00ffffffffffff00232f57a000000000 0a170104803c2278288e05ad4f33b026 0d50542108008100b30081c0d140a940 8180a9c0d1c0565e00a0a0a029503020 350055502100001a283c80a070b02340 3020260055312100001a000000fd0032 781d5f1e0000000000000000000000fc 00444953504c415920504f52540a01ca 020316f149908384853f312f2e062309 070783010000023a8018382d40582c25 0055502100001e011d8018711c162058 2c250055502100009e011d007251d01e 206e28550055502100001e8c0ad08a20 e02d10103e9600555021000018023a80 d072382d40102c458009252100001e72 382d40102c458009252100001e00be00 dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) 2560x1440 (0x5a) 241.5MHz +HSync -VSync +preferred h: width 2560 start 2608 end 2640 total 2720 skew 0 clock 88.8KHz v: height 1440 start 1443 end 1448 total 1481 clock 60.0Hz 3442x1566i (0x10d) 0.3MHz -HSync +VSync Interlace h: width 3442 start 3738 end 4079 total 4080 skew 0 clock 0.1KHz v: height 1566 start 1582 end 1598 total 5182 clock 0.0Hz 1920x1440 (0x5b) 234.0MHz -HSync +VSync h: width 1920 start 2048 end 2256 total 2600 skew 0 clock 90.0KHz v: height 1440 start 1441 end 1444 total 1500 clock 60.0Hz 1920x1200 (0x5c) 154.0MHz +HSync -VSync h: width 1920 start 1968 end 2000 total 2080 skew 0 clock 74.0KHz v: height 1200 start 1202 end 1208 total 1235 clock 60.0Hz 1920x1080 (0x5d) 297.0MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 135.0KHz v: height 1080 start 1084 end 1089 total 1125 clock 120.0Hz 1920x1080 (0x5e) 296.7MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 134.9KHz v: height 1080 start 1084 end 1089 total 1125 clock 119.9Hz 1920x1080 (0x10e) 172.8MHz -HSync +VSync h: width 1920 start 2040 end 2248 total 2576 skew 0 clock 67.1KHz v: height 1080 start 1081 end 1084 total 1118 clock 60.0Hz 1920x1080i (0x5f) 148.5MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.5KHz v: height 1080 start 1084 end 1094 total 1125 clock 120.1Hz 1920x1080 (0x60) 148.5MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.5KHz v: height 1080 start 1084 end 1089 total 1125 clock 60.0Hz 1920x1080i (0x63) 148.4MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.4KHz v: height 1080 start 1084 end 1094 total 1125 clock 120.0Hz 1920x1080 (0x64) 148.4MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.4KHz v: height 1080 start 1084 end 1089 total 1125 clock 59.9Hz 1920x1080i (0x65) 74.2MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 33.8KHz v: height 1080 start 1084 end 1094 total 1125 clock 60.1Hz 1920x1080i (0x66) 74.2MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 33.7KHz v: height 1080 start 1084 end 1094 total 1125 clock 60.0Hz 1600x1200 (0x67) 162.0MHz +HSync +VSync h: width 1600 start 1664 end 1856 total 2160 skew 0 clock 75.0KHz v: height 1200 start 1201 end 1204 total 1250 clock 60.0Hz 1680x1050 (0x68) 146.2MHz -HSync +VSync h: width 1680 start 1784 end 1960 total 2240 skew 0 clock 65.3KHz v: height 1050 start 1053 end 1059 total 1089 clock 60.0Hz 1600x900 (0x69) 119.0MHz -HSync +VSync h: width 1600 start 1696 end 1864 total 2128 skew 0 clock 55.9KHz v: height 900 start 901 end 904 total 932 clock 60.0Hz 1280x1024 (0x6a) 108.0MHz +HSync +VSync h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 896x1325 (0x16f) 148.5MHz -HSync -VSync h: width 896 start 1196 end 1489 total 2968 skew 0 clock 50.0KHz v: height 1325 start 1341 end 1357 total 3437 clock 14.6Hz 3722x301 (0x10f) 532.6MHz +HSync -VSync h: width 3722 start 4040 end 4446 total 4447 skew 0 clock 119.8KHz v: height 301 start 317 end 333 total 334 clock 358.6Hz 1280x800 (0x6b) 83.5MHz +HSync -VSync h: width 1280 start 1352 end 1480 total 1680 skew 0 clock 49.7KHz v: height 800 start 803 end 809 total 831 clock 59.8Hz 1280x720 (0x6c) 148.5MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 90.0KHz v: height 720 start 725 end 730 total 750 clock 120.0Hz 1280x720 (0x6d) 148.4MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 89.9KHz v: height 720 start 725 end 730 total 750 clock 119.9Hz 1280x720 (0x111) 74.4MHz -HSync +VSync h: width 1280 start 1336 end 1472 total 1664 skew 0 clock 44.7KHz v: height 720 start 721 end 724 total 746 clock 60.0Hz 1280x720 (0x6e) 74.2MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 45.0KHz v: height 720 start 725 end 730 total 750 clock 60.0Hz 1280x720 (0x6f) 74.2MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 45.0KHz v: height 720 start 725 end 730 total 750 clock 59.9Hz 1024x768 (0x70) 65.0MHz -HSync -VSync h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 1440x480i (0x71) 27.0MHz -HSync -VSync Interlace h: width 1440 start 1478 end 1602 total 1716 skew 0 clock 15.8KHz v: height 480 start 488 end 494 total 525 clock 60.1Hz 1440x480i (0x72) 27.0MHz -HSync -VSync Interlace h: width 1440 start 1478 end 1602 total 1716 skew 0 clock 15.7KHz v: height 480 start 488 end 494 total 525 clock 60.1Hz 800x600 (0x73) 40.0MHz +HSync +VSync h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 280x1302 (0x112) 328.0MHz -HSync -VSync h: width 280 start 580 end 873 total 3465 skew 0 clock 94.7KHz v: height 1302 start 1318 end 1334 total 3382 clock 28.0Hz 720x480 (0x74) 54.1MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 63.0KHz v: height 480 start 489 end 495 total 525 clock 120.0Hz 720x480 (0x75) 54.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 62.9KHz v: height 480 start 489 end 495 total 525 clock 119.9Hz 720x480 (0x76) 27.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 31.5KHz v: height 480 start 489 end 495 total 525 clock 60.0Hz 720x480 (0x77) 27.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 31.5KHz v: height 480 start 489 end 495 total 525 clock 59.9Hz 640x480 (0x78) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 60.0Hz 640x480 (0x79) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz DisplayPort-1-3 disconnected (normal left inverted right x axis y axis) Identifier: 0x57 Timestamp: 2428131 Subpixel: horizontal rgb Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) VGA-1-1 disconnected (normal left inverted right x axis y axis) Identifier: 0x58 Timestamp: 2428131 Subpixel: no subpixels Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: load detection: 1 range: (0, 1) 1280x1024 (0x6a) 108.0MHz h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 1024x768 (0x70) 65.0MHz h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 800x600 (0x73) 40.0MHz h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 640x480 (0x79) 25.2MHz h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz [arcivanov@aimobile-sm log]$ xrandr --output DisplayPort-1-2 --off [arcivanov@aimobile-sm log]$ xrandr --output DisplayPort-1-2 --auto --right-of eDP1 [arcivanov@aimobile-sm log]$ xrandr --output DisplayPort-1-2 --auto --right-of eDP1 [arcivanov@aimobile-sm log]$ xrandr --output DisplayPort-1-2 --off [arcivanov@aimobile-sm log]$ xrandr --output DisplayPort-1-2 --auto --right-of eDP1 [arcivanov@aimobile-sm log]$ xrandr --verbose Screen 0: minimum 320 x 200, current 4480 x 1440, maximum 8192 x 8192 eDP1 connected primary 1920x1080+0+0 (0xa1) normal (normal left inverted right x axis y axis) 344mm x 194mm Identifier: 0x9c Timestamp: 9781 Subpixel: unknown Gamma: 1.0:1.0:1.0 Brightness: 1.0 Clones: CRTC: 0 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: EDID: 00ffffffffffff0030e42c0300000000 00150104902213780aaf559c5b529626 0e505400000001010101010101010101 0101010101014c3680a070381f402040 360058c210000018323280b072389640 a0f0e80058c210000018000000fe0044 4339594a803135365746430a00000000 000041319e0000000002010a20200084 BACKLIGHT: 95 range: (0, 95) Backlight: 95 range: (0, 95) scaling mode: Full aspect supported: NoneFullCenterFull aspect Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon 1920x1080 (0xa1) 139.0MHz -HSync -VSync *current +preferred h: width 1920 start 1952 end 2016 total 2080 skew 0 clock 66.8KHz v: height 1080 start 1083 end 1089 total 1111 clock 60.2Hz 1920x1080 (0xa2) 128.5MHz -HSync -VSync h: width 1920 start 2080 end 2320 total 2608 skew 0 clock 49.3KHz v: height 1080 start 1094 end 1102 total 1230 clock 40.1Hz 1400x1050 (0xa3) 122.0MHz +HSync +VSync h: width 1400 start 1488 end 1640 total 1880 skew 0 clock 64.9KHz v: height 1050 start 1052 end 1064 total 1082 clock 60.0Hz 1280x1024 (0x6a) 108.0MHz +HSync +VSync h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 1280x960 (0xa4) 108.0MHz +HSync +VSync h: width 1280 start 1376 end 1488 total 1800 skew 0 clock 60.0KHz v: height 960 start 961 end 964 total 1000 clock 60.0Hz 1024x768 (0x70) 65.0MHz -HSync -VSync h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 800x600 (0x73) 40.0MHz +HSync +VSync h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 800x600 (0xa5) 36.0MHz +HSync +VSync h: width 800 start 824 end 896 total 1024 skew 0 clock 35.2KHz v: height 600 start 601 end 603 total 625 clock 56.2Hz 640x480 (0x79) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz VGA1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9d Timestamp: 9781 Subpixel: unknown Clones: CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: DP1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9e Timestamp: 9781 Subpixel: unknown Clones: HDMI1 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon HDMI1 disconnected (normal left inverted right x axis y axis) Identifier: 0x9f Timestamp: 9781 Subpixel: unknown Clones: DP1 CRTCs: 0 1 2 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: Broadcast RGB: Automatic supported: AutomaticFullLimited 16:235 audio: auto supported: force-dvioffautoon DisplayPort-1-1 disconnected (normal left inverted right x axis y axis) Identifier: 0x55 Timestamp: 3289576 Subpixel: horizontal rgb Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) DisplayPort-1-2 connected 2560x1440+1920+0 (0x5a) normal (normal left inverted right x axis y axis) 597mm x 336mm Identifier: 0x56 Timestamp: 3289576 Subpixel: horizontal rgb Gamma: 1.0:1.0:1.0 Brightness: 1.0 Clones: CRTC: 3 CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: EDID: 00ffffffffffff00232f57a000000000 0a170104803c2278288e05ad4f33b026 0d50542108008100b30081c0d140a940 8180a9c0d1c0565e00a0a0a029503020 350055502100001a283c80a070b02340 3020260055312100001a000000fd0032 781d5f1e0000000000000000000000fc 00444953504c415920504f52540a01ca 020316f149908384853f312f2e062309 070783010000023a801871382d40582c 250055502100001e011d801871162058 2c250055502100009e011d007251d01e 206e28550055502100001e8c0ad08a20 e02d10103e960055502100000280d072 382d40102c458009252100001e72382d 40102c458009252100001e00be00ffff dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) 2560x1440 (0x5a) 241.5MHz +HSync -VSync *current +preferred h: width 2560 start 2608 end 2640 total 2720 skew 0 clock 88.8KHz v: height 1440 start 1443 end 1448 total 1481 clock 60.0Hz 3442x1566i (0x10d) 0.3MHz -HSync +VSync Interlace h: width 3442 start 3738 end 4079 total 4080 skew 0 clock 0.1KHz v: height 1566 start 1582 end 1598 total 5182 clock 0.0Hz 1920x1440 (0x5b) 234.0MHz -HSync +VSync h: width 1920 start 2048 end 2256 total 2600 skew 0 clock 90.0KHz v: height 1440 start 1441 end 1444 total 1500 clock 60.0Hz 1920x1302 (0x171) 74.2MHz -HSync -VSync h: width 1920 start 2220 end 2513 total 2514 skew 0 clock 29.5KHz v: height 1302 start 1318 end 1334 total 3382 clock 8.7Hz 1920x1200 (0x5c) 154.0MHz +HSync -VSync h: width 1920 start 1968 end 2000 total 2080 skew 0 clock 74.0KHz v: height 1200 start 1202 end 1208 total 1235 clock 60.0Hz 1920x1080 (0x5d) 297.0MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 135.0KHz v: height 1080 start 1084 end 1089 total 1125 clock 120.0Hz 1920x1080 (0x5e) 296.7MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 134.9KHz v: height 1080 start 1084 end 1089 total 1125 clock 119.9Hz 1920x1080i (0x5f) 148.5MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.5KHz v: height 1080 start 1084 end 1094 total 1125 clock 120.1Hz 1920x1080 (0x60) 148.5MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.5KHz v: height 1080 start 1084 end 1089 total 1125 clock 60.0Hz 1920x1080 (0x61) 148.5MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.5KHz v: height 1080 start 1082 end 1087 total 1125 clock 60.0Hz 1920x1080i (0x63) 148.4MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.4KHz v: height 1080 start 1084 end 1094 total 1125 clock 120.0Hz 1920x1080 (0x64) 148.4MHz +HSync +VSync h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 67.4KHz v: height 1080 start 1084 end 1089 total 1125 clock 59.9Hz 1920x1080i (0x65) 74.2MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 33.8KHz v: height 1080 start 1084 end 1094 total 1125 clock 60.1Hz 1920x1080i (0x66) 74.2MHz +HSync +VSync Interlace h: width 1920 start 2008 end 2052 total 2200 skew 0 clock 33.7KHz v: height 1080 start 1084 end 1094 total 1125 clock 60.0Hz 1600x1200 (0x67) 162.0MHz +HSync +VSync h: width 1600 start 1664 end 1856 total 2160 skew 0 clock 75.0KHz v: height 1200 start 1201 end 1204 total 1250 clock 60.0Hz 1680x1050 (0x68) 146.2MHz -HSync +VSync h: width 1680 start 1784 end 1960 total 2240 skew 0 clock 65.3KHz v: height 1050 start 1053 end 1059 total 1089 clock 60.0Hz 1600x900 (0x69) 119.0MHz -HSync +VSync h: width 1600 start 1696 end 1864 total 2128 skew 0 clock 55.9KHz v: height 900 start 901 end 904 total 932 clock 60.0Hz 1280x1024 (0x6a) 108.0MHz +HSync +VSync h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 3722x301i (0x172) 532.6MHz -HSync -VSync Interlace h: width 3722 start 4040 end 4446 total 4447 skew 0 clock 119.8KHz v: height 301 start 317 end 333 total 334 clock 717.1Hz 1280x800 (0x6b) 83.5MHz +HSync -VSync h: width 1280 start 1352 end 1480 total 1680 skew 0 clock 49.7KHz v: height 800 start 803 end 809 total 831 clock 59.8Hz 1280x720 (0x6c) 148.5MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 90.0KHz v: height 720 start 725 end 730 total 750 clock 120.0Hz 1280x720 (0x6d) 148.4MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 89.9KHz v: height 720 start 725 end 730 total 750 clock 119.9Hz 1280x720 (0x111) 74.4MHz -HSync +VSync h: width 1280 start 1336 end 1472 total 1664 skew 0 clock 44.7KHz v: height 720 start 721 end 724 total 746 clock 60.0Hz 1280x720 (0x6e) 74.2MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 45.0KHz v: height 720 start 725 end 730 total 750 clock 60.0Hz 1280x720 (0x6f) 74.2MHz +HSync +VSync h: width 1280 start 1390 end 1430 total 1650 skew 0 clock 45.0KHz v: height 720 start 725 end 730 total 750 clock 59.9Hz 1024x768 (0x70) 65.0MHz -HSync -VSync h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 1440x480i (0x71) 27.0MHz -HSync -VSync Interlace h: width 1440 start 1478 end 1602 total 1716 skew 0 clock 15.8KHz v: height 480 start 488 end 494 total 525 clock 60.1Hz 1440x480i (0x72) 27.0MHz -HSync -VSync Interlace h: width 1440 start 1478 end 1602 total 1716 skew 0 clock 15.7KHz v: height 480 start 488 end 494 total 525 clock 60.1Hz 800x600 (0x73) 40.0MHz +HSync +VSync h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 720x480 (0x74) 54.1MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 63.0KHz v: height 480 start 489 end 495 total 525 clock 120.0Hz 720x480 (0x75) 54.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 62.9KHz v: height 480 start 489 end 495 total 525 clock 119.9Hz 720x480 (0x76) 27.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 31.5KHz v: height 480 start 489 end 495 total 525 clock 60.0Hz 720x480 (0x77) 27.0MHz -HSync -VSync h: width 720 start 736 end 798 total 858 skew 0 clock 31.5KHz v: height 480 start 489 end 495 total 525 clock 59.9Hz 640x480 (0x78) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 60.0Hz 640x480 (0x79) 25.2MHz -HSync -VSync h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz DisplayPort-1-3 disconnected (normal left inverted right x axis y axis) Identifier: 0x57 Timestamp: 3289576 Subpixel: horizontal rgb Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: dither: off supported: offon audio: auto supported: offonauto underscan vborder: 0 range: (0, 128) underscan hborder: 0 range: (0, 128) underscan: off supported: offonauto coherent: 1 range: (0, 1) VGA-1-1 disconnected (normal left inverted right x axis y axis) Identifier: 0x58 Timestamp: 3289576 Subpixel: no subpixels Clones: CRTCs: 3 4 5 6 7 8 Transform: 1.000000 0.000000 0.000000 0.000000 1.000000 0.000000 0.000000 0.000000 1.000000 filter: load detection: 1 range: (0, 1) 1280x1024 (0x6a) 108.0MHz h: width 1280 start 1328 end 1440 total 1688 skew 0 clock 64.0KHz v: height 1024 start 1025 end 1028 total 1066 clock 60.0Hz 1024x768 (0x70) 65.0MHz h: width 1024 start 1048 end 1184 total 1344 skew 0 clock 48.4KHz v: height 768 start 771 end 777 total 806 clock 60.0Hz 800x600 (0x73) 40.0MHz h: width 800 start 840 end 968 total 1056 skew 0 clock 37.9KHz v: height 600 start 601 end 605 total 628 clock 60.3Hz 640x480 (0x79) 25.2MHz h: width 640 start 656 end 752 total 800 skew 0 clock 31.5KHz v: height 480 start 490 end 492 total 525 clock 59.9Hz
It could just be the PRIME synchronisation issue, but let's see if the radeon guys have any clue first.
I'm inclined to say it's PRIME issues. Is it a problem if you use the radeon card directly rather than as an offload slave?
(In reply to comment #6) > I'm inclined to say it's PRIME issues. Is it a problem if you use the > radeon card directly rather than as an offload slave? $ xrandr --listproviders Providers: number : 3 Provider 0: id: 0xa0 cap: 0xb, Source Output, Sink Output, Sink Offload crtcs: 3 outputs: 4 associated providers: 2 name:Intel Provider 1: id: 0x59 cap: 0xf, Source Output, Sink Output, Source Offload, Sink Offload crtcs: 6 outputs: 4 associated providers: 2 name:radeon Provider 2: id: 0x59 cap: 0xf, Source Output, Sink Output, Source Offload, Sink Offload crtcs: 6 outputs: 4 associated providers: 2 name:radeon What would be xrandr command to try that?
I have a very similar issue if not exactly the same issue. Hardware: HP ZBook14 :> lspci |grep -i vga 00:02.0 VGA compatible controller: Intel Corporation Haswell-ULT Integrated Graphics Controller (rev 0b) 03:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Mars [Radeon HD 8730M] X: > head /var/log/Xorg.0.log [ 8.195] X.Org X Server 1.14.4 Release Date: 2013-10-31 [ 8.195] X Protocol Version 11, Revision 0 [ 8.195] Build Operating System: 3.14.3-200.fc20.x86_64 [ 8.195] Current Operating System: Linux metis.amer.corp.local 3.17.2-200.fc20.x86_64 #1 SMP Tue Nov 4 18:04:56 UTC 2014 x86_64 [ 8.195] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-3.17.2-200.fc20.x86_64 root=UUID=589909ab-eb3b-41ee-9751-1f6fa8e3a605 ro vconsole.font=latarcyrheb-sun16 crashkernel=auto rhgb quiet LANG=en_US.UTF-8 [ 8.195] Build Date: 27 June 2014 01:35:28AM [ 8.195] Build ID: xorg-x11-server 1.14.4-11.fc20 [ 8.195] Current version of pixman: 0.30.0 > grep -iA4 radeon_drv.so /var/log/Xorg.0.log [ 8.207] (II) Loading /usr/lib64/xorg/modules/drivers/radeon_drv.so [ 8.207] (II) Module radeon: vendor="X.Org Foundation" [ 8.207] compiled for 1.14.3, module version = 7.2.99 [ 8.207] Module class: X.Org Video Driver [ 8.207] ABI class: X.Org Video Driver, version 14.1 > grep -iA4 intel_drv.so /var/log/Xorg.0.log [ 8.206] (II) Loading /usr/lib64/xorg/modules/drivers/intel_drv.so [ 8.206] (II) Module intel: vendor="X.Org Foundation" [ 8.206] compiled for 1.14.4, module version = 2.21.15 [ 8.206] Module class: X.Org Video Driver [ 8.206] ABI class: X.Org Video Driver, version 14.1 > xrandr --listproviders Providers: number : 3 Provider 0: id: 0x90 cap: 0xb, Source Output, Sink Output, Sink Offload crtcs: 3 outputs: 5 associated providers: 2 name:Intel Provider 1: id: 0x53 cap: 0xf, Source Output, Sink Output, Source Offload, Sink Offload crtcs: 2 outputs: 2 associated providers: 2 name:radeon Provider 2: id: 0x53 cap: 0xf, Source Output, Sink Output, Source Offload, Sink Offload crtcs: 2 outputs: 2 associated providers: 2 name:radeon The laptop (internal) screen works great. When docked, a monitor attached to the VGA (HD 15) port works great, but the same monitor attached to either of the DP ports does not redraw correctly. That is if I move a window there is a trail of pieces of the window from the original position to the new position. Similarly, if I do an `ls -la' in a window the files are not visible unless I slightly move the window, hit enter, or otherwise cause the screen to be redrawn. I have tried several different cable and monitor combinations all with the same result. I am happy to provide any additional info. Thanks, Don
*** Bug 87443 has been marked as a duplicate of this bug. ***
I also feel like artifacts using DRI_PRIME = 1 steam intel 3rd generation and radeon HD 7970M ~$ xrandr --listproviders Providers: number : 3 Provider 0: id: 0x72 cap: 0x9, Source Output, Sink Offload crtcs: 4 outputs: 9 associated providers: 2 name:Intel Provider 1: id: 0x45 cap: 0x6, Sink Output, Source Offload crtcs: 6 outputs: 0 associated providers: 2 name:radeon Provider 2: id: 0x45 cap: 0x6, Sink Output, Source Offload crtcs: 6 outputs: 0 associated providers: 2 name:radeon
Created attachment 114615 [details] Steam corruption with PRIME With steam started with DRI_PRIME=1 I'm seeing corruption too. Same hardware with ivy bridge + HD 7970M. It's not permanent corruption, it's maybe every 30 seconds to a few minutes or so and goes away after 1-3 seconds. It's not super urgent that this is implemented, but as it is now, it produces some pretty bad looking stuff...
Is this still an issue with dri3 + latest git radeon driver?
The underlying issue that dma-buf fences are not implemented on the intel side is still not fixed. Many games are still only playable with xf86-video-ati and LIBGL_DRI3_DISABLE=1.
(In reply to Christoph Haag from comment #13) > The underlying issue that dma-buf fences are not implemented on the intel > side is still not fixed. It's fixed now, may only be available as of 4.9-rc kernels though.
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/xorg/driver/xf86-video-ati/issues/97.
