Ubuntu Feisty 7.04 drm-git (as of Apr/28) xf86-video-nouveau git (as of Apr/28) mesa-git (as of Apr/28) Testing nouveau, which works ok in 2D, trying to test in 3D and starting glxgears crashes X. The gears window is drawn, the window decorations are drawn, the area where gears are supposed to be is black, the machine pauses and then X crashes dropping back out to a getty shell. Will attach files Xorg.0.log syslog lspci stdout
Created attachment 9861 [details] lspci output
Created attachment 9862 [details] Xorg.0.log
Created attachment 9863 [details] syslog output with insmod dri.ko debug=1
Created attachment 9864 [details] stdout from terminal where glxgears is started as follows $ glxgears > output 2>&1
Created attachment 9865 [details] dmesg from a clean boot of machine
Created attachment 9925 [details] parsed mmio trace from running nouveau with glxgears started from ~/.xiniitrc
bugs.fd.o wont let me attach a file larger than 1000kb so to work around that and to save bugs.fd.o see, http://www.careysoft.co.nz/nouveau/10de0322/nouveau-cpu0-parsed.gz and http://www.careysoft.co.nz/nouveau/10de0322/nvidia-cpu0-parsed.gz
Following marcheu's instructions (refer http://lattice.u-strasbg.fr/irclogs/nouveau-2007-05-11) I commented line 808 and 809 out of mesa/src/mesa/drivers/dri/nouveau/nv30_state.c. // BEGIN_RING_SIZE(NvSub3D, 0x03b0, 1); // OUT_RING(0x00100000); Now when I start gears I get the black window (no window decorations, but am now running nude X) and things just sit there and seem to be quite happy. Will attach syslog and photo. Then when I click on a window either the terminal from which I started gears or gears itself X crashes, now getting a new error in the syslog output, but is this a different case is this trying to context switch? and gears is working with no gears drawn?
Created attachment 9926 [details] new syslog with dri.ko debug=1
Created attachment 9927 [details] new Xorg.log

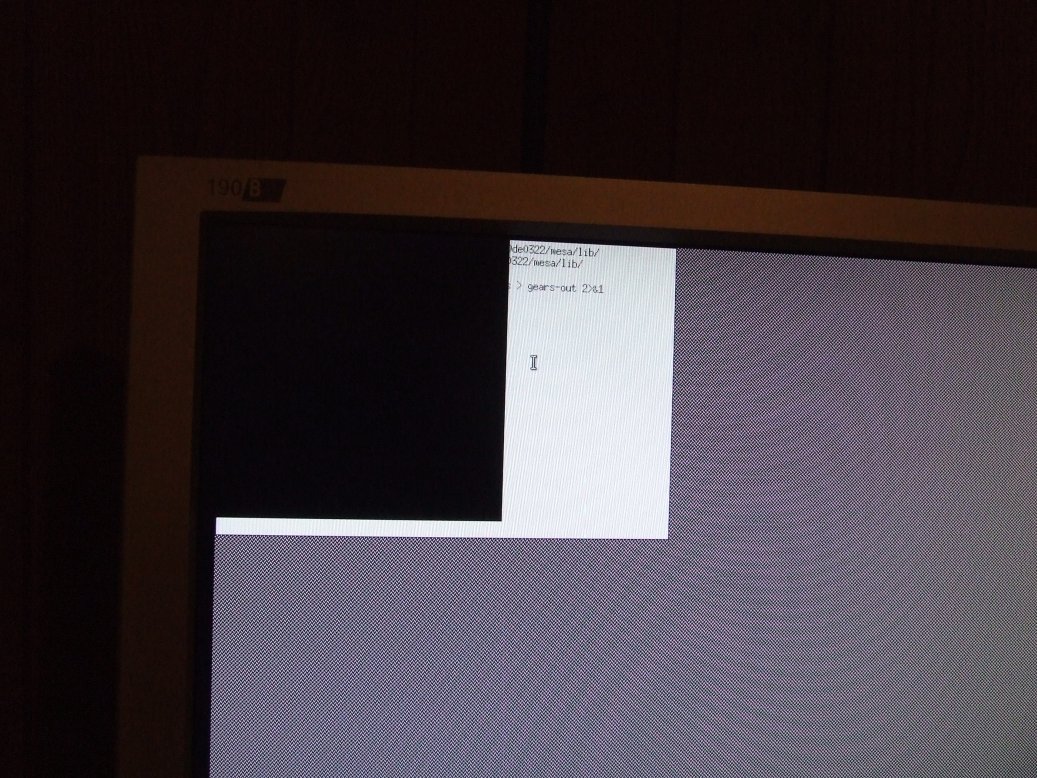

Created attachment 9928 [details] image of gears window running and X not crashing (I had enough time to get the camera out and take the photo!)
another data point, if I start gears and I leave the mouse still things seem ok, the minute I move the mouse I get an X crash 0.5s to 2s later
xf86-video-nouveau: d1b75251a3f225890f1e25b11038389d71b67611 2007-03-07 23:41:22 drm: 4f795a05f1f987491d85d5b9bdbf280451c7ed20 2007-03-10 12:11:10 mesa: 30b914e2ca28cd44eed57b34353e641793b38a6d 2007-03-10 12:19:1 May 12 13:20:03 daisy kernel: [ 172.382038] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: PGRAPH error interrupt May 12 13:20:03 daisy kernel: [ 172.382059] [drm:nouveau_pgraph_irq_handler] *ERROR* nsource:0x00040000^Instatus:0x01000000 May 12 13:20:03 daisy kernel: [ 172.382067] [drm:nouveau_pgraph_irq_handler] *ERROR* instance:0x00001d7c May 12 13:20:03 daisy kernel: [ 172.382077] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: nSource: 0x00040000, nStatus: 0x01000000 May 12 13:20:03 daisy kernel: [ 172.382087] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: Channel 1/7 (class 0x0697) -Method 0x03b0, Data 0x00100000 May 12 13:20:03 daisy kernel: [ 172.402132] [drm:drm_ioctl] pid=5007, cmd=0x4008642a, nr=0x2a, dev 0xe201, auth=1 May 12 13:20:03 daisy kernel: [ 172.402144] [drm:drm_lock] 1 (pid 5007) requests lock (0x00000002), flags = 0x00000000 May 12 13:20:03 daisy kernel: [ 172.402153] [drm:drm_lock] 1 has lock May 12 13:20:48 daisy kernel: [ 217.677871] [drm:nouveau_irq_handler] PMC INTSTAT: 0x00001000 May 12 13:20:48 daisy kernel: [ 217.677884] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: PGRAPH error interrupt May 12 13:20:48 daisy kernel: [ 217.677895] [drm:nouveau_pgraph_irq_handler] *ERROR* nsource:0x00040000^Instatus:0x01000000 May 12 13:20:48 daisy kernel: [ 217.677902] [drm:nouveau_pgraph_irq_handler] *ERROR* instance:0x00001d7c May 12 13:20:48 daisy kernel: [ 217.677913] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: nSource: 0x00040000, nStatus: 0x01000000 May 12 13:20:48 daisy kernel: [ 217.677923] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: Channel 1/7 (class 0x0697) -Method 0x1e98, Data 0x00000000 mesa: 440759c2cdfdd9a7fbc6500fca2afa519126c1a7 21/02/2007 11:17:09 drm: a253de2fcfa11abadd4697a9d89137adf3f35f78 18/02/2007 19:59:40 xf86-video-nouveau: c85da5d8b346e17e68da68e57d62c3f77029b680 14/Feb/2007 12:35:50 May 12 12:29:32 daisy kernel: [ 167.718390] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: PGRAPH error interrupt May 12 12:29:32 daisy kernel: [ 167.718402] [drm:nouveau_pgraph_irq_handler] *ERROR* nsource:0x00040000^Instatus:0x01000000 May 12 12:29:32 daisy kernel: [ 167.718409] [drm:nouveau_pgraph_irq_handler] *ERROR* instance:0x00001d77 May 12 12:29:32 daisy kernel: [ 167.718417] [drm:nouveau_pgraph_irq_handler] NV: 0x400704 = 0x001703b0 May 12 12:29:32 daisy kernel: [ 167.718426] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: Channel 1/7 (class 0x0697) -Method 0x03b0, Data 0x00100000 May 12 12:29:32 daisy kernel: [ 167.718435] [drm:nouveau_irq_handler] *ERROR* Unhandled PMC INTR status bits 0x80000000 May 12 12:29:32 daisy kernel: [ 167.736385] [drm:drm_ioctl] pid=4999, cmd=0x4008642a, nr=0x2a, dev 0xe201, auth=1 May 12 12:29:32 daisy kernel: [ 167.736400] [drm:drm_lock] 1 (pid 4999) requests lock (0x00000002), flags = 0x00000000 May 12 12:29:32 daisy kernel: [ 167.736409] [drm:drm_lock] 1 has lock May 12 12:30:39 daisy kernel: [ 235.245792] [drm:nouveau_irq_handler] PMC INTSTAT: 0x00001000 May 12 12:30:39 daisy kernel: [ 235.245805] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: PGRAPH error interrupt May 12 12:30:39 daisy kernel: [ 235.245816] [drm:nouveau_pgraph_irq_handler] *ERROR* nsource:0x00040000^Instatus:0x01000000 May 12 12:30:39 daisy kernel: [ 235.245824] [drm:nouveau_pgraph_irq_handler] *ERROR* instance:0x00001d77 May 12 12:30:39 daisy kernel: [ 235.245831] [drm:nouveau_pgraph_irq_handler] NV: 0x400704 = 0x00171e98 May 12 12:30:39 daisy kernel: [ 235.245840] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: Channel 1/7 (class 0x0697) -Method 0x1e98, Data 0x00000000 Note that here mouse can be moved within one window boundary (and possibly out to the root window), and as long as it does not leave a window boundary (which changes the cursor) then x server lives, as soon as leave the window (cursor changes from text select to big X) and then reenter original window (which I presume tries to change the cursor back to text select) x crashes. Suggestions; 1. Fix 440759c2cdfdd9a7fbc6500fca2afa519126c1a7 to work for nv34, TiNDC 15 (http://nouveau.freedesktop.org/wiki/Nouveau_Companion_15) shows a gear on nv3X and an IRC window which marcheu identifies as being from Feb/24 (refer http://lattice.u-strasbg.fr/irclogs/nouveau-2007-05-12) 2. Add a call to nv30WindowMoved from the end of nv30InitCard, once we can get through nv30WindowMoved without crashing.
refer bug 10933 have put nv34 in another machine. Once installed the new machine only has one nvidia card in it the nv34 (will attach a new dmesg and lspci). running glxgears with; drm: ea98d7e79657469545b865a353784d79fc8cff9d xf86-video-nouveau: 7af7d95eb8826fa3fb9914a8c6ad4b6f4867095e mesa: 25551bdfad8541337a4e59e7e3764fa9b876cb19 no drm errors encountered! gears window is drawn, can move mouse around (into and out of windows), can move the gears window around. glxgears consumes as much cpu as possible (logged in remotely to verify). No gears are drawn, and no frame rate information is written to the terminal in which gears we started.
Created attachment 10023 [details] lspci output from new machine
Created attachment 10024 [details] dmesg from a clean boot of new machine
Created attachment 10025 [details] syslog after insmod drm.ko debug=1
Created attachment 10026 [details] contents of stdout and stderr from terminal in which glxgears was started
Created attachment 10027 [details] new Xorg log
Created attachment 10028 [details] glxinfo output showind direct rendering in action
additional data point comment 14 is the result of running glxgears after having run glxgears with the nvidia driver (see dmesg output in comment 16), then; shutting down X, apt-get remove nvidia-glx, insmod drm.ko debug=1, insmod nouveau.ko, startx, exporting LD_LIBRARY_PATH, LIBGL_DRIVERS_PATH and re-running glxgears. If I reboot the machine, but not halt/power off (tested through 3 cycles), then the behaviour is repeatable (i.e running gears does not crash X, but no gears are drawn). If I halt/power off the machine, wait 20s, power back on, then the same drm/xf86-video-nouveau/mesa combination crashes X. When X crashes, I get nothing abnormal in syslog, I do get a FIFO dump in Xorg.log (will attach both) Does this mean that the nvidia driver (blob) is doing something to initialise (?) the card that we are not? I think yes, it appears to persist across reboots but not powering off. I think darktama suggested something like this on IRC at some stage ... Can I reproduce this behaviour - yes (all I have to do is reinstall nvidia-glx-dev and cycle through the steps outlined in this comment), how do I track down the configuration stuff that nvidia is doing that nouveau is not yet doing to stop the crash?
Created attachment 10032 [details] Xorg.0.log showing FIFO dump from comment 21 Xorg.0.log showing FIFO dump from comment 21
Created attachment 10033 [details] syslog output noted in comment 21
Created attachment 10034 [details] dmesg output for comment 21
Created attachment 10035 [details] kern.log from failure noted in comment 21 dog! looking in the wrong place, checks /var/log/kern.log Looks like I am still seeing the error at offset 0x03b0 that started this all off..... (no nv05) in the machine this time!! May 20 12:40:50 angus kernel: [ 263.060000] [drm:nouveau_pgraph_irq_handler] *ERROR* NV: PGRAPH error interrupt May 20 12:40:50 angus kernel: [ 263.060000] [drm:nouveau_pgraph_irq_handler] *ERROR* nsource:0x00040000^Instatus:0x01000000 May 20 12:40:50 angus kernel: [ 263.060000] [drm:nouveau_pgraph_irq_handler] *ERROR* instance:0x0000234e May 20 12:40:50 angus kernel: [ 263.060000] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: nSource: 0x00040000, nStatus: 0x01000000 May 20 12:40:50 angus kernel: [ 263.060000] [drm:nouveau_graph_dump_trap_info] *ERROR* NV: Channel 1/7 (class 0x0697) -Method 0x03b0, Data 0x00100000
Created attachment 10036 [details] kern.log from when glxgears runs without crashing but no gears drawn, see comment 21
As at; drm 84bea383538df83c049680497ba2179e50d07ca3 xf86-video-nouveau d59fbb4725602c409beee4ab96dca1eab5d73b2a mesa f6963f57d9d1e9bf630c05c1c89f188091b12fc5 if I load the blob first and run glxgears with the blob, before shutting X down uninstalling the blob loading nouveau, setting meas paths and then trying glxgears then I get; careym@angus:~$ glxgears libGL warning: 3D driver claims to not support visual 0x8a ************************************INFO*********************************** File nouveau_fifo.c function nouveauFifoInit line 138 Fifo init ok. Using context 1 *************************************************************************** do_wait: drmWaitVBlank returned -1, IRQs don't seem to be working correctly. Try running with LIBGL_THROTTLE_REFRESH and LIBL_SYNC_REFRESH unset. 3099 frames in 5.0 seconds = 619.664 FPS 3147 frames in 5.0 seconds = 629.332 FPS 3149 frames in 5.0 seconds = 629.606 FPS 3148 frames in 5.0 seconds = 629.493 FPS 3146 frames in 5.0 seconds = 629.015 FPS 3143 frames in 5.0 seconds = 628.588 FPS 3146 frames in 5.0 seconds = 629.107 FPS unfortunately for me this is just a black window with no gears drawn. However it is progress as X doesnt crash anymore!! (kudos jkolb see TiNDC21) If I dont load the blob first then X crashes, will attach kern.log
Created attachment 10318 [details] kern.log from trying to run glxgears without having first done so with the nvidia proprietary driver
What's the status on this bug?
By the sounds of things I need to build a prerelease version of Xorg to test current nouveau On Feb 2, 2008 8:21 AM, <bugzilla-daemon@freedesktop.org> wrote: > > http://bugs.freedesktop.org/show_bug.cgi?id=10858 > > > > > > --- Comment #29 from Maarten Maathuis <madman2003@gmail.com> 2008-02-01 11:21:49 PST --- > What's the status on this bug? > > > -- > Configure bugmail: http://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You are the assignee for the bug. > _______________________________________________ > Nouveau mailing list > Nouveau@lists.freedesktop.org > http://lists.freedesktop.org/mailman/listinfo/nouveau >
Ubuntu 8.04 alpha X.Org X Server 1.4.0.90 drm c77b0937f290568604961fa0013691349c5fcf3b xf86-video-nouveau 5b79b0a9e54fe99eaae5b411f46a601b6944b773 mesa ca8d91610f547b9c66f703e07356f6347a121516 I get, careym@daisy:~/nouveau/mesa$ glxgears libGL: XF86DRIGetClientDriverName: 0.0.10 nouveau (screen 0) libGL: OpenDriver: trying /home/careym/nouveau/mesa/lib//nouveau_dri.so drmOpenDevice: node name is /dev/dri/card0 drmOpenDevice: open result is 4, (OK) drmOpenByBusid: Searching for BusID pci:0000:02:04.0 drmOpenDevice: node name is /dev/dri/card0 drmOpenDevice: open result is 4, (OK) drmOpenByBusid: drmOpenMinor returns 4 drmOpenByBusid: drmGetBusid reports drmOpenDevice: node name is /dev/dri/card1 drmOpenDevice: open result is 4, (OK) drmOpenByBusid: drmOpenMinor returns 4 drmOpenByBusid: drmGetBusid reports pci:0000:02:04.0 ************************************INFO*********************************** File nouveau_fifo.c function nouveauFifoInit line 149 Fifo init ok. Using context 2 *************************************************************************** libGL error: Can't open configuration file /etc/drirc: No such file or directory. libGL error: Can't open configuration file /home/careym/.drirc: No such file or directory. do_wait: drmWaitVBlank returned -1, IRQs don't seem to be working correctly. Try running with LIBGL_THROTTLE_REFRESH and LIBL_SYNC_REFRESH unset. 3477 frames in 5.0 seconds = 695.327 FPS 3783 frames in 5.0 seconds = 756.485 FPS 3788 frames in 5.0 seconds = 757.565 FPS 3423 frames in 5.0 seconds = 684.480 FPS XIO: fatal IO error 11 (Resource temporarily unavailable) on X server ":0.0" after 49395 requests (49214 known processed) with 0 events remaining. The gears window and decorations are drawn but the background is black and I cant see the gears. If I remove git mesa and use the one installed by ubuntu software rendering draws gears for me - albeit really slowly.
House cleaning.
