Bug 12109 - Radeon render artifacts with RS480
Summary: Radeon render artifacts with RS480
Status: RESOLVED WORKSFORME
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/r300 (show other bugs)
Version: git
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2007-08-23 03:44 UTC by Javier Kohen
Modified: 2009-08-24 12:27 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments

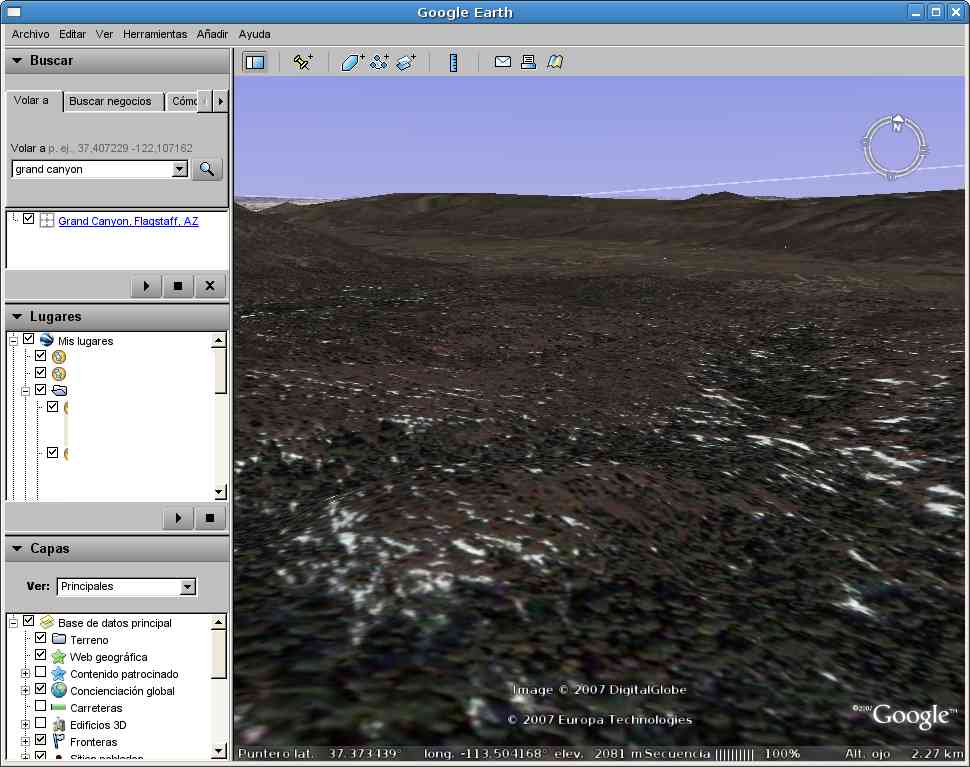

Approaching the floor, no artifacts (64.32 KB, image/jpeg)
2007-08-23 03:45 UTC, Javier Kohen
Details

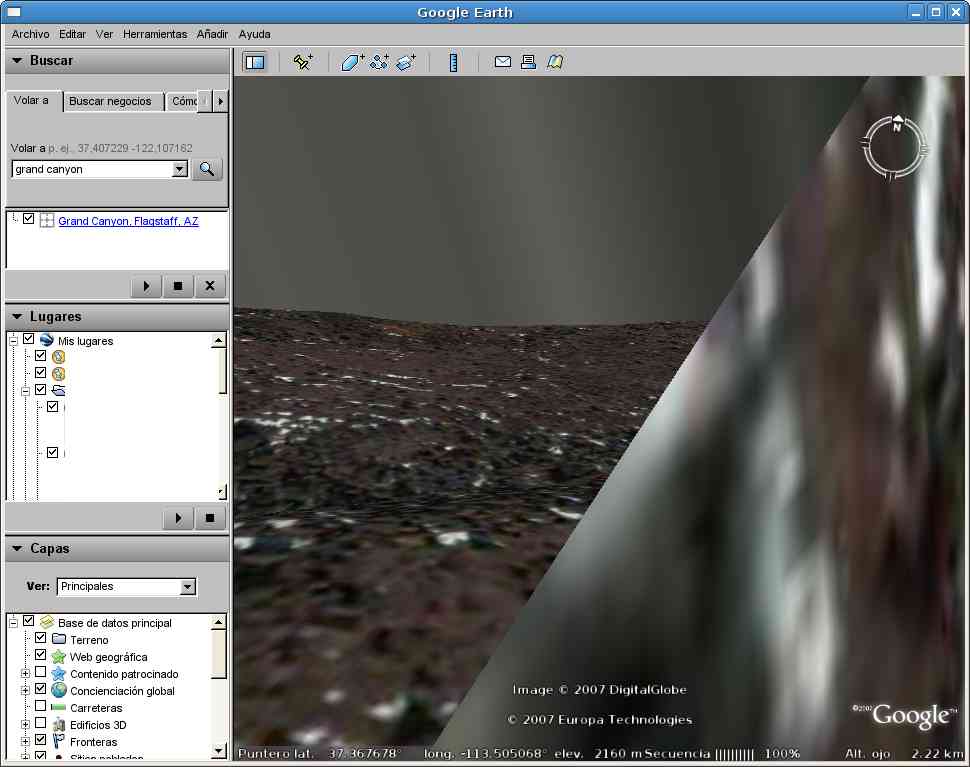

A notch closer to the ground. Some artifacts appear. (49.00 KB, image/jpeg)
2007-08-23 03:45 UTC, Javier Kohen
Details

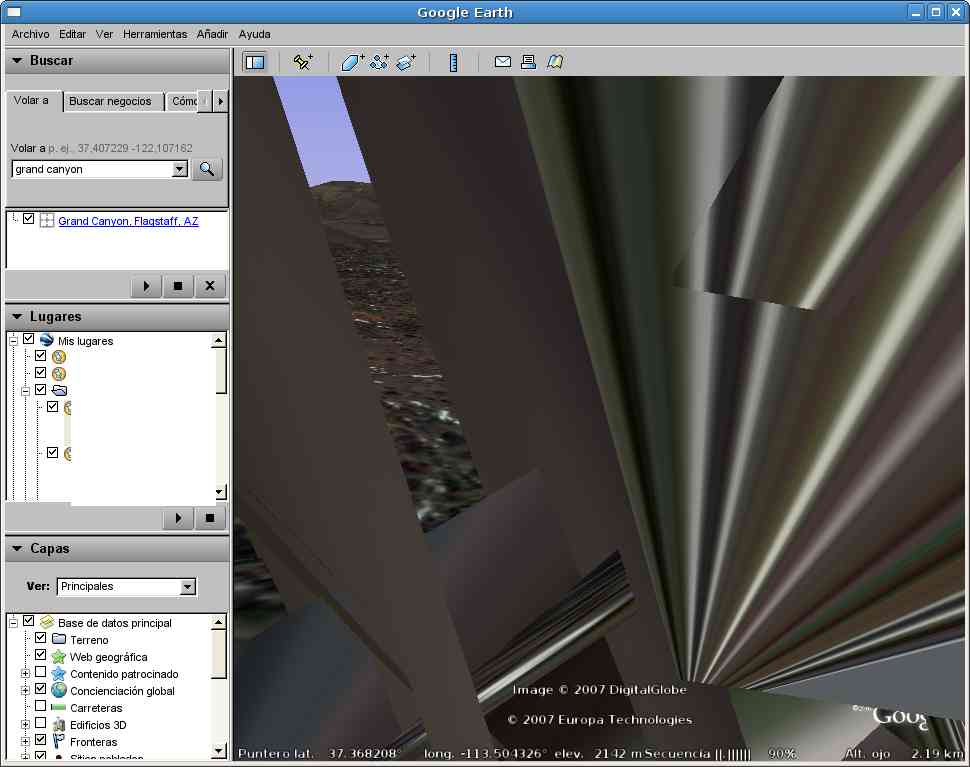

Even closer to the ground. Artifacts begin to clog the view. (46.61 KB, image/jpeg)
2007-08-23 03:46 UTC, Javier Kohen
Details

Description Javier Kohen 2007-08-23 03:44:02 UTC
I'm using the xorg-video-ati 6.6.193 driver along with Debian's Mesa
7.0.1. I have a Radeon xpress200M.

I've noticed that render artifacts show up whenever the camera gets too
close to ground level both on Google Earth and Neverwinter Nights. On
the latter, enabling sky boxes can also cause similar artifacts when the
camera is far away from the ground (i.e. close to the sky).

Basically these artifacts appear in the form stray textured polygons
that appear between the camera and the object of interest, thus making
it very hard to see anything at all. These polygons also appear when the
camera is in other positions, only that it seems les common (probably
due to most objects actually being at ground level).

I'm attaching some screenshots that show how the view on Google Earth deteriorates as you get closer to the floor. The artifacts on NWN are similar.
Comment 1 Javier Kohen 2007-08-23 03:45:01 UTC
Created attachment 11221 [details]
Approaching the floor, no artifacts
Comment 2 Javier Kohen 2007-08-23 03:45:33 UTC
Created attachment 11222 [details]
A notch closer to the ground. Some artifacts appear.
Comment 3 Javier Kohen 2007-08-23 03:46:18 UTC
Created attachment 11223 [details]
Even closer to the ground. Artifacts begin to clog the view.

That's it for the screenshots. Getting even a little bit closer already covers the whole viewport with artifacts.
Comment 4 Dave Airlie 2007-08-23 13:56:48 UTC
can you try with the Mesa git tree? the code in 7.0.1 doesn't have the clipping fixes in it yet.
Comment 5 Javier Kohen 2007-08-24 01:20:24 UTC
Yes, that was enough to get rid of the issue. Thanks.
Comment 6 Adam Jackson 2009-08-24 12:27:52 UTC
Mass version move, cvs -> git
