Created attachment 18243 [details] Simple 3D texture code that I found on the web URL I mentioned in the report I have been trying to get 3D textures to work on these cards for a while. 3D textures do work on R200 DRI. They don't work on R300-R400-R500 DRI. The test programs I used worked on R200 cards. They also work with ATI proprietary drivers on all cards. Test programs: 1. A sample 3D texture program I found on the web. I am attaching the code and output screenshot http://gpwiki.org/index.php/OpenGL:Tutorials:3D_Textures The output should look like this: http://gpwiki.org/index.php/Files:3dtex-example2.jpg However, my output on the R300/R400/R500 cards is just a red pyramid. This program works well on R200 drivers. 2. Another test program was from OpenRM scenegraph: http://www.openrm.org/docs/demoprogs.shtml#vrend This program again works well with R200 drivers. My test systems (on which 3D textures don't work): ----------------- 1. Fedora 9 X86_64 R300- R400 based card (ATI Technologies Inc R480 [Radeon X800 GTO (PCIE)]) uname -a output: Linux localhost.localdomain 2.6.25.11-97.fc9.x86_64 #1 SMP Mon Jul 21 01:09:10 EDT 2008 x86_64 x86_64 x86_64 GNU/Linux glxinfo output: name of display: :0.0 display: :0 screen: 0 direct rendering: Yes server glx vendor string: SGI server glx version string: 1.2 server glx extensions: GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group client glx vendor string: SGI client glx version string: 1.4 client glx extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory, GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap GLX version: 1.2 GLX extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group OpenGL vendor string: DRI R300 Project OpenGL renderer string: Mesa DRI R300 20060815 TCL OpenGL version string: 1.3 Mesa 7.1 rc1 OpenGL extensions: GL_ARB_depth_texture, GL_ARB_fragment_program, GL_ARB_imaging, GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_shadow, GL_ARB_texture_border_clamp, GL_ARB_texture_compression, GL_ARB_texture_cube_map, GL_ARB_texture_env_add, GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3, GL_MESAX_texture_float, GL_ARB_texture_mirrored_repeat, GL_ARB_texture_rectangle, GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color, GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate, GL_EXT_blend_logic_op, GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_clip_volume_hint, GL_EXT_compiled_vertex_array, GL_EXT_convolution, GL_EXT_copy_texture, GL_EXT_draw_range_elements, GL_EXT_gpu_program_parameters, GL_EXT_histogram, GL_EXT_multi_draw_arrays, GL_EXT_packed_pixels, GL_EXT_polygon_offset, GL_EXT_rescale_normal, GL_EXT_secondary_color, GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_two_side, GL_EXT_stencil_wrap, GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_compression_s3tc, GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add, GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3, GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias, GL_EXT_texture_mirror_clamp, GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_vertex_array, GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate, GL_ATI_texture_env_combine3, GL_ATI_texture_mirror_once, GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture, GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent, GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_NV_vertex_program, GL_OES_read_format, GL_SGI_color_matrix, GL_SGI_color_table, GL_SGIS_generate_mipmap, GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp, GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SUN_multi_draw_arrays 3 GLX Visuals visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x21 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x22 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x6f 32 tc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 16 GLXFBConfigs: visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x70 0 tc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x71 0 tc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x72 0 tc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x73 0 tc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x74 0 tc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x75 0 tc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x76 0 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x77 0 tc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x78 0 dc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x79 0 dc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x7a 0 dc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x7b 0 dc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x7c 0 dc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x7d 0 dc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x7e 0 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x7f 0 dc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 2. Fedora 10 Alpha R500 based card (ATI Technologies - X1650 AGP) uname -a output Linux localhost.localdomain 2.6.27-0.244.rc2.git1.fc10.x86_64 #1 SMP Fri Aug 8 13:14:06 EDT 2008 x86_64 x86_64 x86_64 GNU/Linux glxinfo output name of display: :0.0 display: :0 screen: 0 direct rendering: Yes server glx vendor string: SGI server glx version string: 1.2 server glx extensions: GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group client glx vendor string: SGI client glx version string: 1.4 client glx extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory, GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap GLX version: 1.2 GLX extensions: GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_swap_control, GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_SGI_swap_control, GLX_SGI_video_sync, GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_visual_select_group OpenGL vendor string: DRI R300 Project OpenGL renderer string: Mesa DRI R300 20060815 AGP 4x TCL OpenGL version string: 1.3 Mesa 7.1 rc1 OpenGL extensions: GL_ARB_depth_texture, GL_ARB_fragment_program, GL_ARB_imaging, GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_shadow, GL_ARB_texture_border_clamp, GL_ARB_texture_compression, GL_ARB_texture_cube_map, GL_ARB_texture_env_add, GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3, GL_MESAX_texture_float, GL_ARB_texture_mirrored_repeat, GL_ARB_texture_rectangle, GL_ARB_transpose_matrix, GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color, GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate, GL_EXT_blend_logic_op, GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_clip_volume_hint, GL_EXT_compiled_vertex_array, GL_EXT_convolution, GL_EXT_copy_texture, GL_EXT_draw_range_elements, GL_EXT_gpu_program_parameters, GL_EXT_histogram, GL_EXT_multi_draw_arrays, GL_EXT_packed_pixels, GL_EXT_polygon_offset, GL_EXT_rescale_normal, GL_EXT_secondary_color, GL_EXT_separate_specular_color, GL_EXT_shadow_funcs, GL_EXT_stencil_two_side, GL_EXT_stencil_wrap, GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add, GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3, GL_EXT_texture_filter_anisotropic, GL_EXT_texture_lod_bias, GL_EXT_texture_mirror_clamp, GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_vertex_array, GL_APPLE_packed_pixels, GL_ATI_blend_equation_separate, GL_ATI_texture_env_combine3, GL_ATI_texture_mirror_once, GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate, GL_MESA_pack_invert, GL_MESA_ycbcr_texture, GL_MESA_window_pos, GL_NV_blend_square, GL_NV_light_max_exponent, GL_NV_texture_rectangle, GL_NV_texgen_reflection, GL_NV_vertex_program, GL_OES_read_format, GL_SGI_color_matrix, GL_SGI_color_table, GL_SGIS_generate_mipmap, GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp, GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SUN_multi_draw_arrays 3 GLX Visuals visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x21 24 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x22 24 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x67 32 tc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 16 GLXFBConfigs: visual x bf lv rg d st colorbuffer ax dp st accumbuffer ms cav id dep cl sp sz l ci b ro r g b a bf th cl r g b a ns b eat ---------------------------------------------------------------------- 0x68 0 tc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x69 0 tc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x6a 0 tc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x6b 0 tc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x6c 0 tc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x6d 0 tc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x6e 0 tc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x6f 0 tc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x70 0 dc 0 32 0 r . . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x71 0 dc 0 32 0 r . . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x72 0 dc 0 32 0 r y . 8 8 8 8 0 24 0 0 0 0 0 0 0 None 0x73 0 dc 0 32 0 r y . 8 8 8 8 0 24 0 16 16 16 16 0 0 Slow 0x74 0 dc 0 32 0 r . . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x75 0 dc 0 32 0 r . . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow 0x76 0 dc 0 32 0 r y . 8 8 8 8 0 24 8 0 0 0 0 0 0 None 0x77 0 dc 0 32 0 r y . 8 8 8 8 0 24 8 16 16 16 16 0 0 Slow

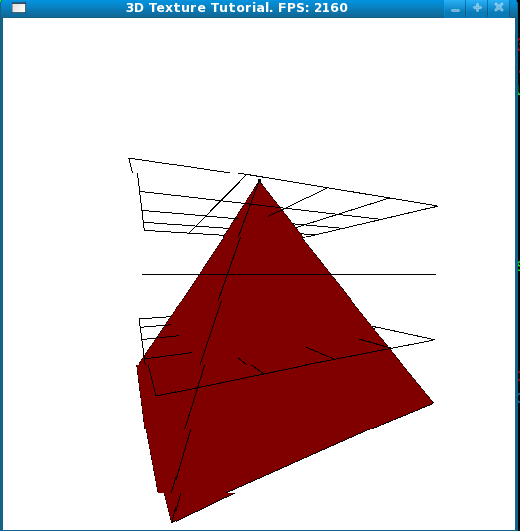

Created attachment 18244 [details] The screenshot of the sample 3D texture code. Shows just red blob.

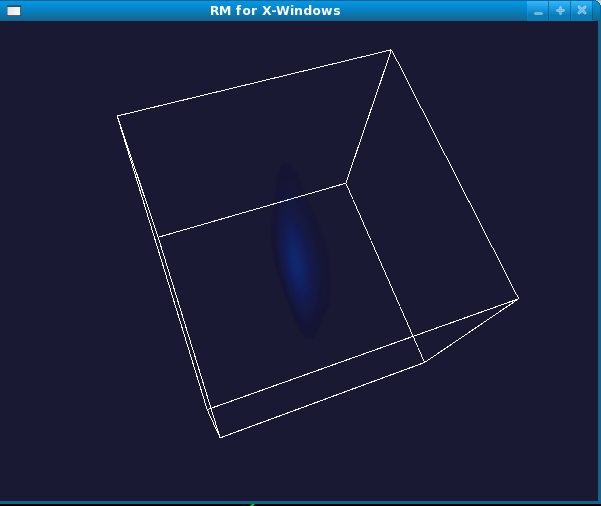

Created attachment 18245 [details] Screenshot of output from OpenRM sample application
Thanks for the report. I'm not really surprised that 3D textures don't work, we should add an automatic test to Piglit for this.
Can I help with any testing? debugging?
this should be fixed in mesa git: 57acb0fad9e6299eb2e1e2c06d043b2a418e3732
(In reply to comment #5) > this should be fixed in mesa git: > 57acb0fad9e6299eb2e1e2c06d043b2a418e3732 Right, that fixed mesa/progs/demos/stex3d on my RV350. R5xx may need more work.
(In reply to comment #6) > > Right, that fixed mesa/progs/demos/stex3d on my RV350. R5xx may need more work. > Yeah, doesn't fix it on my X1700. One sec, lemme try some stuff.
Just tested my code on R300 (X800 PCIE) card. The example programs work great. I will test this on R500 (X1650 AGP) and report back. Thanks for the fixes.
The demo programs work fine on X1650 too. I don't think they are very different from 1700, are they?
(In reply to comment #9) > The demo programs work fine on X1650 too. > I don't think they are very different from 1700, are they? > Should be the same. Looking at the docs the 3d texture stuff is the same across r3xx-r5xx, so I think we are all set.
They're quite similar. I've added a testcase for Piglit in which I've found that there are still problems that must be due to texture memory alignment. The most common cases should work for the time being. I'll take a look at it in the r300-bufmgr branch since I'm reworking texture handling anyway.
Great! do you suggest I resolve this bug? or leave it open for your fixes?
I get a SW fallback message sometimes: *********************************WARN_ONCE********************************* File r300_render.c function r300Fallback line 451 Software fallback:ctx->RenderMode != GL_RENDER *************************************************************************** This happens when I have multiple viewports in a single window. I suspect this is probably an artifact. It doesn't seem to fallback to SW rendering after this message. Because SW rendering of these volumes would be unusable. The transformations after this message just seem fine.
That warning is not a bug (maybe we should just remove it or move it to a _mesa_debug to stop getting those reports). It indicates that the application sets RenderMode to SELECT or FEEDBACK, which we can't do in hardware. It is therefore going to be slower than other things, but it should work. In any case, that message itself is not an indication of a problem other than a potential performance problem.
Well, I just tested this on my new ATI X1950Pro (RV580) card and it doesn't work. So ATI x800 PCIE (R480) -> Works ATI x1650Pro AGP -> Works ATI x1950Pro (RV580) -> Does _not_ work. I tried with the same programs as before.
Just tested with 7.2.0.14.fc10 on Fedora 10 X86_84 system. Still doesn't work on X1950Pro card.
I ran Piglit: The tex3d test failed: @test: texturing/tex3d info: @@@Returncode: 1 Errors: Render 3D texture: Mismatch at 0x0x1 Expected: 87,205,222,213 Readback: 120,152,34,125 Failure with texture size 1x1x2, format = GL_RGBA Output: errors! Render 3D texture: Mismatch at 0x0x1 Expected: 87,205,222,213 Readback: 120,152,34,125 Failure with texture size 1x1x2, format = GL_RGBA note: Returncode was 1 returncode: 1 result: fail time: 0.088436126709
I confirm it. Looks like only 3d textures with rowstride < 64 bytes are affected (found with mesa/progs/demos/stex3d).
Fixed in F11 Mesa 7.5-Devel
The small 3D textures are fixed now (commit e0eafde746fee546b16205e4a605e28f78e120f9).
Wow! thanks!
