Created attachment 23791 [details] xorg.0.log system Environment: -------------------------- Libdrm: (master)82eac8060b98b425f29051bfd7830ba3622be7d8 Mesa: (mesa_7_4_branch)2adaec12267767747a22646c759b0d6c1651d3bf Xserver: (server-1.6-branch)f469726fec502ce29999eda6919c3c3d26c127d8 Xf86_video_intel: (2.7)4e334ef33c38e2e930958a4b68d79f1860bb9efa Kernel: (for-airlied)edde72a59461d766997b469f6d20afdf5fe9b5b4 connector:LVDS Bug detailed description: ------------------------- startx with KMS enabled, we will get a incorrect display on the desktop as is shown in the attached screenshot. it displays normal with KMS disabled.and only happens on gm45. reproduce steps: ------------------------ 1.xinit& 2.gnome-session&
Created attachment 23792 [details] xorg conf file

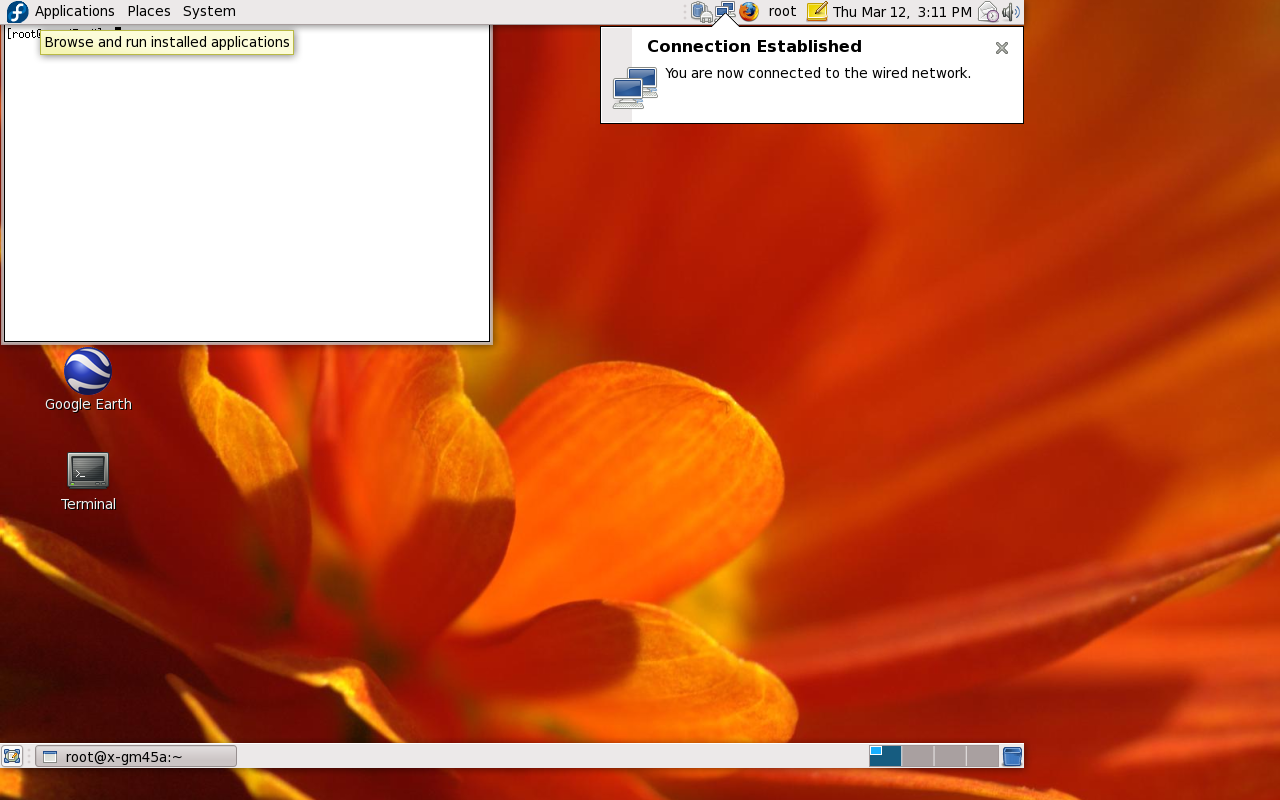

Created attachment 23793 [details] screenshot
Looks like we're detecting outputs incorrectly in the KMS case. Can you post xrandr output for both the UMS and KMS cases?
(In reply to comment #3) > Looks like we're detecting outputs incorrectly in the KMS case. Can you post > xrandr output for both the UMS and KMS cases? > 1.xrandr for KMS: xrandr -q: Screen 0: minimum 320 x 200, current 1280 x 800, maximum 8192 x 8192 VGA1 disconnected (normal left inverted right x axis y axis) LVDS1 connected 1280x800+0+0 (normal left inverted right x axis y axis) 261mm x 163mm 1280x800 60.0*+ DVI1 disconnected (normal left inverted right x axis y axis) DVI2 connected 1024x768+0+0 (normal left inverted right x axis y axis) 0mm x 0mm 1024x768 60.0* 800x600 60.3 640x480 59.9 TV1 disconnected (normal left inverted right x axis y axis) 2. for UMS Screen 0: minimum 320 x 200, current 1280 x 800, maximum 4096 x 4096 VGA disconnected (normal left inverted right x axis y axis) LVDS connected 1280x800+0+0 (normal left inverted right x axis y axis) 261mm x 163mm 1280x800 60.0*+ 1024x768 85.0 75.0 70.1 60.0 832x624 74.6 800x600 85.1 72.2 75.0 60.3 56.2 640x480 85.0 72.8 75.0 59.9 720x400 85.0 640x400 85.1 640x350 85.1 HDMI-1 disconnected (normal left inverted right x axis y axis) TV disconnected (normal left inverted right x axis y axis)

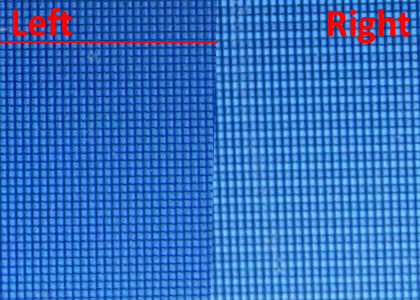

Created attachment 23878 [details] bug-xorg-2.6.29-kms-weird-display.png When using 2.6.29 with KMS enabled with the DVI2 connected, the more you look at the right of the screen, all the odd lines appear darker than the even lines, this screenshot show the problem with a complete blue background (well #3E689D) but it also appear with gray. Reverting to the older 2.6.28 kernel I get a pure blue, not "interlaced".
I'm pretty sure it is related to this same problem even if the bug title isn't in relation with this, but here goes. If I open an image in GIMP and try to pan around using the space bar and moving the mouse, the mouse tries to move and come back in place or some pixels away and after about 5 seconds X crashes with this backtrace: Backtrace: 0: /usr/bin/X(xorg_backtrace+0x33) [0x8104fbb] 1: /usr/bin/X(xf86SigHandler+0x75) [0x80bbdf4] 2: [0xffffe400] 3: /usr/bin/X [0x80f3d67] 4: /usr/bin/X [0x8115f79] 5: /usr/bin/X [0x813b412] 6: /usr/bin/X [0x81117a8] 7: /usr/bin/X(BlockHandler+0x3b) [0x8087569] 8: /usr/bin/X(WaitForSomething+0x1f2) [0x8103352] 9: /usr/bin/X(Dispatch+0x72) [0x808451b] 10: /usr/bin/X(main+0x44d) [0x806fdef] 11: /lib/libc.so.6(__libc_start_main+0xe0) [0xb7b51608] 12: /usr/bin/X [0x806f351] Fatal server error: Caught signal 11. Server aborting
After more test I confirm the bug is still present in the drm-intel tree and that the Gimp X crashing bug seems to be unrelated with the i915 driver as since I updated to the new kernel, I also updated most of the userspace and the bug is still present in 2.6.28.
*** Bug 20758 has been marked as a duplicate of this bug. ***
I have the same problem. Environment: Thinkpad T400, external monitor connected via VGA. Physically, no DVI or HDMI ports. Kernel 2.6.29-0.258.rc8.git2.fc11.x86_64 xorg-x11-drv-intel-2.6.0-14.fc11.x86_64 % xrandr --prop Screen 0: minimum 320 x 200, current 1440 x 900, maximum 8192 x 8192 VGA1 connected (normal left inverted right x axis y axis) EDID_DATA: 00ffffffffffff004c2d1b0037314847 0f0b01030f221b8cea6f8ba25a4d9424 1a5156bfef8081806140454031400101 010101010101302a009851002a403070 1300520e1100001e000000fd00384c1e 510e000a202020202020000000fc0053 796e634d61737465720a2020000000ff 004831414b3530303030300a20200098 1280x1024 60.0 + 75.0 1152x864 75.0 1024x768 75.1 70.1 60.0 832x624 74.6 800x600 72.2 75.0 60.3 56.2 640x480 72.8 75.0 66.7 60.0 720x400 70.1 LVDS1 connected 1440x900+0+0 (normal left inverted right x axis y axis) 304mm x 190mm EDID_DATA: 00ffffffffffff0030ae364000000000 00120103801e1378ea4b859257568a28 20505400000001010101010101010101 010101010101b027a08051841a303020 360030be100000197021a09851841a30 3020360030be100000190000000f0095 0a32950a28191900320c3c01000000fe 004c503134315750322d544c4231001f 1440x900 60.2*+ 50.0 DVI1 connected (normal left inverted right x axis y axis) 1024x768 60.0 800x600 60.3 640x480 59.9 DVI2 disconnected (normal left inverted right x axis y axis)
I can confirm that disabling all the output ports fix both the false-resolution problem and the false-interlacing. Here is what I've done... /* valid crtcs */ switch(intel_output->type) { case INTEL_OUTPUT_HDMI: break; // XXX: DIE crtc_mask = ((1 << 0)| (1 << 1)); clone_mask = ((1 << INTEL_OUTPUT_HDMI)); break; case INTEL_OUTPUT_DVO: case INTEL_OUTPUT_SDVO: break; // XXX: DIE crtc_mask = ((1 << 0)| (1 << 1)); clone_mask = ((1 << INTEL_OUTPUT_ANALOG) | (1 << INTEL_OUTPUT_DVO) | (1 << INTEL_OUTPUT_SDVO)); break; case INTEL_OUTPUT_ANALOG: break; // XXX: DIE crtc_mask = ((1 << 0)| (1 << 1)); clone_mask = ((1 << INTEL_OUTPUT_ANALOG) | (1 << INTEL_OUTPUT_DVO) | (1 << INTEL_OUTPUT_SDVO)); break; case INTEL_OUTPUT_LVDS: crtc_mask = (1 << 1); clone_mask = (1 << INTEL_OUTPUT_LVDS); break; case INTEL_OUTPUT_TVOUT: break; // XXX: DIE crtc_mask = ((1 << 0) | (1 << 1)); clone_mask = (1 << INTEL_OUTPUT_TVOUT); break; } encoder->possible_crtcs = crtc_mask; encoder->possible_clones = intel_connector_clones(dev, clone_mask); Added some break; // XXX: DIE in intel_dispaly.c ;) At least it works for now.
I think I'm having the same problem. My system has DVI1 and DVI2 connected, but xrandr reports that VGA1, DVI1, and DVI2 are all connected. It incorrectly detected that VGA1 was connected. My screen resolution on the DVI monitors is limited to 1024x768 until I disable VGA1.
Created attachment 24700 [details] output from xrandr --verbose with VGA1 incorrectly reported as connected
I just want to say the problem still applies to 2.6.29 final with intel-video driver-2.7.0, libdrm-2.4.6 on xorg-server-1.6.0 with randrproto-1.3.0. I applied the commit which was talked around in the mailing list for 2.7.0 to work correctly; http://git.kernel.org/?p=linux/kernel/git/anholt/drm-intel.git;a=commit;h=f544847fbaf099278343f875987a983f2b913134 After all, once everything is installed, after a reboot, I still get DVI2 connected, and after applying my workaround to intel_display, it works again just like 2.6.99 and because the workaround also mean the LVDS seems "disconnected", I don't have access to the xbacklight property.
Same problem here, Thinkpad T400, no external monitors connected: $ xrandr Screen 0: minimum 320 x 200, current 1440 x 900, maximum 8192 x 8192 VGA1 disconnected (normal left inverted right x axis y axis) LVDS1 connected 1440x900+0+0 (normal left inverted right x axis y axis) 304mm x 190mm 1440x900 60.2*+ 50.0 DVI1 connected 1024x768+0+0 (normal left inverted right x axis y axis) 0mm x 0mm 1024x768 60.0* 800x600 60.3 640x480 59.9 DVI2 disconnected (normal left inverted right x axis y axis) KDE4 systemsettings identify both screens as the internal one, and I sometimes get wierd behavior from apps running fullscreen, ie. efter closing them I get a 1024x768 desktop in the upper left corner of my 1440x900 screen. I do have an docking station available, let me know if there's anything I can test. Fedora Rawhide, kernel-2.6.29.2-132.fc11.x86_64, xorg-x11-drv-intel-2.7.0-4.fc11.x86_64, libdrm-2.4.6-6.fc11.x86_64.
Created attachment 25945 [details] [review] could you try the debug patch on your machine.
yes, it works against below commits: Libdrm: (master)f57d7f4b0b14972f92a83f155ae8033478aa7729 Mesa: (master)08ec7e0d329a72433b427e8167b2c3442d1f53b4 Xserver: (master)2f6253376df45e508284ff7766b186cfc7fb56d6 Xf86_video_intel: (master)87332a7cc16af82aa47e07fbf90da3635b071dbf Kernel: (for-linus)7c7327d9664280cad833da1f14bad13a3ea8f0bf
verified.
I confirm that 2.6.30_rc6 fixes this problem for me, time to open another bug!
Closing old verified.
