Created attachment 25016 [details] Xorg logs - only the part when I experience the bug Hi. I run archlinux on a IBM Thinkpad X40 I recently did the following update : [2009-04-15 19:38] upgraded xf86-video-intel (2.4.3-1 -> 2.6.3-3) Now my display is scrambled, except the mouse pointer. Appart from that, everything works : I can blindly use the computer and quit X properly. I tried to get a screenshot, but scrot and import gave me a picture of how my desktop should look like. Basically, it looks like the lines are not properly aligned : aaaaaaaaaa bbbbbbbbbb cccccccccc dddddddddd turns to something like : aaaaaaaaaabb bbbbbbbbcccc ccccccdddddd dddd I tried to start X with and without my xorg.conf file. Same result. Thanks taking care of this soft.
Created attachment 25122 [details] [review] 8xx tiling fix This patch is already upstream, but I don't think it made it into 2.6.29. Can you confirm that either a more recent kernel or this patch applied to your current kernel work ok? Things look good on my 855 with the 2.6.3 driver and 2.6.30-rc2 kernel, so I'm hopeful that this will work for you.
Thomas, any update here? My 855 is working fine with the fix attached to this bug and with current upstream bits (which include this fix).
Sorry I still have to find how to add patches to a custom kernel on archlinux - I'm not very experimented with such things, I must admit. I'll keep you informed.
Another option is to just upgrade to 2.6.30-rc4 or so; that has the fix.
I patched and ran my kernel. It didn't solve the problem. I'm double checking everything now, just in case.
Any update here Thomas? Still see this with the latest bits?
Also, can you reproduce this with UXA? Please attach your latest log if you're still seeing the failure.
Hi there. Running with UXA solved the problem, but raised another one. I'm running the patched kernel (sorry I couldn't try the 2.6.30-rc) $ uname -a Linux aleph 2.6.29-custom #1 SMP PREEMPT Wed May 13 21:56:59 CEST 2009 i686 Intel(R) Pentium(R) M processor 1200MHz GenuineIntel GNU/Linux I activated UXA by adding > Option "AccelMethod" "UXA" to xorg.conf No mistake, the 2D display feels really faster than with the legacy driver. But now, openGL displays are completely broken. Obviously the problem comes from somewhere else because I can do a screenshot of the bug.
Created attachment 25834 [details] xorg logs with UXA enabled
Created attachment 25835 [details] just in case, my xorg.conf

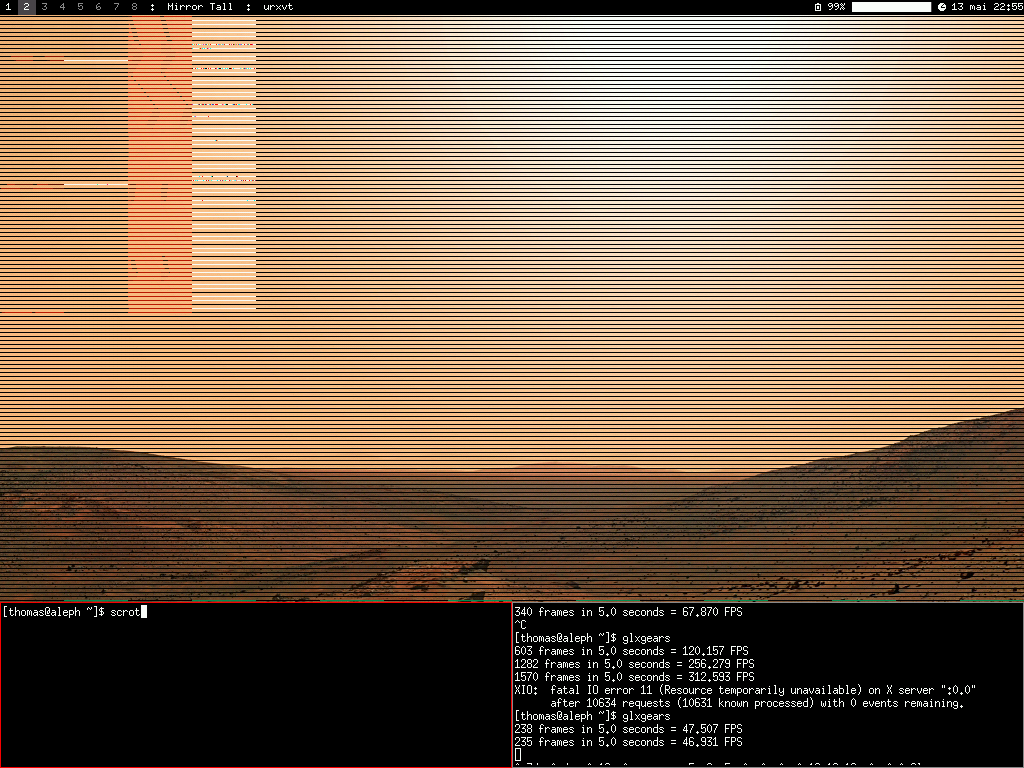

Created attachment 25836 [details] 3D display : glxgears

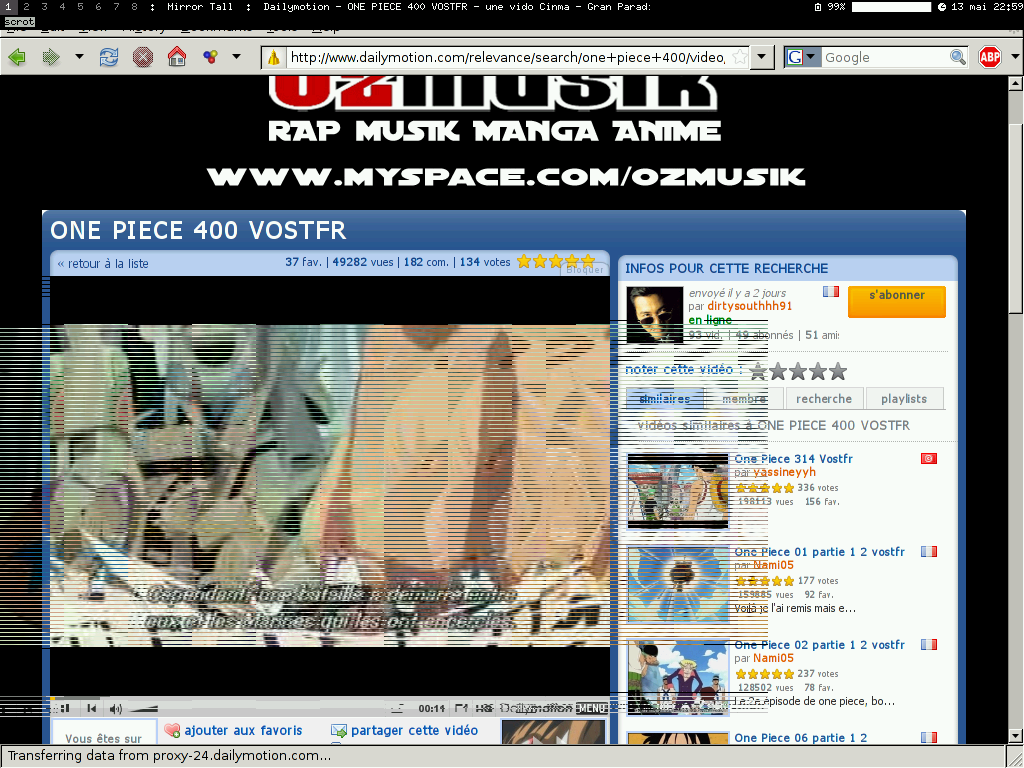

Created attachment 25837 [details] display bug with the flash plugin
Your config looks good, though really all those mode lines shouldn't be necessary. Can you try the latest libdrm from git and see if you can build Eric's drm-intel-next branch from git://git.kernel.org/pub/scm/linux/kernel/git/anholt/drm-intel.git? It definitely looks like GL rendering is busted, though maybe due to something other than a tiling bug (maybe the stride is wrong?).
Pretty sure 855GM is solid with the latest kernel bits. Please open a new bug if you run into trouble.
