Bug 21411 - 965GM: Garbled screen when running X with KMS enabled
Summary: 965GM: Garbled screen when running X with KMS enabled
Status: RESOLVED DUPLICATE of bug 21246
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/intel (show other bugs)
Version: 7.4 (2008.09)
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: Gordon Jin
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2009-04-26 03:59 UTC by Dariush Forouher
Modified: 2009-04-26 08:06 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
Photo of the visual distorsions (323.40 KB, image/jpeg)
2009-04-26 03:59 UTC, Dariush Forouher
no flags Details
Xorg logfile from when the bug appears (25.52 KB, text/plain)
2009-04-26 04:00 UTC, Dariush Forouher
no flags Details
kernel log (49.97 KB, text/plain)
2009-04-26 04:01 UTC, Dariush Forouher
no flags Details
xorg.conf (2.07 KB, text/plain)
2009-04-26 04:01 UTC, Dariush Forouher
no flags Details

Description Dariush Forouher 2009-04-26 03:59:24 UTC
Created attachment 25145 [details]

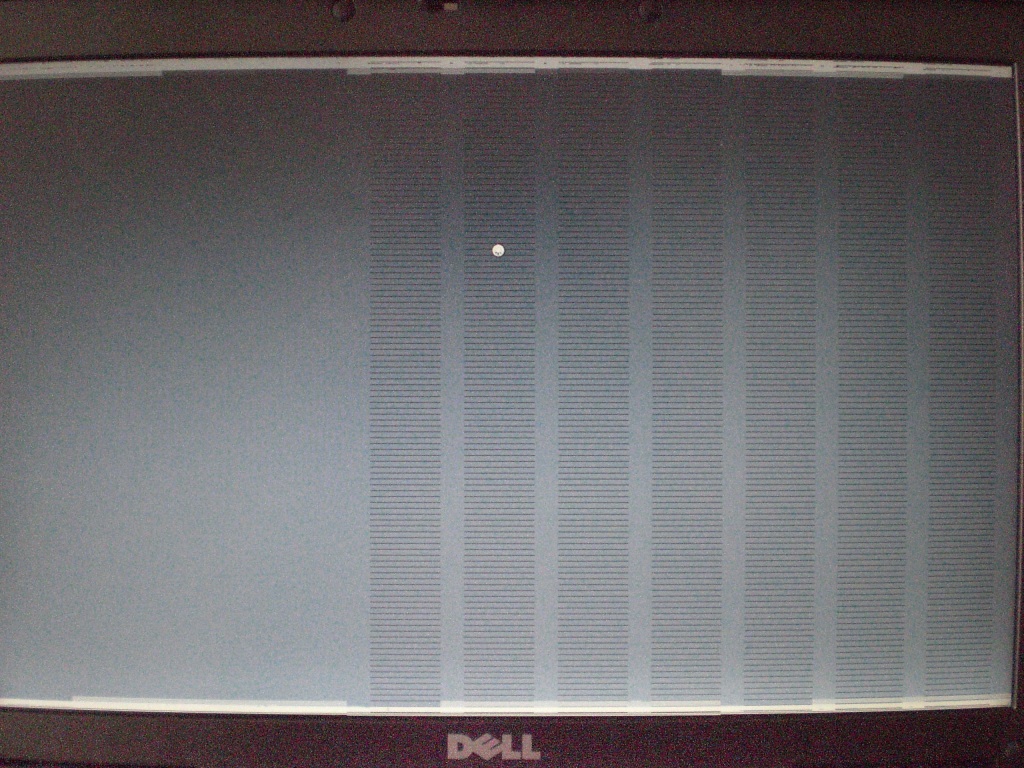

Photo of the visual distorsions

Platform: Dell Latitude D630
GPU: 00:02.0 VGA compatible controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 0c)
OS: Debian Lenny/Unstable AMD64
X-Server: 1.6
Intel-Driver: 2.7.0
Kernel: 2.6.30-rc3-00351-g2447a6d

When enabling KMS, I observe huge visual errors under X (see attached photo, taken during Gnome startup).
The console works fine, as does switching between X and consoles. The system runs stable. The mouse pointer is not affected by the distorsions.

Without KMS but using the same setup otherwise (by setting i915.modeset=0) X works fine. In both cases I'm starting X directly into Gnome (using metacity, no fancy 3D stuff).

After playing with the intel driver options, I found that disabling "Tiling" seems to fix the visual errors (although at a huge performance penalty).

I've attached the X log & kern.log as well as my xorg.conf. If there is anything else I can provide, please let me know.

cheers
Dariush
Comment 1 Dariush Forouher 2009-04-26 04:00:51 UTC
Created attachment 25146 [details]
Xorg logfile from when the bug appears
Comment 2 Dariush Forouher 2009-04-26 04:01:37 UTC
Created attachment 25147 [details]
kernel log
Comment 3 Dariush Forouher 2009-04-26 04:01:56 UTC
Created attachment 25148 [details]
xorg.conf
Comment 4 Gordon Jin 2009-04-26 07:12:48 UTC
you need an additional kernel patch (pointed on bug#21246), for using KMS with 2.7.0.

*** This bug has been marked as a duplicate of bug 21246 ***
Comment 5 Dariush Forouher 2009-04-26 08:06:17 UTC
Thank you for the fast answer!

Yep, appling that patch did the trick.

ciao
Dariush
