Created attachment 26918 [details] glxinfo log Using kernel 2.6.30-git up to commit 3fe0344faf7fdcb158bd5c1a9aec960a8d70c8e8 Merge: c30938d... 2030117... Author: Linus Torvalds <torvalds@linux-foundation.org> Date: Wed Jun 17 10:42:21 2009 -0700 Mesa master commit 3addc4e3078b99db07598ac0b2473f7612b83a09 Author: Eric Anholt <eric@anholt.net> Date: Wed Jun 17 20:46:12 2009 -0700 i965: Add decode for the G4X x,y offset in surface state. libdrm commit 2fa2db138ba989bfa1a8cd9ab66d83fb7369249e Author: Dave Airlie <airlied@linux.ie> Date: Wed Jun 17 17:47:42 2009 +1000 libdrm/radeon: add initial libdrm_radeon xf86-video-ati from ~/glisse/xf86-video-ati radeon-gem-cs3 branch commit 7a514a750fc6bca34e9549eb28e344576c0de4f1 Author: Jerome Glisse <jglisse@redhat.com> Date: Thu Jun 4 22:33:39 2009 +0200 radeon: scissor rendering to pixmap widht and height (will try radeon-kms branch in few minutes) i got broken rendring in mesa/demos/cubemap (default window). My hardware - 01:00.0 VGA compatible controller: ATI Technologies Inc RV280 [Radeon 9200 SE] (rev 01) (prog-if 00 [VGA controller]) Subsystem: Hightech Information System Ltd. Excalibur 9200SE VIVO 128M Flags: bus master, 66MHz, medium devsel, latency 64, IRQ 16 Memory at c8000000 (32-bit, prefetchable) [size=128M] I/O ports at b800 [size=256] Memory at d7ef0000 (32-bit, non-prefetchable) [size=64K] Expansion ROM at d7ec0000 [disabled] [size=128K] Capabilities: [58] AGP version 2.0 Capabilities: [50] Power Management version 2 Kernel driver in use: radeon Kernel modules: radeon, radeonfb radeon was loaded with "agpmode=-1 modeset=1" parameters.
Created attachment 26919 [details] glxinfo -l Strange, GL_MAX_CUBE_MAP_TEXTURE_SIZE_ARB = 4096 (on rv280?)
(In reply to comment #1) > Strange, GL_MAX_CUBE_MAP_TEXTURE_SIZE_ARB = 4096 (on rv280?) Not related to the cubemap failure, but it seems radeon-rewrite does not set texture limits at all, other than 2D size. Old r100/r200 drivers used to call driCalculateMaxTextureLevels which set this, but now don't hence cube/rect/3d sizes end up with whatever mesa sets the default to (not good). Also allow_large_textures is still queried but won't have any effect, I think it still should be used at least when running without memory manager.

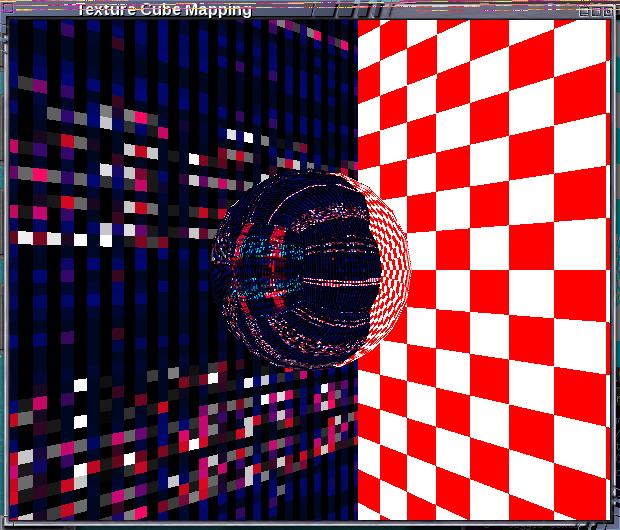

Created attachment 26927 [details] Screenshot Corruption may look different at each run.
(In reply to comment #3) > Created an attachment (id=26927) [details] > Screenshot > > Corruption may look different at each run. Hmm yes looks like you get random data for all faces except the first. I guess there's something wrong with the cube emit, I've just fixed this for the non-mm case (no corruption there but a definitive "no" from the command verifier), but I'm not sure what's wrong with the mm case. I found it a bit strange the gem flags are different for textures and cube textures, but I doubt that causes problems...
Using more recent mesa (commit 18a1c36c2d32f8c571f98d7e6857a44bb2dc8942 in master) and drm (commit de1ed01214874dcdd6116ff2587c8710d6ed4d2d) i started to see many "CS section size missmatch" lines in terminal: guest@slax:~$ cd source/mesa/progs/demos/ guest@slax:~/source/mesa/progs/demos$ ./cubemap DRM version 1.0 too old to support HyperZ, disabling. GL_RENDERER: Mesa DRI R200 (RV280 5964) 20090101 x86/MMX+/3DNow!+ TCL DRI2 GL_REFLECTION_MAP_ARB mode keys: SPACE - toggle animation CURSOR KEYS - rotation c - toggle texture clamp/wrap mode f - toggle texture filter mode m - toggle texgen reflection mode z/Z - change viewing distance CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665) CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665) CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665) CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665) CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665) CS section size missmatch start at (r200_state_init.c,cube_emit_cs,654) 22 vs 12 CS section end at (r200_state_init.c,cube_emit_cs,665)
Created attachment 27833 [details] mmiotrace log original filename cubemap_r200_compressed.gz It expands to 828K long log file. Events were - start X session with only one Eterm, run cubemap demo for few seconds. radeon module was loaded with agpmode=-1.
Mass version move, cvs -> git
Bug fixed in drm-next
