Bug 26681 - [Mobility M6 LY] Dim Green display with DefaultDepth 16
Summary: [Mobility M6 LY] Dim Green display with DefaultDepth 16
Status: VERIFIED FIXED
Alias: None
Product: xorg
Classification: Unclassified
Component: Server/General (show other bugs)
Version: 7.5 (2009.10)
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Xorg Project Team
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-02-21 04:31 UTC by Tony
Modified: 2011-01-04 05:45 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments
Image of speculated cause of problem (250.61 KB, image/png)
2010-02-21 04:31 UTC, Tony
no flags Details

Description Tony 2010-02-21 04:31:51 UTC
Created attachment 33471 [details]
Image of speculated cause of problem

Bug:
When setting "defaultdepth 16" in the Screen section of xorg.conf the display looks dim and has a green tint.

Hardware:
IBM Thinkpad X32
Radeon Mobility 7000 aka M6 LY

Software
Arch Linux kernel 2.6.32-ARCH
xorg-server 1.7.5-1
xf86-video-ati 6.12.4-3

Additional information:
In spite of the color issue, the system is completely usable when defaultdepth 16 is set. Opengl/DRI is only possible on this card on this setting because of the lack of VRAM.

I have tried both kdm and gdm. Additionally, a screen shot made when the display is wrong will look correct when defaultdepth is changed to 24. The bug has been reported on Fedora 12 and Ubuntu 9.10 as well (see below).

Speculation:

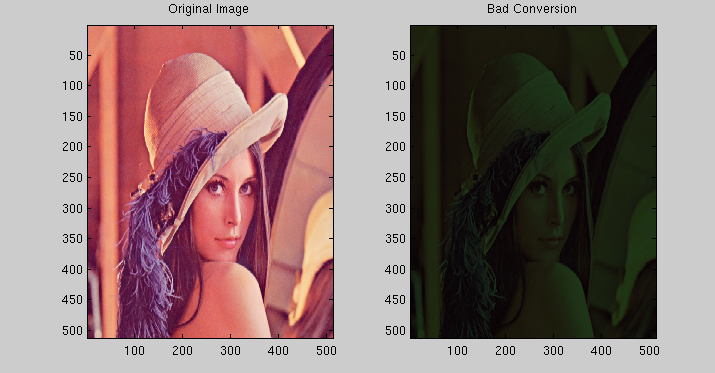

It appears that something is using R5G6B5 values somewhere that is supposed to take R8G8B8 values. I did a quick matlab test of this theory and the attached image shows exactly how Lena looks when I have the defaultdepth 16 setting.

Other reports of the issue:
This may be the underlying cause behind this bug as well (maybe it should have been the same bug?):
https://bugs.freedesktop.org/show_bug.cgi?id=25141
Fedora:
http://forums.fedoraforum.org/showthread.php?p=1323534
Debian:
http://osdir.com/ml/debian-bugs-dist/2010-01/msg05447.html
Comment 1 Tony 2010-02-21 04:51:13 UTC
I forgot to mention: Certain parts of the display still look correct with defaultdepth 16, eg the mouse cursor and video from dragon player (xine backend, VO driver).
Comment 2 Alex Deucher 2010-02-21 15:03:08 UTC
I'm pretty sure this is an xserver bug rather than a driver bug.  Can you try an older Xserver?  1.6.x or 1.5.x?
Comment 3 Tony 2010-02-21 22:14:48 UTC
Is it possible to use an older xserver without downgrading the driver as well?

If it is, I may need a few pointers to go about doing so.
Comment 4 Tony 2010-02-21 23:30:07 UTC
Not sure if this is a relevant test, but if I change the driver to vesa in xorg.conf, then I can use defaultdepth 16 or 24 and the colors are correct.

Comment 5 Alex Deucher 2010-02-22 06:47:42 UTC
(In reply to comment #3)
> Is it possible to use an older xserver without downgrading the driver as well?
>
> If it is, I may need a few pointers to go about doing so.
>

Just build the driver against the older xserver.
http://wiki.x.org/wiki/radeonBuildHowTo
Comment 6 Tony 2010-02-26 04:38:16 UTC
I reverted to Xorg-server 1.6.3, I also downgraded these packages: xf86-input-evdev xf86-input-mouse xf86-input-keyboard.

Then in order to compile the xf86-video-ati from the 6.12 branch, I had to downgrade libXext to 1.0.5 and xextproto to 7.0.5. After compiling I returned those two packages to current versions.

Now, the bug does not appear. I can run with DefaultDepth 16 and the colors look correct.

Comment 7 Robert 2010-04-04 02:37:35 UTC

(In reply to comment #0)
> Created an attachment (id=33471) [details]
> Image of speculated cause of problem
>
> Bug:
> When setting "defaultdepth 16" in the Screen section of xorg.conf the display
> looks dim and has a green tint.
>
> Hardware:
> IBM Thinkpad X32
> Radeon Mobility 7000 aka M6 LY
>
> Software
> Arch Linux kernel 2.6.32-ARCH
> xorg-server 1.7.5-1
> xf86-video-ati 6.12.4-3
>
> Additional information:
> In spite of the color issue, the system is completely usable when defaultdepth
> 16 is set. Opengl/DRI is only possible on this card on this setting because of
> the lack of VRAM.

I also have this exact same problem with the same graphics hardware, except that I am running a tuxonice 2.6.33 kernel and a Thinkpad X24.

However, the OP must have better eyes than I do; I find the system completely unusable when DefaultDepth 16 is set.

Compounding this difficulty is the fact that exiting the X server does not restore the colors, so the console fonts are dark green and unreadable too.  The only solution appears to be to reboot.

I wonder if this is related to: https://bugs.freedesktop.org/show_bug.cgi?id=19217

(In reply to comment #6)
> I reverted to Xorg-server 1.6.3, I also downgraded these packages:
> xf86-input-evdev xf86-input-mouse xf86-input-keyboard.
>
> Then in order to compile the xf86-video-ati from the 6.12 branch, I had to
> downgrade libXext to 1.0.5 and xextproto to 7.0.5. After compiling I returned
> those two packages to current versions.
>
> Now, the bug does not appear. I can run with DefaultDepth 16 and the colors
> look correct.

Tony,  did you find an old package for xorg-server 1.6.3, or did you recompile it?  If you found an old package, could you tell me where so I can try this solution; I'd like to get acceleration working.

Thanks,

Robert.
Comment 8 Tony 2010-04-05 11:41:57 UTC
(In reply to comment #7)
> Tony,  did you find an old package for xorg-server 1.6.3, or did you recompile
> it?  If you found an old package, could you tell me where so I can try this
> solution; I'd like to get acceleration working.

Well, I used the repository on the page below to get the packages for xorg 1.6.3 that I mentioned.

http://chakra-project.org/bbs/viewtopic.php?id=1829

FYI, I haven't really spent enough time getting everything matched on the same versions. I think, to do this right, you would need to build a lot of packages against the 1.6.3 server. Or perhaps it would be easier to switch to a distribution that used a < 1.7 Xorg server. Otherwise, maybe it would be a good idea to get these into the AUR?

I mostly did what I said above in order to test Alex's point. I have a "stable" setup, but there are a few things that I do not change because I know they will crash, eg high resolutions on external screen with compositing activated, and multi head. Additionally I get a lot of artifacts, some issues with video play back, etc. with compositing on or off. Bottom line though, it seems that if I keep my screen real estate at 1024x768 things are playing together relatively nicely. YMMV.
Comment 9 Peter Weilbacher 2010-05-01 03:32:24 UTC
Just to note that this does not only happen with Thinkpad setups: I have a workstation with a ATI Radeon X550 card running Gentoo Linux (xorg-server-1.7.6, xf86-video-ati-6.12.6). Switching from DefaultDepth 16 to 24 helped.

Before the upgrade to the above versions caused this green problem I had
xorg-server-1.6.5-r1 and xf86-video-ati-6.12.4 installed where this was not a problem.

Before I found this bug report, I tried to downgrade to an older server, but downgrading xorg-server (and all necessary packages) turned out to be too much work so that I gave up after 3 hours or so... I did succeed in upgrading to xorg-server-1.8.0 and xf86-video-ati-6.13.0 (I think) but as that did not help the problem, I went back to the versions I mentioned at the top.
Comment 10 Alex Deucher 2010-12-29 08:10:44 UTC
Fixed in 4651d77211b508cb6b76931807780e317f232220
Comment 11 Tony 2011-01-04 05:45:26 UTC
Verified as fixed with xorg-server 1.9.2, xf86-video-ati 6.13.2. Thanks!
