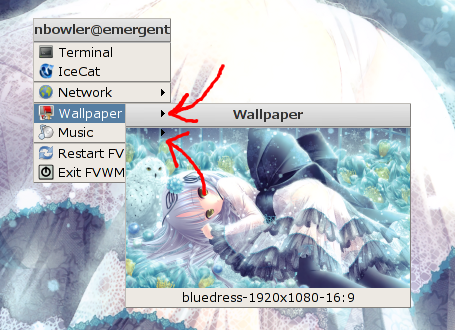

Created attachment 37575 [details] Screen capture with arrows pointing to the artifacts. Some of the rendering on obscured windows in FVWM menus is showing up on top of other stuff. It's hard to describe, hopefully the attached screen capture demonstrates what's happening: there are two black triangles (part of the partially obscured window) which are showing up on top of the sub-menu window. I'm running latest git everything. This is a regression from xf86-video-intel-2.12.0, bisection results follow. There are only 'skip'ped commits left to test. The first bad commit could be any of: feff2ec80eeeba5074d19efcddf4867adf639b4f a2aa4c23f65b03c389c2ba8eac0298dfb205e67d We cannot bisect more! Since the second is a simple fixup of the first, I'll add the log message from the first commit: commit feff2ec80eeeba5074d19efcddf4867adf639b4f Author: Dave Airlie <airlied@redhat.com> Date: Mon Jul 5 09:07:08 2010 +1000 uxa: don't compare planemask with FB_ALLONES. planemask is an unsigned long initialised to ~0, on 64-bit this is not equal to an (unsigned int)-1. Use the macro provided to do this. Signed-off-by: Dave Airlie <airlied@redhat.com> git bisect start # bad: [622e600069ab0efd22586c7a71eecbd4baf21c40] display: Cache whether we have probed for an EDID git bisect bad 622e600069ab0efd22586c7a71eecbd4baf21c40 # good: [ca16e3133658504b68a6b5c83bb8712899016544] Update version to 2.12.0 git bisect good ca16e3133658504b68a6b5c83bb8712899016544 # bad: [7a4bfaf42412f373bbc8ebe1536018dcacde7436] intel: respect tiling disable. git bisect bad 7a4bfaf42412f373bbc8ebe1536018dcacde7436 # bad: [75850e824bd66b961b9ce21696d9090169f7b28f] Add mbp_backlight support. git bisect bad 75850e824bd66b961b9ce21696d9090169f7b28f # good: [17884af4eda01c05e7429ed6a195f3e4ceeff892] Repair the damage to 'make distcheck' after splitting out i810 git bisect good 17884af4eda01c05e7429ed6a195f3e4ceeff892 # good: [afcd41820d7481912b49093670e9d7a4a6a2338f] Reduce front buffer stride prior to rejection git bisect good afcd41820d7481912b49093670e9d7a4a6a2338f # skip: [feff2ec80eeeba5074d19efcddf4867adf639b4f] uxa: don't compare planemask with FB_ALLONES. git bisect skip feff2ec80eeeba5074d19efcddf4867adf639b4f # bad: [a2aa4c23f65b03c389c2ba8eac0298dfb205e67d] uxa: oops typo in previous commit git bisect bad a2aa4c23f65b03c389c2ba8eac0298dfb205e67d # good: [7ad9c0bebf2c71db574e0302264859ce53cecd37] add cscope files to gitignore git bisect good 7ad9c0bebf2c71db574e0302264859ce53cecd37
Looks like Dave's patch uncovered the bug in that my code doesn't appear to be honouring clipping correctly. Thanks.
The bug Chris was referring to (I think) is fixed in: commit e0066e77e026b0dd0daa0c3765473c7d63aa6753 Author: Eric Anholt <eric@anholt.net> Date: Tue May 31 23:17:16 2011 -0700 uxa: Simplify Composite solid acceleration for spans by only clipping once. Unlike the previous commit removing this style of code, the code in this one was originally wrong, and would fail to clip in the second pass of clipping when y was > pbox->y2. Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=37233 Reviewed-by: Keith Packard <keithp@keithp.com>
Created attachment 47743 [details] New menu artifacts. Unfortunately, it appears that the issue is not quite fixed. While the triangles no longer render on top of other menus, now they sometimes don't render at all. After opening and closing a bunch of submenus (which temporarily obscures some of the triangles), I end up with a menu that's missing bits. The triangles reappear spontaneously as you select various menu items. Just to clarify: there are no problems with the menus prior to the commit implicated in the original post.
Created attachment 47744 [details] Correctly rendered menu. For reference, here's what the menu is _supposed_ to look like.
Nick, I need a few more instructions on driving FVWM to reproduce your menus. I think these were all fixed with sna..
Created attachment 47774 [details] Sample FVWM config (In reply to comment #5) > Nick, I need a few more instructions on driving FVWM to reproduce your menus. The attached config file can be used to reproduce the issue. After experimenting a bit, I've discovered that the issue is most easily reproduced by opening the menu on the right hand side of the screen, so that the submenus open to the *left* of the main menu. It then becomes apparent that the triangles in the main menu will disappear if they are forced to be redrawn (e.g. by highlighting a menu item) and they are either to the right or below the submenu (triangles above the submenu are not affected, and I'm not sure if it's possible for triangles to appear to the left of a submenu). > I think these were all fixed with sna.. Indeed, enabling sna appears to fix the menus, but of course you need an X server release from the future (else apply patches from the mailing list) to use that.
The code is gone: commit 855ced5a4eb67e287001ae22cb6489639c548cfa Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Thu Jun 16 13:24:14 2011 +0100 uxa: Remove the attempt to use the 3D pipeline for core rendering The attempt was still ridden with bugs, such as http://bugs.freedesktop.org/show_bug.cgi?id=28768 http://bugs.freedesktop.org/show_bug.cgi?id=28798 http://bugs.freedesktop.org/show_bug.cgi?id=28908 http://bugs.freedesktop.org/show_bug.cgi?id=29401 A fresh approach was taken with SNA, but in the mean time before that can be enabled downstream, restore correct behaviour. Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
