| Summary: | : LibreOffice printing and PDF exports mishandle some accentuated characters with lmodern fonts | ||
|---|---|---|---|
| Product: | LibreOffice | Reporter: | Sébastien Maccagnoni-Munch <sebastien> |
| Component: | Printing and PDF export | Assignee: | Not Assigned <libreoffice-bugs> |
| Status: | RESOLVED WORKSFORME | QA Contact: | |
| Severity: | normal | ||
| Priority: | medium | CC: | christopher.m.penalver, sebastien |
| Version: | 3.4.4 release | ||
| Hardware: | x86 (IA32) | ||
| OS: | Linux (All) | ||
| See Also: | https://launchpad.net/bugs/928707 | ||
| Whiteboard: | BSA | ||
| i915 platform: | i915 features: | ||
| Attachments: |

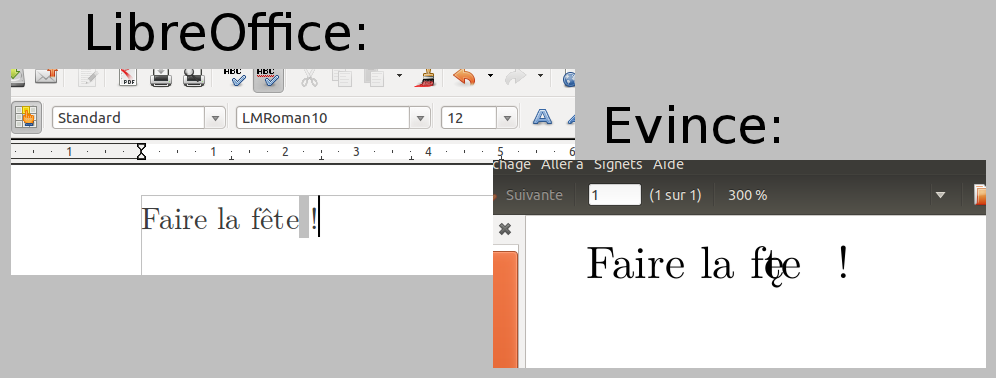

image containing two screenshots, one of a document in LibreOffice, the other one of Evince, the Ubuntu PDF viewer, with the document exported from LibreOffice
This ODT file contains a text (in french) which uses accentuated characters, in different fonts. This PDF file is the result of the previously attached ODT file. |
||
Created attachment 57099 [details]
This ODT file contains a text (in french) which uses accentuated characters, in different fonts.
Created attachment 57100 [details]
This PDF file is the result of the previously attached ODT file.
Reproducible in:
lsb_release -rd
Description: Ubuntu precise (development branch)
Release: 12.04
apt-cache policy lmodern
lmodern:
Installed: 2.004.1-3.1ubuntu1
Candidate: 2.004.1-3.1ubuntu1
Version table:
*** 2.004.1-3.1ubuntu1 0
500 http://us.archive.ubuntu.com/ubuntu/ precise/main i386 Packages
100 /var/lib/dpkg/status
apt-cache policy libreoffice-writer
libreoffice-writer:
Installed: 1:3.5.0~beta2-2ubuntu4
Candidate: 1:3.5.0~beta2-2ubuntu4
Version table:
*** 1:3.5.0~beta2-2ubuntu4 0
500 http://us.archive.ubuntu.com/ubuntu/ precise/main i386 Packages
100 /var/lib/dpkg/status
apt-cache policy evince
evince:
Installed: 3.3.5-0ubuntu1
Candidate: 3.3.5-0ubuntu1
Version table:
*** 3.3.5-0ubuntu1 0
500 http://us.archive.ubuntu.com/ubuntu/ precise/main i386 Packages
100 /var/lib/dpkg/status
I've exported the LModern Type1 font from the Ubuntu "lmodern" package to the TrueType format (with instructions from http://www.vromans.org/johan/OOo/oofonts03.html). When using this TTF export, the "ê" character is correctly exported to PDF and printed. I can't reproduce that (though those fonts not installed), PDF export show same result as odt file. Perhaps it's been fixed. LO 4.0.4.2 (Win7 32bit) LO 3.6.6.2 (Ubuntu 12.04 32bit) I can't reproduce it either, with LibreOffice 4.0.2.2 from Ubuntu 13.04. I've tried exporting the same ODT file to PDF with the same fonts package installed (lmodern), it works now. |
Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct. How we collect and use information is described in our Privacy Policy.
Created attachment 57098 [details] image containing two screenshots, one of a document in LibreOffice, the other one of Evince, the Ubuntu PDF viewer, with the document exported from LibreOffice Problem description: When using some accentuated characters with any of the lmodern fonts in LibreOffice, printed pages and PDF exports include bogus characters. See attached image/screenshots. Steps to reproduce: 1. Create a document using any "Latin Modern" font (for example from "lmodern" package in Ubuntu) 2. Use many accentuated characters in this document (especially "ê") 3. Export the document to PDF or print it. Current behavior: Some characters (especially "ê") are not correctly exported/printed. Expected behavior: Characters are correctly exported/printed. Browser: Mozilla/5.0 (X11; Linux i686) AppleWebKit/535.7 (KHTML, like Gecko) Ubuntu/11.10 Chromium/16.0.912.77 Chrome/16.0.912.77 Safari/535.7
