| Summary: | FILEOPEN: text flow parameters incorrectly set in .XLSX causing some labels to disappear | ||
|---|---|---|---|
| Product: | LibreOffice | Reporter: | Joey Reid <joeyisdamanya> |
| Component: | Spreadsheet | Assignee: | Sushil Shinde <sushilshinde> |
| Status: | VERIFIED FIXED | QA Contact: | |
| Severity: | normal | ||
| Priority: | medium | CC: | barta, erack |
| Version: | Inherited From OOo | ||
| Hardware: | Other | ||
| OS: | All | ||
| See Also: | https://bugs.freedesktop.org/show_bug.cgi?id=85491 | ||
| Whiteboard: | target:4.4.0 | ||
| i915 platform: | i915 features: | ||
| Attachments: |
Problem with Overlap and Break import settings with XLS on Left and XLSX on right
Sample XLSX chart with missing labels Same file but saved as XLS correctly imported |
||
Created attachment 107296 [details]
Sample XLSX chart with missing labels
Created attachment 107297 [details]
Same file but saved as XLS correctly imported
confirmed under Win7x64 using 4.3.2.2 and 4.4.0.0.alpha0+ Build ID: 268b9c10c9ff27c74678ace99762f28d58d33012 TinderBox: Win-x86@42, Branch:master, Time: 2014-10-02_23:35:24 it seems that 50% of the labels in the x axis are not shown same issue even with older LibO release (tried with 3.4.3) and in AOO 4.1.0 as well so the bug is likely to be inherited from OOo Sushil Shinde committed a patch related to this issue. It has been pushed to "master": http://cgit.freedesktop.org/libreoffice/core/commit/?id=4027bc476a1df9df1924447795ddc2d8b7744e20 fdo#84647 : Fixed default value for TickLableSkip value. The patch should be included in the daily builds available at http://dev-builds.libreoffice.org/daily/ in the next 24-48 hours. More information about daily builds can be found at: http://wiki.documentfoundation.org/Testing_Daily_Builds Affected users are encouraged to test the fix and report feedback. Steps to reproduce: 1. Create a chart in Excel with long label names (2 or more lines) 2. Save as .XLS and .XLSX 3. Open in Calc When Calc imports Excel XLS charts, it correctly sets: Text FLow:Break-enabled But for XLSX charts it sets Text FLow:Break-DISABLED This causes as the labels in XLSX to overlap and makes them unreadable. @Joey Reid have you tested that with recent 4.0.x daily builds? those are the only LibO versions featuring that bugfix Tommy, Yes, Sushil fixed the Text Flow:Overlap default. I verified that's it's working now with the latest 4.4 builds. Instead of messing up this report, I just now created Bug 85491 for the Text FLow:Break default. Sushil, Should this bug report be reopened? In recent builds Text Flow:Overlap is not being set any more. Hi Luke, This issue was fixed in two parts, 1. https://gerrit.libreoffice.org/#/c/11901/ 2. https://gerrit.libreoffice.org/#/c/12213/ Second patch is not yet merged to master. If possible, Please apply these patches and verify. If this issue still reproducible then reopen it. I will look into it. Thanks. |
Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct. How we collect and use information is described in our Privacy Policy.

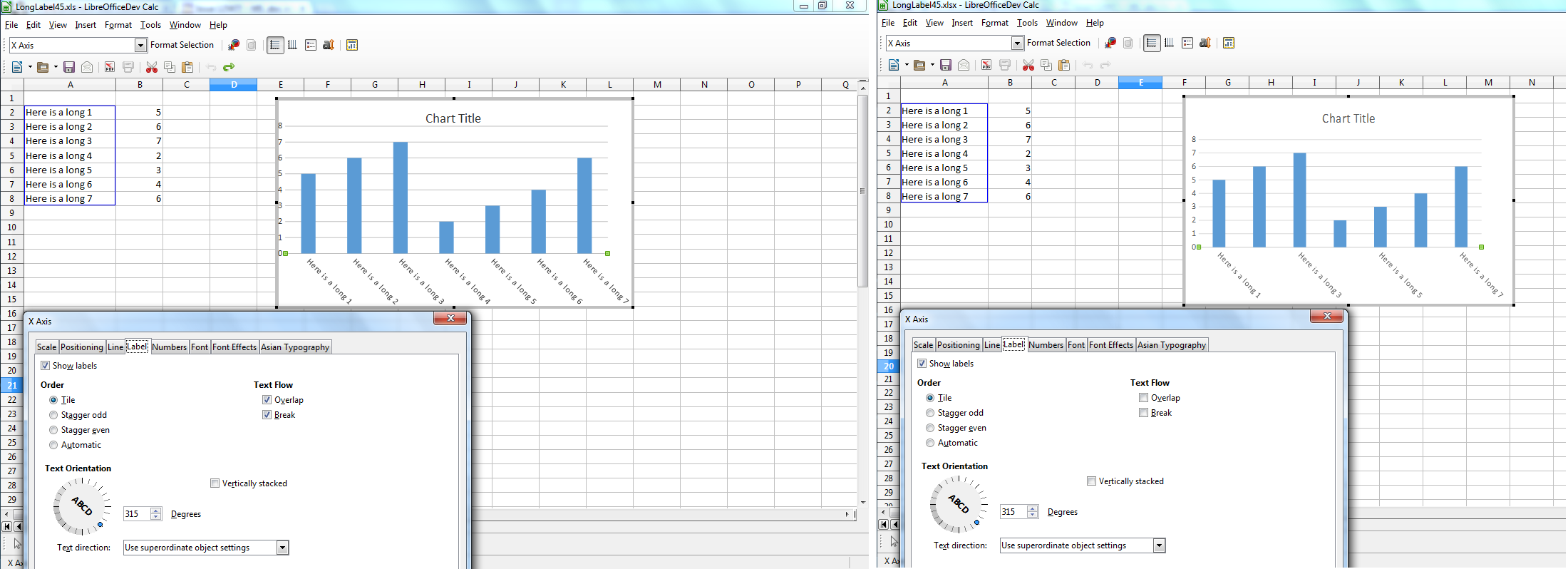

Created attachment 107295 [details] Problem with Overlap and Break import settings with XLS on Left and XLSX on right When Calc imports Excel XLS charts, it correctly sets: Text Flow:Overlap-enabled Text FLow:Break-enabled But for XLSX charts it sets Text Flow:Overlap-DISABLED Text FLow:Break-DISABLED This causes visual data loss, as the labels disappear. In the screenshot, you can see every other label is missing in the XLSX file.
