Created attachment 22604 [details] [review] a Xorg log from yesterday I'm running F10 x86_64 with: 01:05.0 VGA compatible controller: ATI Technologies Inc Radeon HD 3200 Graphics xorg-x11-server-Xorg-1.5.3-6.fc10.x86_64 xorg-x11-drv-radeonhd-1.2.4-1.1.20081212git.fc10.x86_64 xorg-x11-drv-ati-6.9.0-63.fc10.x86_64 Motherboard is ASUS M3A78-EM. In the manual it says: "Supports DVI with max. resolution up to 2560 x 1600 @60Hz" Monitor is ASUS VH226H. In its manual it says: "1920 x 1080. Horiz: 67.50KHz, Vert: 60.0Hz, Pixel: 148.50MHz" The drivers seem to see the correct ModeLine... (II) RADEON(0): Modeline "1920x1080"x60.0 148.50 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz) ... but, running at that resolution produces horrible horizontal flickering lines. The monitor blacks out rather frequently. I have tried this monitor on a XP computer and it works fine. I have tried a 17" running at 1440x900 on my computer and it works fine. I have tried both the radeon and radeonhd driver. I don't have a xorg.conf (at least, when I want the flickering; right now I force it to a mode that works). I'll attach a Xorg.0.log using the radeon driver. In this particular log I am forcing the display to 1024x768@75. The display is currently running at 1280x960@60. A few other modes work as well, but the majority have flickering. Some sites I think are related: https://bugs.freedesktop.org/show_bug.cgi?id=8790 http://www.hardforum.com/showthread.php?t=1286375 http://www.avforums.com/forums/lcd-televisions/728169-sony-1080p-horizontal-flicker.html Thanks for your time.
This could be the same or similar as... https://bugs.freedesktop.org/show_bug.cgi?id=2859 https://bugs.freedesktop.org/show_bug.cgi?id=15175 https://bugs.freedesktop.org/show_bug.cgi?id=18349 Sorry if this is just more noise. I'll be glad to do any testing necessary to fix this. I kind of want to use my monitor at 1920x1080!
Can you attach your log when running the problematic 1920x1080 mode?
Created attachment 22618 [details] [review] 1920x1080 gdm login screen (and 1280x960 in gnome) Moved xorg.conf, logged out. GDM login screen has horizontal lines running at 1920x1080. Log back in and gnome settings take over and set monitor to a working mode.
Can you try some other modelines? Modeline "1920x1080_60.00" 173.00 1920 2048 2248 2576 1080 1083 1088 1120 -hsync +vsync Modeline "1920x1080R" 138.50 1920 1968 2000 2080 1080 1083 1088 1111 +hsync -vsync ModeLine "ATSC-1080-60p" 148.5 1920 1960 2016 2200 1080 1082 1088 1125
I have this same issue. For me it is a regression in driver version 6.10 that worked fine in 6.9. Rolling back fixes the issue for me. Building from latest git still has issue. Cross referencing my bug filed on redhat: https://bugzilla.redhat.com/show_bug.cgi?id=484692
(In reply to comment #5) > I have this same issue. For me it is a regression in driver version 6.10 that > worked fine in 6.9. Rolling back fixes the issue for me. > > Building from latest git still has issue. Can you attach logs from git and 6.9.0?
Created attachment 22831 [details] Xorg.0.log from driver 6.9.0 where external DVI display works
Created attachment 22832 [details] Xorg.0.log from driver 6.10.99 git where external DVI display flickers to black
(In reply to comment #4) > Can you try some other modelines? > > Modeline "1920x1080_60.00" 173.00 1920 2048 2248 2576 1080 1083 1088 1120 > -hsync +vsync > > Modeline "1920x1080R" 138.50 1920 1968 2000 2080 1080 1083 1088 1111 +hsync > -vsync > > ModeLine "ATSC-1080-60p" 148.5 1920 1960 2016 2200 1080 1082 1088 1125 > Those modelines don't seem to change anything. I checked the log, and it seems to be using them. Here's a bit from the ATSC-1080-60p ModeLine: (II) RADEON(0): Modeline "ATSC-1080-60p"x60.0 148.50 1920 1960 2016 2200 1080 1082 1088 1125 (67.5 kHz) ... (II) RADEON(0): Using user preference for initial modes (II) RADEON(0): Output DVI-0 using initial mode ATSC-1080-60p ... Mode 1920x1080 - 2200 1125 0 ... freq: 148500000 best_freq: 148503704 best_feedback_div: 560 best_ref_div: 9 best_post_div: 6 (II) RADEON(0): crtc(0) Clock: mode 148500, PLL 148500 (II) RADEON(0): crtc(0) PLL : refdiv 9, fbdiv 0x230(560), pdiv 6 Also, downgrading to xorg-x11-drv-ati-6.9.0-63.fc10.x86_64.rpm didn't fix anything for me.
I just updated to 6.12.1 and it runs at 1920x1080 - and it looks amazing. Thanks for whatever you fixed : ) It is greatly appreciated.
Created attachment 24133 [details] [review] diff from Xorg.0.log dated 2009-02-05 Attached is the diff from the 2009-02-05 attachment to the working Xorg.0.log, in case you're curious.
I just updated to the latest f11, rebooted, and this problem is back. The update list is attached below. I suspect libdrm; I rebooted into a previously working kernel and the issue persisted. The only two obviously graphics-related updates were libdrm and the kernel. And Xorg, I suppose. I'll attach the xorg.log and maybe dmesg too. Currently on: 2.6.29.6-217.2.16.fc11.x86_64 (used to work) Also tried: 2.6.30.5-43 (also bad) Currently installed packages: kernel-2.6.29.6-217.2.3.fc11.x86_64 kernel-2.6.29.6-217.2.16.fc11.x86_64 kernel-2.6.30.5-43.fc11.x86_64 libdrm-2.4.11-2.fc11.x86_64 mesa-dri-drivers-7.6-0.1.fc11.x86_64 xorg-x11-drv-ati-6.12.2-14.fc11.x86_64 (the one from base f11 unless I'm mistaken? it's worked perfectly until now) xorg-x11-server-Xorg-1.6.3-4.fc11.x86_64
Created attachment 29545 [details] things I recently updated
Created attachment 29546 [details] xorg log under 2.6.29.6-217.2.16.fc11.x86_64
Created attachment 29547 [details] xorg log under 2.6.30.5-43.fc11.x86_64
Does it work again if you disable KMS (boot with nomodeset or radeon.modeset=0 on the kernel command line in grub)?
Nope, problem persists. Linux version 2.6.30.5-43.fc11.x86_64 (mockbuild@xenbuilder4.fedora.phx.redhat.com) (gcc version 4.4.1 20090725 (Red Hat 4.4.1-2) (GCC) ) #1 SMP Thu Aug 27 21:39:52 EDT 2009 Command line: ro root=UUID=62cd4638-14b7-4617-b758-5e07df19678d debug nomodeset
Just out of curiosity, I reverted to previous versions and it still persists. I'm really stumped. (I installed f11 with the update repo enabled and got the below version of mesa, the rest I reverted to what was installed originally too, which happened to be dist-f11) [root@yrael ~]# uname -r ; rpm -qa kernel mesa\* libXext xorg-x11-server\* xorg-x11-drv-ati | sort 2.6.29.6-217.2.3.fc11.x86_64 kernel-2.6.29.6-217.2.16.fc11.x86_64 kernel-2.6.29.6-217.2.3.fc11.x86_64 kernel-2.6.30.5-43.fc11.x86_64 libXext-1.0.99.1-2.fc11.x86_64 mesa-dri-drivers-7.6-0.1.fc11.x86_64 mesa-libGL-7.6-0.1.fc11.x86_64 mesa-libGLU-7.6-0.1.fc11.x86_64 xorg-x11-drv-ati-6.12.2-14.fc11.x86_64 xorg-x11-server-common-1.6.1.901-1.fc11.x86_64 xorg-x11-server-utils-7.4-7.fc11.x86_64 xorg-x11-server-Xorg-1.6.1.901-1.fc11.x86_64 ..... And I just installed git master of libdrm and xf86-video-ati and the problem still persists. GAH. As I have time I'll continue to install stuff according to http://www.x.org/wiki/radeonBuildHowTo and see what happens - maybe I'll just jump to full KMS...
http://roysjosh.googlepages.com/mov00929.avi a 9MB video of the screen flickering to black.
Does: Option "DisplayPriority" "HIGH" in the device section of your xorg config help when you disable KMS?
Nope.
Created attachment 29957 [details] dmesg under 2.6.32-rc1 with drm-next, git master mesa/drm/ddx # glxinfo | grep render do_wait: drmWaitVBlank returned -1, IRQs don't seem to be working correctly. Try adjusting the vblank_mode configuration parameter. direct rendering: Yes OpenGL renderer string: Mesa DRI R600 (RS780 9610) 20090101 TCL DRI2 I'm using 1280x1024 right now and it's working fine - just not 1920x1080, 1600x1200, 1680x1050, 1024x768 (not nearly as many lines/flickering), 800x600 (again, less lines than 1024x768). works: 1280x1024, 1440x900, 1280x960, 1152x864. there were a few I didn't try. I'll attach the Xorg log next.
Created attachment 29958 [details] xorg log under 2.6.32-rc1 with drm-next I'm curious about the line near the end of this section... (II) RADEON(0): #6: hsize: 1920 vsize 1080 refresh: 60 vid: 49361 (II) RADEON(0): Supported detailed timing: (II) RADEON(0): clock: 148.5 MHz Image Size: 477 x 268 mm (II) RADEON(0): h_active: 1920 h_sync: 2008 h_sync_end 2052 h_blank_end 2200 h_border: 0 (II) RADEON(0): v_active: 1080 v_sync: 1084 v_sync_end 1089 v_blanking: 1125 v_border: 0 (II) RADEON(0): Ranges: V min: 50 V max: 76 Hz, H min: 31 H max: 83 kHz, PixClock max 170 MHz (II) RADEON(0): Monitor name: VH226 (II) RADEON(0): Serial No: 8BLMQS013087 (II) RADEON(0): EDID (in hex): (II) RADEON(0): 00ffffffffffff000469f22201010101 (II) RADEON(0): 3012010380301b78eec4f6a3574a9c23 (II) RADEON(0): 114f54bfef00714f818081409500a940 (II) RADEON(0): b300d1c00101023a801871382d40582c (II) RADEON(0): 4500dd0c1100001e000000fd00324c1f (II) RADEON(0): 5311000a202020202020000000fc0056 (II) RADEON(0): 483232360a20202020202020000000ff (II) RADEON(0): 0038424c4d51533031333038370a0001 (II) RADEON(0): Not using mode "1920x1080" (bad mode clock/interlace/doublescan) (II) RADEON(0): Printing probed modes for output DVI-0 (II) RADEON(0): Modeline "1920x1080"x60.0 148.50 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync (67.5 kHz) Not using mode "1920x1080" (...) ????
Hi! I just stumbled upon this bug, and it looks similar to my problem (http://bugs.freedesktop.org/show_bug.cgi?id=20222), especially the video (I also have the blackouts, but only occational red lines flashing instead of your big white lines). Could be related... Ciao Martin
I borrowed a HDMI cable and another DVI cable - same result with both: nothing new. Also, the BIOS splash screen displays fine, and the OSD says it's running at 1920x1080 without flickering.
Created attachment 30109 [details] xorg log under 2.6.30.8-64.fc11.x86_64, intel IGP I brought my monitor in to work to test it on some machines here... 00:02.0 VGA compatible controller [0300]: Intel Corporation 4 Series Chipset Integrated Graphics Controller [8086:2e22] (rev 03) (prog-if 00 [VGA controller]) No flickering over DVI at 1920x1080.
can you try with ati from git master? Specifically commit 66b194a78c470cb3978f310828dd96c3f3e96944.
Both the ddx and kernel commits make the flickering worse. I tried the kernel one first, since I had everything at master (as of a few days ago). Then I reverted all my rpms to f11 ones and rebuilt -ati from master and rebooted into a f11 kernel. Now all modes have flickering :( Looking at bug 21857, is there anything I could run/do to provide some additional debug info? Thanks.
You might try setting different pll flags. Some monitors don't like certain pll combinations. In atombios_crtc_set_pll() in atombios_crtc.c try setting pll_flags to each of the following: RADEON_PLL_PREFER_LOW_REF_DIV RADEON_PLL_PREFER_HIGH_REF_DIV RADEON_PLL_PREFER_LOW_FB_DIV RADEON_PLL_PREFER_HIGH_FB_DIV RADEON_PLL_PREFER_LOW_POST_DIV RADEON_PLL_PREFER_HIGH_POST_DIV RADEON_PLL_USE_FRAC_FB_DIV RADEON_PLL_PREFER_CLOSEST_LOWER before calling RADEONComputePLL() and see if any of them help.
Created attachment 31046 [details] avivotool regs all 1920x1080 in UMS ctl-alt-f2 terminal (good) Maybe these will help. Latest xf86-video-ati (and avivotool) from git.
Created attachment 31047 [details] avivotool regs all 1920x1080 in UMS in X (bad) evil lines.
This sounds pretty similar to the problems I'm having, trying to get 1920x1200@60 working on my laptop with HD3450. The screen looks OK on bootup, and looks perfect in the GRUB menu. When the kernel loads (2.6.32-rc6) I start to see horizontal streaks across the text, and after the text scrolls down to about half of the screen it goes black. If I then load the radeon module with modeset=1 and load fbcon, the console looks good. But if I fill the console with a lot of colors, the streaking can occur and it will just go black as well. (Try running vlc to play a movie in text mode.) If I startx, I see the mouse cursor for a few seconds as things initialize, and sometimes I get a glimpse of the desktop before the screen goes black. Using xrandr I can sometimes set the screen to 1920x1200@50 and see the display, but again it's got lots of horizontal streaks across it, and other display content will make it black out again. Most of the other modes don't work at all, or they're shifted right about 1", and again lots of horizontal streaks. I'll try playing with the PLL settings.
This fixes my monitor: # ./radeontool/avivotool regset 0x00000430 0x00910032 ; ./radeontool/avivotool regset 0x0000043c 0x00000007 ; ./radeontool/avivotool regset 0x00000404 0x00000002 OLD: 0x00000430 (0430) 0x02300030 (36700208) NEW: 0x00000430 (0430) 0x00910032 (9502770) OLD: 0x0000043c (043c) 0x00000006 (6) NEW: 0x0000043c (043c) 0x00000007 (7) OLD: 0x00000404 (0404) 0x00000009 (9) NEW: 0x00000404 (0404) 0x00000002 (2)
Created attachment 31640 [details] [review] use frac fb divs Does this patch help (non-kms)?
nope - here's the output when I changed the regs: # sh fix.sh OLD: 0x00000430 (0430) 0x031e0035 (52297781) NEW: 0x00000430 (0430) 0x00910032 (9502770) OLD: 0x0000043c (043c) 0x00000007 (7) NEW: 0x0000043c (043c) 0x00000007 (7) OLD: 0x00000404 (0404) 0x0000000b (11) NEW: 0x00000404 (0404) 0x00000002 (2)
Created attachment 31694 [details] [review] possible fix Does this patch (in combination with the previous one) help?
nope :( # sh fix.sh OLD: 0x00000430 (0430) 0x031e0035 (52297781) NEW: 0x00000430 (0430) 0x00910032 (9502770) OLD: 0x0000043c (043c) 0x00000007 (7) NEW: 0x0000043c (043c) 0x00000007 (7) OLD: 0x00000404 (0404) 0x0000000b (11) NEW: 0x00000404 (0404) 0x00000002 (2)
Can you try with the latest code from xf86-video-ati git master? I just committed some new PLL code that might help.
Created attachment 31894 [details] xorg log from latest git, no change
(In reply to comment #39) > Created an attachment (id=31894) [details] > xorg log from latest git, no change > You are using kms. The patch in question only affects non-KMS.
Created attachment 31896 [details] trying again. xorg log from latest git, nomodeset, no change

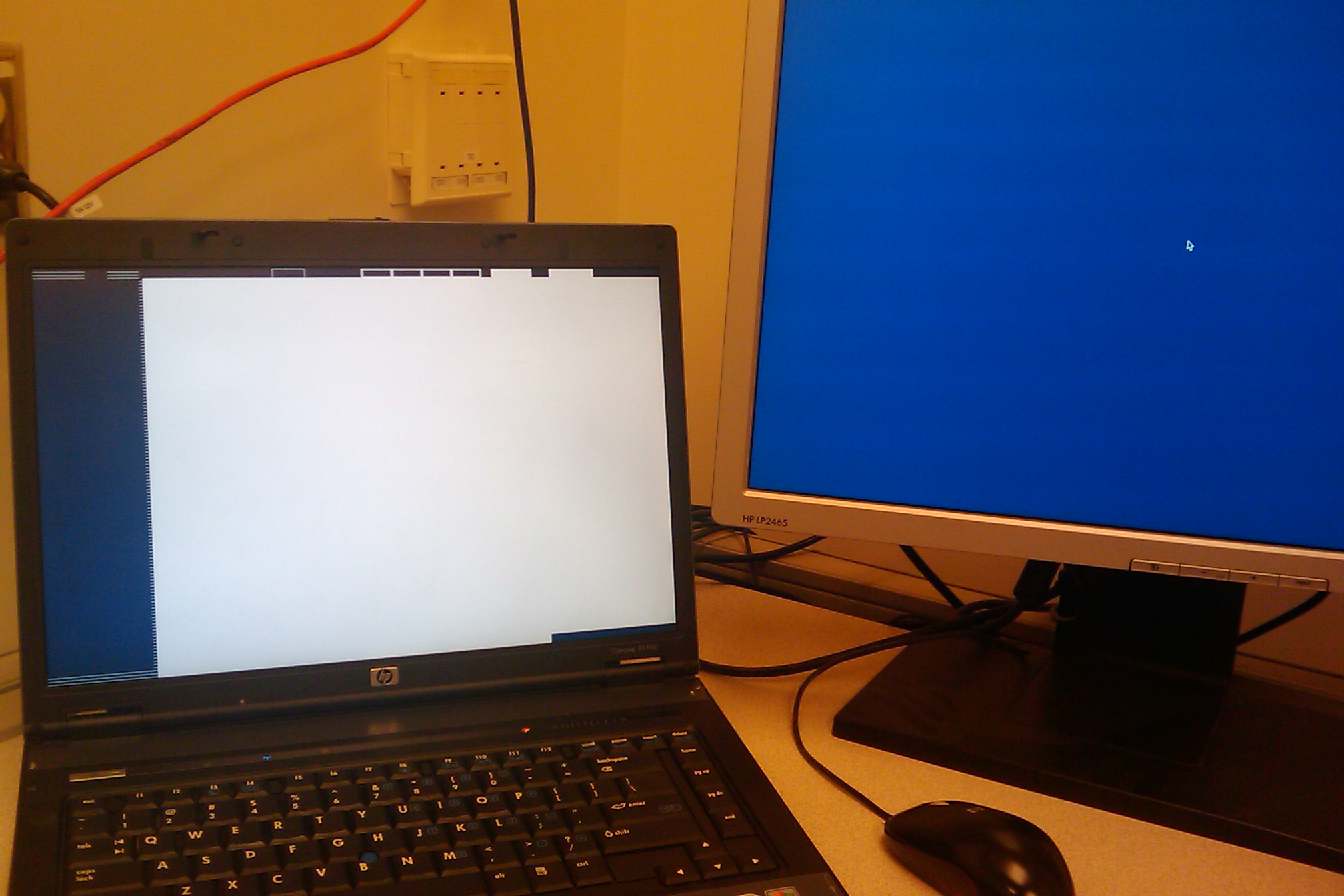

Created attachment 31897 [details] photo of desktop display corruption with latest git, nomodeset
Created attachment 31904 [details] xorg log with logverbose=9 Cool, that patch fixes my display here. # ./avivotool regmatch 0x00000430 0x00000430 0x00a50039 (10813497) # ./avivotool regmatch 0x0000043c 0x0000043c 0x00000008 (8) # ./avivotool regmatch 0x00000404 0x00000404 0x00000002 (2) Thanks!!! (please put in kms too :) If you need me to test any more patches or provide any other info, let me know.
Does disabling coherent mode help? non-KMS: xrandr --output DVI-0 --set coherent_mode 0 KMS: xrandr --output DVI-0 --set coherent 0 Note that for KMS, you need the latest bits from drm-radeon-next or drm-radeon-testing for the coherent option to work.

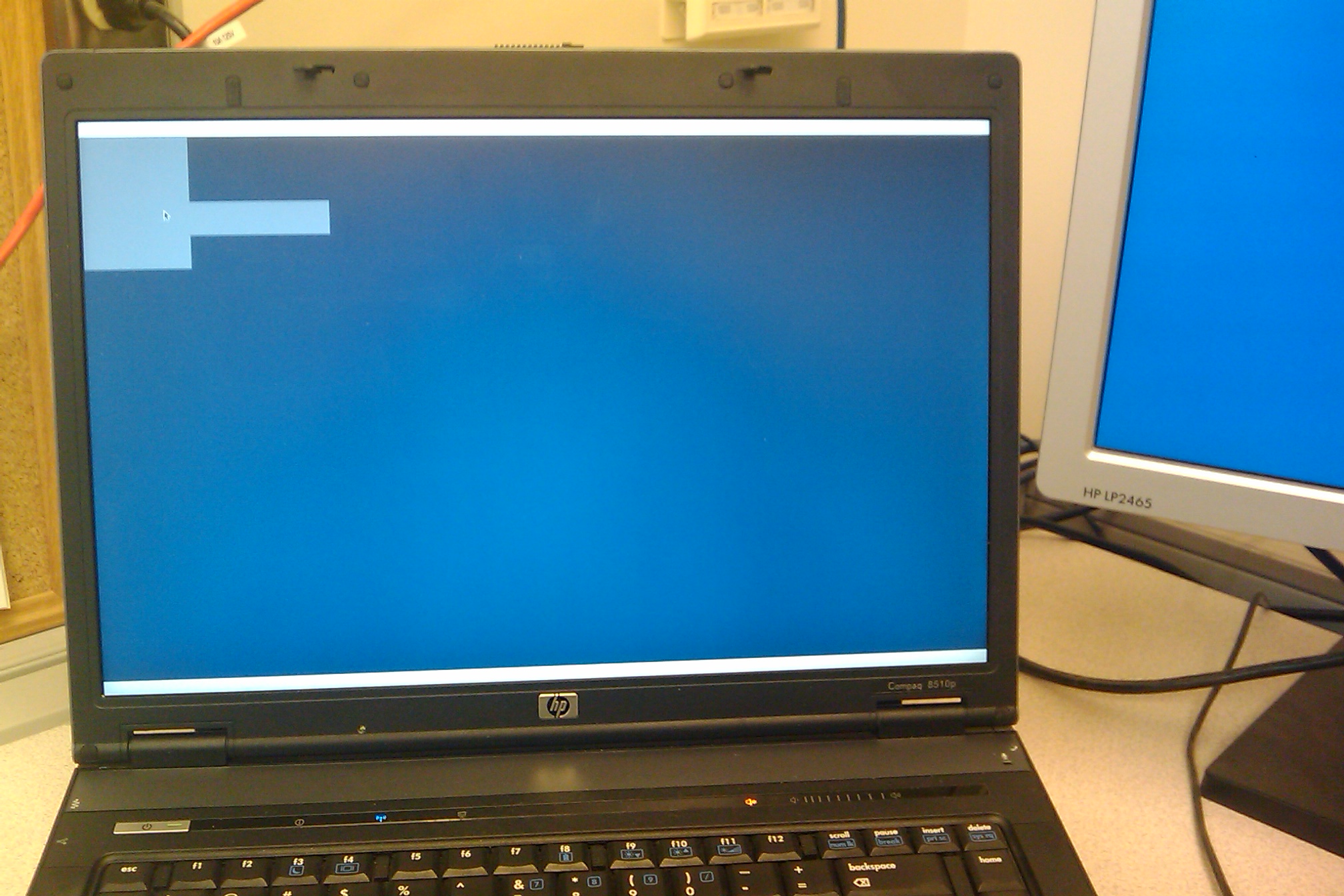

Created attachment 31944 [details] photo of desktop display corruption with latest git, nomodeset, after running xrandr --output DVI-0 --set coherent_mode 0
Mass closure: This bug has been untouched for more than six years, and is not obviously still valid. Please reopen this bug or file a new report if you continue to experience issues with current releases.
