Bug 100925 - [HSW/BSW/BDW/SKL] Google Earth is not resolving all the details in the map correctly
Summary: [HSW/BSW/BDW/SKL] Google Earth is not resolving all the details in the map co...
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i965 (show other bugs)
Version: 17.0
Hardware: x86-64 (AMD64) Linux (All)
: high critical
Assignee: Nanley Chery
QA Contact: Intel 3D Bugs Mailing List
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2017-05-04 09:42 UTC by Gary Wang
Modified: 2017-05-19 00:08 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments
Glx information (26.40 KB, text/plain)
2017-05-04 09:42 UTC, Gary Wang
Details
Reference picture for symptom (4.58 MB, image/jpeg)
2017-05-04 09:45 UTC, Gary Wang
Details
Software rendering via MESA 17.2.0-devel (13.62 KB, text/plain)
2017-05-05 04:41 UTC, Gary Wang
Details
Symptom for comment #7 (2.71 MB, image/png)
2017-05-05 04:43 UTC, Gary Wang
Details
workaround (698 bytes, patch)
2017-05-08 10:43 UTC, Tapani Pälli
Details | Splinter Review
s3tc hack-patch (2.16 KB, patch)
2017-05-09 22:57 UTC, Mark Janes
Details | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Gary Wang 2017-05-04 09:42:33 UTC
Created attachment 131194 [details]
Glx information

Ubuntu 16.04.2
MESA 17.0.5 or 17.2.0-devel (a5f82db3805f glsl: rename image_* qualifiers to memory_*)
kernel: 4.10/4.11-rc4
Chrome browser: R58.0.3029.96

Steps:
1. got to https://www.google.com/earth/
2. Press "Launch Google Earth"
3. Zoom in area of ocean. It will see the non-smooth rendering without detail.
Comment 1 Gary Wang 2017-05-04 09:45:24 UTC

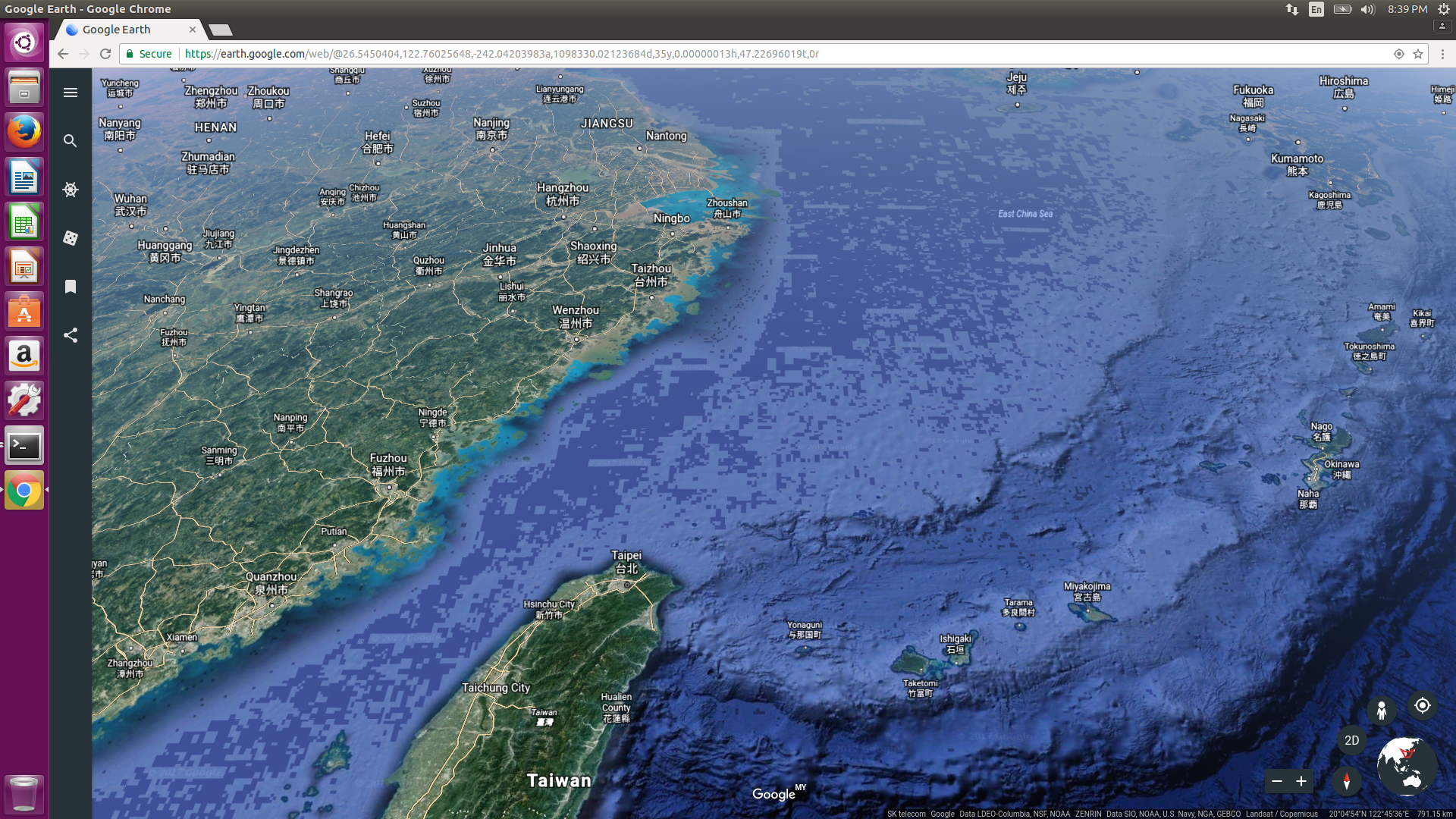

Created attachment 131195 [details]
Reference picture for symptom

Please help to check symptom.
Comment 2 Tapani Pälli 2017-05-04 10:21:29 UTC
Just to see if this was some regression I've reproduced this on IVB laptop with older Mesa (13.0.4). It seems this has been there always or for some time.
Comment 3 Mark Janes 2017-05-04 15:07:01 UTC
It looks to me like the application is serving different images in square regions of the map, which makes the ocean look pixelated.

Can you please repeat on windows or non-intel hardware to verify that Mesa is causing this rendering artifact?
Comment 4 Dylan Baker 2017-05-04 17:44:55 UTC
With Chrome 58.0.3029.96, using the Nvidia blob driver I don't see the blotchy tiles. This seems likely to be an actual mesa rendering bug.
Comment 5 Mark Janes 2017-05-04 19:04:43 UTC
The texture that is being misrendered is GL_COMPRESSED_RGB_S3TC_DXT1_EXT.  It is uploaded in that format.

Same texture data is rendered properly by Windows with the same hardware.  This is a Mesa bug.

You can see this clearly at frame 600 of the trace at:
https://drive.google.com/open?id=0B2S0H03dkl2CTS0zQlhJeEdsOW8
Comment 6 Gary Wang 2017-05-05 01:56:07 UTC
Chrome browser R58 doesn't encounter this issue in Windows 7.thanks
Comment 7 Gary Wang 2017-05-05 04:41:58 UTC
Created attachment 131221 [details]
Software rendering via MESA 17.2.0-devel

I also tested it with software rendering, issue could be observed.

...
OpenGL vendor string: Mesa Project
OpenGL renderer string: Software Rasterizer
OpenGL version string: 2.1 Mesa 17.2.0-devel (git-a5f82db)
OpenGL shading language version string: 1.20
...
Comment 8 Gary Wang 2017-05-05 04:43:58 UTC
Created attachment 131222 [details]
Symptom for comment #7

List picture for symptom in https://bugs.freedesktop.org/show_bug.cgi?id=100925#c7
Comment 9 Tapani Pälli 2017-05-08 10:43:30 UTC
Created attachment 131258 [details] [review]
workaround

I did see these same/similar artifacts (like compression errors) also on nvidia but very faintly so started to look if this was about alpha and that seems the case. Not sure what the real fix is yet though.
Comment 10 Gary Wang 2017-05-09 03:58:56 UTC
I saw internal format was 0x8058 GL_RGBA8_EXT but not GL_RGB8_EXT
...
glPixelStorei(pname = GL_UNPACK_ALIGNMENT, param = 1)
glCompressedTexImage2D(target = GL_TEXTURE_CUBE_MAP_NEGATIVE_X, level = 0, internalformat = GL_COMPRESSED_RGB_S3TC_DXT1_EXT, width = 256, height = 256, border = 0, imageSize = 32768, data = blob(32768))
glPixelStorei(pname = GL_UNPACK_ALIGNMENT, param = 1)
glGetGraphicsResetStatus() = GL_ZERO
glCompressedTexImage2D(target = GL_TEXTURE_CUBE_MAP_NEGATIVE_Y, level = 0, internalformat = GL_COMPRESSED_RGB_S3TC_DXT1_EXT, width = 256, height = 256, border = 0, imageSize = 32768, data = blob(32768))
...
Comment 11 Tapani Pälli 2017-05-09 05:58:12 UTC
(In reply to Gary Wang from comment #10)
> I saw internal format was 0x8058 GL_RGBA8_EXT but not GL_RGB8_EXT

Where did you see internal format GL_RGBA8_EXT used?

For me this looks like application would like to have alpha but is passing wrong enum GL_COMPRESSED_RGB_S3TC_DXT1_EXT instead of GL_COMPRESSED_RGBA_S3TC_DXT1_EXT.
Comment 12 Gary Wang 2017-05-09 06:34:36 UTC
Hi Tapani,
I saw wrong rendering task in log and am sorry for comment #10. :)
...
Mesa: glBindTexture GL_TEXTURE_2D 1304
Mesa: FLUSH_VERTICES in bind_texture
Mesa: FLUSH_VERTICES in flush
Mesa: FLUSH_VERTICES in flush
Mesa: FLUSH_VERTICES in flush
Mesa: glBindTexture GL_TEXTURE_2D 1304
Mesa: FLUSH_VERTICES in bind_texture
Mesa: glTexStorage2D GL_TEXTURE_2D 1 GL_RGBA8 256 256 1
Mesa: _mesa_make_current()
Mesa: FLUSH_VERTICES in _mesa_flush
Mesa: FLUSH_CURRENT in _mesa_flush
Mesa: _mesa_make_current()
Mesa: glBindTexture GL_TEXTURE_2D 1256
Mesa: FLUSH_VERTICES in bind_texture
Mesa: glGetError <-- GL_NO_ERROR
Mesa: glGetError <-- GL_NO_ERROR
Mesa: glBindTexture GL_TEXTURE_2D 0
...
Comment 13 Gary Wang 2017-05-09 09:18:09 UTC
(In reply to Gary Wang from comment #7)
> Created attachment 131221 [details]
> Software rendering via MESA 17.2.0-devel
>
> I also tested it with software rendering, issue could be observed.
>
> ...
> OpenGL vendor string: Mesa Project
> OpenGL renderer string: Software Rasterizer
> OpenGL version string: 2.1 Mesa 17.2.0-devel (git-a5f82db)
> OpenGL shading language version string: 1.20
> ...

It found Google-Earth web always prevent to run chrome in non-accelerated mode (glx_accel).

I re-tested software rendering for this issue today and it appears above #7 comment was wrong due to some modified code in my local mesa repository with incorrect status.

Sorry. Please ignore #7.
Comment 14 Gary Wang 2017-05-09 09:31:35 UTC
(In reply to Tapani Pälli from comment #9)
> Created attachment 131258 [details] [review] [review]
> workaround
>
> I did see these same/similar artifacts (like compression errors) also on
> nvidia but very faintly so started to look if this was about alpha and that
> seems the case. Not sure what the real fix is yet though.

Yes, you are right. I also test it by GL_COMPRESSED_RGBA_S3TC_DXT1_EXT for compressed texture in glCompressedTexImage2D().

diff --git a/src/mesa/main/teximage.c b/src/mesa/main/teximage.c
index 1a00d25..9f9ffd6 100644
--- a/src/mesa/main/teximage.c
+++ b/src/mesa/main/teximage.c
@@ -2724,6 +2724,8 @@ override_internal_format(GLenum internalFormat, GLint width, GLint height)
       return internalFormat;
    }
 #else
+   if (internalFormat == GL_COMPRESSED_RGB_S3TC_DXT1_EXT)
+      internalFormat = GL_COMPRESSED_RGBA_S3TC_DXT1_EXT;
    return internalFormat;
 #endif
 }
Comment 15 Mark Janes 2017-05-09 22:57:45 UTC
Created attachment 131287 [details] [review]
s3tc hack-patch

Attached patch attempts to fix the issue with a texture swizzle, but unfortunately did not work.

I confirmed that hard-coding the texture format to include alpha works properly.
Comment 16 Nanley Chery 2017-05-11 21:11:10 UTC
I found some text from the SKL PRM, Vol 5: Memory Views, that explains the errors we're seeing:

   Example of Opaque Color Encoding
   [...]
   00 ? color_0
   01 ? color_1
   10 ? 2/3 color_0 + 1/3 color_1
   11 ? 1/3 color_0 + 2/3 color_1

   [...]
   Programming Note
   Context: Opaque Textures (DXT1_RGB)
   The behavior of this format is not compliant with the OGL spec

Here's the OGL spec behaviour for reference:

   The RGB color for a texel at location (x,y) in the block is given by:

      RGB0,              if color0 > color1 and code(x,y) == 0
      RGB1,              if color0 > color1 and code(x,y) == 1
      (2*RGB0+RGB1)/3,   if color0 > color1 and code(x,y) == 2
      (RGB0+2*RGB1)/3,   if color0 > color1 and code(x,y) == 3

      RGB0,              if color0 <= color1 and code(x,y) == 0
      RGB1,              if color0 <= color1 and code(x,y) == 1
      (RGB0+RGB1)/2,     if color0 <= color1 and code(x,y) == 2
      BLACK,             if color0 <= color1 and code(x,y) == 3

   Arithmetic operations are done per component, and BLACK refers to an
   RGB color where red, green, and blue are all zero.

http://developer.download.nvidia.com/opengl/specs/GL_EXT_texture_compression_s3tc.txt
Comment 17 Nanley Chery 2017-05-11 23:47:44 UTC
Patches to fix this issue are on the list:

https://patchwork.freedesktop.org/series/24323/
Comment 18 Nanley Chery 2017-05-19 00:08:42 UTC
Thank you for taking the time to report this issue. This bug has been fixed upstream with the following commit:

commit 688ddb85c8c3357d8e1e9d360c74cd728b128d98
Author: Nanley Chery <nanley.g.chery@intel.com>
Date:   Thu May 11 15:57:59 2017 -0700

    i965/formats: Update the three-channel DXT1 mappings

    The procedure for decompressing an opaque DXT1 OpenGL format is
    dependant on the comparison of two colors stored in the first 32 bits of
    the compressed block. Here's the specified OpenGL behavior for
    reference:

       The RGB color for a texel at location (x,y) in the block is given by:

          RGB0,              if color0 > color1 and code(x,y) == 0
          RGB1,              if color0 > color1 and code(x,y) == 1
          (2*RGB0+RGB1)/3,   if color0 > color1 and code(x,y) == 2
          (RGB0+2*RGB1)/3,   if color0 > color1 and code(x,y) == 3

          RGB0,              if color0 <= color1 and code(x,y) == 0
          RGB1,              if color0 <= color1 and code(x,y) == 1
          (RGB0+RGB1)/2,     if color0 <= color1 and code(x,y) == 2
          BLACK,             if color0 <= color1 and code(x,y) == 3

    The sampling operation performed on an opaque DXT1 Intel format essentially
    hard-codes the comparison result of the two colors as color0 > color1.
    This means that the behavior is incompatible with OpenGL. This is stated
    in the SKL PRM, Vol 5: Memory Views:

       Opaque Textures (DXT1_RGB)
          Texture format DXT1_RGB is identical to DXT1, with the exception that the
          One-bit Alpha encoding is removed. Color 0 and Color 1 are not compared, and
          the resulting texel color is derived strictly from the Opaque Color Encoding.
          The alpha channel defaults to 1.0.

          Programming Note
          Context: Opaque Textures (DXT1_RGB)
          The behavior of this format is not compliant with the OGL spec.

    The opaque and non-opaque DXT1 OpenGL formats are specified to be
    decoded in exactly the same way except the BLACK value must have a
    transparent alpha channel in the latter. Use the four-channel BC1 Intel
    formats with the alpha set to 1 to provide the behavior required by the
    spec. Note that the alpha is already set to 1 for RGB formats in
    brw_get_texture_swizzle().

    v2: Provide a more detailed commit message (Kenneth Graunke).
    v3: Ensure the alpha channel is set to 1 for DXT1 formats.

    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=100925
    Cc: <mesa-stable@lists.freedesktop.org>
    Acked-by: Tapani Pälli <tapani.palli@intel.com> (v1)
    Reviewed-by: Kenneth Graunke <kenneth@whitecape.org>
    Signed-off-by: Nanley Chery <nanley.g.chery@intel.com>
