Bug 101772 - Artifacts on virtual console basing on inteldrmfb framebuffer on multi-head configurations
Summary: Artifacts on virtual console basing on inteldrmfb framebuffer on multi-head c...
Status: NEW
Alias: None
Product: kmscon
Classification: Unclassified
Component: kmscon (show other bugs)
Version: unspecified
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: David Herrmann
QA Contact:
Depends on:
Reported: 2017-07-13 05:55 UTC by sdrb
Modified: 2018-01-29 07:53 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:

Screenshot of the virtual console with artifacts (80.76 KB, image/jpeg)
2017-07-13 05:55 UTC, sdrb
dmesg from 4.9.0-rc2 with artifacts (46.13 KB, text/plain)
2017-07-27 05:11 UTC, sdrb
dmesg from 4.13.0-rc2 with artifacts (49.07 KB, text/plain)
2017-07-27 05:12 UTC, sdrb

Description sdrb 2017-07-13 05:55:32 UTC
Created attachment 132656 [details]

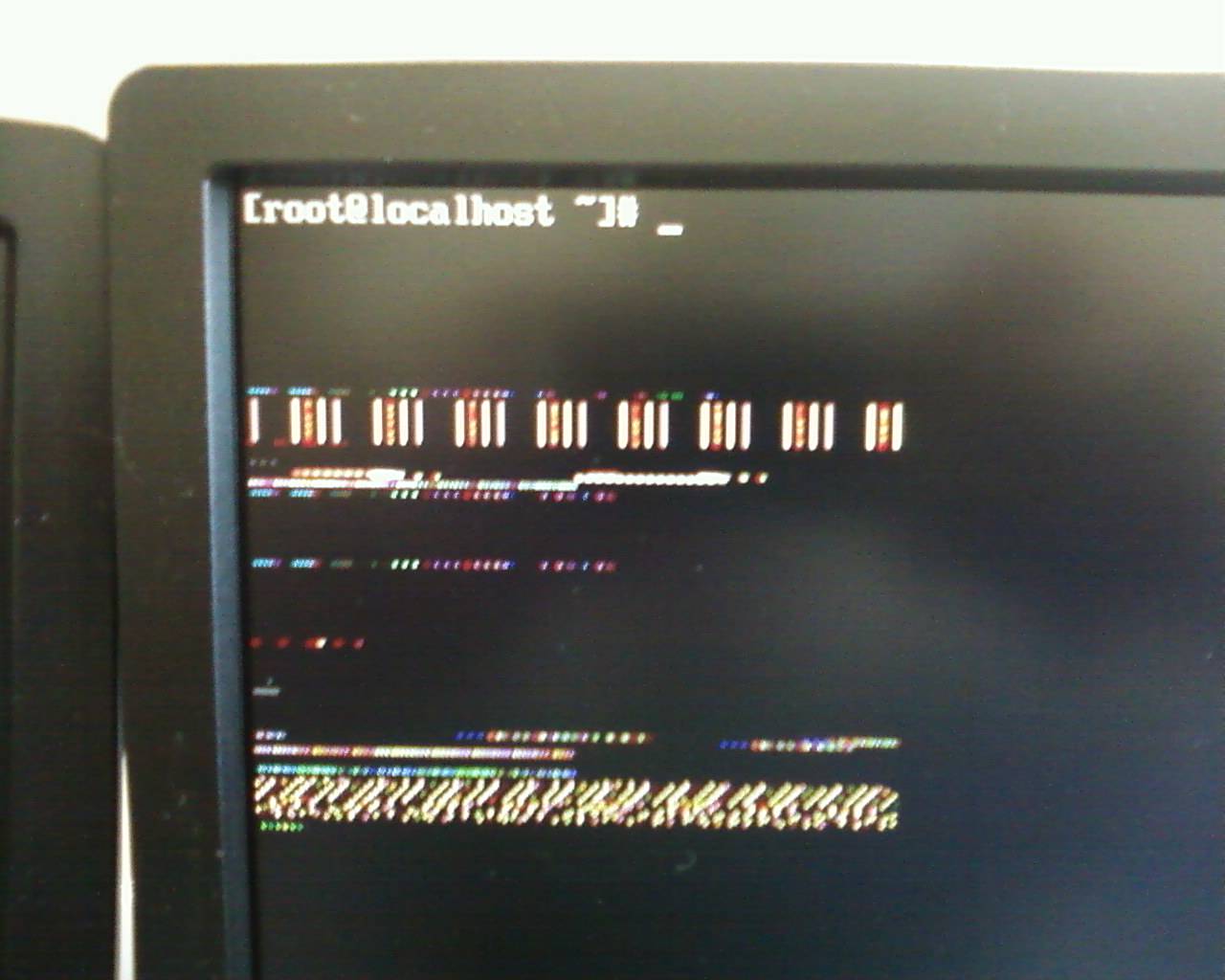

Screenshot of the virtual console with artifacts

Recently I received new PC and after Linux installation I noticed artifacts on virtual terminal's screen.

Screenshot from virtual console is in the attachment.

The sequence to achieve the artifacts is as follow:

1. Start Linux in text mode (virtual terminal, not X11 GUI)
2. Everything in virtual terminals is ok
3. Run X11 (xorg)
4. Switch back to virtual terminals
5. Now the artifacts appear on every virtual terminal

The artifacts appear only after switching from xorg to virtual terminals.

I use i7-6700 processor on recently updated Arch Linux.
Xorg-server: 1.19.3-2
Kernel 4.12.0 compiled by myself.

Output from "fbset -i":

mode "1920x1080"
    geometry 1920 1080 1920 1080 32
    timings 0 0 0 0 0 0 0
    accel true
    rgba 8/16,8/8,8/0,0/0

Frame buffer device information:
    Name        : inteldrmfb
    Address     : 0xd0040000
    Size        : 8294400
    Type        : PACKED PIXELS
    Visual      : TRUECOLOR
    XPanStep    : 1
    YPanStep    : 1
    YWrapStep   : 0
    LineLength  : 7680
    Accelerator : No
Comment 1 sdrb 2017-07-20 07:02:06 UTC
I noticed that it appear only on multi-head configuration. Seems like randr is somehow involved in this issue. I switched monitors (left and right) and after I reconfigured X-window environment with xrandr the problem occured again on the right monitor. So the issue concerns right monitor after reconfiguring with randr.
Comment 2 sdrb 2017-07-25 05:54:06 UTC
For testing purposes I recompiled older kernel 4.8.0 and there is no such artifacts - everything is working fine. Additionally I have tested the newest kernel 4.13-rc2 - and here still the issue occurs.
So it seems like there is some kind of regression in kernel sources.
Comment 3 sdrb 2017-07-26 12:13:36 UTC
Ok, I did bisect on kernel and here below is what I found out.

[root@localhost linux-git]# git bisect bad
e62929b3f628f4dd023b95bdf63d486d877b8e1e is the first bad commit
commit e62929b3f628f4dd023b95bdf63d486d877b8e1e
Author: Maarten Lankhorst <maarten.lankhorst@linux.intel.com>
Date:   Tue Nov 8 13:55:33 2016 +0100

    drm/i915/gen9+: Program watermarks as a separate step during evasion, v3.

    The watermark updates for SKL style watermarks are no longer done
    in the plane callbacks, but are now called in a separate watermark
    update function that's called during the same vblank evasion,
    before the plane updates.

    This also gets rid of the global skl_results, which was required for
    keeping track of the current atomic commit.

    Changes since v1:
    - Move line unwrap to correct patch. (Lyude)
    - Make sure we don't regress ILK watermarks. (Matt)
    - Rephrase commit message. (Matt)
    Changes since v2:
    - Fix disable watermark check to use the correct way to determine single
      step watermark support.

    Reviewed-by: Matt Roper <matthew.d.roper@intel.com>
    Reviewed-by: Lyude <cpaul@redhat.com>
    Signed-off-by: Maarten Lankhorst <maarten.lankhorst@linux.intel.com>
    Link: http://patchwork.freedesktop.org/patch/msgid/1478609742-13603-3-git-send-email-maarten.lankhorst@linux.intel.com
    [mlankhorst: Small whitespace fix in skl_initial_wm]

:040000 040000 4abc0f4fff120402078594f21598019c8d342bbc 4dd296dd5a107668be34da73722d370438638a0a M      drivers

[root@localhost linux-git]# git bisect log
git bisect start '--' 'drivers/gpu/drm/i915'
# bad: [650fc870a2ef35b83397eebd35b8c8df211bff78] Merge tag 'docs-4.13' of git://git.lwn.net/linux
git bisect bad 650fc870a2ef35b83397eebd35b8c8df211bff78
# good: [c8d2bc9bc39ebea8437fd974fdbc21847bb897a3] Linux 4.8
git bisect good c8d2bc9bc39ebea8437fd974fdbc21847bb897a3
# bad: [a318b4c4ea9aa9ad6279286f7989ce4a75d5fd76] drm/i915: Intel panel downclock cleanup
git bisect bad a318b4c4ea9aa9ad6279286f7989ce4a75d5fd76
# good: [c0c8b9ed1b0c14d91ff73624df6d918bb47c8a5e] Merge tag 'drm-for-v4.9' into drm-intel-next-queued
git bisect good c0c8b9ed1b0c14d91ff73624df6d918bb47c8a5e
# good: [bae781b259269590109e8a4a8227331362b88212] drm: Nuke modifier[1-3]
git bisect good bae781b259269590109e8a4a8227331362b88212
# bad: [793b61ea9f9972be0836a9a15d0d6a520daaf124] drm/i915: i915_gem_alloc_context_obj can be static
git bisect bad 793b61ea9f9972be0836a9a15d0d6a520daaf124
# bad: [3975797f3e72bd115c6ba80210c5fe65ebd9e14e] Merge remote-tracking branch 'airlied/drm-next' into drm-intel-next-queued
git bisect bad 3975797f3e72bd115c6ba80210c5fe65ebd9e14e
# good: [2b3c83176e908401f31e26a4c0ba71f6248b11c1] drm/i915: Stop skipping the final clflush back to system pages
git bisect good 2b3c83176e908401f31e26a4c0ba71f6248b11c1
# good: [bb89485e999181a329cafa8e798b6bbf10c1a52a] drm/i915: Create distinct lockclasses for execution vs user timelines
git bisect good bb89485e999181a329cafa8e798b6bbf10c1a52a
# good: [ccf010fb943a649a3ca74bb5cd489a642afaa7ae] drm/i915: Add an atomic evasion step to watermark programming, v4.
git bisect good ccf010fb943a649a3ca74bb5cd489a642afaa7ae
# bad: [27745e829a5cb896249f355f5bdab3249c5455e2] drm/i915/execlists: Use a local lock for dfs_link access
git bisect bad 27745e829a5cb896249f355f5bdab3249c5455e2
# bad: [512b552798bfa3c4e665c34b9618d05c71b753ad] drm/i915/gen9+: Preserve old allocation from crtc_state.
git bisect bad 512b552798bfa3c4e665c34b9618d05c71b753ad
# bad: [e62929b3f628f4dd023b95bdf63d486d877b8e1e] drm/i915/gen9+: Program watermarks as a separate step during evasion, v3.
git bisect bad e62929b3f628f4dd023b95bdf63d486d877b8e1e
# first bad commit: [e62929b3f628f4dd023b95bdf63d486d877b8e1e] drm/i915/gen9+: Program watermarks as a separate step during evasion, v3.

I hope those information will be more helpful.
Comment 4 Maarten Lankhorst 2017-07-26 13:14:37 UTC
Is there anything in dmesg?
Comment 5 sdrb 2017-07-27 05:11:54 UTC
Created attachment 133065 [details]
dmesg from 4.9.0-rc2 with artifacts

This is the dmesg from first bad commit on 4.9.0-rc2 with artifacts.
Comment 6 sdrb 2017-07-27 05:12:50 UTC
Created attachment 133066 [details]
dmesg from 4.13.0-rc2 with artifacts
Comment 7 sdrb 2017-07-27 05:16:14 UTC
I attached 2 dmesg files from 2 bad kernels (with artifacts on screen):
- 4.9.0-rc2
- 4.13.0-rc2

I see nothing wrong in any of those dmesg apart from warning in 4.9.0-rc2.
Comment 8 sdrb 2017-07-27 05:24:09 UTC
I forgot to write that those artifacts are quite different on both bad kernels. On 4.9.0-rc2 it looks like one line with artifacts, but on 4.13 it looks like multiple line artifacts - as it can be seen on attached screenshot.

So in other words - there are two artifacts. First one appeared in e62929b3f628f4dd023b95bdf63d486d877b8e1e and it was only one-line artifact (unfortunately no screenshot attached). Then somewhere between 4.9.0-rc2 and 4.13.0-rc2 another one (multi-line) artifacts appeared (in attached screenshot).
Comment 9 sdrb 2018-01-29 07:53:16 UTC
Any progress? I've tested newest kernel 4.15.0 and the problem still occurs. And it is even worse - because the artifacts appears on both screens.
