Hello Intel devs,
The Bio and EM Vision in >Observer_ is broken since commit...
af2c320190f3c73180f1610c8df955a7fa2a4d09 is the first bad commit
Author: Francisco Jerez <firstname.lastname@example.org>
Date: Thu Jun 15 15:23:57 2017 -0700
intel/fs: Implement GRF bank conflict mitigation pass.
Unnecessary GRF bank conflicts increase the issue time of ternary
instructions (the overwhelmingly most common of which is MAD) by
roughly 50%, leading to reduced ALU throughput. This pass attempts to
minimize the number of bank conflicts by rearranging the layout of the
GRF space post-register allocation. It's in general not possible to
eliminate all of them without introducing extra copies, which are
typically more expensive than the bank conflict itself.
In a shader-db run on SKL this helps roughly 46k shaders:
total conflicts in shared programs: 1008981 -> 600461 (-40.49%)
conflicts in affected programs: 816222 -> 407702 (-50.05%)
The running time of shader-db itself on SKL seems to be increased by
roughly 2.52%±1.13% with n=20 due to the additional work done by the
On earlier generations the pass is somewhat less effective in relative
terms because the hardware incurs a bank conflict anytime the last two
sources of the instruction are duplicate (e.g. while trying to square
a value using MAD), which is impossible to avoid without introducing
copies. E.g. for a shader-db run on SNB:
total conflicts in shared programs: 944636 -> 623185 (-34.03%)
conflicts in affected programs: 853258 -> 531807 (-37.67%)
And on BDW:
total conflicts in shared programs: 1418393 -> 987539 (-30.38%)
conflicts in affected programs: 1179787 -> 748933 (-36.52%)
On SKL GT4e this improves performance of GpuTest Volplosion by 3.64%
±0.33% with n=16.
NOTE: This patch intentionally disregards some i965 coding conventions
for the sake of reviewability. This is addressed by the next
squash patch which introduces an amount of (for the most part
boring) boilerplate that might distract reviewers from the
non-trivial algorithmic details of the pass.
The following patch is squashed in:
SQUASH: intel/fs/bank_conflicts: Roll back to the nineties.
Acked-by: Matt Turner <email@example.com>
:040000 040000 f68427a37c7d2d4a8fa696449fa723c7995d2e68 169b720ac98eac61cef120e37212467fa689c938 M src

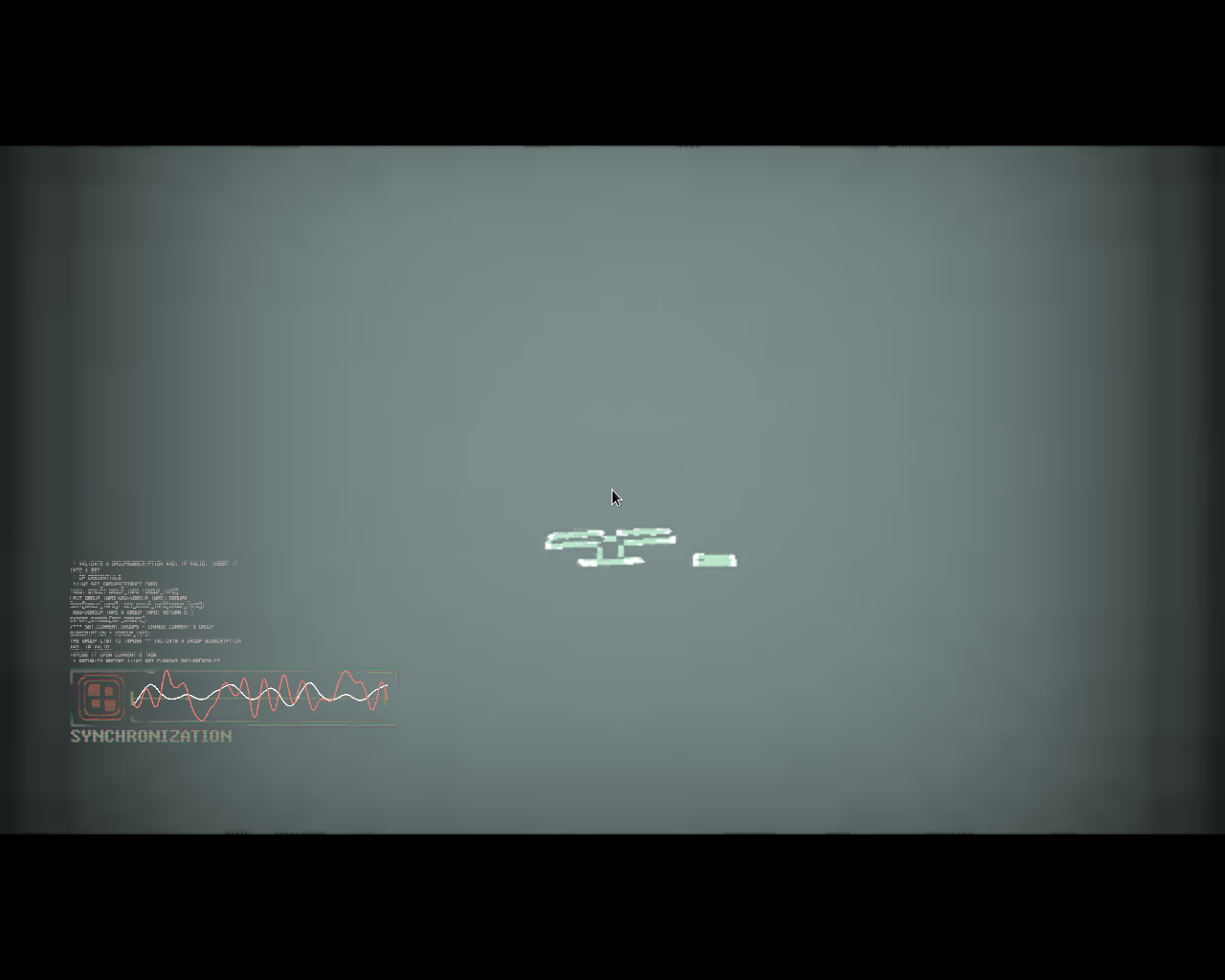

Created attachment 136069 [details]
Bio vision good

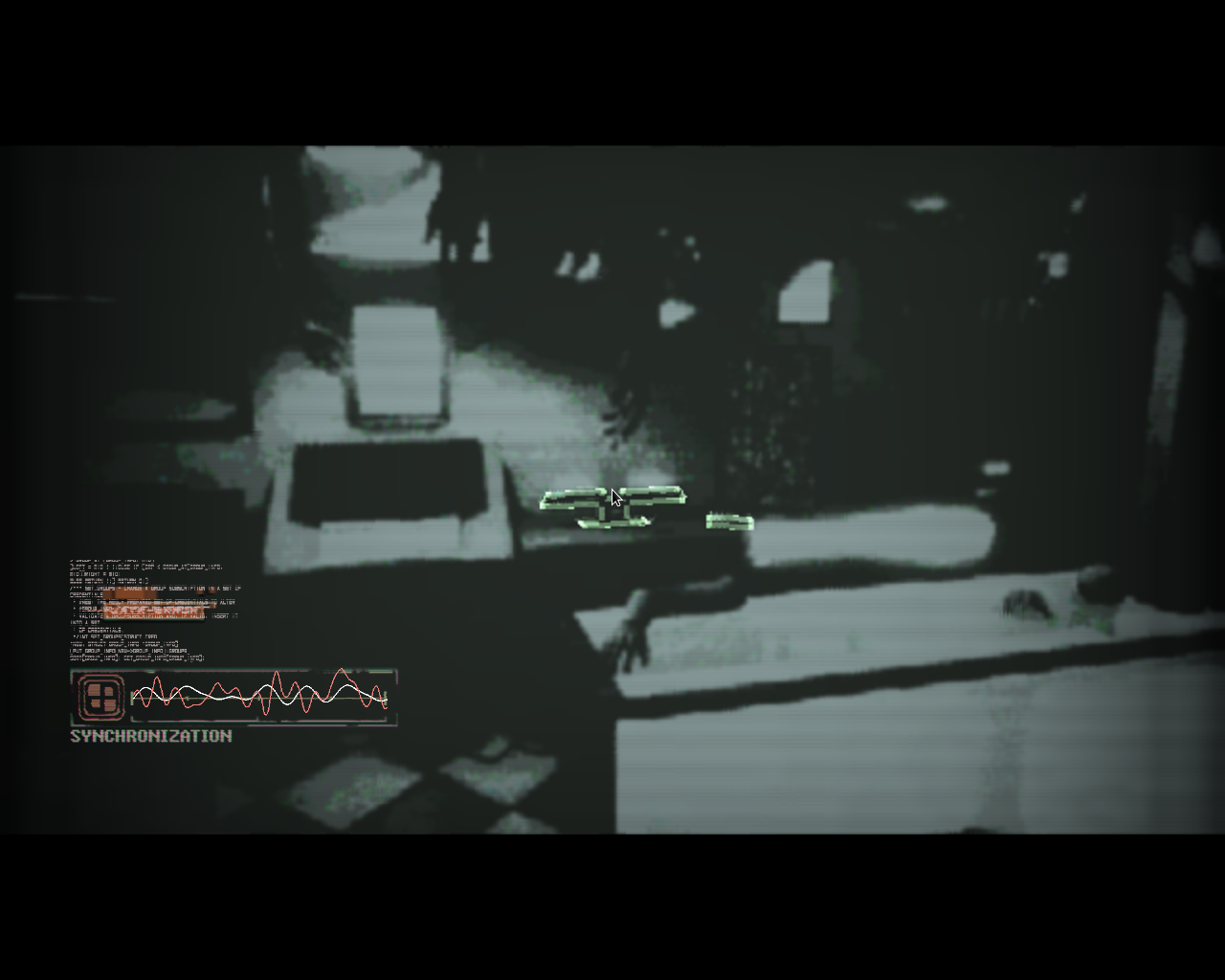

Created attachment 136070 [details]
Bio vision bad

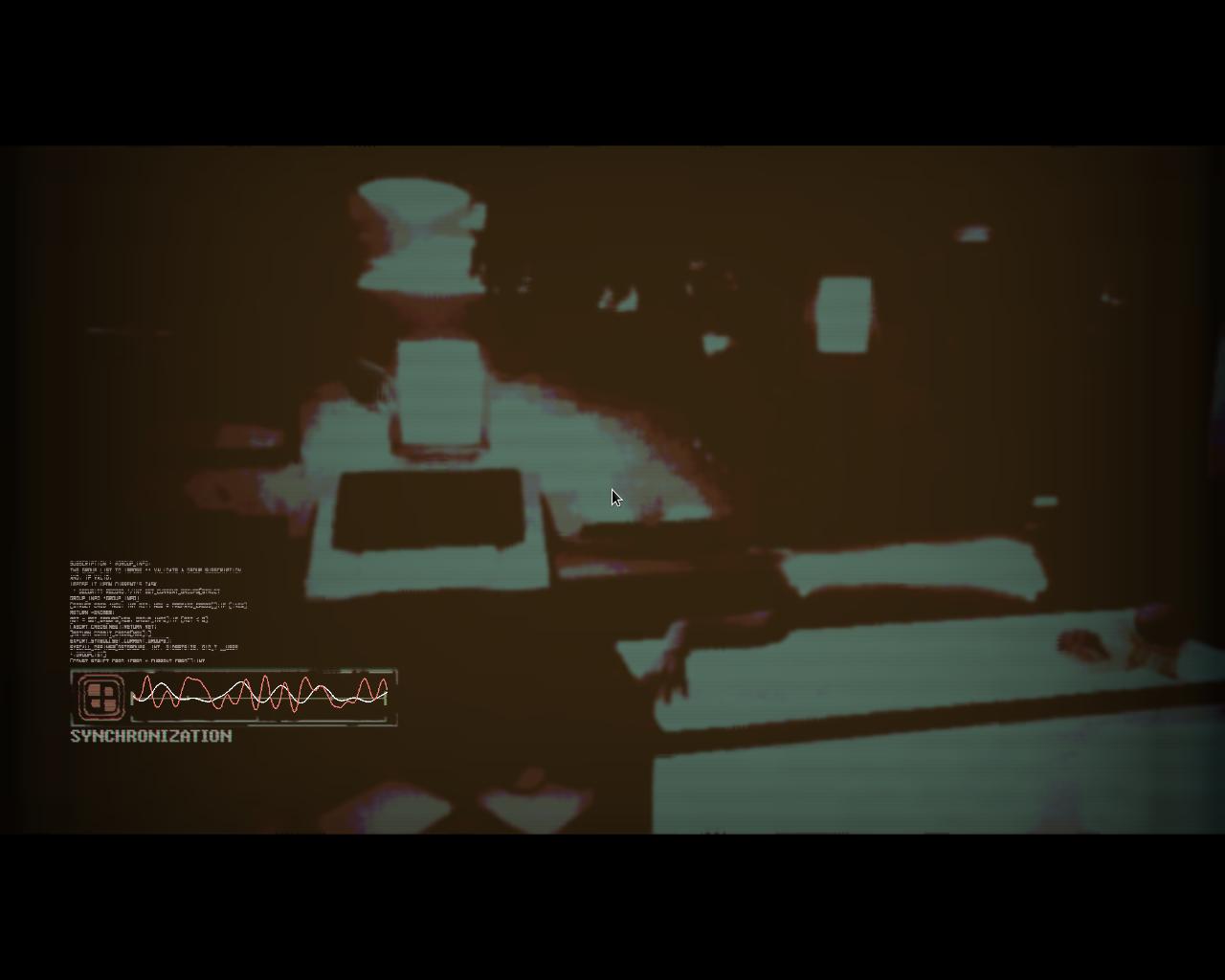

Created attachment 136071 [details]
EM vision good

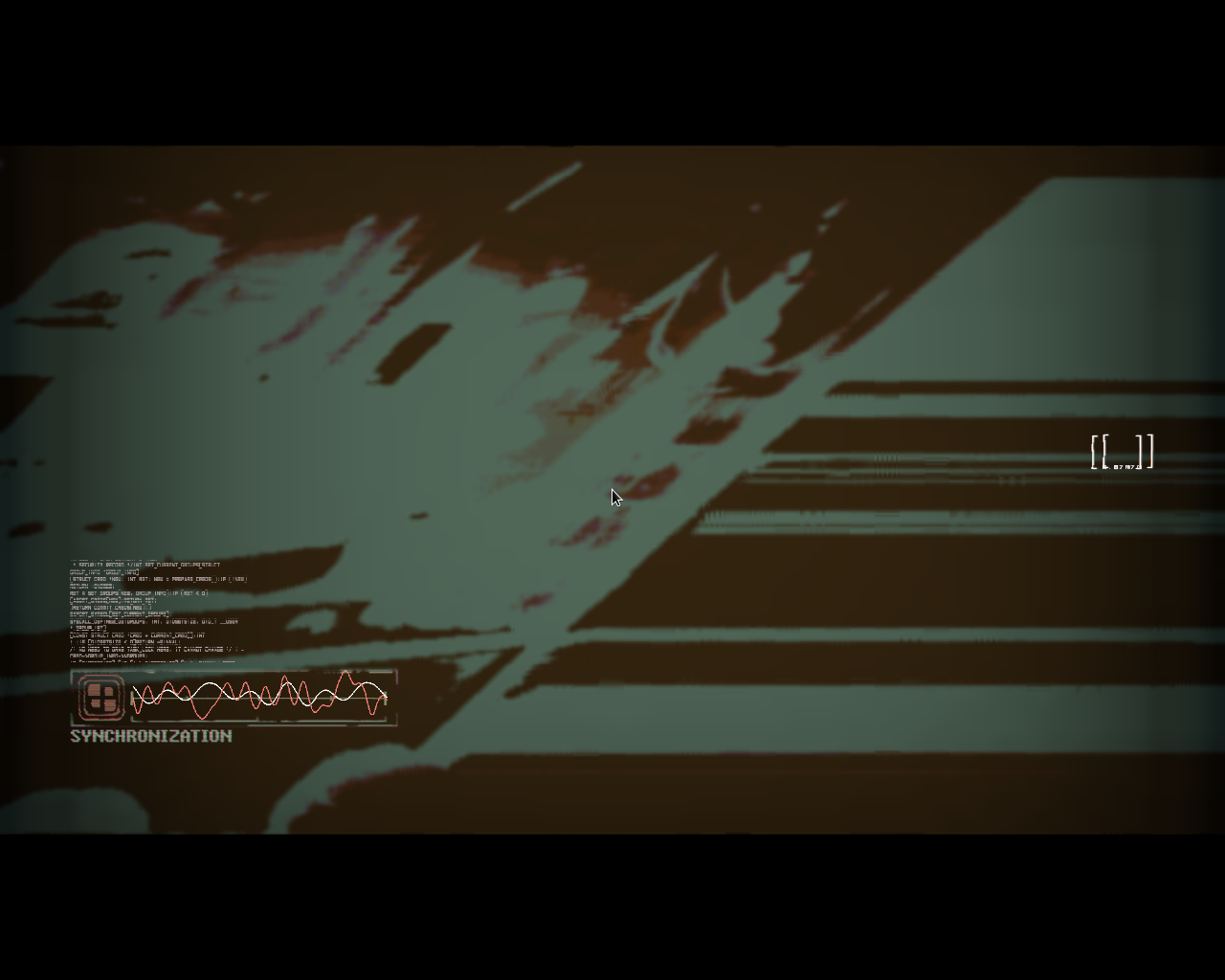

Created attachment 136072 [details]
EM vision bad
Apitrace is ready if needed.
This was tested with:
darius@pc1:~$ glxinfo | grep OpenGL
OpenGL vendor string: Intel Open Source Technology Center
OpenGL renderer string: Mesa DRI Intel(R) Haswell Desktop
OpenGL core profile version string: 4.5 (Core Profile) Mesa 17.4.0-devel (git-b926da241a)
OpenGL core profile shading language version string: 4.50
OpenGL core profile context flags: (none)
OpenGL core profile profile mask: core profile
OpenGL core profile extensions:
OpenGL version string: 3.0 Mesa 17.4.0-devel (git-b926da241a)
OpenGL shading language version string: 1.30
OpenGL context flags: (none)
OpenGL ES profile version string: OpenGL ES 3.1 Mesa 17.4.0-devel (git-b926da241a)
OpenGL ES profile shading language version string: OpenGL ES GLSL ES 3.10
OpenGL ES profile extensions:
iGPU Intel Haswell Iris Pro 5200
there is also bug #104197 that bisects to the same commit, FYI Curro
Darius, can you share me the apitrace? (firstname.lastname@example.org)
(In reply to Tapani Pälli from comment #7)
> Darius, can you share me the apitrace? (email@example.com)
Mail with download link send.
I can reproduce the issue and bisection. Quick hack, if I simply skip optimize_reg_permutation (return map as is) the problem goes away.
Created attachment 136094 [details] [review]
This seems to help with your apitrace, can you give it a try?
(In reply to Francisco Jerez from comment #10)
> Created attachment 136094 [details] [review] [review]
> This seems to help with your apitrace, can you give it a try?
Yes, problem is fixed.
Thank you Curro, thank you Tapani.
Thanks. Should be fixed in master now.
