Hello, I just installed my distro packages for xserver rc3 and intel driver rc3. The DPI settings seems to be wrong. The Xorg.0.log says "(==) intel(0): DPI set to (75, 75)", but I believe it is not. My fonts are larger. If I execute "xrandr --verbose --dpi 75/LVDS" I get "screen 0: 1024x768 346x260 mm 75.00dpi", after that new opened windows have the correct font sizes (the same as I had with the old driver). One more thing: If 346x260 is the screen size in millimeters this is wrong. It is ~305x229. I'll attach screenshots, my xorg.conf and the output of xrandr -q.
Created attachment 9316 [details] my xorg.conf
Created attachment 9317 [details] Xorg.0.log
Created attachment 9318 [details] xrandr -q output notice, that I currently don't have a monitor connected to vga.

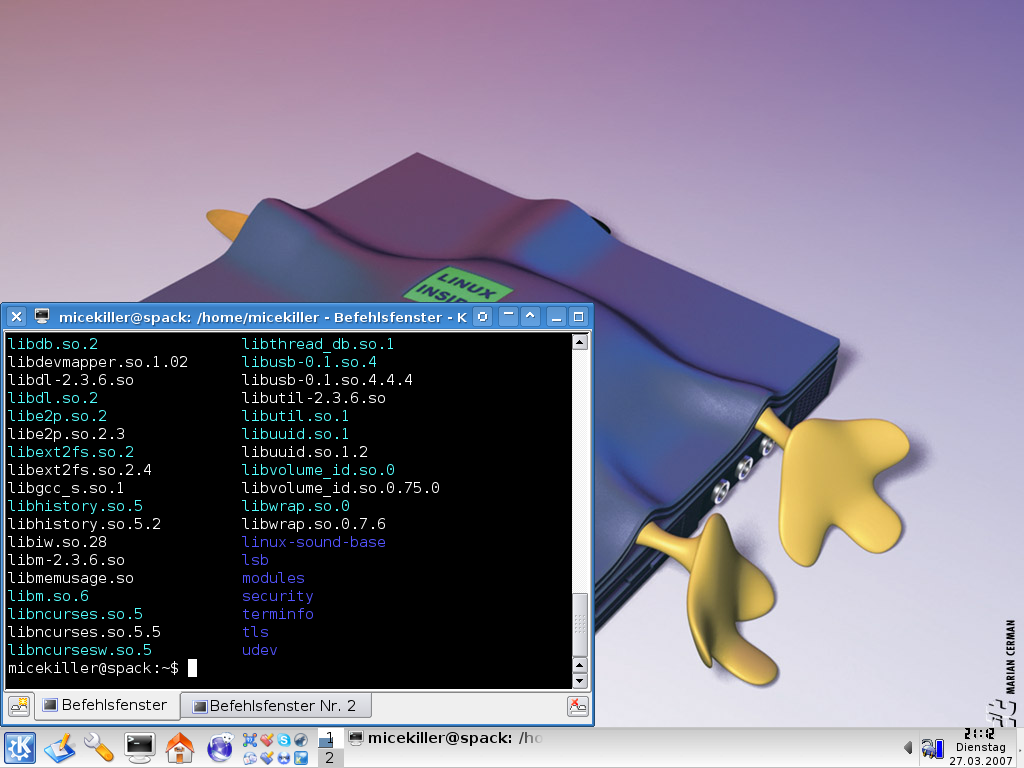

Created attachment 9319 [details] font sizes after a fresh boot

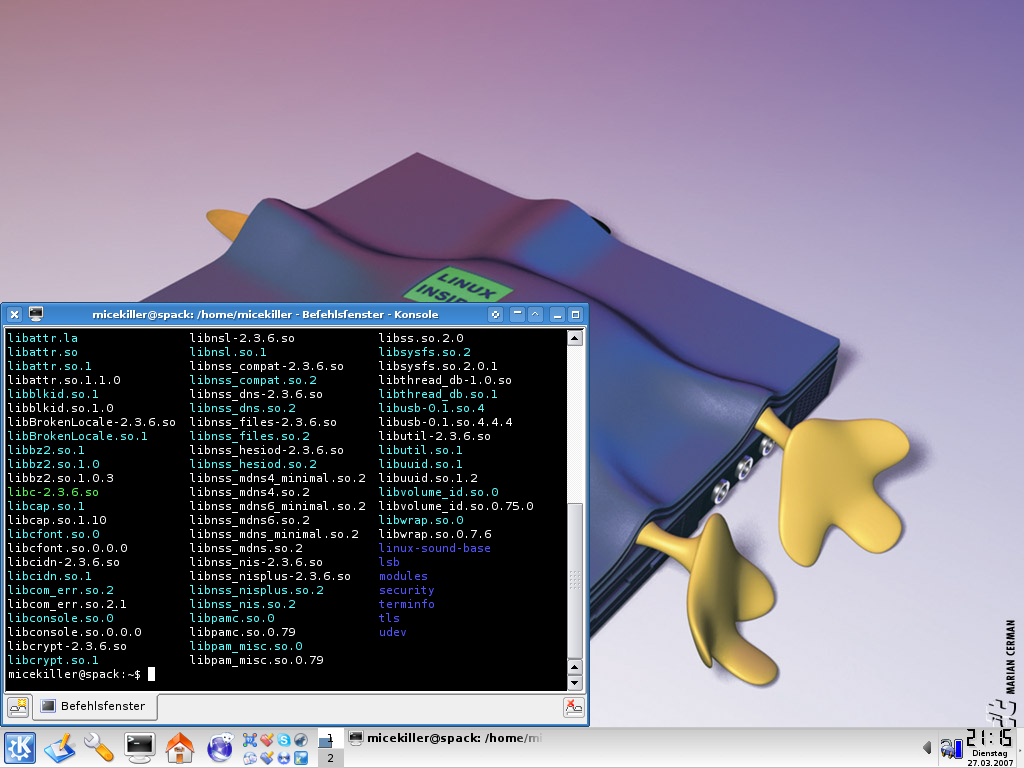

Created attachment 9320 [details] font sizes after dpi adjustment after executing: xrandr --verbose --dpi 75/LVDS killall kicker killall kwin kicker& kwin&
*** This bug has been marked as a duplicate of bug 10756 ***
Unmark as a dupe of (I believe) an unrelated bug.
Created attachment 9967 [details] recent Xorg.0.log recent Xorg.0.log from xserver 1.3.0 and intel driver 2.0.0 (debian packages). again notice the (==) intel(0): DPI set to (75, 75) line. (which is different from the line mentioned in the other bug report) xdpyinfo says: dimensions: 1024x768 pixels (346x260 millimeters) resolution: 75x75 dots per inch regards, tobias
I gave intel driver 2.1.0 (debian packages) a try and the problem still persists. Can I give any additional information or help to get this fixed?
Again some xdpyinfo information: $ diff xdpyinfo_output_before_fix xdpyinfo_output_after_fix 59,60c59,60 < dimensions: 1024x768 pixels (270x203 millimeters) < resolution: 96x96 dots per inch --- > dimensions: 1024x768 pixels (346x260 millimeters) > resolution: 75x75 dots per inch
So it sounds like there are at least a couple of problems here: - VGA connection isn't detected properly (it falsely reports a connection) - EDID data from your display is wrong (346mmx260mm vs. 305mmx229mm) Either of those could cause a bad DPI calculation. Can you try setting up the driver to ignore your VGA output? Something like this in your config file: Section "Device" ... Driver "intel" ... Option "monitor-VGA" "VGA monitor" ... EndSection Section "Monitor" Identifier "VGA monitor" Option "Ignore" "true" EndSection That should take care of the VGA detection problem. As for the EDID data, it appears your actual DPI is closer to 85 than 75, so that could be a problem. I think you can override the DPI in your xorg.conf so you don't have to do it with xrandr after every login.
The VGA connection detection issues should be resolved with the current driver. As far as physical size detection, your hardware offers us no information to detect it, so you'll have to statically configure it using DisplayWidth option in xorg.conf.
Thanks for your two replies. Indeed the VGA connection detection issues are resolved so far. Concerning the font size problem: I tried setting the DisplaySize option in the Monitor section without success. And I didn't find any documentation about DPI or DisplayWidth options. How do I have to use them to give them a try? Thanks again, Tobias
