Bug 105667 - Xfce mouse settings do not apply to wireless mouse after commit 6d3bd4544a
Summary: Xfce mouse settings do not apply to wireless mouse after commit 6d3bd4544a
Status: RESOLVED FIXED
Alias: None
Product: xorg
Classification: Unclassified
Component: Input/libinput (show other bugs)
Version: unspecified
Hardware: Other All
: medium normal
Assignee: Peter Hutterer
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2018-03-21 19:53 UTC by Evangelos Foutras
Modified: 2018-03-22 01:00 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments
Output of `libinput list-devices` (pointer devices only) (1.33 KB, text/plain)
2018-03-21 19:53 UTC, Evangelos Foutras
no flags Details
Device settings in xfce4-mouse-settings with xf86-input-libinput 0.26.0 (top) and 0.27.0 (bottom) (130.77 KB, image/png)
2018-03-21 19:56 UTC, Evangelos Foutras
no flags Details
evemu-record output (mouse) (45.90 KB, text/plain)
2018-03-21 22:40 UTC, Evangelos Foutras
no flags Details
evemu-record output (receiver) (6.67 KB, text/plain)
2018-03-21 22:40 UTC, Evangelos Foutras
no flags Details
[PATCH xf86-input-libinput] Fix "left handed" property not set on all pointers (972 bytes, patch)
2018-03-22 00:05 UTC, Evangelos Foutras
no flags Details | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Evangelos Foutras 2018-03-21 19:53:38 UTC
Created attachment 138258 [details]
Output of `libinput list-devices` (pointer devices only)

After upgrading to xf86-input-libinput 0.27.0 I noticed that my mouse was moving quicker than usual. A git bisect pointed to [1] as the first commit with this behavior. If I comment out the "if (prop_left_handed != 0) return" added part, I get the old (and desired) behavior.

If there is not anything obviously wrong with commit 6d3bd4544a, I can try to provide more information (not sure what would be useful though). Now, this might indicate that xfce4-settings needs a tweak to work with xf86-input-libinput 0.27.0; I'm not entirely sure where the bug lies.

In xfce4-mouse-settings I see two device entries for the wireless mouse, behaving as follows:

1) With xf86-input-libinput 0.26.0:

- The first "Logitech USB Receiver" device shows the correct acceleration value.
- The second one (with the "Sensitivity" option) always shows "Acceleration: 2.0" and "Sensitivity: 1 px". Changing the acceleration setting, however, does affect the pointer speed.

2) With xf86-input-libinput 0.27.0:

- The first "Logitech USB Receiver" device always shows "Acceleration: 5.0" (should be 2.0).
- The second one still shows "Acceleration: 2.0" and "Sensitivity: 1 px".
- Updating the acceleration value of either device has no effect on the pointer speed.

Attached is the output from `libinput list-devices` (only the pointer devices). The first one is the wired mouse (which works correctly!); the last two are the wireless mouse and its receiver. I'm also using the following software versions:

  libinput 1.10.3-1
  xf86-input-libinput 0.27.0-1
  xorg-server 1.19.6+13+gd0d1a694f-1
  xfce4-settings 4.12.3-1

[1] https://cgit.freedesktop.org/xorg/driver/xf86-input-libinput/commit/?id=6d3bd4544a
Comment 1 Evangelos Foutras 2018-03-21 19:56:39 UTC
Created attachment 138259 [details]

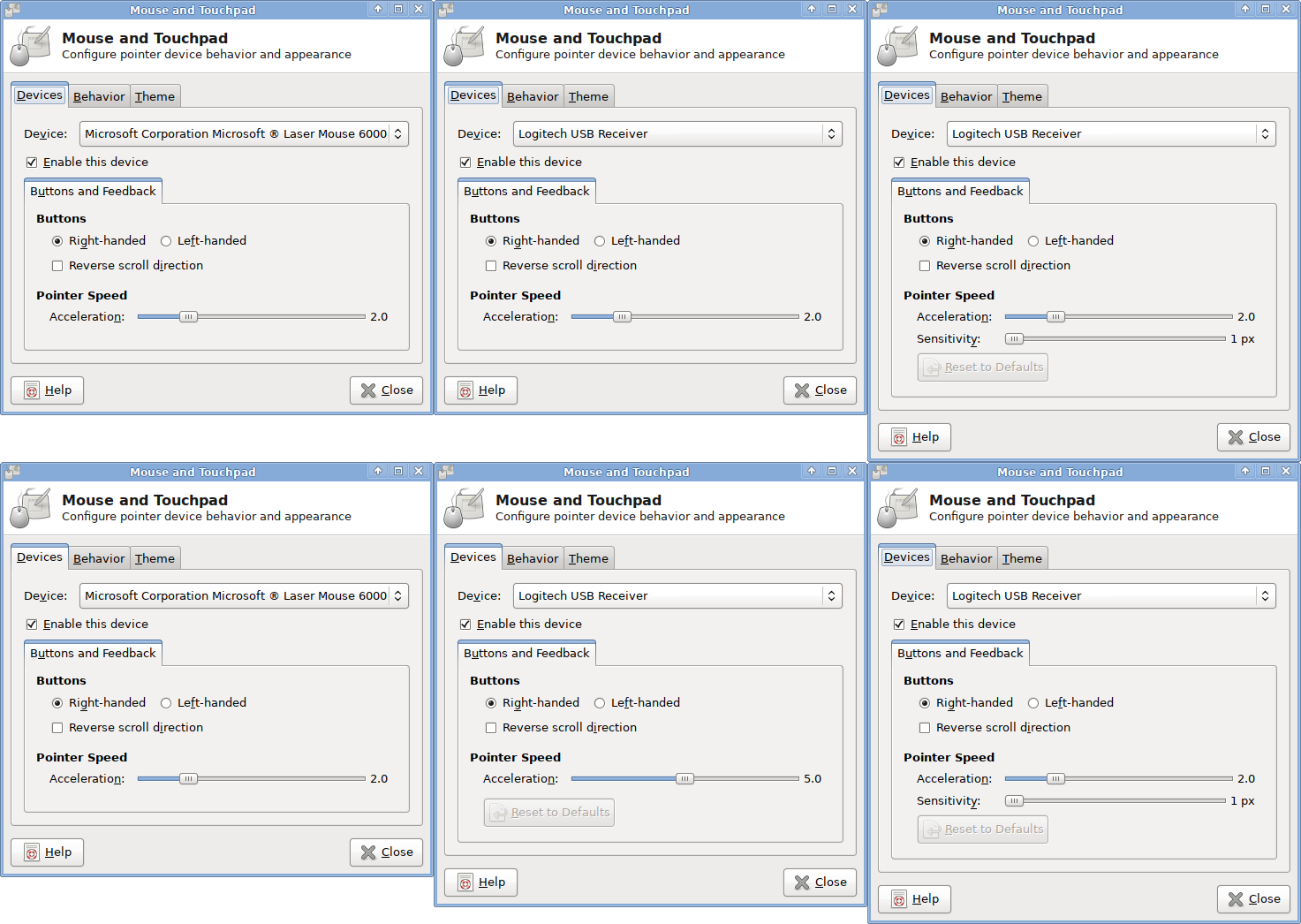

Device settings in xfce4-mouse-settings with xf86-input-libinput 0.26.0 (top) and 0.27.0 (bottom)
Comment 2 Peter Hutterer 2018-03-21 22:26:20 UTC
Attach an evemu-record of some short 1-2s mouse movement for both logitech event nodes please, thanks.
Comment 3 Evangelos Foutras 2018-03-21 22:40:22 UTC
Created attachment 138263 [details]
evemu-record output (mouse)
Comment 4 Evangelos Foutras 2018-03-21 22:40:36 UTC
Created attachment 138264 [details]
evemu-record output (receiver)
Comment 5 Evangelos Foutras 2018-03-21 23:25:42 UTC
I think the problem might be that xf86-input-libinput 0.27.0 no longer sets the LIBINPUT_PROP_LEFT_HANDED property (due to the "if (prop_left_handed != 0) return" conditional?).

xfce4-settings seems to look for it in order to know if libinput is used: https://git.xfce.org/xfce/xfce4-settings/tree/xfsettingsd/pointers.c?h=xfce4-settings-4.12.3#n236

A diff of `xinput list-props <mouse-devid>` between 0.26.0 and 0.27.0 shows:

$ diff -up <(sed 's/(2..)/(2xx)/' mouse-0.26.0-props.txt | sort) <(sed 's/(2..)/(2xx)/' mouse-0.27.0-props.txt | sort)
--- /dev/fd/63	2018-03-22 01:19:17.060693397 +0200
+++ /dev/fd/62	2018-03-22 01:19:17.061693423 +0200
@@ -6,14 +6,12 @@ Device 'Logitech USB Receiver':
 	libinput Accel Profile Enabled (2xx):	1, 0
 	libinput Accel Profile Enabled Default (2xx):	1, 0
 	libinput Accel Profiles Available (2xx):	1, 1
-	libinput Accel Speed (2xx):	-0.600000
+	libinput Accel Speed (2xx):	0.000000
 	libinput Accel Speed Default (2xx):	0.000000
 	libinput Button Scrolling Button (2xx):	2
 	libinput Button Scrolling Button Default (2xx):	2
 	libinput Drag Lock Buttons (2xx):	<no items>
 	libinput Horizontal Scroll Enabled (2xx):	1
-	libinput Left Handed Enabled (2xx):	0
-	libinput Left Handed Enabled Default (2xx):	0
 	libinput Middle Emulation Enabled (2xx):	0
 	libinput Middle Emulation Enabled Default (2xx):	0
 	libinput Natural Scrolling Enabled (2xx):	0
Comment 6 Peter Hutterer 2018-03-21 23:39:21 UTC
Yeah, that condition seems like detritus left over from testing, can't think of why this would be there. And it would have that effect, only the first pointer-like device will get the left-handed property, everything else misses out. Can you create a git-formatted patch for removing that condition please, I'll get it upstream, thanks.
Comment 7 Evangelos Foutras 2018-03-21 23:40:33 UTC
Yay, that must be it! I manually re-added the property and xfce4-mouse-settings is working again. (I should also mention that the receiver node didn't see a change in properties, only the mouse node.)

It worked right away after doing the following, without restarting X:

  $ xinput set-prop 9 --type=int --format=8 "libinput Left Handed Enabled" 0

I'm not sure what the reasoning is behind the addition of "if (prop_left_handed != 0) return", but is it possible to restore the old behavior of always setting LIBINPUT_PROP_LEFT_HANDED?
Comment 8 Evangelos Foutras 2018-03-21 23:43:05 UTC
(In reply to Peter Hutterer from comment #6)
> Yeah, that condition seems like detritus left over from testing, can't think
> of why this would be there. And it would have that effect, only the first
> pointer-like device will get the left-handed property, everything else
> misses out. Can you create a git-formatted patch for removing that condition
> please, I'll get it upstream, thanks.

Sure, one patch coming right up.

Pretty sure I'll spend half the time trying not to write a silly commit message (due to unfamiliarity with this stuff). I suppose you can fix any obvious issues with it though!
Comment 9 Evangelos Foutras 2018-03-22 00:05:27 UTC
Created attachment 138265 [details] [review]
[PATCH xf86-input-libinput] Fix "left handed" property not set on all pointers

I have successfully tested the attached patch on top of xf86-input-libinput 0.27.0. Thank you for the quick follow up and confirmation on what the issue might be!
Comment 10 Peter Hutterer 2018-03-22 01:00:47 UTC
pushed, thanks.

commit 0db82219bb2ad10dcdf3ea8fe8e226858190c83b
Author: Evangelos Foutras <>
Date:   Thu Mar 22 01:47:07 2018 +0200

     Fix "left handed" property not set on all pointers
