Created attachment 139693 [details] Testprogram Max Staudt asked me to open a new report instead of https://bugs.freedesktop.org/show_bug.cgi?id=99705 While testing MSEide+MSEgui on OpenSUSE Leap 42.2 on a Acer Veriton M4640G I found that XDrawLine() has wrong line ends, see attached test-program and screenshot (wrong.png). 32 bit openSUSE 13.2 on the same machine shows the correct result (ok.png). Xorg log is attached. Please see also https://bugzilla.opensuse.org/show_bug.cgi?id=1021803 https://lists.x.org/archives/xorg-devel/2017-February/052624.html I hope that X11 again will provide fast and precise line drawing primitives. Lines where endpoints sometimes are drawn and sometimes not are useless IMHO.

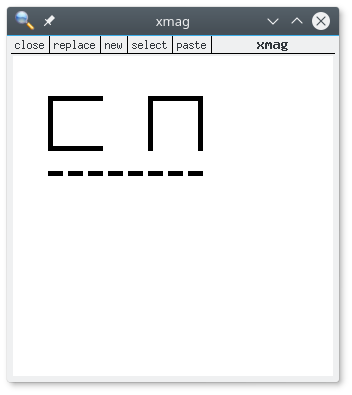

Created attachment 139694 [details] wrong.png

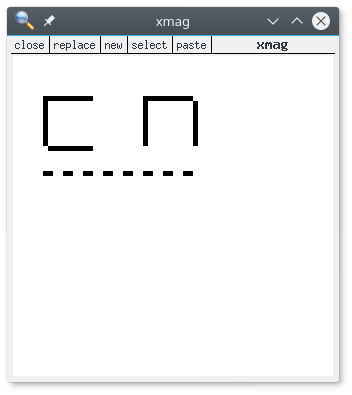

Created attachment 139695 [details] ok.png
Created attachment 139696 [details] Xorg log

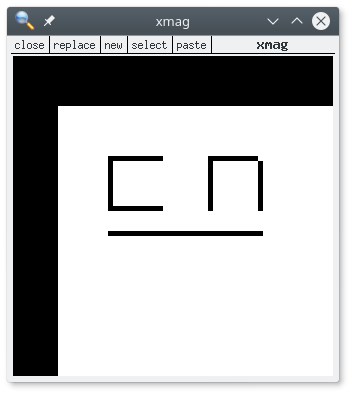

Created attachment 139697 [details] xephyr1.png

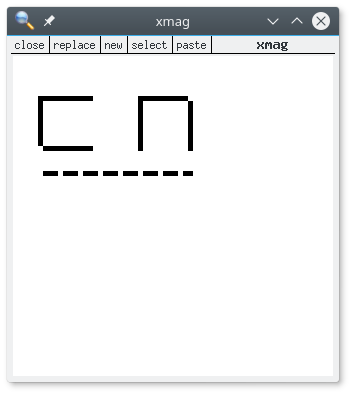

Created attachment 139698 [details] xephyr2.png
Created attachment 139699 [details] OpenGL implementation of upper part of the test program

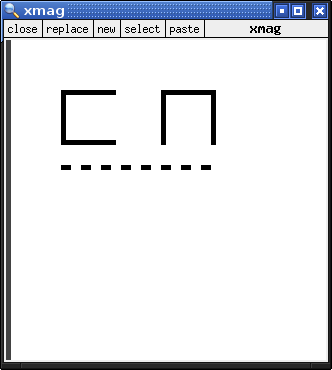

Created attachment 139700 [details] XSetLineAttributes(disp,gc,1,LineSolid,CapButt,JoinMiter);

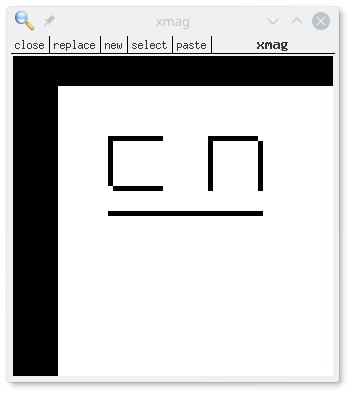

Created attachment 139701 [details] XSetLineAttributes(disp,gc,1,LineSolid,CapProjecting,JoinMiter);
Created attachment 139702 [details] Test program with line width 1

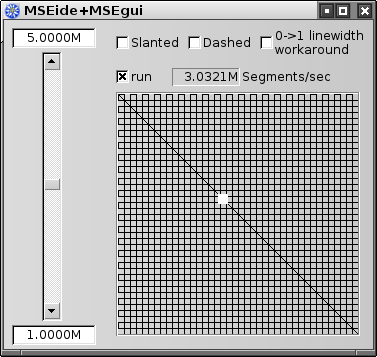

Created attachment 139703 [details] Line drawing program.
I've sent a patch upstream to try to fix accelerated rendering for 0-width lines, and the discussion that evolved was here: https://lists.x.org/archives/xorg-devel/2017-February/052624.html As far as I can see, upstream developers agree that a) this *is* a problem b1) either we turn off acceleration completely for 0-width lines, or b2) it has to be implemented as a shader that draws exactly how mi does. I'm happy to assist in refreshing memories here, as well as recount what I've seen during my downstream debugging, as far as I can remember. However, please don't be offended if I get off the CC list eventually, as I will no longer be maintaining the openSUSE graphics stack, and anything up until then will be in my private capacity. I'll mark the old bug (which I reported in Martin's place) as a DUPLICATE of this bug, so I am off the hook there. Thanks Martin for opening this new bug, and thanks to the upstream Xorg maintainers for looking into this :)
*** Bug 99705 has been marked as a duplicate of this bug. ***
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/xorg/xserver/issues/89.
