Bug 107544 - intel/decoder: out of bounds group_iter
Summary: intel/decoder: out of bounds group_iter
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i965 (show other bugs)
Version: 18.2
Hardware: Other Linux (All)
: medium normal
Assignee: Intel 3D Bugs Mailing List
QA Contact: Intel 3D Bugs Mailing List
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2018-08-10 11:37 UTC by asimiklit
Modified: 2018-08-28 10:01 UTC (History)
2 users (show)

See Also:
i915 platform:
i915 features:


Attachments
SIGBUS (275.97 KB, image/png)
2018-08-11 09:25 UTC, asimiklit
Details
simple reproducer (4.18 KB, application/gzip)
2018-08-13 15:54 UTC, asimiklit
Details

Note You need to log in before you can comment on or make changes to this bug.
Description asimiklit 2018-08-10 11:37:50 UTC
The "gen_group_get_length" function returns int
but the "iter_group_offset_bits" function returns uint32_t
So uint32_t(int(-32)) = 0xFFFFFFE0U and it looks like unexpected behavior for me:
iter_group_offset_bits(iter, iter->group_iter + 1) < 0xFFFFFFE0U

This behavior lead my program to crash because 'group_iter' go out of bounds  when it prints BLEND_STATE on HSW.

I suggested the following solution for it:
https://patchwork.freedesktop.org/patch/243647/
Comment 1 Lionel Landwerlin 2018-08-10 11:55:45 UTC
This should have been fixed in this commit :

commit 4f128f7850e64829b8b1399ef0bdfd1eec7f4504
Author: Lionel Landwerlin <lionel.g.landwerlin@intel.com>
Date:   Tue May 1 22:14:12 2018 +0100

    intel: decoder: identify groups with fixed length

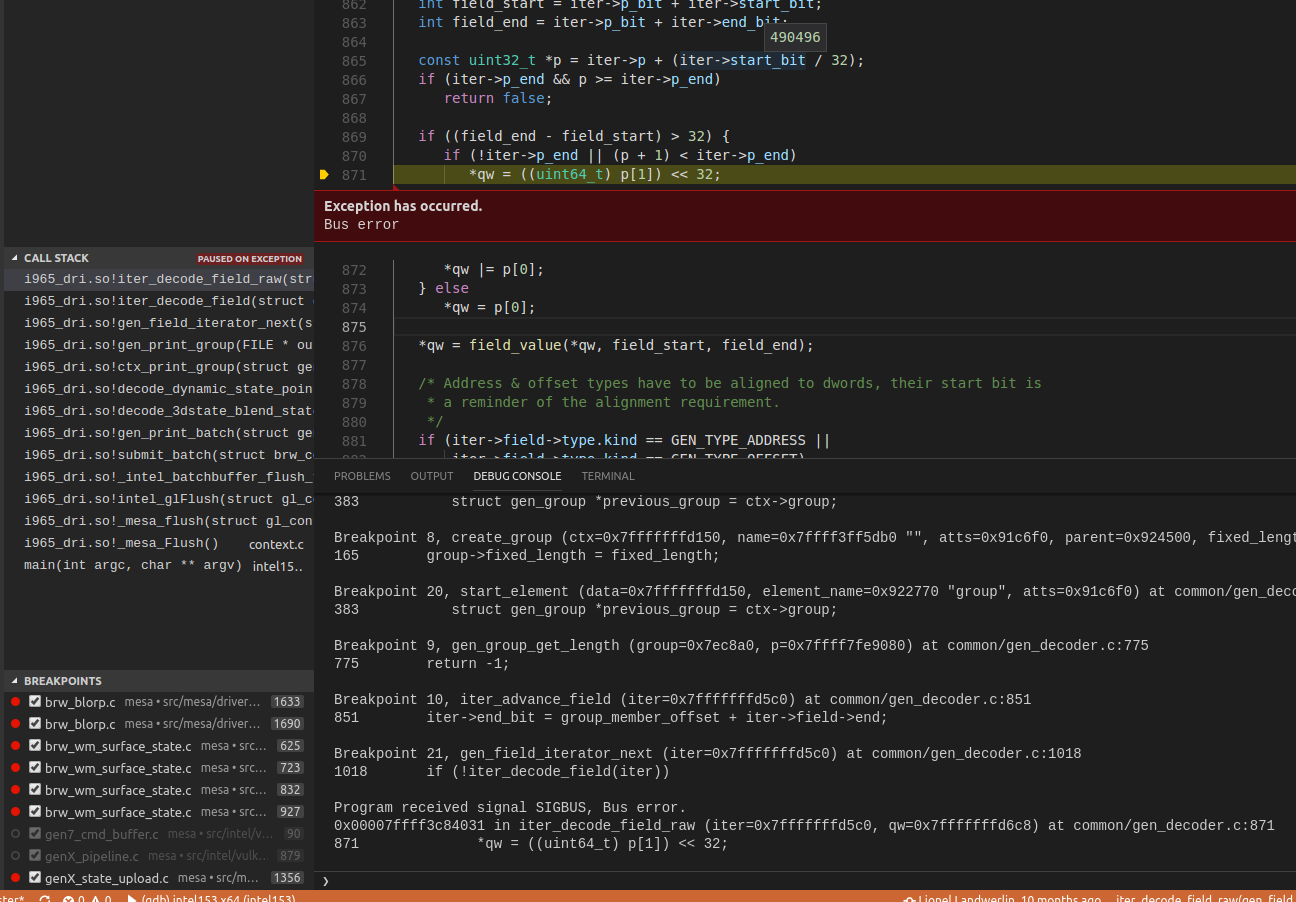

Comment 2 asimiklit 2018-08-11 09:25:31 UTC
Created attachment 141041 [details]
SIGBUS

(In reply to Lionel Landwerlin from comment #1)
> This should have been fixed in this commit :
>
> commit 4f128f7850e64829b8b1399ef0bdfd1eec7f4504
> Author: Lionel Landwerlin <lionel.g.landwerlin@intel.com>
> Date:   Tue May 1 22:14:12 2018 +0100
>
>     intel: decoder: identify groups with fixed length

I have re-checked it on the latest mesa yesterday but unfortunately it is still reproducible. I am going to suggest the updated patch in the mailing thread.
Comment 3 Lionel Landwerlin 2018-08-11 17:32:14 UTC
Could you attach the file that is causing the crash?
Thanks!
Comment 4 asimiklit 2018-08-13 15:54:53 UTC
Created attachment 141069 [details]
simple reproducer

(In reply to Lionel Landwerlin from comment #3)
> Could you attach the file that is causing the crash?
> Thanks!

Hi,

The simple reproducer is attached.
I think that my patch can help avoid some issues
with new command types in "batchbuffer" in the future.
But it is not enough to fix this issue.
As far as I understood currently the decoder tries to determine
the length of the structure BLEND_STATE based on command type.
But BLEND_STATE is placed in "statebuffer" and
does not have any headers just a data.

We create the following structure in gen_decoder.c:387

struct gen_group *group = create_group(ctx, "", atts, ctx->group, false);
previous_group->next = group;//previous_group->name is "BLEND_STATE"

with the following settings:

group->fixed_length is false

and

group->variable is true

That is why we tried to determine the length based on command type.
Is it expected behavior?

Regards,
Andrii.
Comment 5 Lionel Landwerlin 2018-08-14 00:24:23 UTC
Thanks, unfortunately there seemed to be more than one issue.
I've sent https://patchwork.freedesktop.org/series/48139/ which fixes the problem on my machine. Let me know if it does for you too.
Comment 6 Lionel Landwerlin 2018-08-27 17:35:06 UTC
Should be fixed on master with :

commit 440a988bd1478bb33dafcbb8575473bc643ae383
Author: Lionel Landwerlin <lionel.g.landwerlin@intel.com>
Date:   Sat Aug 25 18:22:00 2018 +0100

    intel: decoder: handle 0 sized structs


and :

commit f430a37fa75f534c3a114b0ec546fa14f05f5da1
Author: Lionel Landwerlin <lionel.g.landwerlin@intel.com>
Date:   Tue Aug 14 11:22:12 2018 +0100

    intel: decoder: unify MI_BB_START field naming
Comment 7 Mark Janes 2018-08-27 23:53:38 UTC
Lionel, does this merit a new piglit test?
Comment 8 Lionel Landwerlin 2018-08-28 10:01:41 UTC
(In reply to Mark Janes from comment #7)
> Lionel, does this merit a new piglit test?

This kind of a debug feature. I don't really expect users to run with this enabled.
That being said, I would like to add some tests within mesa so we can spot when we break the debug tools.
