Bug 108611 - [radv] [regression,bisected]: LLVM 8.0 breaks lighting in Mass Effect Andromeda
Summary: [radv] [regression,bisected]: LLVM 8.0 breaks lighting in Mass Effect Andromeda
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Vulkan/radeon (show other bugs)
Version: git
Hardware: Other All
: medium normal
Assignee: mesa-dev
QA Contact: mesa-dev
Depends on:
Reported: 2018-10-31 11:53 UTC by Philip Rebohle
Modified: 2018-11-07 22:00 UTC (History)
3 users (show)

See Also:
i915 platform:
i915 features:

Screenshot with broken rendering (2.42 MB, image/png)
2018-10-31 11:59 UTC, Philip Rebohle
Screenshot with correct rendering (2.40 MB, image/png)
2018-10-31 12:00 UTC, Philip Rebohle

Description Philip Rebohle 2018-10-31 11:53:26 UTC

as stated in the title, when building mesa (both latest -git and 18.2.3) against LLVM 8, Lighting in Mass Effect Andromeda is broken; there are blocky artifacts. Applying https://reviews.llvm.org/D53359 does not solve the issue.

This renderdoc capture shows the problem, recorded with Renderdoc 1.1 (stable) on Polaris:

With LLVM 7, everything renders correctly.
Comment 1 Philip Rebohle 2018-10-31 11:59:41 UTC
Created attachment 142301 [details]

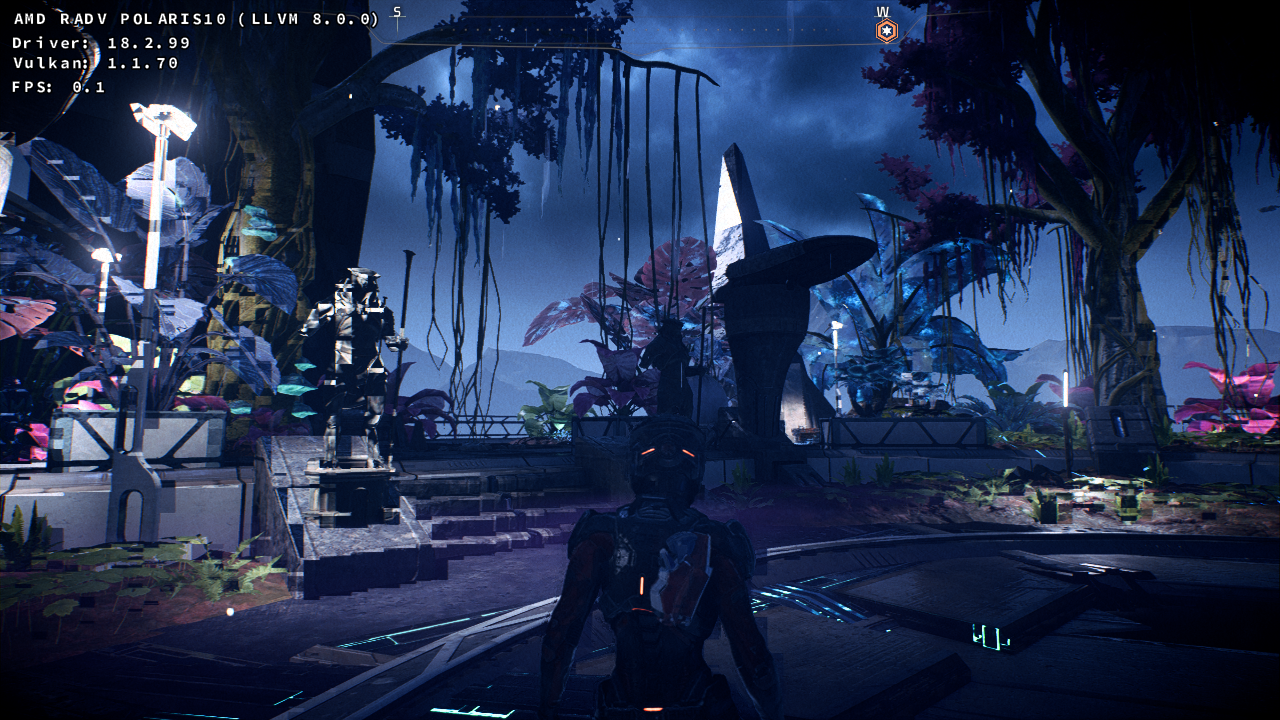

Screenshot with broken rendering
Comment 2 Philip Rebohle 2018-10-31 12:00:11 UTC
Created attachment 142302 [details]

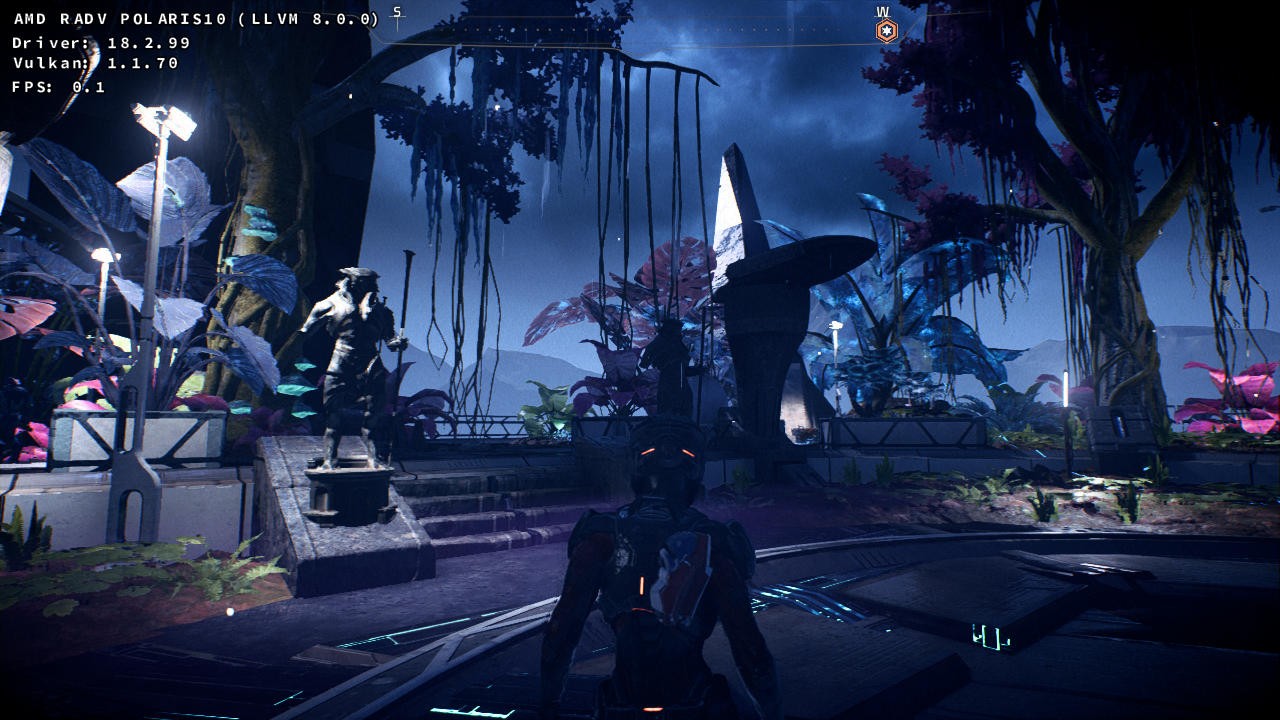

Screenshot with correct rendering
Comment 3 Samuel Pitoiset 2018-10-31 13:55:59 UTC
Introduced by the following LLVM commit:

cc436fd26637b0629b95fd8e60fde61cec4b421f is the first bad commit
commit cc436fd26637b0629b95fd8e60fde61cec4b421f
Author: Nicolai Haehnle <nhaehnle@gmail.com>
Date:   Wed Oct 17 15:37:30 2018 +0000

    AMDGPU: Divergence-driven selection of scalar buffer load intrinsics
    Moving SMRD to VMEM in SIFixSGPRCopies is rather bad for performance if
    the load is really uniform. So select the scalar load intrinsics directly
    to either VMEM or SMRD buffer loads based on divergence analysis.
    If an offset happens to end up in a VGPR -- either because a floating
    point calculation was involved, or due to other remaining deficiencies
    in SIFixSGPRCopies -- we use v_readfirstlane.
    There is some unrelated churn in tests since we now select MUBUF offsets
    in a unified way with non-scalar buffer loads.
    Change-Id: I170e6816323beb1348677b358c9d380865cd1a19
    Reviewers: arsenm, alex-t, rampitec, tpr
    Subscribers: kzhuravl, jvesely, wdng, yaxunl, dstuttard, t-tye, llvm-commits
    Differential Revision: https://reviews.llvm.org/D53283
    git-svn-id: https://llvm.org/svn/llvm-project/llvm/trunk@344696 91177308-0d34-0410-b5e6-96231b3b80d8
Comment 4 Vladimir 2018-11-04 19:16:33 UTC
Same problem in another Frostbite-source title - NFS Payback.
Comment 5 Nicolai Hähnle 2018-11-04 21:37:28 UTC
I can reproduce this based on the RenderDoc trace and will investigate.
Comment 6 Nicolai Hähnle 2018-11-07 21:59:11 UTC
I'm reverting the commit to LLVM for now. The change exposed a bug in how divergence analysis info is passed through code generation, and it looks like I will have to touch common code to fix that bug.
