Bug 21395 - Points on graphs represented as 'q' not points
Summary: Points on graphs represented as 'q' not points
Status: RESOLVED DUPLICATE of bug 18002
Alias: None
Product: poppler
Classification: Unclassified
Component: general (show other bugs)
Version: unspecified
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: poppler-bugs
QA Contact:
Depends on:
Reported: 2009-04-24 14:50 UTC by chris desjardins
Modified: 2009-04-26 13:30 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Correct rendering in acroread (108.72 KB, image/png)
2009-04-24 14:50 UTC, chris desjardins
Incorrect rendering in Evince (108.32 KB, image/png)
2009-04-24 14:50 UTC, chris desjardins
PDF of incorrectly rendered points (15.59 KB, application/pdf)
2009-04-24 15:04 UTC, chris desjardins

Description chris desjardins 2009-04-24 14:50:00 UTC
Created attachment 25120 [details]
Correct rendering in acroread

When I look at a graph created in Sweave that has been compiled into a pdf in Evince then the points in the graph are represented as 'q' not as points.  This always happens. I was directed here from bugs.gnome.org.
Comment 1 chris desjardins 2009-04-24 14:50:29 UTC

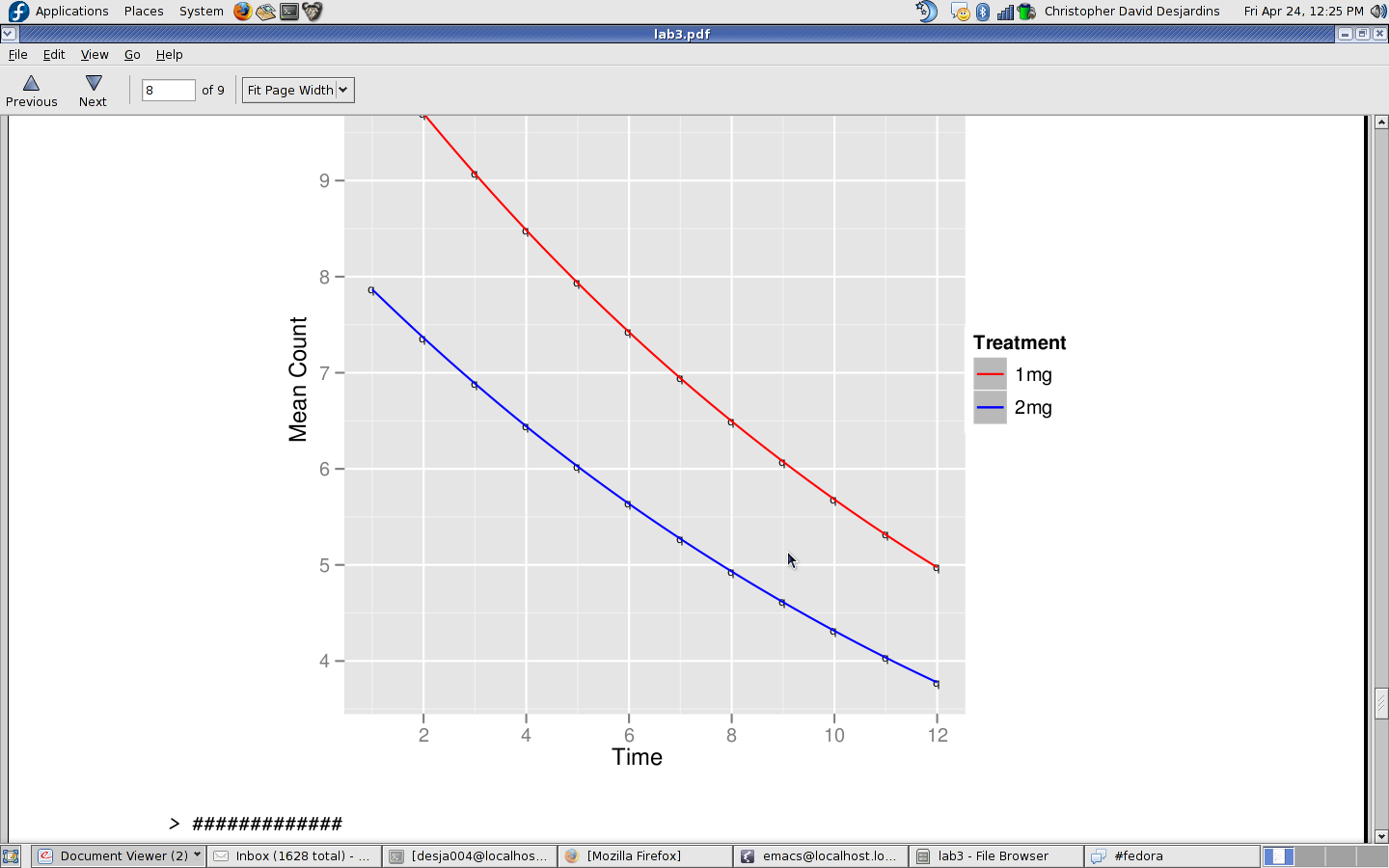

Created attachment 25121 [details]
Incorrect rendering in Evince
Comment 2 chris desjardins 2009-04-24 14:51:15 UTC
One other thing ... this happens on Fedora 10 and Mandriva 2009.1.
Comment 3 Nickolay V. Shmyrev 2009-04-24 14:54:32 UTC
Can you please attach the document itself/give a link on it?
Comment 4 chris desjardins 2009-04-24 15:04:44 UTC
Created attachment 25123 [details]
PDF of incorrectly rendered points
Comment 5 James Cloos 2009-04-24 23:20:49 UTC
I hit the wrong key.

This bug is most likely a dup of bug #18002.
Comment 6 James Cloos 2009-04-24 23:21:46 UTC
That typically happens when the document uses the Zapf Dingbats font
without embedding it, and references it with a name that your local
fontconfig cannot dereference.

I added this to my ~/.fonts.conf some time back to get around this:

<!-- many PDFs use ZapfDingbats rather than Zapf Dingbats -->
 <alias binding="same">

As you might guess from the above, one of the issues is that although
fontconfig ignores spaces in font patterns when matching installed
fonts, it does not do so when matching font aliases.  Another issue
is that fontconfig does not cache or match on the fonts’ PostScript

The real Zapf Dingbats font shows up as »ITC Zapf Dingbats« and the
version from GhostScript as »Dingbats«.  Fontconfig’ configuration
file 30-urw-aliases.conf includes this bit:

 <alias binding="same">
   <family>Zapf Dingbats</family>

but that is not sufficient.

The fontconfig repo at:


includes (IIRC) a patch to ignore spaces when matching aliases.  That,
combined with the code in 30-urw-aliases.conf, should fix your bug.

Until that gets pulled into the upstream repo and/or otherwise
incorporated into the version your distribution ships, adding the
first <alias> block I quoted above to your ~/.fonts.conf should
make this pdf work.

(This bug is most likely a dup.)
Comment 7 chris desjardins 2009-04-25 07:52:42 UTC
Thanks added that to .fonts.conf did solve my problem. That bug report does look similar http://bugs.freedesktop.org/show_bug.cgi?id=18002
Comment 8 Albert Astals Cid 2009-04-26 13:30:33 UTC

*** This bug has been marked as a duplicate of bug 18002 ***
