I switched from Ubuntu 9.04 to Ubuntu 9.10 and my Radeon Mobility M6 LY card performance dropped radically. Moving a window around or scrolling in text console makes CPU go to 100%, looks like HW acceleration is not working. Even before on 9.04 I had to tweak xorg.conf to switch back to XAA mode, because otherwise performance was poor. Now it seems that this workaround does not work in new Ubuntu version and I can not get it to work. Using some tweaks I was able to make it work at least a bit better, but I am really not seeing the performance I was used to. Please see also this Ubuntu bug report where I attached all the necessary files. https://bugs.launchpad.net/ubuntu/+source/xserver-xorg-video-ati/+bug/478685 I had the same problems with Mandirva 2010 Live CD I tried so I guess it is not sole Ubuntu bug. If I can add any other info or try some configuration, let me know.
You'd probably need to disable KMS to be able to use XAA again, e.g. by adding radeon.modeset=0 on the kernel command line. I think it's mostly up to the drivers to deal with the limitations (in particular little VRAM) of your setup, reassigning.
I tried to disable KMS but it was even worse. According to Xorg.0.log XAA mode was loaded, but with a lot of artefacts on screen and problems. Tried my old xorg.conf file, which worked on previous Ubuntu version, but no luck. I tried to disable options I had there one by one but it did not help.
Does: Option "RenderAccel" "False" fix the XAA with UMS issues? I think XAA render accel is broken now in newer X servers.
Created attachment 31261 [details] xorg.conf that worked well with Ubuntu 9.04 Option "RenderAccel" "False" did not help. It made things even worse I'd say. I'm attaching my last good xorg.conf, that I was using with Ubuntu 9.04. I tried to change "RenderAccel" to false in this one and I also tried to use only this option + XAA with the same result.
Can you attach your log with renderaccel set to false?
Created attachment 31264 [details] Testing XAA + RenderAccel false files Here are files I have tested with. And I passed a radeon.modeset=0 parameter to kernel. There is a lot of artifacts, bad repainting, etc. See attached screenshot.
Created attachment 31265 [details] used xorg.conf

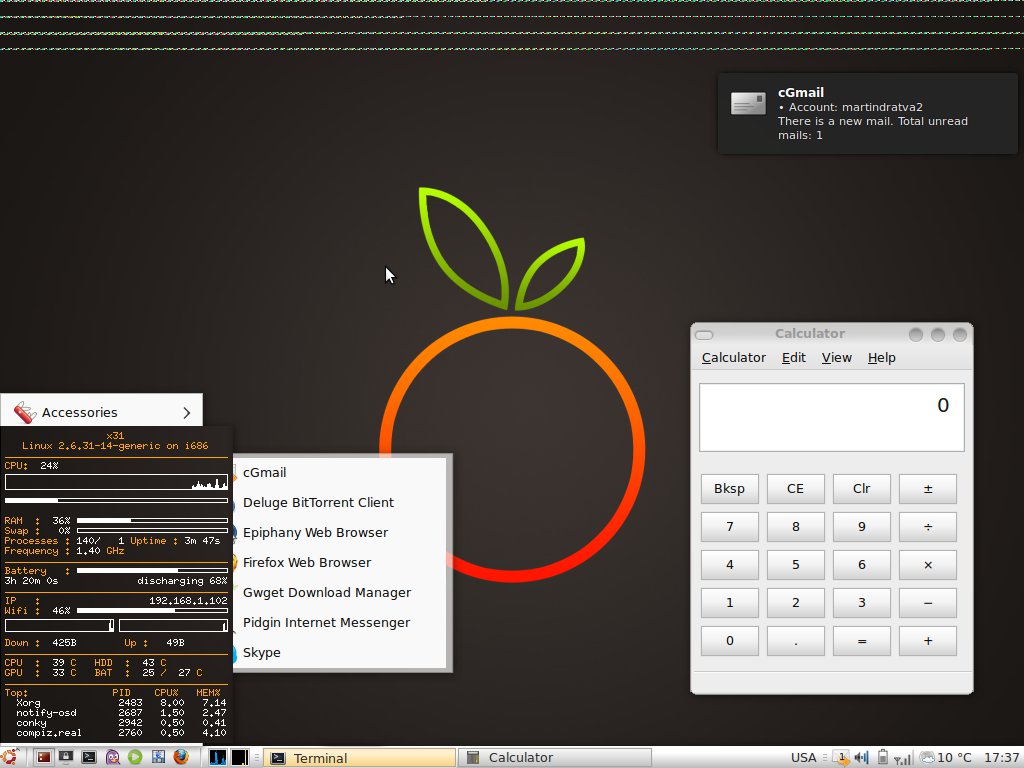

Created attachment 31266 [details] screenshot
Same problems on Fedora 12 (https://bugzilla.redhat.com/show_bug.cgi?id=539624). Working with the latest builds it is mostly working if I keep external monitor at 1024x768 or under.
Created attachment 32639 [details] Xorg log This is from Fedora 12 with: kernel-2.6.32.3-24.fc12.i686 xorg-x11-drv-ati-6.13.0-0.20.20091221git4b05c47ac.fc12.i686 libdrm-2.4.17-1.fc12.i686 xorg-x11-server-Xorg-1.7.4-1.fc12.i686 Window redraws are still so slow as to be unusable. xorg.conf: Section "Device" Identifier "Videocard0" Driver "radeon" #Only works in "nomodeset" mode Option "IgnoreLidStatus" "false" Option "Monitor-VGA-0" "Dell" EndSection Section "Monitor" Identifier "Dell" VendorName "Dell" ModelName "2001FP" Option "dpms" Option "PreferredMode" "1600x1200" EndSection Section "Screen" Identifier "Screen0" #DefaultDepth 16 SubSection "Display" Virtual 1600 1200 EndSubSection EndSection
Is this still an issue with a newer kernel and driver?
Still an issue with: 2.6.35.6-46.fc14.i686 xorg-x11-server-Xorg-1.9.0-15.fc14.i686 xorg-x11-drv-ati-6.13.1-0.3.20100705git37b348059.fc14.i686 In fact doing xrandr --output LVDS --off appears to lockup the machine completely after a few seconds (and the X server immediately). Oct 20 09:33:56 makani kernel: [ 221.741700] BUG: unable to handle kernel paging request at 3432307d Oct 20 09:33:56 makani kernel: [ 221.741709] IP: [<c045e232>] do_raw_spin_lock+0xd/0x1e Oct 20 09:33:56 makani kernel: [ 221.741718] *pde = 00000000 Oct 20 09:33:56 makani kernel: [ 221.741722] Oops: 0002 [#1] SMP Oct 20 09:33:56 makani kernel: [ 221.741726] last sysfs file: /sys/devices/pci0000:00/0000:00:1e.0/0000:02:02.0/rf_kill Oct 20 09:33:56 makani kernel: [ 221.741731] Modules linked in: nfs lockd fscache nfs_acl auth_rpcgss michael_mic arc4 ecb lib80211_crypt_tkip aes_i586 aes_generic lib80211_crypt_ccmp sunrpc ipv6 cpufreq_ondemand acpi_cpufreq mperf uinput snd_intel8x0 snd_intel8x0m snd_ac97_codec ac97_bus snd_seq snd_seq_device snd_pcm snd_timer thinkpad_acpi snd ipw2200 nsc_ircc e1000 iTCO_wdt snd_page_alloc soundcore i2c_i801 ppdev libipw cfg80211 rfkill iTCO_vendor_support parport_pc irda lib80211 crc_ccitt parport microcode firewire_ohci firewire_core video yenta_socket crc_itu_t output radeon ttm drm_kms_helper drm i2c_algo_bit i2c_core [last unloaded: scsi_wait_scan] Oct 20 09:33:56 makani kernel: [ 221.741786] Oct 20 09:33:56 makani kernel: [ 221.741790] Pid: 1756, comm: X Not tainted 2.6.35.6-46.fc14.i686 #1 2884M5U/2884M5U Oct 20 09:33:56 makani kernel: [ 221.741794] EIP: 0060:[<c045e232>] EFLAGS: 00013292 CPU: 0 Oct 20 09:33:56 makani kernel: [ 221.741798] EIP is at do_raw_spin_lock+0xd/0x1e Oct 20 09:33:56 makani kernel: [ 221.741801] EAX: 3432307d EBX: 34323031 ECX: 00000000 EDX: 00000100 Oct 20 09:33:56 makani kernel: [ 221.741804] ESI: f1130a2c EDI: 00000001 EBP: f3afdd0c ESP: f3afdd0c Oct 20 09:33:56 makani kernel: [ 221.741807] DS: 007b ES: 007b FS: 00d8 GS: 00e0 SS: 0068 Oct 20 09:33:56 makani kernel: [ 221.741811] Process X (pid: 1756, ti=f3afc000 task=f3ba9940 task.ti=f3afc000) Oct 20 09:33:56 makani kernel: [ 221.741814] Stack: Oct 20 09:33:56 makani kernel: [ 221.741816] f3afdd14 c07a6f84 f3afdd2c f78e81b5 00000000 f1130a00 f1130a00 f6a0c000 Oct 20 09:33:56 makani kernel: [ 221.741823] <0> f3afdd48 f79c8be6 00000000 00000000 f6168000 f1130a00 f6a0c000 f3afdd98 Oct 20 09:33:56 makani kernel: [ 221.741831] <0> f79c8ce5 f3afdd58 c042a21b f3afdd60 c042a232 f3afdd68 00000000 00000006 Oct 20 09:33:56 makani kernel: [ 221.741839] Call Trace: Oct 20 09:33:56 makani kernel: [ 221.741848] [<c07a6f84>] ? _raw_spin_lock+0xd/0xf Oct 20 09:33:56 makani kernel: [ 221.741864] [<f78e81b5>] ? ttm_bo_reserve+0x25/0x73 [ttm] Oct 20 09:33:56 makani kernel: [ 221.741902] [<f79c8be6>] ? radeon_bo_reserve.clone.3+0x20/0x61 [radeon] Oct 20 09:33:56 makani kernel: [ 221.741937] [<f79c8ce5>] ? radeon_crtc_set_base+0xbe/0x43a [radeon] Oct 20 09:33:56 makani kernel: [ 221.741943] [<c042a21b>] ? need_resched+0x19/0x23 Oct 20 09:33:56 makani kernel: [ 221.741947] [<c042a232>] ? should_resched+0xd/0x28 Oct 20 09:33:56 makani kernel: [ 221.741951] [<c07a6391>] ? mutex_lock+0x24/0x3e Oct 20 09:33:56 makani kernel: [ 221.741982] [<f7897949>] ? drm_mode_object_find+0x52/0x5a [drm] Oct 20 09:33:56 makani kernel: [ 221.741995] [<f78c9cdb>] ? drm_crtc_helper_set_config+0x476/0x673 [drm_kms_helper] Oct 20 09:33:56 makani kernel: [ 221.742004] [<f78c9dd1>] ? drm_crtc_helper_set_config+0x56c/0x673 [drm_kms_helper] Oct 20 09:33:56 makani kernel: [ 221.742011] [<f7897949>] ? drm_mode_object_find+0x52/0x5a [drm] Oct 20 09:33:56 makani kernel: [ 221.742011] [<f7898d5b>] ? drm_mode_setcrtc+0x23e/0x266 [drm] Oct 20 09:33:56 makani kernel: [ 221.742011] [<c042a232>] ? should_resched+0xd/0x28 Oct 20 09:33:56 makani kernel: [ 221.742011] [<f788f80e>] ? drm_ioctl+0x28d/0x378 [drm] Oct 20 09:33:56 makani kernel: [ 221.742011] [<f7898b1d>] ? drm_mode_setcrtc+0x0/0x266 [drm] Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<c0583188>] ? file_has_perm+0x8d/0xa7 Oct 20 09:33:56 makani kernel: [ 221.742011] [<c04e5aa4>] ? vfs_ioctl+0x33/0x91 Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<f788f581>] ? drm_ioctl+0x0/0x378 [drm] Oct 20 09:33:56 makani kernel: [ 221.742011] [<c04e64a4>] ? do_vfs_ioctl+0x462/0x48d Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<c058348f>] ? selinux_file_ioctl+0x43/0x46 Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<c04e6515>] ? sys_ioctl+0x46/0x69 Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<c07a737c>] ? syscall_call+0x7/0xb Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] [<c06864a2>] ? ahci_init_one+0x82c/0x88a Oct 20 09:33:56 makani kernel: [ 221.742011] Code: 55 89 e5 0f 1f 44 00 00 3e ff 00 5d c3 55 89 e5 0f 1f 44 00 00 3e 81 00 00 00 00 01 5d c3 55 89 e5 0f 1f 44 00 00 ba 00 01 00 00 <3e> 66 0f c1 10 38 f2 74 06 f3 90 8a 10 eb f6 5d c3 55 89 e5 0f Oct 20 09:33:56 makani kernel: [ 221.742011] EIP: [<c045e232>] do_raw_spin_lock+0xd/0x1e SS:ESP 0068:f3afdd0c Oct 20 09:33:56 makani kernel: [ 221.742011] CR2: 000000003432307d Oct 20 09:33:56 makani kernel: [ 221.742242] ---[ end trace e439adf3dd44d13a ]---
Mass closure: This bug has been untouched for more than six years, and is not obviously still valid. Please reopen this bug or file a new report if you continue to experience issues with current releases.
