Bug 25637 - repainting problems in KDE 4.x
Summary: repainting problems in KDE 4.x
Status: RESOLVED MOVED
Alias: None
Product: xorg
Classification: Unclassified
Component: Server/General (show other bugs)
Version: 7.4 (2008.09)
Hardware: x86-64 (AMD64) Linux (All)
: medium normal
Assignee: Xorg Project Team
QA Contact: Xorg Project Team
URL: https://bugzilla.novell.com/show_bug....
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2009-12-14 06:32 UTC by Tristan Miller
Modified: 2018-12-13 22:22 UTC (History)
3 users (show)

See Also:
i915 platform:
i915 features:


Attachments
Xorg.0.log (23.96 KB, text/plain)
2009-12-14 06:32 UTC, Tristan Miller
no flags Details
xorg.conf (7.80 KB, text/plain)
2009-12-14 06:32 UTC, Tristan Miller
no flags Details
Screenshot showing solid colour repainting of link tooltip in browser (61.23 KB, image/png)
2009-12-14 06:33 UTC, Tristan Miller
no flags Details
Screenshot showing background image repainting above KDE 4.3.4 taskbar (35.96 KB, image/png)
2009-12-14 06:34 UTC, Tristan Miller
no flags Details
Movie showing repainting bugs (935.41 KB, video/x-matroska)
2009-12-14 06:52 UTC, Tristan Miller
no flags Details

Description Tristan Miller 2009-12-14 06:32:12 UTC
Created attachment 32064 [details]
Xorg.0.log

I've got two computers with persistent repainting problems.  Not sure if this is a KDE problem or an X.Org problem.  Both machines are x86-64 systems running openSUSE 11.2, KDE 4.3.4 (though the problem has occurred with all KDE 4.x versions), and X.Org 7.4, all installed from openSUSE 11.2 RPMs.  However, they have different video cards:  in one case an Nvidia Quadro NVS 140M (using the proprietary nvidia-gfxG02 driver) and in the other an Intel 965 GM (using the "intel" driver).

Reproducibility: Usually, but not always

Steps to reproduce:
1. Hover the mouse pointer over something which causes a tooltip window to pop up.  This could be something in the KDE panel (like the task bar or system tray), or a web page link with a "title" attribute in a web browser.
2. Move the mouse pointer off the widget.  The bug can be more reliably reproduced if this is done by using the mouse scroll wheel to scroll the window contents up or down.

Observed behaviour:
3. Either:
  a) Once the mouse pointer is moved off the widget, the tooltip window disappears, but what's underneath gets repainted with a solid colour or the desktop background.
  b) Once the mouse pointer is moved off the widget, the tooltip window disappears, and what's underneath gets properly repainted, but some other area of the screen suddenly gets painted with the desktop background image.
  c) Once the mouse pointer is moved off the widget, the tooltip window disappears, and what's underneath gets properly repainted.  However, the next time a tooltip window is created, some other area of the screen suddenly gets painted with the desktop background image.
Comment 1 Tristan Miller 2009-12-14 06:32:43 UTC
Created attachment 32065 [details]
xorg.conf
Comment 2 Tristan Miller 2009-12-14 06:33:30 UTC

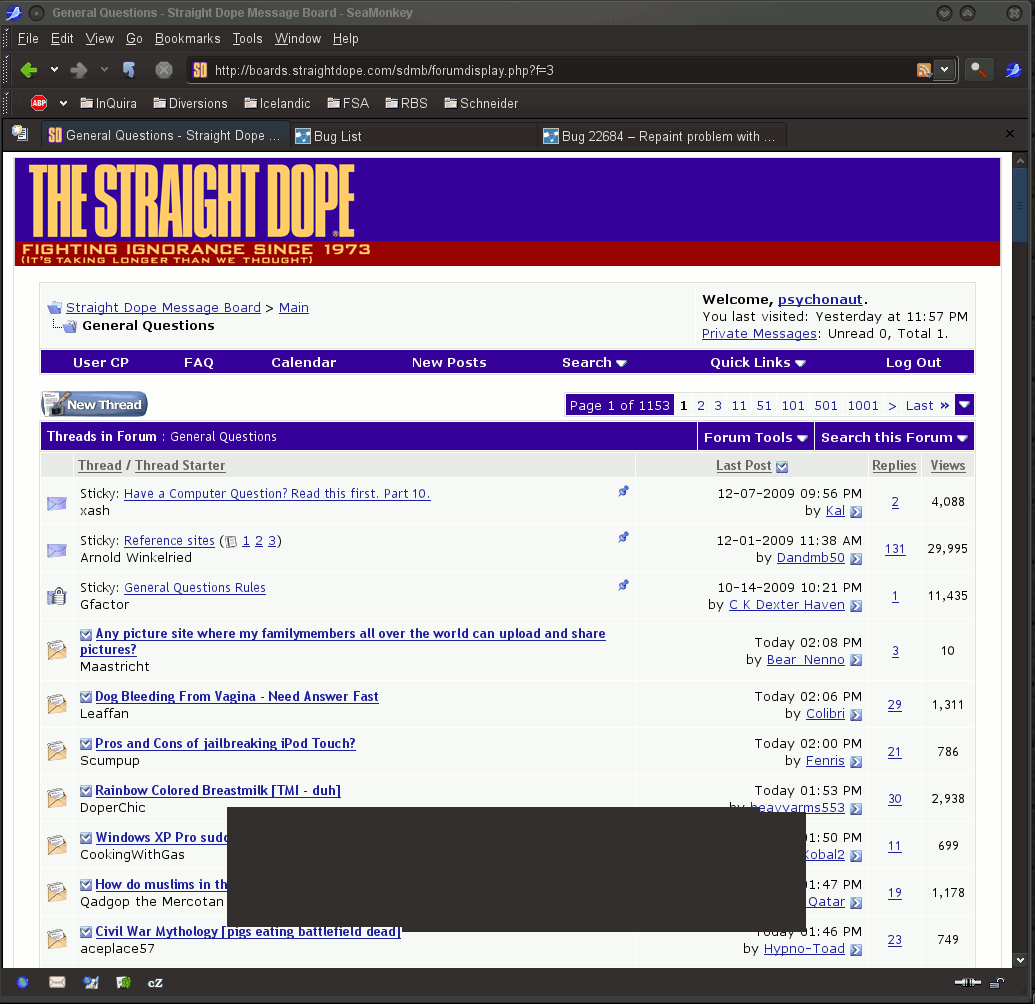

Created attachment 32066 [details]
Screenshot showing solid colour repainting of link tooltip in browser
Comment 3 Tristan Miller 2009-12-14 06:34:41 UTC

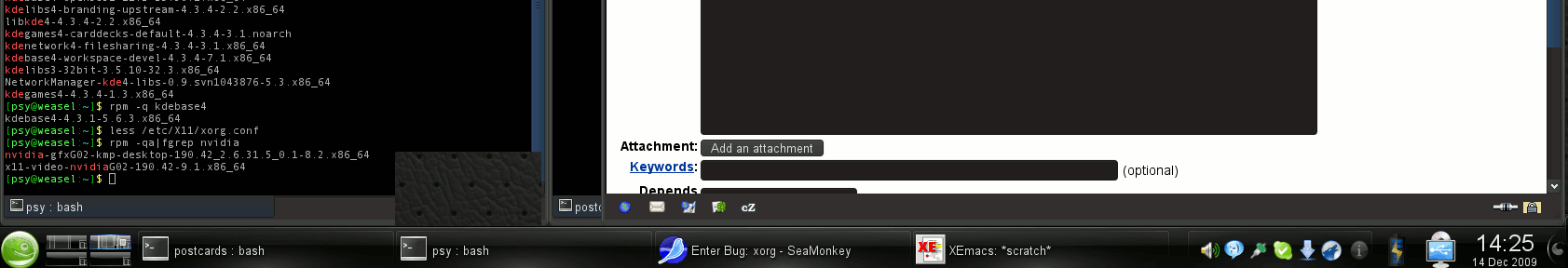

Created attachment 32067 [details]
Screenshot showing background image repainting above KDE 4.3.4 taskbar
Comment 4 Tristan Miller 2009-12-14 06:52:54 UTC
Created attachment 32068 [details]
Movie showing repainting bugs
Comment 5 Tristan Miller 2009-12-14 06:59:48 UTC
Wasn't sure if this was a bug in KDE or in X.Org, so this is also reported on the KDE bugzilla: https://bugs.kde.org/show_bug.cgi?id=218651
Comment 6 Tristan Miller 2009-12-14 07:52:53 UTC
The KDE folks have indicated that this is an X.Org bug, not a KDE bug.
Comment 7 Tristan Miller 2016-08-19 10:10:18 UTC
I'm using different hardware now and haven't been able to reproduce this problem for years.  If this bug doesn't currently affect anyone else, feel free to close it.
Comment 8 GitLab Migration User 2018-12-13 22:22:24 UTC
-- GitLab Migration Automatic Message --

This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity.

You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/xorg/xserver/issues/388.
