Bug 26346 - [915gm][KMS] rendering errors
Summary: [915gm][KMS] rendering errors
Status: RESOLVED FIXED
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/intel (show other bugs)
Version: 7.4 (2008.09)
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Carl Worth
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-01-31 03:02 UTC by Tobias Diedrich
Modified: 2010-08-26 04:45 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments

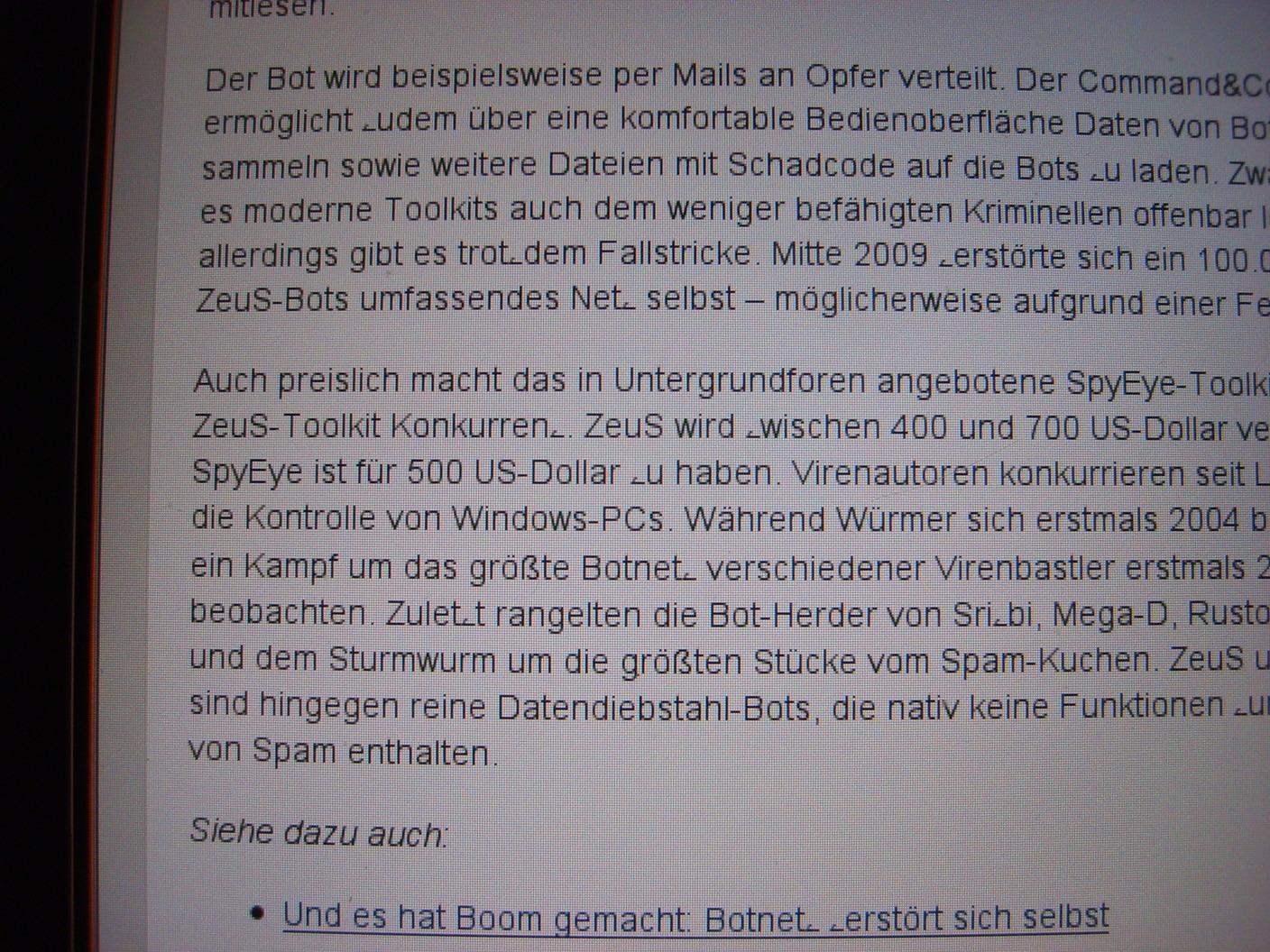

Image showing the character 'z' not rendered correctly (695.18 KB, image/jpeg)
2010-02-18 19:52 UTC, Tobias Diedrich
no flags Details

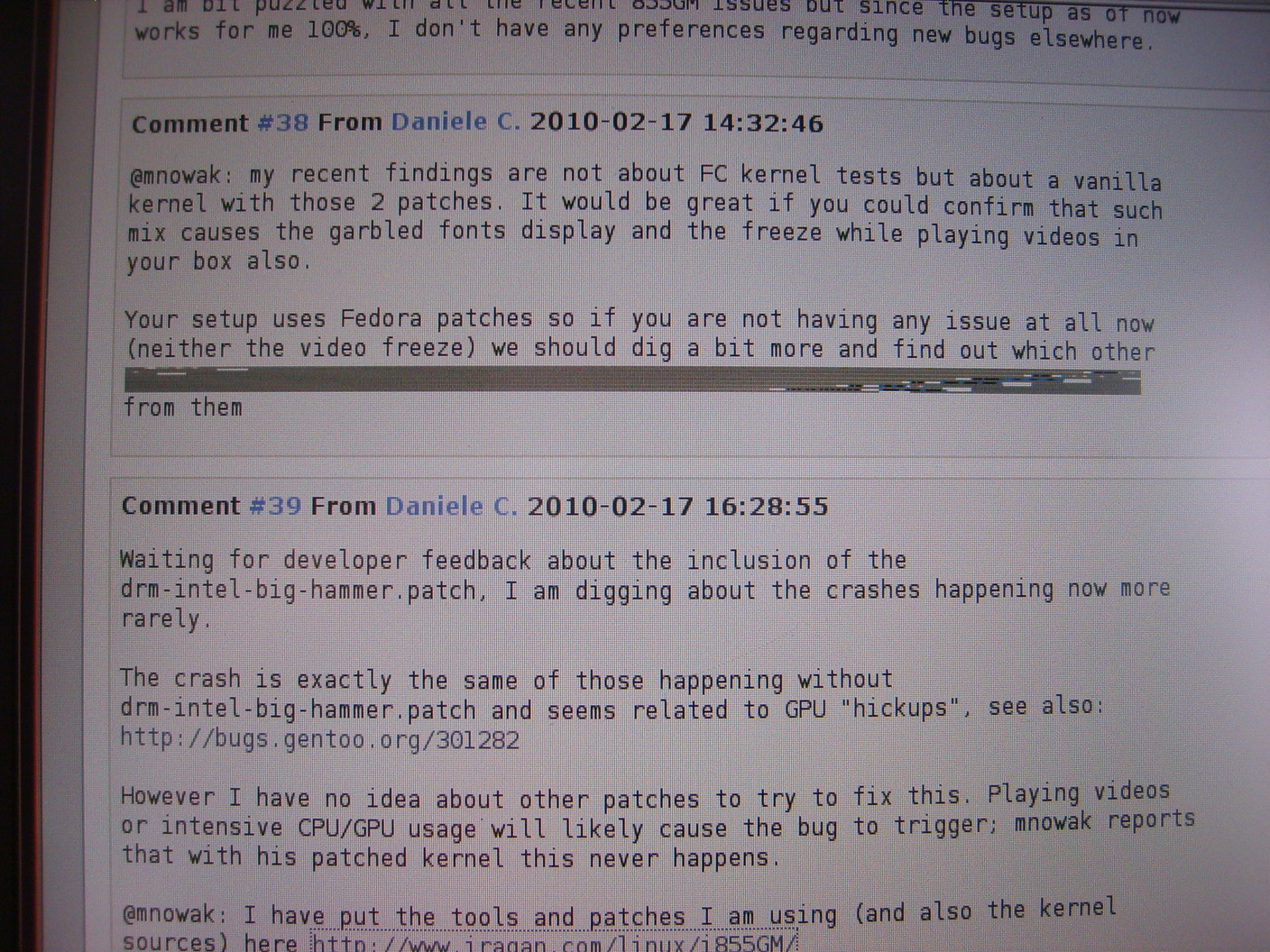

Weird rendering bug, see also video http://uguu.de/~ranma/intel_kms_bugs/S6000641.AVI (836.50 KB, image/jpeg)
2010-02-18 19:53 UTC, Tobias Diedrich
no flags Details

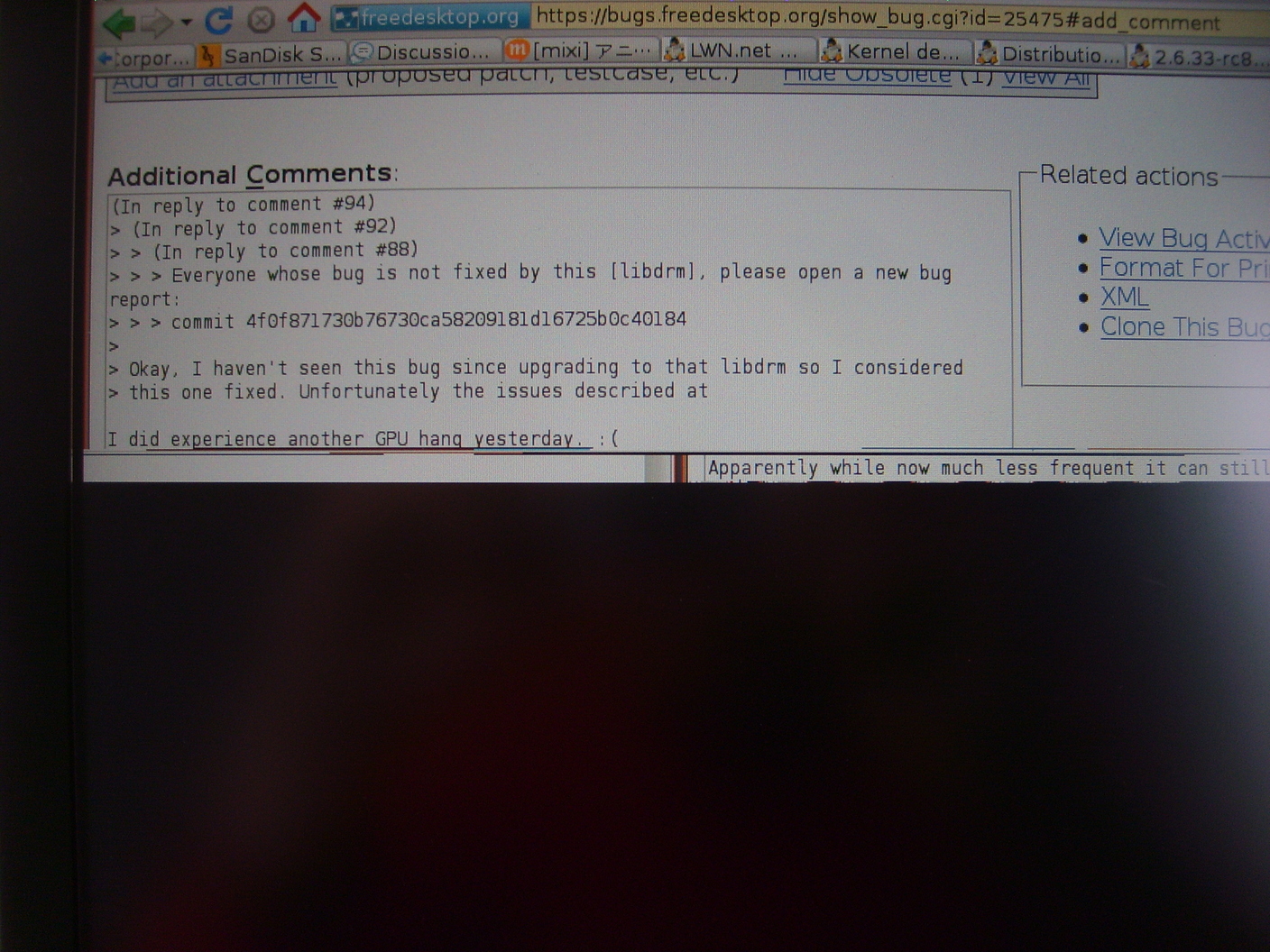

Photo of what looks like a failed blit (706.49 KB, image/jpeg)
2010-02-18 19:54 UTC, Tobias Diedrich
no flags Details
Unconditional big-hammer wbinvd() patch (696 bytes, patch)
2010-02-22 05:50 UTC, Tobias Diedrich
no flags Details | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Tobias Diedrich 2010-01-31 03:02:58 UTC
I most often trigger this in firefox, but it is also triggerable in google-chrome and I even got this once on a desktop with just xterms open.
Switching to a different desktop or application window fixes the display.
See the videos on http://uguu.de/~ranma/intel_kms_bugs/
This only happens when I use KMS.
Unfortunately I don't have a second system I could use to ssh into the machine to get a gpu dump while the bug is manifesting itself...
Comment 1 Tobias Diedrich 2010-01-31 03:42:37 UTC
I forgot to mention this:

ii  xserver-xorg-c 2:1.7.4-2      Xorg X server - core server
ii  libdrm2        2.4.17-0ubuntu Userspace interface to kernel DRM services -
(II) Module intel: vendor="X.Org Foundation"
        compiled for 1.7.4, module version = 2.9.99
        Module class: X.Org Video Driver
        ABI class: X.Org Video Driver, version 6.0

This is Debian/testing, with libdrm2 2.4.17 from Ubuntu lucid and xf86-video-intel compiled from git the day before yesterday, but I have been seeing this issue for about half a year now. Initially KMS worked fine, but at some point after a dist-upgrade it started acting up like this. I'm pretty sure these rendering errors and the sporadic GPU hangs started at the same time, but since I don't have a reliable way to trigger either I can't bisect it.
Comment 2 Tobias Diedrich 2010-02-04 06:40:12 UTC
Since updating to the git version of xf86-video-intel I noticed a new bug:
Sometimes fonts are not rendered correctly, that did not happen with the older Debian testing driver. Sometimes parts of the characters are missing, which is sometimes fixed by a redraw (most likely depends on whether it is still cached (redraw doesn't fix) or not (fixed by redraw)).

Today I also upgraded libdrm from the ubuntu 2.4.17 to 2.4.17 compiled from git, but that didn't help.
Now running on 2.6.33-rc6, libdrm 1802e1a4e747b5906d3af10c4a53fd457eddcbb4 and xf86-video-intel 1a76fa5574e8e8f88ac3518a4e4494e1af301dc1
Comment 3 Tobias Diedrich 2010-02-10 09:20:11 UTC
I upgraded to libdrm git HEAD including the "intel: Handle resetting of input params after EINTR during SET_TILING" commit
http://cgit.freedesktop.org/mesa/drm/commit/?id=4f0f871730b76730ca58209181d16725b0c40184

FWIW I just saw the text rendering bug, so that's not gone, but that's also one I got only recently. I'm still hoping the other rendering bugs are fixes by this.
Comment 4 Tobias Diedrich 2010-02-12 01:45:48 UTC
(In reply to comment #3)
> FWIW I just saw the text rendering bug, so that's not gone, but that's also one
> I got only recently. I'm still hoping the other rendering bugs are fixes by
> this.

Unfortunately the other rendering bugs also still happen, possibly less frequently. And I now have the suspicion that they now only happen after I suspended the system at least once.
Comment 5 Tobias Diedrich 2010-02-12 09:55:18 UTC
One particular rendering error that I see sometimes and still see with 2.6.33-rc7, libdrm 1802e1a4e747b5906d3af10c4a53fd457eddcbb4 and
xf86-video-intel 1a76fa5574e8e8f88ac3518a4e4494e1af301dc1 and forgot to mention in the first post:

Rarely the screens flickers for a split second. It looks like maybe the framebuffer offset is wrong for one frame, but happens to fast and to seldom to see the exact problem. I've only ever seen this with KMS, never without.
Comment 6 Tobias Diedrich 2010-02-18 19:52:13 UTC
Created attachment 33407 [details]
Image showing the character 'z' not rendered correctly

Currently running 2.6.33-rc8, drm-git 4a17be4a86cde1065908576e44f3710f6d9d68af, xf86-video-intel-git 00e7312dc45e54cd4547a943897a524639cb0b38
Comment 7 Tobias Diedrich 2010-02-18 19:53:39 UTC
Created attachment 33408 [details]
Weird rendering bug, see also video http://uguu.de/~ranma/intel_kms_bugs/S6000641.AVI
Comment 8 Tobias Diedrich 2010-02-18 19:54:31 UTC
Created attachment 33409 [details]
Photo of what looks like a failed blit
Comment 9 Tobias Diedrich 2010-02-22 05:50:52 UTC
Created attachment 33491 [details] [review]
Unconditional big-hammer wbinvd() patch

Hmm, it looks like all rendering errors except the font rendering bug are fixed by the 'drm-intel-big-hammer.patch' (after removing the i8xx-check in front of the wbinvd()).
Still have to double-check though since I also upgraded to 2.6.33-rc8-git4 at the same time. (Now recompiling 2.6.33-rc8-git4 without the big-hammer patch)
Comment 10 Tobias Diedrich 2010-02-22 09:42:05 UTC
I can confirm that those rendering errors (except the font thing) are apparently cache-coherency related.
After removing the 'big hammer' patch, I see the errors again.
Comment 11 Tobias Diedrich 2010-02-25 07:01:42 UTC
shining^ on #intel-gfx suggested reverting http://cgit.freedesktop.org/xorg/driver/xf86-video-intel/commit/?id=83626aba357ffb4dd7931daaf163c1dd1d08f9d3 for the font issue, recompiling now.
Comment 12 Tobias Diedrich 2010-02-26 17:08:32 UTC
FWIW, I'm still seeing the font errors with the patch reverted.
Comment 13 Chris Wilson 2010-05-27 04:26:51 UTC
Tobias, just to confirm this is a i915 [as opposed to i945, g33, PineView, i965, g45, Ironlake etc]?
Comment 14 Tobias Diedrich 2010-05-27 07:21:41 UTC
(In reply to comment #13)
> Tobias, just to confirm this is a i915 [as opposed to i945, g33, PineView,
> i965, g45, Ironlake etc]?

I think so:

00:02.0 VGA compatible controller: Intel Corporation Mobile 915GM/GMS/910GML Express Graphics Controller (rev 03)
00:02.1 Display controller: Intel Corporation Mobile 915GM/GMS/910GML Express Graphics Controller (rev 03)
00:02.0 0300: 8086:2592 (rev 03)
00:02.1 0380: 8086:2792 (rev 03)

FWIW the font errors seem to be quite rare with the big hammer patch applied.
Still running on 2.6.33-rc8-git4 (Since the problems mostly went away with the big hammer patch I haven't felt the need to update...) and intel_drv.so 00e7312dc45e54cd4547a943897a524639cb0b38.
Currently waiting for https://bugs.freedesktop.org/show_bug.cgi?id=26744 to show up again after applying the debug patch...
Comment 15 Chris Wilson 2010-08-21 04:30:29 UTC
How did this fare with Dave Airlie's fix for rendering errors during low-power CPU modes? [2.6.35]
Comment 16 Tobias Diedrich 2010-08-26 04:45:58 UTC
(In reply to comment #15)
> How did this fare with Dave Airlie's fix for rendering errors during low-power
> CPU modes? [2.6.35]

I've been running 2.6.35.1 for some time now and haven't seen any rendering problems even without the bighammer patch.
