Bug 28000 - [Mobile GM965/GL96][Wine][3D] Display and textures corrupted in Warhammer 40k Soulstorm
Summary: [Mobile GM965/GL96][Wine][3D] Display and textures corrupted in Warhammer 40k...
Status: RESOLVED INVALID
Alias: None
Product: DRI
Classification: Unclassified
Component: General (show other bugs)
Version: XOrg git
Hardware: x86 (IA32) Linux (All)
: medium critical
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-05-06 11:33 UTC by fdelente
Modified: 2019-10-14 13:20 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments
Xorg.0.log (50.48 KB, application/octet-stream)
2010-05-06 11:33 UTC, fdelente
no flags Details
dmesg (30.39 KB, application/octet-stream)
2010-05-06 11:34 UTC, fdelente
no flags Details
xrandr --verbose (2.13 KB, application/octet-stream)
2010-05-06 11:34 UTC, fdelente
no flags Details
Wine output with LIBGL and MESA debug mode (172.93 KB, application/octet-stream)
2010-05-06 11:36 UTC, fdelente
no flags Details
Corruption of bitmaps (704.56 KB, image/png)
2010-05-06 11:37 UTC, fdelente
no flags Details
Textures corruption (500.71 KB, image/png)
2010-05-06 11:38 UTC, fdelente
no flags Details
Polygons stretched / models of characters distorted (not the buildings?) (664.29 KB, image/png)
2010-05-07 09:37 UTC, fdelente
no flags Details

Note You need to log in before you can comment on or make changes to this bug.
Description fdelente 2010-05-06 11:33:39 UTC
Created attachment 35465 [details]
Xorg.0.log

$ lspci
00:02.0 VGA compatible controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 03)
00:02.1 Display controller: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller (rev 03)
$ uname -m
i686
$ uname -a
Linux slick 2.6.32.3-smp #7 SMP PREEMPT Tue Apr 6 19:10:03 CEST 2010 i686 Intel(R) Core(TM)2 Duo CPU     T5750  @ 2.00GHz GenuineIntel GNU/Linux
-- xf86-video-intel/xserver/mesa/libdrm version:
xf86-video-intel-2.11.0-i386-1
xorg-server-1.8.0-i386-1
Mesa-7.8.1-i386-1
libdrm-2.4.20-i386-1
-- kernel version: ("uname -r")
2.6.32.3-smp
-- Linux distribution:
Slackware 13.0 initially, but I recompiled many packages from source
-- Machine or mobo model:
Packard Bell BG46 fr
-- Display connector: (e.g. VGA, DVI, HDMI, S-video, ...)
VGA? LCD panel
3) Reproduce steps. Probability if not 100% reproducible.
100% reproducible: when starting Soulstorm, some bitmaps and 3D textures are corrupted. The same game works flawlessly on another computer with an Nvidia card.
4) Attachment:
-- Xorg.0.log
-- dmesg output (better with boot option "drm.debug=0x06")
-- xorg.conf (if you changed any default options)
No change there
-- screenshot or photo (optional, a picture is worth a thousand words)
-- output of "xrandr --verbose" for display mode issue
-- intel_reg_dumper output (see the guide) for display issue.
-- for GPU hang, get the last batch buffer (see the guide).
Comment 1 fdelente 2010-05-06 11:34:11 UTC
Created attachment 35466 [details]
dmesg
Comment 2 fdelente 2010-05-06 11:34:56 UTC
Created attachment 35467 [details]
xrandr --verbose
Comment 3 fdelente 2010-05-06 11:36:09 UTC
Created attachment 35468 [details]
Wine output with LIBGL and MESA debug mode
Comment 4 fdelente 2010-05-06 11:37:12 UTC

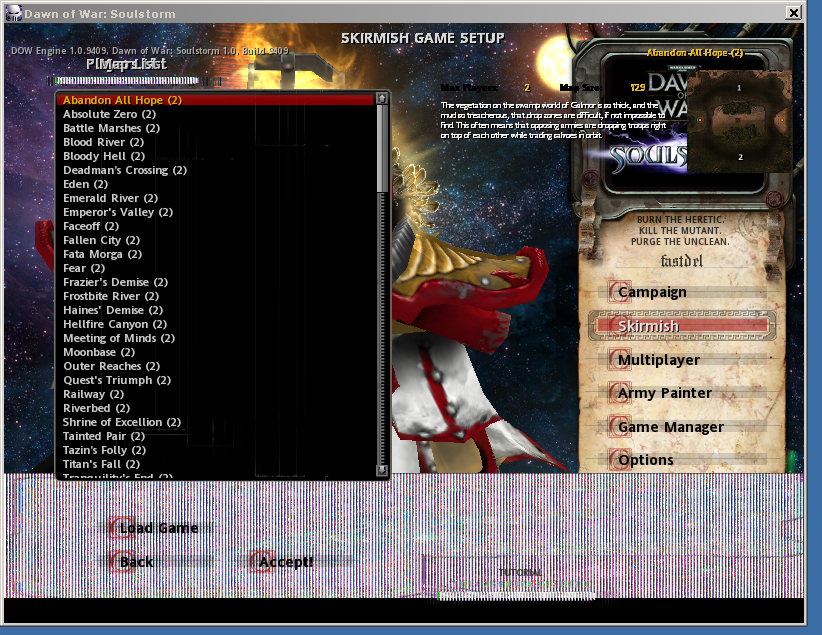

Created attachment 35469 [details]
Corruption of bitmaps
Comment 5 fdelente 2010-05-06 11:38:25 UTC

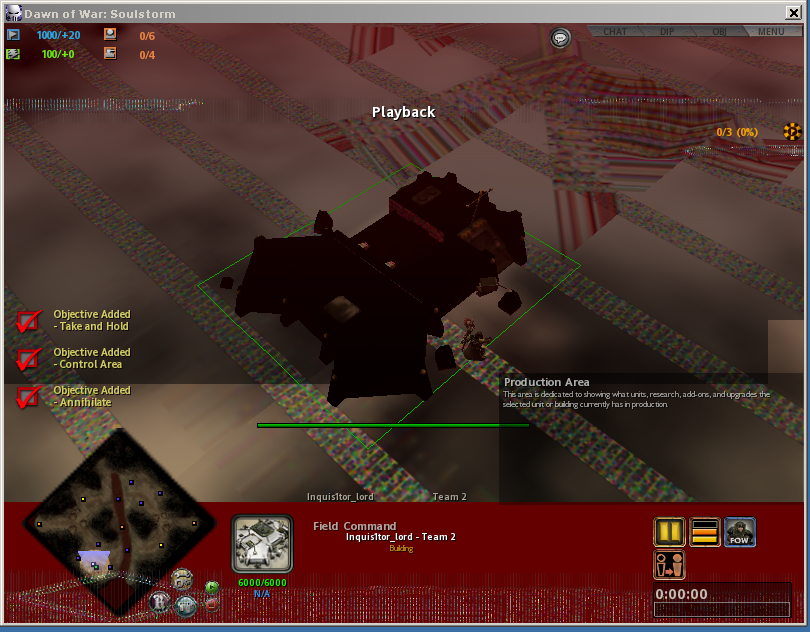

Created attachment 35470 [details]
Textures corruption
Comment 6 Sven Arvidsson 2010-05-06 14:13:31 UTC
Having played both the original game and the Winter Assault expansion without problems using the i965 driver, I gave the demo of Soulstorm a try. It works fine here, but if I disable S3TC support, I get the same corruption as your screenshots.

Could you try either:

- Installing the libtxc_dxtn library (should be available somewhere for your distro, otherwise get it here: http://homepage.hispeed.ch/rscheidegger/dri_experimental/s3tc_index.html )

- Setting "Enable S3TC texture compression" to "Yes" in driconf. (or just force_s3tc_enable=true )
Comment 7 fdelente 2010-05-07 06:28:14 UTC
(In reply to comment #6)
> Could you try either:
>
> - Installing the libtxc_dxtn library (should be available somewhere for your
> distro, otherwise get it here:
> http://homepage.hispeed.ch/rscheidegger/dri_experimental/s3tc_index.html )

Installing that library has solved the textures and bitmaps corruption problem, thanks! However, the GPU still hangs as mentionned in dmesg.

I tried getting a dump, but I couldn't find intel_reg_dumper in intel-gpu-tools-1.0.2, I only found intel_gpu_dump. However, it doesn't work as a user, and it hangs the machine as root, forcing me to reboot (I tried intel_gpu_dump > gpu_dump as root, and the machine becomes completely unresponsive).

> - Setting "Enable S3TC texture compression" to "Yes" in driconf. (or just
> force_s3tc_enable=true )

I couldn't find driconf, and I don't know where to put force_s3tc_enable=true; however, since installing libtxc_dxtn worked, I guess it isn't mandatory?

Thanks for your help!

--
F. Delente
Comment 8 Sven Arvidsson 2010-05-07 07:02:53 UTC
(In reply to comment #7)
> Installing that library has solved the textures and bitmaps corruption problem,
> thanks! However, the GPU still hangs as mentionned in dmesg.
>
> I tried getting a dump, but I couldn't find intel_reg_dumper in
> intel-gpu-tools-1.0.2, I only found intel_gpu_dump. However, it doesn't work as
> a user, and it hangs the machine as root, forcing me to reboot (I tried
> intel_gpu_dump > gpu_dump as root, and the machine becomes completely
> unresponsive).

The GPU reset function will probably mean that you won't get a meaningful dump with that kernel anyway. The best way is to retry with git master of Mesa, and the latest rc of 2.6.34.

If the hang is still there, grab a dump with intel_error_decode.

(At least this is what I usually do.)

> I couldn't find driconf, and I don't know where to put force_s3tc_enable=true;
> however, since installing libtxc_dxtn worked, I guess it isn't mandatory?

No, shouldn't be necessary if the lib is used.
Comment 9 fdelente 2010-05-07 09:36:34 UTC
(In reply to comment #8)
Thanks for your suggestions, installing the latest git of Mesa and/or 2.6.34-rc6 solved the GPU hang problem.

Now the game plays, but some models are distorted: the polygons extend out of the characters(?).

Furthermore, about 1 pixel is chopped of the letters (see screenshot).

Thanks again anyway!

--
F. Delente
Comment 10 fdelente 2010-05-07 09:37:29 UTC

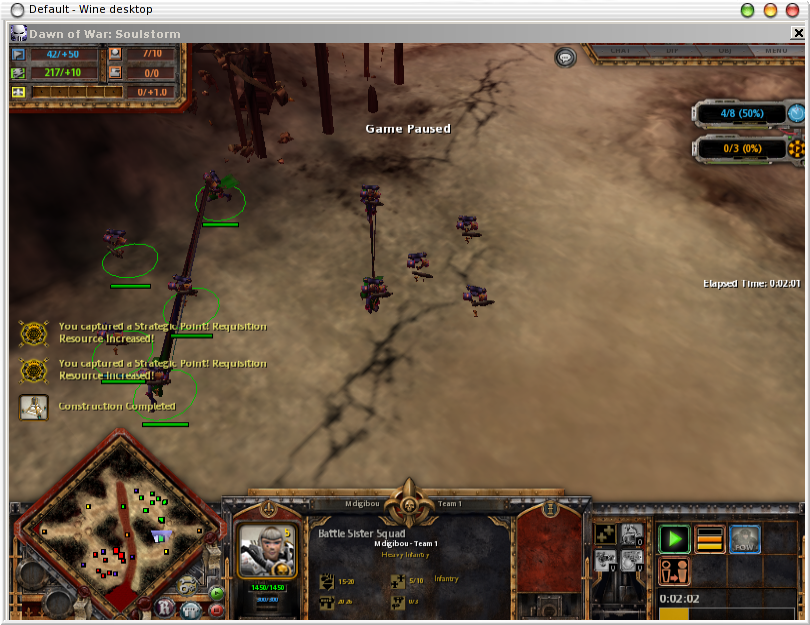

Created attachment 35500 [details]
Polygons stretched / models of characters distorted (not the buildings?)
Comment 11 Sven Arvidsson 2010-05-07 11:24:09 UTC
(In reply to comment #9)
> Now the game plays, but some models are distorted: the polygons extend out of
> the characters(?).
>
> Furthermore, about 1 pixel is chopped of the letters (see screenshot).

These I can't reproduce, sorry.

I guess either the demo isn't enough to reproduce this, or it's a problem specific to your hardware (I use a X4500HD).
Comment 12 Martin Peres 2019-10-14 13:20:14 UTC
Hi,

Freedesktop's Bugzilla instance is EOLed and open bugs are about to be migrated to http://gitlab.freedesktop.org.

To avoid migrating out of date bugs, I am now closing all the bugs that did not see any activity in the past year. If the issue is still happening, please create a new bug in the relevant project at https://gitlab.freedesktop.org/drm (use misc by default).

Sorry about the noise!
