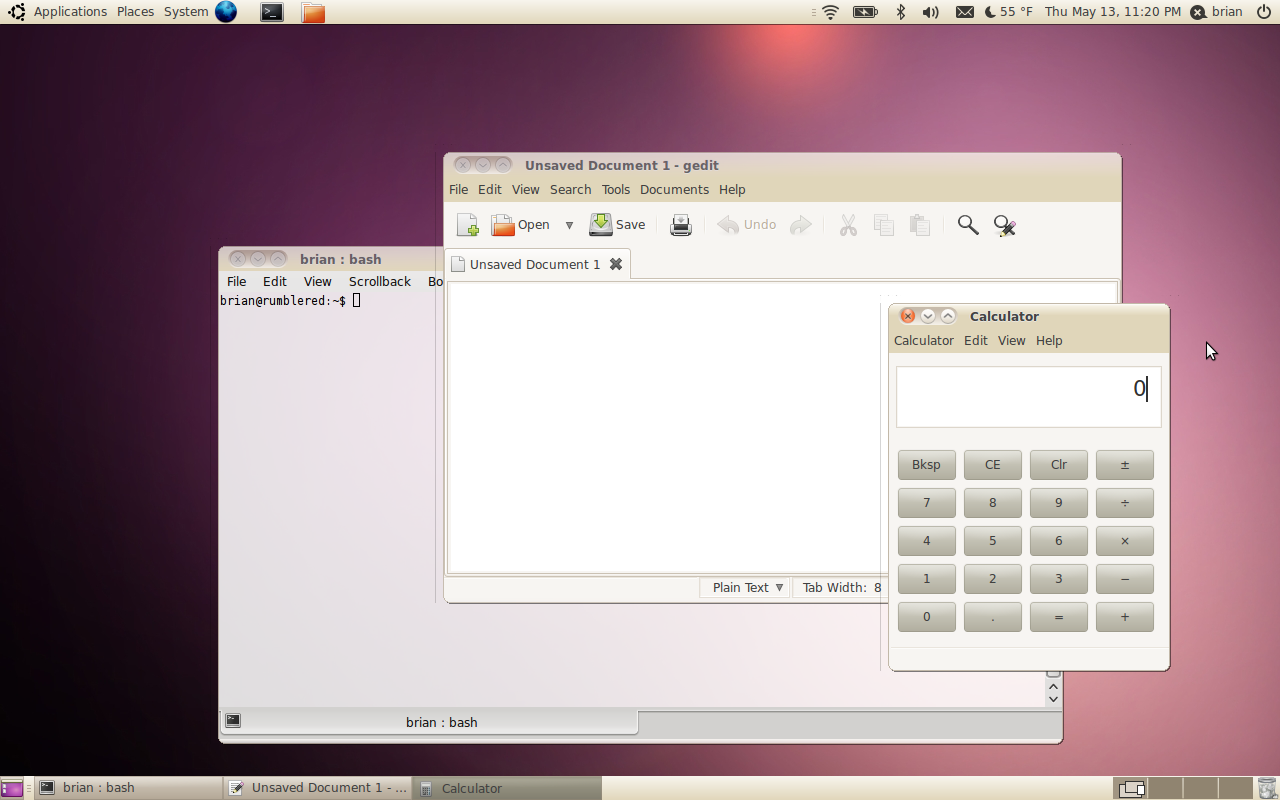

Created attachment 35645 [details] screenshot of the problem On my i965 laptop with a recent update from xorg-edgers, I get a fine line of black pixels to the left of each window, and a few stray black pixels above each window. These artifacts are one pixel wide and a small space away from the edges of the window. They are partially transparent. There is also no shadow effect around the windows, so it looks like the garbage pixels are a failed attempt by Compiz to render shadows. The stray pixels don't show up in all bad versions (at least not all the time), but after noticing that shadows were missing, I was able to bisect down to the first commit that didn't draw shadows: commit a7b800513fcc94e063dfd68d2f63b6bab7fae47d Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Wed Apr 14 21:14:34 2010 +0100 uxa: Extract sub-region from in-memory buffers. If the buffer is too large or not suitable for a GPU operation, we currently fallback and perform the composite on the CPU. An alternative is too extract the small region out of the source (as usually the sample extents are much smaller than the actual surface size) and try the composite with the new surface. The effect is particularly noticeable on pathological websites that use very large background images. For example, http://www.woodtv.com/ uses a 1299x15000 pattern that is obscured by another opaque pattern. Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
Haven't yet reproduced this, there is a possibility that I accidentally fixed it whilst on a rendercheck spree... Brian would you be so kind as to check whether master has regressed any further?
Problem still exists as of 9c3da71349bcfeabae08f1572cf602c357bf7641. I don't see any changes...

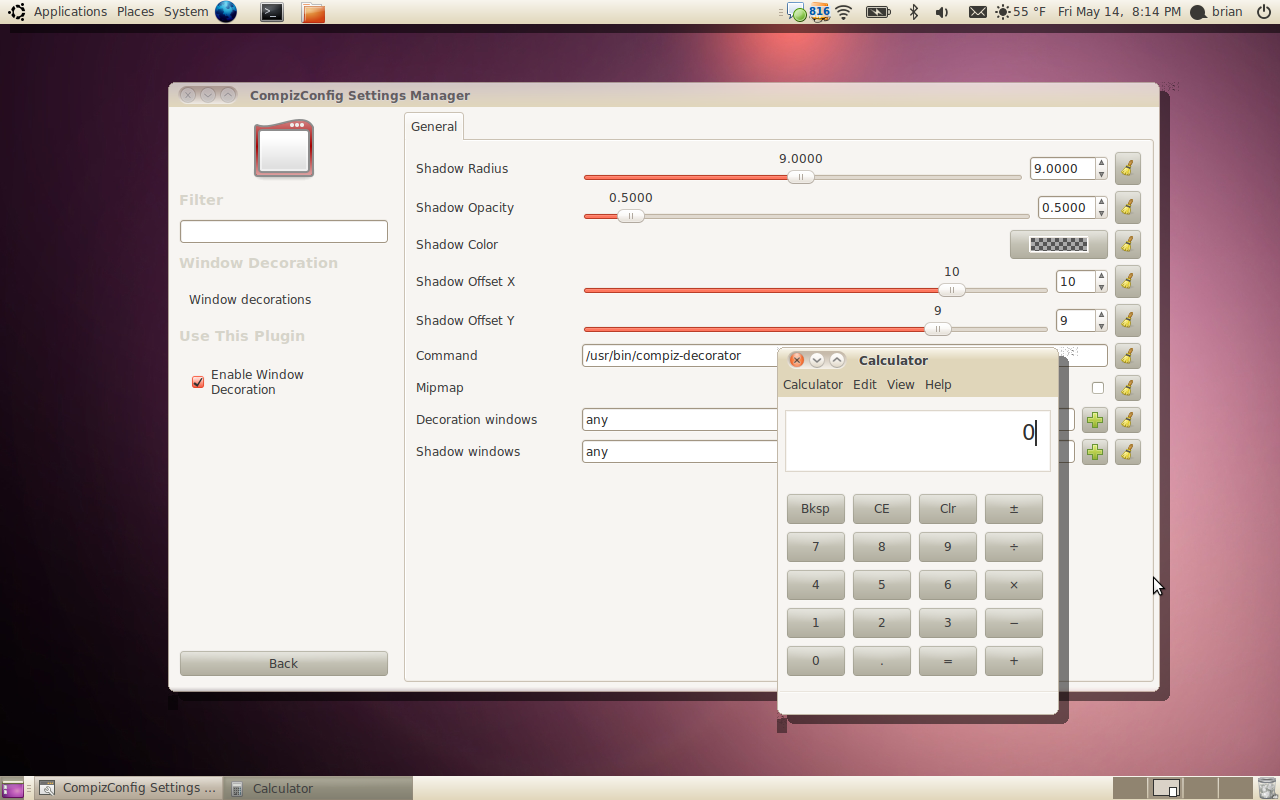

Created attachment 35666 [details] screenshot with adjusted x and y offsets Chris, are you getting properly drawn soft-shadows? There are two components to this bug: 1. the stray lines of pixels 2. the lack of soft-shadows That second problem isn't as obvious, but it's the thing to look for since the first problem doesn't show up with all settings. If I change the shadow radius under "window decoration" in ccsm, the stray lines can be greatly diminished or go away with some settings. If I change the x and y shadow offsets from their defaults of 1, I can see that the "direct" part of the shadow that's supposed to be of highest opacity shows up correctly, and it's the soft border around that that's not drawn correctly. Here's a screenshot of that.
Nope, not yet, still battling with a broken mutter. :( * decides to reinstall and add a Ubuntu and Rawhide partition for punishment Anyway, looks like there are two bugs here. The first is using a blit for a repeat mode of convolution. The second I'm is using a blit and accessing outside of the source bounds. Fixing the first is fairly easy but hides the second, so lets fix that first. commit ef95899f5b21453daeabf81a3015b22456d21fec Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Sat May 15 09:02:07 2010 +0100 uxa: Check the w-scaling component is 1 for an translation matrix Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk> commit 58b089febceca1e915607bb723ee658aaa9dbed3 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Sat May 15 09:11:46 2010 +0100 uxa: Avoid using blits when with PictFilterConvolution References: Bug 28098 Compiz renders shadows wrong, garbage line of pixels along left and top edge of windows https://bugs.freedesktop.org/show_bug.cgi?id=28098 Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk> However, there still may be an issue with uxa_acquire_drawable() - that's the bit responsible for converting an unhandled source (like convolution filters) into a texture.
It all looks correct now. No lines, and soft shadows are back. Fixed!
