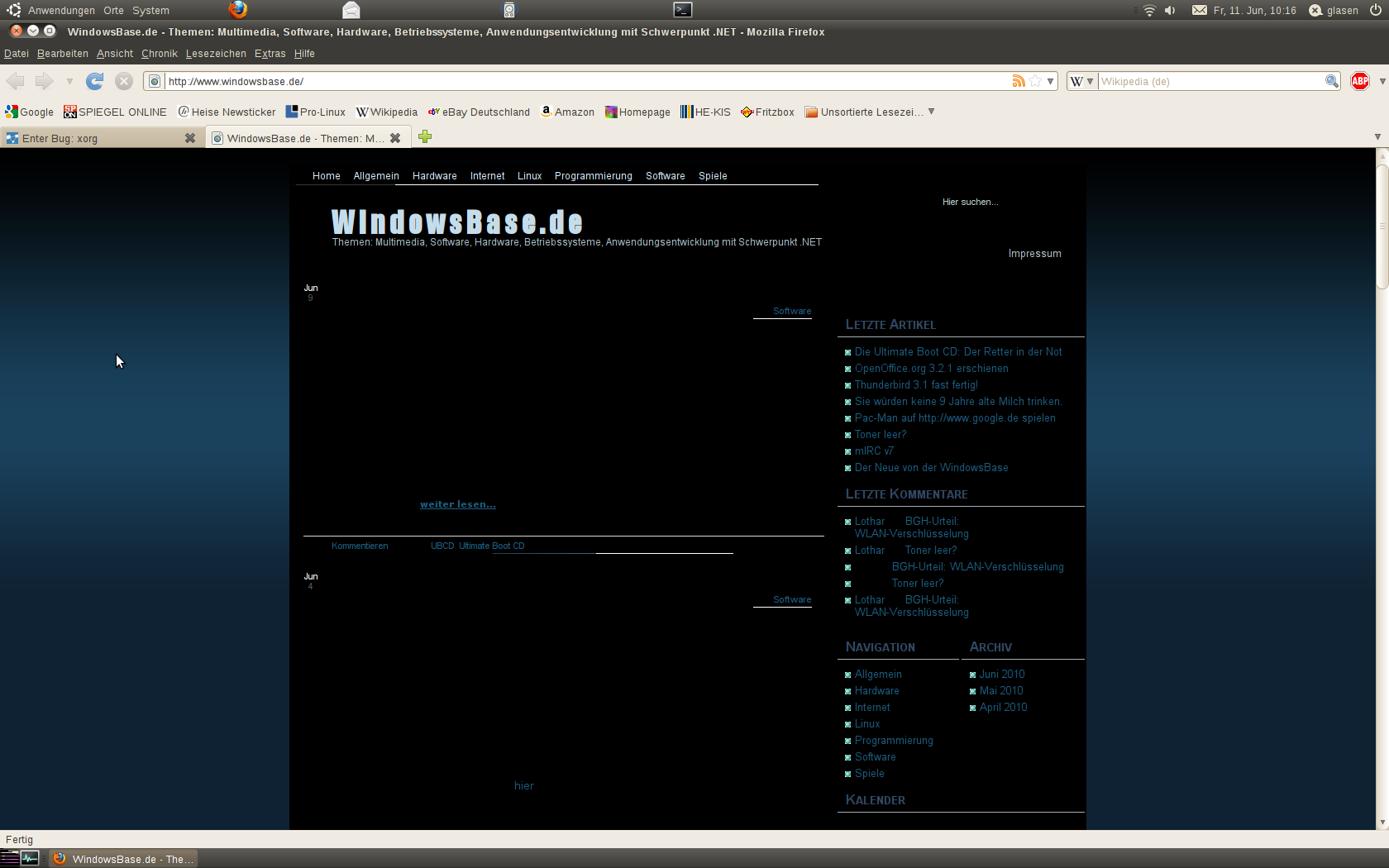

Created attachment 36208 [details] Screenshot of error in Firefox Hi, I'm getting graphics errors and screen corruptions with the latest git-version of the intel-driver. The bug is very easy to reproduce for me : Just open Firefox and surf to the website "www.windowsbase.de". Sometimes the errors are even worse and the xserver is crashing immediately. The strange thing is, that Google Chrome does not trigger this error, but Epiphany Webkit does (Both based on Webkit). Perhaps a problem with Cairo? intel-driver git (latest version) libdrm 2.4.21 Linux vanilla 2.6.34

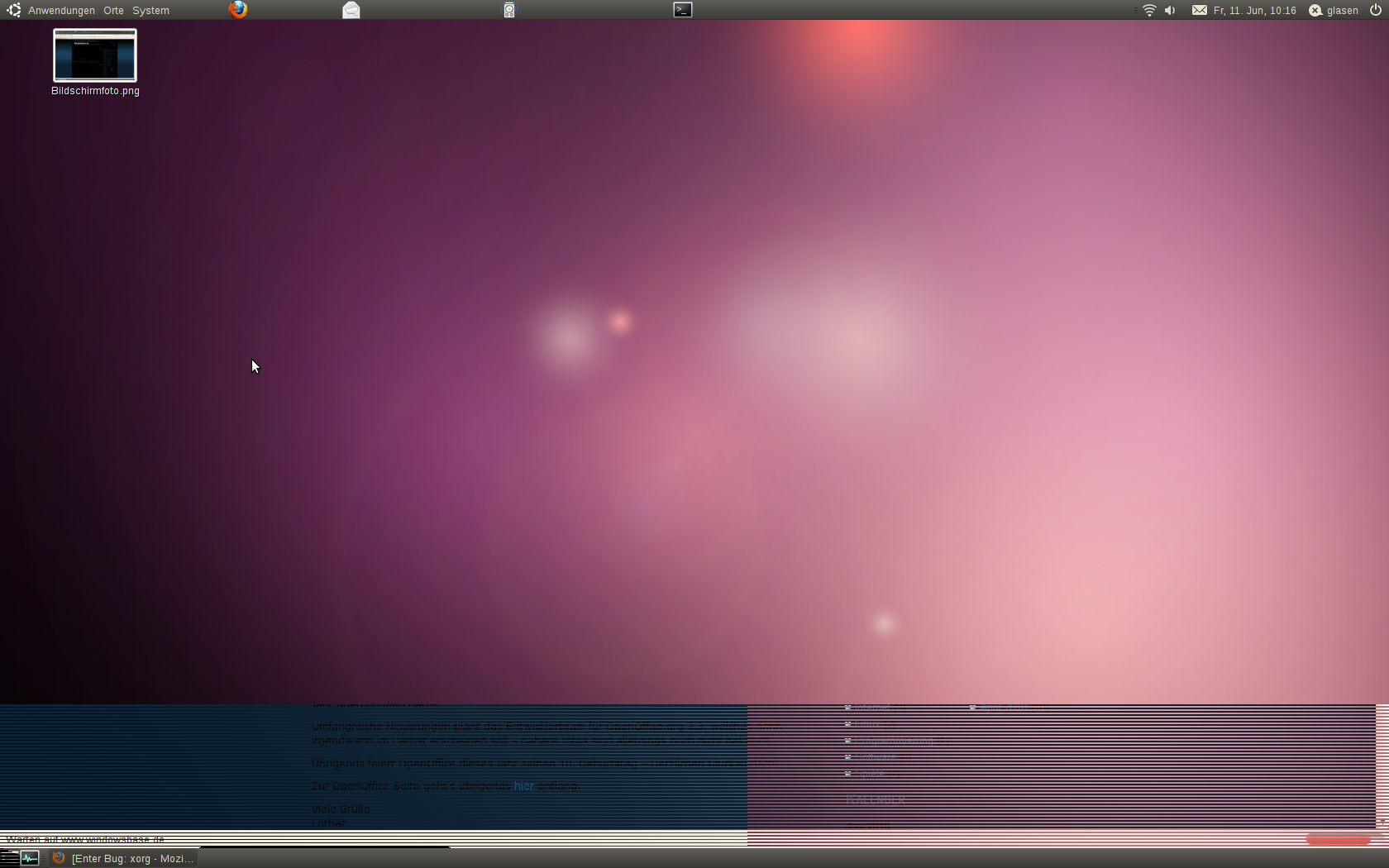

Created attachment 36209 [details] Screenshot of after surfing to the website
Hmm, I'm sure I've just looked at this or a very similar bug... bug 28135. Stefan, can you attach your Xorg.log?
Ah, I had forgotten entirely about the rendering corruption from that bug. :(
Bah, I rewrote the handling of the over-sized sources and that site is still misrendered! Seems like I am barking up the wrong tree here.
I found one bogosity in that site triggered firefox to create and handle a 5000x300 surface, for which we were using a pitch of 32,768 bytes. Apparently this exceeded the hardware limits and so was causing the GPU to misbehave. Having fixed that the site renders on the screen properly, but off-screen still has the same corruption. Bizarre. commit 6d33e578de4e23336ac69cc3c5d0935a65d4dda1 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Wed Jun 23 21:28:50 2010 +0100 Limit maximum tiled stride to 8k and untiled to 32k. Tiling on gen 2/3 hardware is only supported for pitches up to 8192 bytes, so above this limit the surface will be untiled and we will no longer have to comply with the power-of-two pitch alignment. So disabling tiling for these too wide surface should ~halve the memory requirement for the full surface. Also the absolute limit for the 2D blitter is 32,768 bytes. The documentation says "up to 32,768 bytes" and my PineView box was malfunction with a surface stride of 32,768 so set the limit to be 32,767. References: Bug 28497 - Graphics corruption after opening a specific website https://bugs.freedesktop.org/show_bug.cgi?id=28497
commit b58a6a39c1568800938eb0e3ebc7664683b61200 Author: Chris Wilson <chris@chris-wilson.co.uk> Date: Wed Jun 23 23:56:44 2010 +0100 uxa: Fallback to pixman if source is out-of-bounds If the source is outside the drawable, then CopyArea will fail to initialise the source correctly. The simplest fix in this case is to fallback to pixman to generate the source texture. Fixes: Bug 28497 - Graphics corruption after opening a specific website https://bugs.freedesktop.org/show_bug.cgi?id=28497
Hi Chris, Thanks for the work. I've tested the new version of the driver on two systems (i830-based and i945-based) and the rendering bug is now gone.
