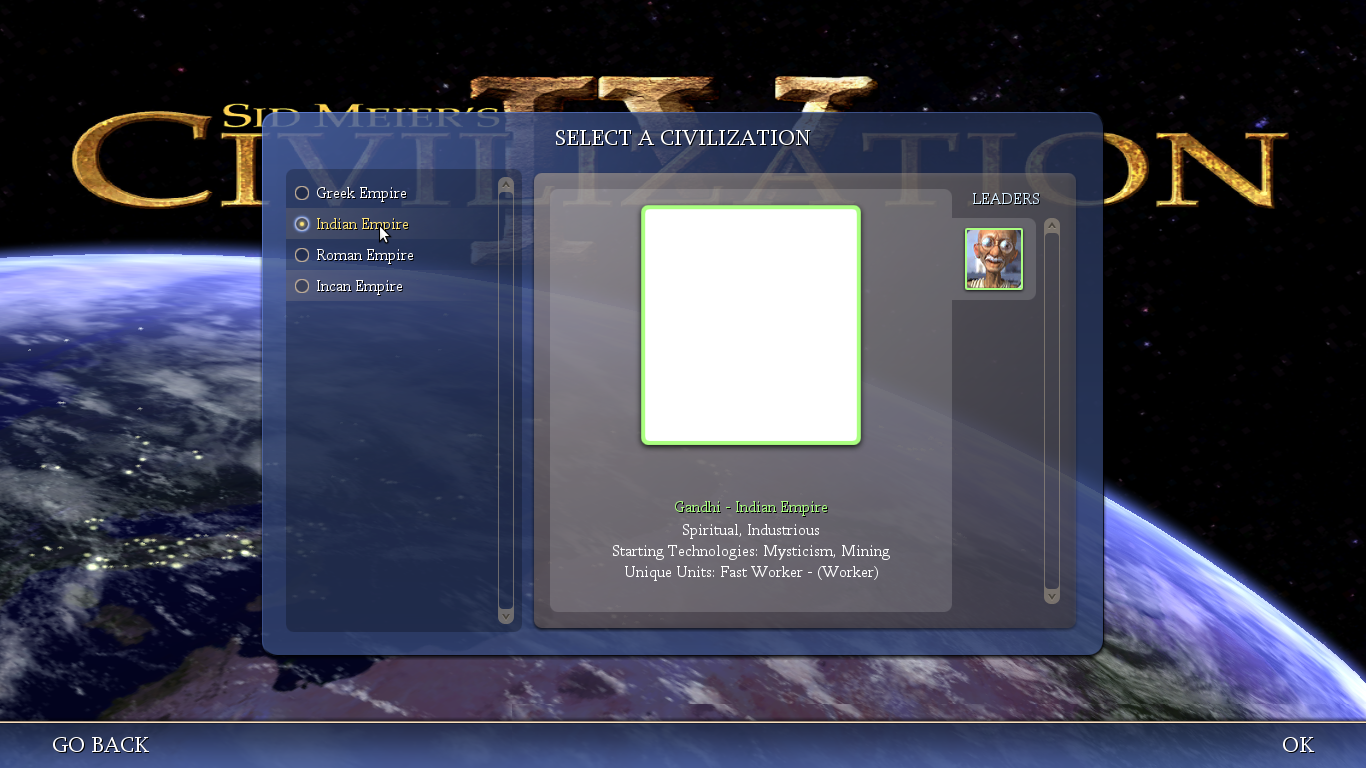

Created attachment 38659 [details] Screenshot of the problem You can see this bug with the demo version of Civilization 4. When you try to select you civilization, in the place where the image of your character appear there are only garbage like in the screenshot attached. This didn't happen with mesa 7.8.2 so this is a regression. I'm using Ubuntu Maverick and the Xorg-edgers PPA: Mesa DRI Mobile Intel® GM45 Express Chipset GEM 20100330 DEVELOPMENT x86/MMX/SSE2 OpenGL version string: 2.1 Mesa 7.9-devel You can get the demo from here: http://www.gamershell.com/download_11624.shtml

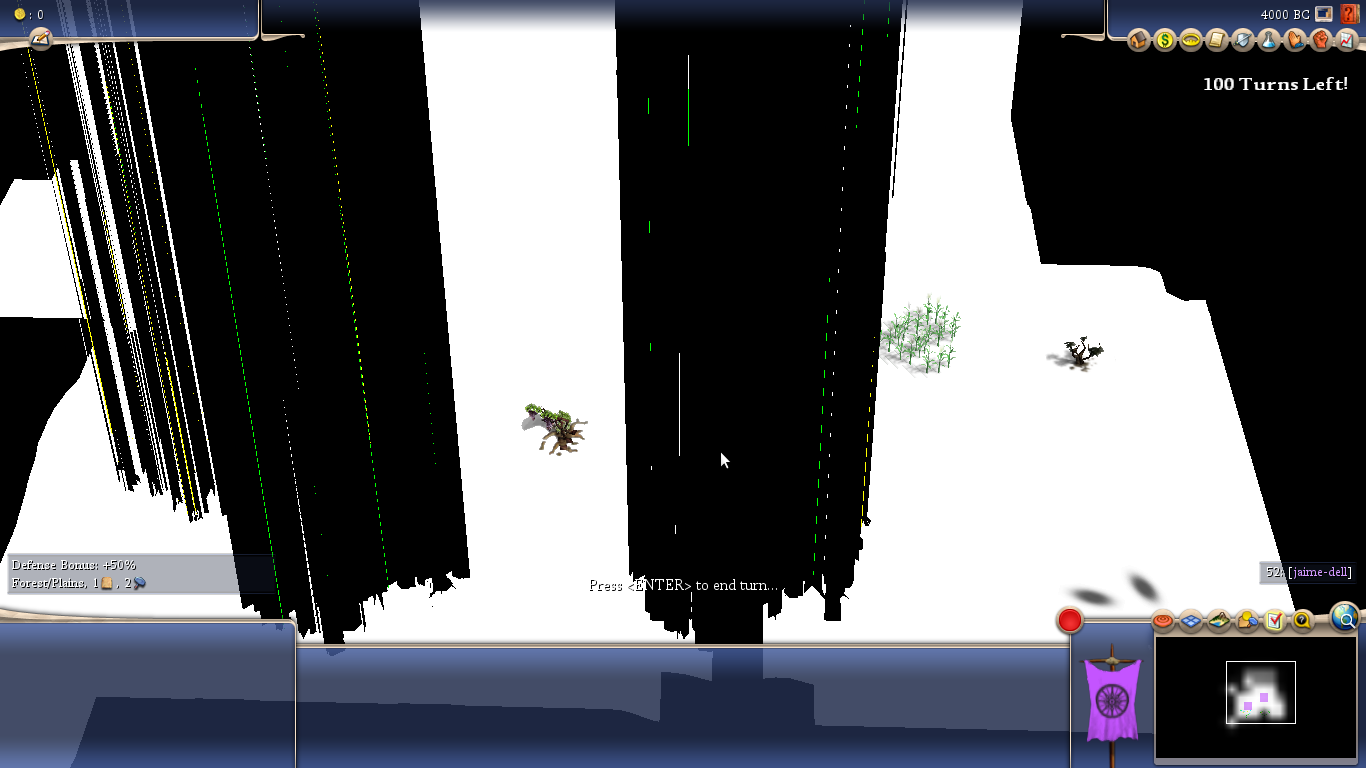

Created attachment 38660 [details] Another screenshot showing the problem in game
Any additional information I can apport. Maybe some logs or the output of an specific debug channel? Is still a problem with today mesa git and intel from git.
Created attachment 39430 [details] Crash log With todays git from xorg-edgers I'm getting a crash just before the broken animation is shown. I'm attaching the complete crash backtrace.
That should have been fixed by: commit 9fea9e5e2115bcb52435648d2ef753638733d7d9 Author: Ian Romanick <ian.d.romanick@intel.com> Date: Tue Oct 12 12:50:29 2010 -0700 glsl: Fix incorrect assertion

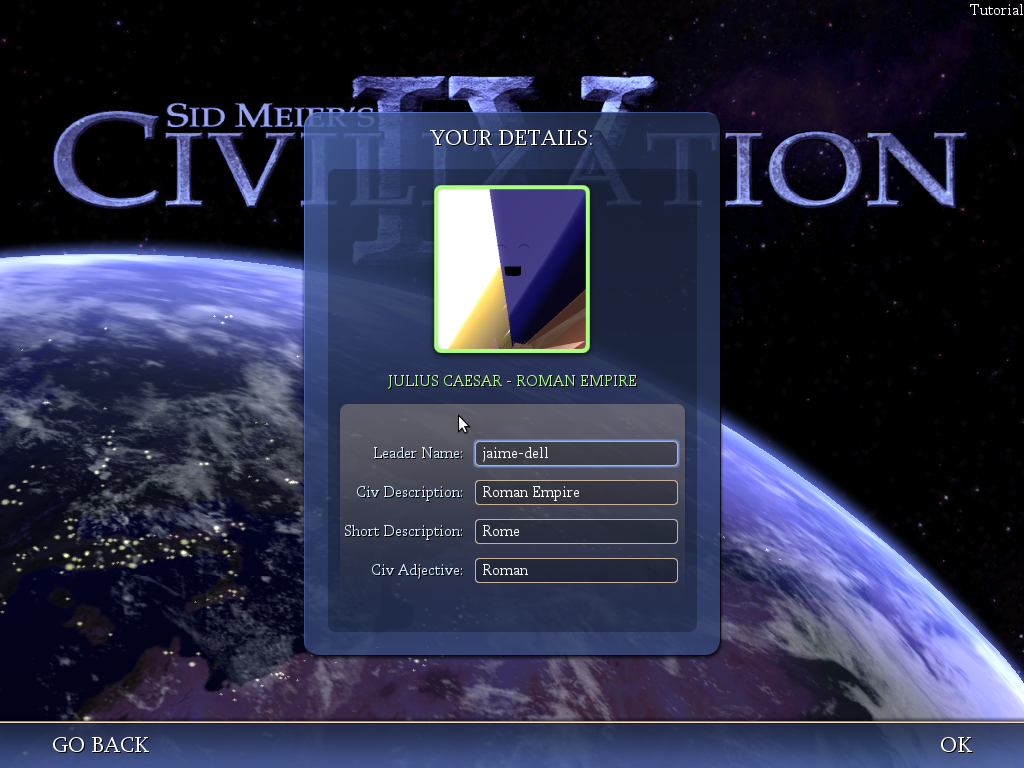

Created attachment 39519 [details] Screenshot of the issue With mesa 7.10.0+git20101017.98b3f274-0ubuntu0sarvatt and Intel driver 2:2.12.902+git20101017.33133a1d-0ubuntu0sarvatt the problem is even worst, now there's only white and black textures everywhere. I'm attaching some screenshots.

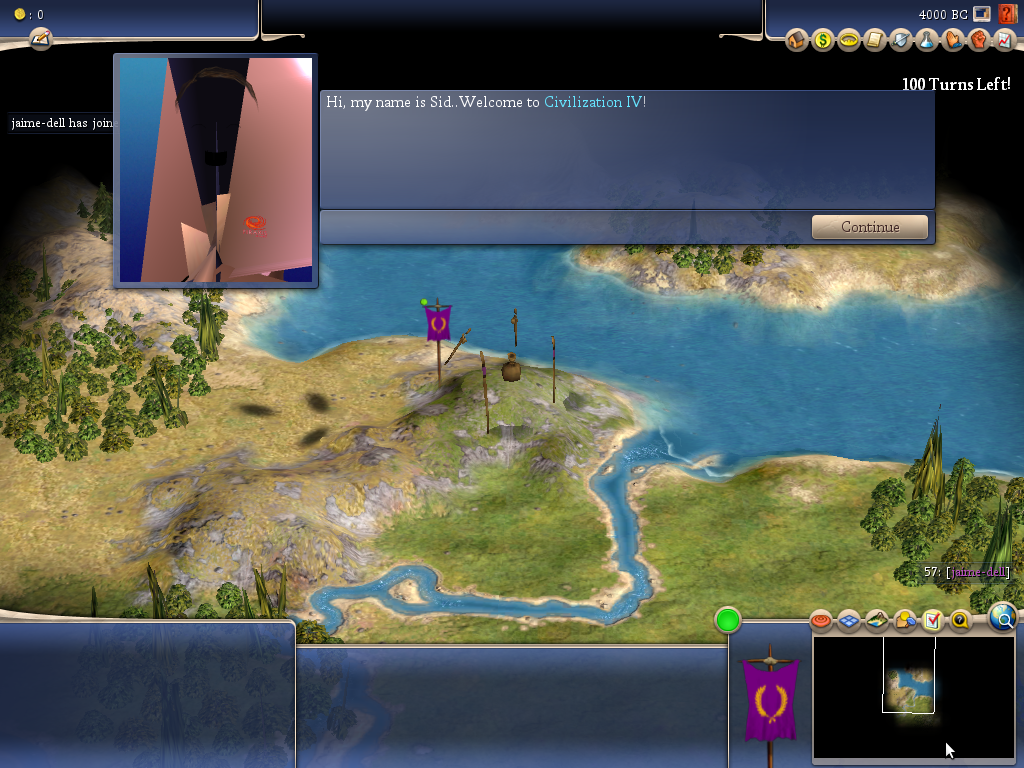

Created attachment 39520 [details] another screenshot in game The crash is not happening anymore, but now i don't have any kind of textures.
The game looks correct when stating Ubuntu in low graphics mode and using swarst but is really slow.
Please retest with Mesa as of: commit 5dc53444c8323c1787dddbe6b67048828df9c684 Author: Eric Anholt <eric@anholt.net> Date: Wed Dec 22 22:46:12 2010 -0800 i965: Correct the dp_read message descriptor setup on g4x. It's mostly like gen4 message descriptor setup, except that the sizes of type/control changed to be like gen5. Fixes 21 piglit cases on gm45, including the regressions in bug #32311 from increased VS constant buffer usage.
Confirmed, still an issue as of Mesa master at ff0f0875135a7842e78fae002ee1187892f9405b
commit 7bc2602f2921596cc9bb7a401612276a2dce00e6 Author: Eric Anholt <eric@anholt.net> Date: Fri Jan 7 14:24:41 2011 -0800 vp-constant-negate: New test for bug #30156 in Civ4 on i965. commit 1d1ad6306d0d55b6ba97d9ecc730d5f919d55df5 Author: Eric Anholt <eric@anholt.net> Date: Fri Jan 7 14:26:39 2011 -0800 i965: Avoid double-negation of immediate values in the VS. In general, we have to negate in immediate values we pass in because the src1 negate field in the register description is in the bits3 slot that the 32-bit value is loaded into, so it's ignored by the hardware. However, the src0 negate field is in bits1, so after we'd negated the immediate value loaded in, it would also get negated through the register description. This broke this VP instruction in the position calculation in civ4: MAD TEMP[1], TEMP[1], CONST[256].zzzz, CONST[256].-y-y-y-y; Bug #30156
