Created attachment 38984 [details] xorg server log I've tried to use the xorg state tracker as a replacement for the xf86-video-ati driver. The server fails to start with the following error message: "LoadModule: Module radeon does not have a radeonModuleData data object."
I am getting the same when building mesa with r600 gallium, with the autogen command - --enable-debug --disable-egl --enable-gallium-r600 --enable-gallium-swrast --with-dri-drivers=r600,swrast My radeon_drv.so gets overwritten so that the next startx fails with the error as reported.
Either the binary needs to be renamed to radeong_drv.so, or the references to 'radeong' in src/gallium/targets/xorg-radeon/radeon_xorg.c need to be changed to 'radeon'.
Created attachment 38991 [details] [review] replaces 'radeong' in src/gallium/targets/xorg-radeon/radeon_xorg.c with 'radeon' Thank you! I changed the references in radeon_xorg.c like you said.
Forgot to mention: After replacing 'radeong' with 'radeon' xorg server was starting and I was able to log into KDE. Looks fine so far.
So it's fixed ?
(In reply to comment #5) > So it's fixed ? It's been a while since I was playing with the Xorg state tracker. It did work when I booted into the graphical mode using the xf86-video-ati driver, then quit the xserver and restarting the xserver with the Xorg state tracker. It didn't work after a reboot of the system. There is a little bit more information in this bug report: https://bugs.freedesktop.org/show_bug.cgi?id=30406
(In reply to comment #6) > (In reply to comment #5) > > So it's fixed ? > > It's been a while since I was playing with the Xorg state tracker. It did work > when I booted into the graphical mode using the xf86-video-ati driver, then > quit the xserver and restarting the xserver with the Xorg state tracker. It > didn't work after a reboot of the system. > > There is a little bit more information in this bug report: > https://bugs.freedesktop.org/show_bug.cgi?id=30406 If it is still broken: Could you please attach a full log of a failed Xorg start with the state tracker enabled. cu, Knut
Hello Knut, thanks for looking into the problem. I did try to make a package with the xorg driver but xorg doesn't start. I don't know what the exact problem is though. Could you have a look at my build file which I use to build my packages if I have some configuration problem? Greetings Martin
Created attachment 51779 [details] log file for xorg server
Created attachment 51780 [details] Build script used to create mesa package

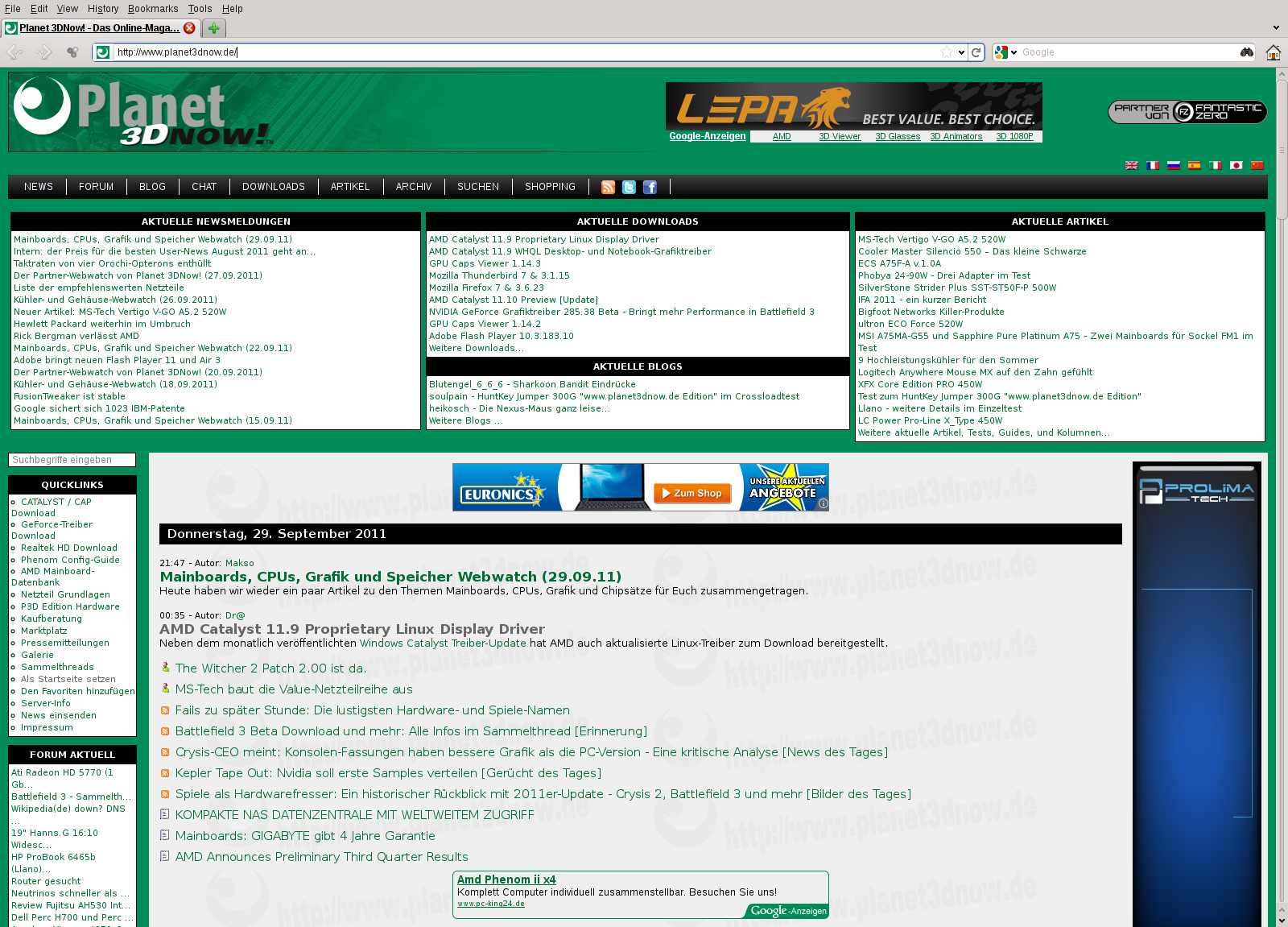

Created attachment 51815 [details] Screenshot of Firefox when 2d acceleration is disabled

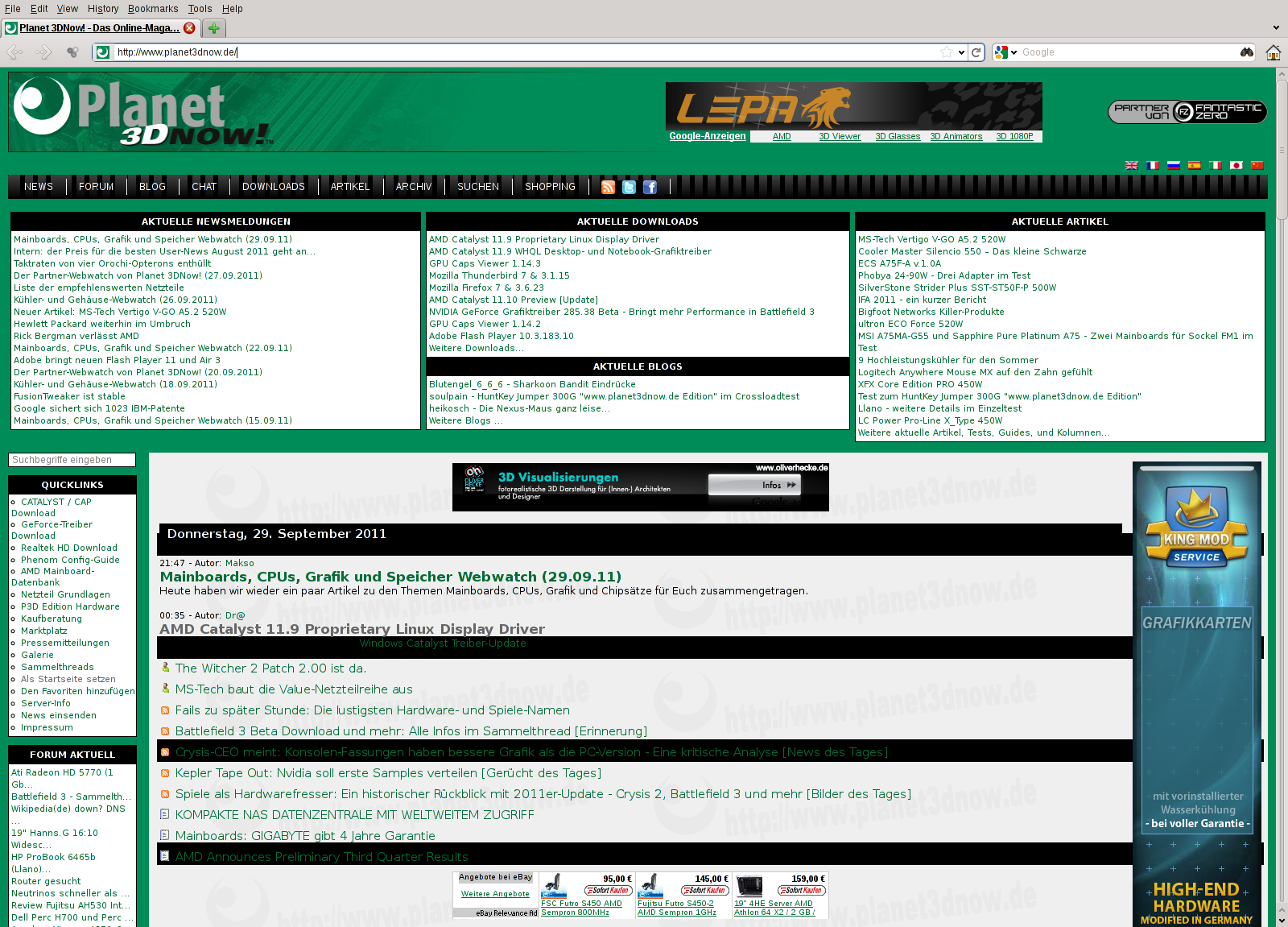

Created attachment 51816 [details] Screenshot of Firefox when 2d acceleration is enabled
Created attachment 51817 [details] Configuration for r600 card
Created attachment 51818 [details] Xorg configuration for r300 card
Created attachment 51819 [details] Xorg log file for r300 card when 2d acceleration is disabled
Created attachment 51820 [details] Xorg log file for r300 card when 2d acceleration is enabled
Created attachment 51821 [details] Xorg log file for r600 card when 2d acceleration is disabled
Hello, I've found the problem why it didn't work. I didn't know that the entry funtion (or whatever it is called) has to have the same name as the driver. After creating a xorg.conf file I was able to successfully start the Xorg server. It's working great on my two systems (no problems after rebooting the system). One system has a r500 type card installed and the other system has a r600 type card installed. When I enable 2d acceleration in xorg.conf I get screen corruptions though (see attached screenshots of Firefox). There is an error/info message in the Xorg log file: "[ 2724.965] (II) r300(0): xorg_composite_accelerated fallback Component alpha not supported with source alpha and source value blending. (op=3)" This message is the same for both cards. Best regards Martin
The bug reported here is fixed. Current Mesa Git produces lib/gallium/r300_drv.so which can be loaded with Driver "r300". (In reply to comment #18) > When I enable 2d acceleration in xorg.conf I get screen corruptions though (see > attached screenshots of Firefox). That's not related to the original problem and needs to be tracked separately. > There is an error/info message in the Xorg log file: > "[ 2724.965] (II) r300(0): xorg_composite_accelerated fallback Component alpha > not supported with source alpha and source value blending. (op=3)" That's not related. If you don't want to get these debugging messages, use Option "DebugFallback" "off".
