Bug 31378 - [Arrandale - Core i5 M450][XAA] Color depth 8 bpp result in greyscale X display
Summary: [Arrandale - Core i5 M450][XAA] Color depth 8 bpp result in greyscale X display
Status: RESOLVED DUPLICATE of bug 31375
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/intel (show other bugs)
Version: unspecified
Hardware: x86 (IA32) Linux (All)
: medium major
Assignee: Carl Worth
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-11-04 04:54 UTC by Joacim Thomassen
Modified: 2010-11-07 08:59 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Attachments
Photo of laptop monitor showing the greyscale X window system and xterm (67.33 KB, image/jpeg)
2010-11-04 05:05 UTC, Joacim Thomassen 		no flags Details
xorg.conf (267 bytes, text/plain)
2010-11-04 05:17 UTC, Joacim Thomassen 		no flags Details
Xorg.0.log (20.99 KB, text/plain)
2010-11-04 05:17 UTC, Joacim Thomassen 		no flags Details
Output from: `xrandr -d :0 -q` (325 bytes, text/plain)
2010-11-04 05:18 UTC, Joacim Thomassen 		no flags Details
dmesg w/ drm.debug=0x06 (97.65 KB, text/plain)
2010-11-04 05:19 UTC, Joacim Thomassen 		no flags Details
Output from: /sys/devices/pci0000:00/0000:00:02.0/rom (64.00 KB, application/octet-stream)
2010-11-04 05:19 UTC, Joacim Thomassen 		no flags Details
View All

Description Joacim Thomassen 2010-11-04 04:54:21 UTC
System environment:
Chipset: Arrandale - Intel Core i5 M450 CPU
Arch: i686
libdrm: 2.4.22-1.fc14
mesa-dri: 7.9-1.fc14
xorg: 1.9.0-15.fc14
intel-drv: 2.12.0-6.fc14
kernel: 2.6.35.6-45.fc14
distro: Fedora 14
machine: Acer Aspire 3820T, model MS2292, TimelineX laptop
display connector: LVDS1
xorg.conf: See attachment. In short: DefaultDepth 8, AccelMethod XAA.

Reproducible: 100%

Steps to reproduce:
1. Install Fedora 14, without KDE, GNOME - only X Window system
2. Log in on first tty
3. Create /etc/X11/xorg.conf similar to the attached xorg.conf in this bug.
3. Run `xinit -- /usr/bin/Xorg :0`

Result:
X server starts without complaint, but the X display 0 on tty7 is displayed in grayscale.

Expected result:
The X display 0 is shown with it's patterned root window and a white xterm.
Comment 1 Joacim Thomassen 2010-11-04 05:05:10 UTC
Created attachment 40039 [details]

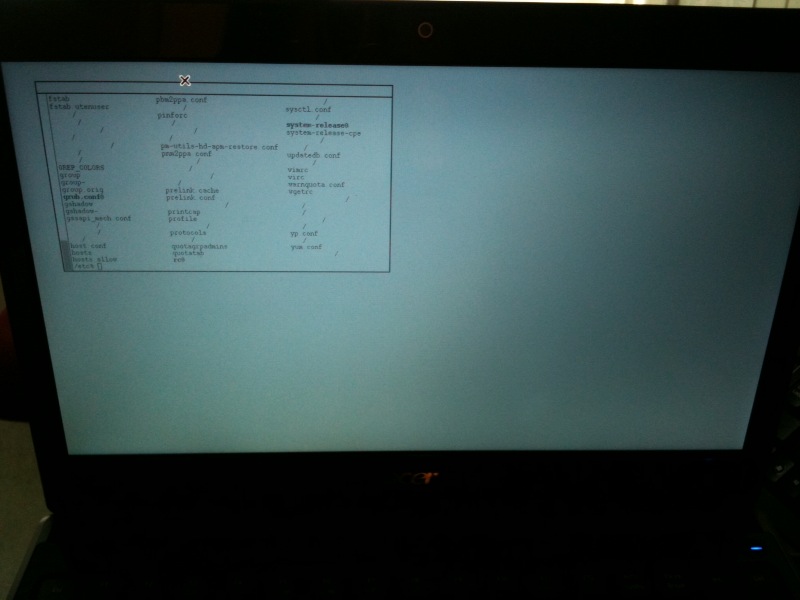

Photo of laptop monitor showing the greyscale X window system and xterm
Comment 2 Joacim Thomassen 2010-11-04 05:17:18 UTC
Created attachment 40040 [details]
xorg.conf
Comment 3 Joacim Thomassen 2010-11-04 05:17:58 UTC
Created attachment 40041 [details]
Xorg.0.log
Comment 4 Joacim Thomassen 2010-11-04 05:18:33 UTC
Created attachment 40042 [details]
Output from: `xrandr -d :0 -q`
Comment 5 Joacim Thomassen 2010-11-04 05:19:02 UTC
Created attachment 40043 [details]
dmesg w/ drm.debug=0x06
Comment 6 Joacim Thomassen 2010-11-04 05:19:37 UTC
Created attachment 40044 [details]
Output from: /sys/devices/pci0000:00/0000:00:02.0/rom
Comment 7 Chris Wilson 2010-11-07 08:59:01 UTC
There is no XAA, only UXA.

*** This bug has been marked as a duplicate of bug 31375 ***
