Bug 31836 - Strange colors with R600
Summary: Strange colors with R600
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/R600 (show other bugs)
Version: 7.8
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2010-11-22 07:05 UTC by Yann Le Doaré
Modified: 2010-11-24 09:14 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments

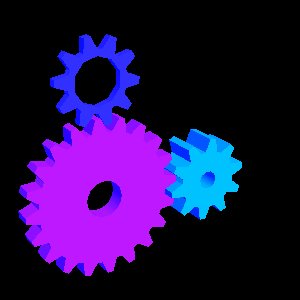

Strange colors (glxgears) (10.25 KB, image/jpeg)
2010-11-22 07:05 UTC, Yann Le Doaré
Details
Xorg log (33.57 KB, application/octet-stream)
2010-11-23 06:19 UTC, Yann Le Doaré
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Yann Le Doaré 2010-11-22 07:05:37 UTC
Created attachment 40477 [details]
Strange colors (glxgears)

Hi,

I noticed a bug (not sure from Mesa) for color rendering.

This this with my latest distro (http://linuxconsole.org), with kernel 2.6.35.8 and Xorg 1.9.2 (ati 6.13.1)

What can i do to try to fix it ?

Thanks.

glxinfo output :

name of display: :0.0
display: :0  screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.2
server glx extensions:
    GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_texture_from_pixmap,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer,
    GLX_OML_swap_method, GLX_SGI_make_current_read, GLX_SGIS_multisample,
    GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group
client glx vendor string: Mesa Project and SGI
client glx version string: 1.4
client glx extensions:
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_allocate_memory,
    GLX_MESA_copy_sub_buffer, GLX_MESA_swap_control,
    GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_OML_sync_control,
    GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync,
    GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
    GLX_SGIX_visual_select_group, GLX_EXT_texture_from_pixmap,
    GLX_INTEL_swap_event
GLX version: 1.2
GLX extensions:
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_copy_sub_buffer,
    GLX_MESA_swap_frame_usage, GLX_OML_swap_method, GLX_SGI_make_current_read,
    GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
    GLX_SGIX_visual_select_group
OpenGL vendor string: Advanced Micro Devices, Inc.
OpenGL renderer string: Mesa DRI R600 (RS780 9612) 20090101  TCL
OpenGL version string: 2.0 Mesa 7.8.2
OpenGL shading language version string: 1.10
OpenGL extensions:
    GL_ARB_depth_texture, GL_ARB_depth_clamp, GL_ARB_draw_buffers,
    GL_ARB_fragment_program, GL_ARB_fragment_program_shadow,
    GL_ARB_fragment_shader, GL_ARB_imaging, GL_ARB_multisample,
    GL_ARB_multitexture, GL_ARB_occlusion_query, GL_ARB_pixel_buffer_object,
    GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_provoking_vertex,
    GL_ARB_shader_objects, GL_ARB_shading_language_100, GL_ARB_shadow,
    GL_ARB_shadow_ambient, GL_ARB_texture_border_clamp,
    GL_ARB_texture_compression, GL_ARB_texture_cube_map,
    GL_ARB_texture_env_add, GL_ARB_texture_env_combine,
    GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3,
    GL_MESAX_texture_float, GL_ARB_texture_mirrored_repeat,
    GL_ARB_texture_non_power_of_two, GL_ARB_texture_rectangle,
    GL_ARB_transpose_matrix, GL_ARB_vertex_array_bgra,
    GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_vertex_shader,
    GL_ARB_window_pos, GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color,
    GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate,
    GL_EXT_blend_logic_op, GL_EXT_blend_minmax, GL_EXT_blend_subtract,
    GL_EXT_compiled_vertex_array, GL_EXT_convolution, GL_EXT_copy_texture,
    GL_EXT_draw_range_elements, GL_EXT_fog_coord,
    GL_EXT_gpu_program_parameters, GL_EXT_histogram, GL_EXT_multi_draw_arrays,
    GL_EXT_packed_depth_stencil, GL_EXT_packed_pixels,
    GL_EXT_pixel_buffer_object, GL_EXT_point_parameters,
    GL_EXT_polygon_offset, GL_EXT_provoking_vertex, GL_EXT_rescale_normal,
    GL_EXT_secondary_color, GL_EXT_separate_specular_color,
    GL_EXT_shadow_funcs, GL_EXT_stencil_two_side, GL_EXT_stencil_wrap,
    GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D,
    GL_EXT_texture_cube_map, GL_EXT_texture_edge_clamp,
    GL_EXT_texture_env_add, GL_EXT_texture_env_combine,
    GL_EXT_texture_env_dot3, GL_EXT_texture_filter_anisotropic,
    GL_EXT_texture_lod_bias, GL_EXT_texture_mirror_clamp,
    GL_EXT_texture_object, GL_EXT_texture_rectangle, GL_EXT_texture_sRGB,
    GL_EXT_vertex_array, GL_EXT_vertex_array_bgra, GL_APPLE_packed_pixels,
    GL_ATI_blend_equation_separate, GL_ATI_texture_env_combine3,
    GL_ATI_texture_mirror_once, GL_ATI_separate_stencil,
    GL_IBM_multimode_draw_arrays, GL_IBM_rasterpos_clip,
    GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate,
    GL_MESA_pack_invert, GL_MESA_ycbcr_texture, GL_MESA_window_pos,
    GL_NV_blend_square, GL_NV_depth_clamp, GL_NV_light_max_exponent,
    GL_NV_packed_depth_stencil, GL_NV_texture_rectangle,
    GL_NV_texgen_reflection, GL_NV_vertex_program, GL_OES_read_format,
    GL_SGI_color_matrix, GL_SGI_color_table, GL_SGIS_generate_mipmap,
    GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp,
    GL_SGIS_texture_lod, GL_SUN_multi_draw_arrays

17 GLX Visuals
   visual  x  bf lv rg d st colorbuffer ax dp st accumbuffer  ms  cav
 id dep cl sp sz l  ci b ro  r  g  b  a bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------
0x21 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x22 16 dc  0 16  0 r  y  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x70 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x71 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x72 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x73 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x74 16 tc  0 16  0 r  .  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x75 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x76 16 tc  0 16  0 r  y  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x77 16 dc  0 16  0 r  .  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x78 16 dc  0 16  0 r  .  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x79 16 dc  0 16  0 r  y  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x7a 16 dc  0 16  0 r  .  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x7b 16 dc  0 16  0 r  .  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x7c 16 dc  0 16  0 r  y  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x7d 16 dc  0 16  0 r  y  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x5b 32 tc  0 32  0 r  .  .  8  8  8  8  0 16  0  0  0  0  0  0 0 Ncon

20 GLXFBConfigs:
   visual  x  bf lv rg d st colorbuffer ax dp st accumbuffer  ms  cav
 id dep cl sp sz l  ci b ro  r  g  b  a bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------
0x5c  0 tc  0 16  0 r  .  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x5d  0 tc  0 16  0 r  .  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x5e  0 tc  0 16  0 r  y  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x5f  0 tc  0 16  0 r  y  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x60  0 tc  0 16  0 r  .  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x61  0 tc  0 16  0 r  .  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x62  0 tc  0 16  0 r  y  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x63  0 tc  0 16  0 r  y  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x64  0 tc  0 32  0 r  .  .  8  8  8  8  0 16  0  0  0  0  0  0 0 None
0x65  0 tc  0 32  0 r  .  .  8  8  8  8  0 16  0 16 16 16 16  0 0 Slow
0x66  0 dc  0 16  0 r  .  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x67  0 dc  0 16  0 r  .  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x68  0 dc  0 16  0 r  y  .  5  6  5  0  0 16  0  0  0  0  0  0 0 None
0x69  0 dc  0 16  0 r  y  .  5  6  5  0  0 16  0 16 16 16  0  0 0 Slow
0x6a  0 dc  0 16  0 r  .  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x6b  0 dc  0 16  0 r  .  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x6c  0 dc  0 16  0 r  y  .  5  6  5  0  0 16  8  0  0  0  0  0 0 Slow
0x6d  0 dc  0 16  0 r  y  .  5  6  5  0  0 16  8 16 16 16  0  0 0 Slow
0x6e  0 dc  0 32  0 r  .  .  8  8  8  8  0 16  0  0  0  0  0  0 0 None
0x6f  0 dc  0 32  0 r  .  .  8  8  8  8  0 16  0 16 16 16 16  0 0 Slow
Comment 1 Alex Deucher 2010-11-22 08:16:43 UTC
What version of mesa are you using?  I'd recommend mesa 7.9.  I'd also recommend enabling KMS.
Comment 2 Yann Le Doaré 2010-11-23 06:09:09 UTC
I enabled kms, this makes :

 (EE) AIGLX error: Calling driver entry point failed
 (EE) AIGLX: reverting to software rendering
 (II) AIGLX: Screen 0 is not DRI capable

into Xorg log

I updated libdrm-2.4.21 to libdrm-2.4.22, xf86-video-ati-6.13.1 to  xf86-video-ati-6.13.2, Mesa 7.8.2 to 7.9, but I have again the AIGLX error.
Comment 3 Yann Le Doaré 2010-11-23 06:19:51 UTC
Created attachment 40508 [details]
Xorg log
Comment 4 Yann Le Doaré 2010-11-24 09:14:20 UTC
I changed build order between Xorg and Mesa, and now no more AIGLX errors.

glxgears gives very poor perfs (~20 FPS)

I just added radeon.modeset=0 at boot time and now it works fine ! (1800 Fps for glxgears and good colors)

Thanks.
