Bug 32829 - [RADEON:KMS:R300G] vertex shaders render incorrectly in some wine programs
Summary: [RADEON:KMS:R300G] vertex shaders render incorrectly in some wine programs
Status: RESOLVED WONTFIX
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/r300 (show other bugs)
Version: git
Hardware: Other All
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2011-01-04 13:01 UTC by Rubén Fernández
Modified: 2011-04-04 22:35 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
Screenshot showing misrendering (344.62 KB, image/png)
2011-01-04 13:02 UTC, Rubén Fernández
Details
Log of the misrendering with MESA_GLSL=dump and RADEON_DEBUG=vp (174.41 KB, application/gzip)
2011-01-04 13:03 UTC, Rubén Fernández
Details
Correct rendering with GLSL disabled in wine (348.87 KB, image/png)
2011-01-04 13:04 UTC, Rubén Fernández
Details
Log of the correct rendering with MESA_GLSL=dump and RADEON_DEBUG=vp (30.68 KB, application/gzip)
2011-01-04 13:05 UTC, Rubén Fernández
Details
radeon_debugger_result.h (92 bytes, text/plain)
2011-01-07 14:49 UTC, Tom Stellard
Details
output from Tom's branch with RADEON_DEBUG=vp and MESA_GLS=dump (168.63 KB, application/gzip)
2011-01-07 16:19 UTC, Rubén Fernández
Details
Log of the misrendering with RADEON_DEBUG=noopt,vp (168.10 KB, application/gzip)
2011-01-08 05:53 UTC, Rubén Fernández
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Rubén Fernández 2011-01-04 13:01:55 UTC
The game "Doctor Who: The Adventure games" produces polygon artifacts when
using GLSL; turning off GLSL in wine makes the game render correctly; using
GLSL with software rendering / llvmpipe renders correctly as well.


Graphics Card: ATI Technologies Inc RV505 [Radeon X1550 64-bit]
CPU: Intel Core Duo 1.8 Ghz, 2.5 GB RAM
Linux kernel 2.6.36, libdrm 2.4.23
Latest Mesa git
Comment 1 Rubén Fernández 2011-01-04 13:02:53 UTC

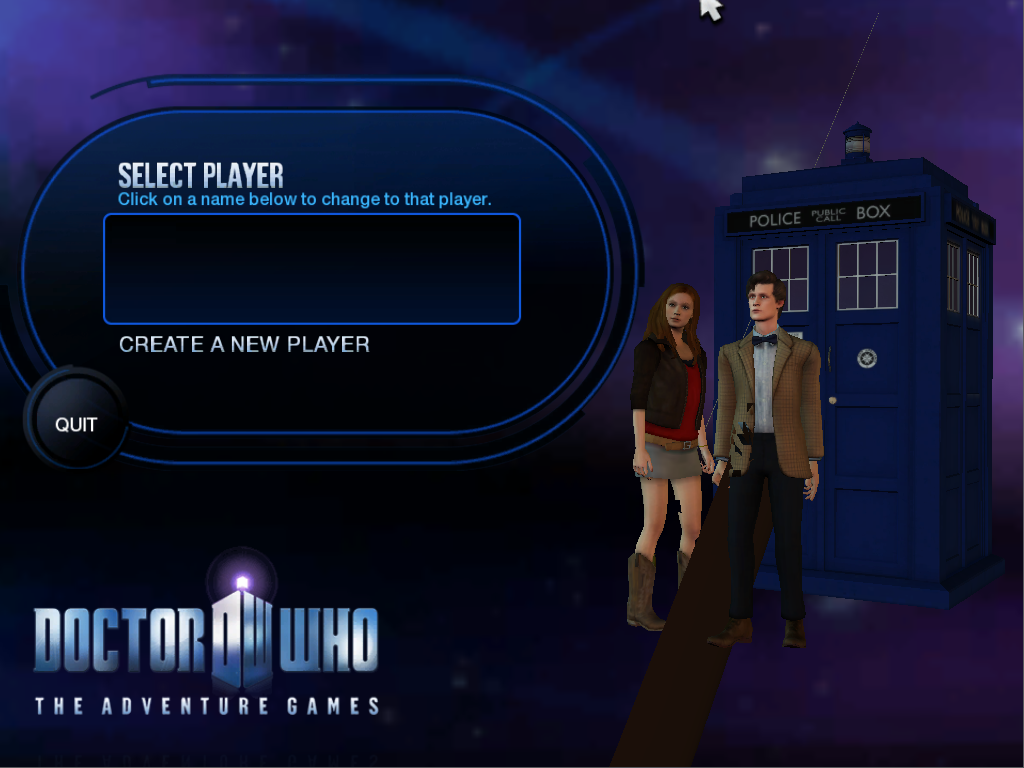

Created attachment 41642 [details]
Screenshot showing misrendering

Some vertices are incorrectly translated
Comment 2 Rubén Fernández 2011-01-04 13:03:55 UTC
Created attachment 41643 [details]
Log of the misrendering with MESA_GLSL=dump and RADEON_DEBUG=vp
Comment 3 Rubén Fernández 2011-01-04 13:04:28 UTC

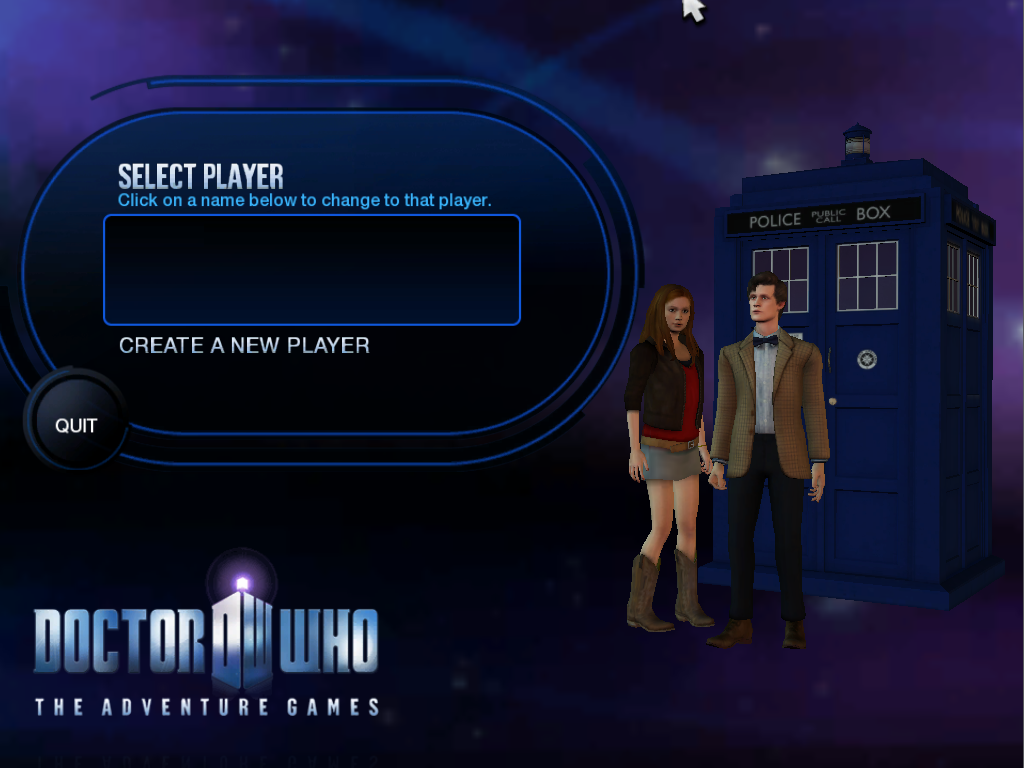

Created attachment 41644 [details]
Correct rendering with GLSL disabled in wine
Comment 4 Rubén Fernández 2011-01-04 13:05:06 UTC
Created attachment 41645 [details]
Log of the correct rendering with MESA_GLSL=dump and RADEON_DEBUG=vp
Comment 5 Tom Stellard 2011-01-06 23:44:27 UTC
Hi, Can you try with the debugger branch from git://anongit.freedesktop.org/~tstellar/mesa and post the output of RADEON_DEBUG=vp ? This branch will probably mis-render a bunch of stuff, but it produces more helpful output.  Also, If this branch causes a segfault, can you post a stack trace?
Comment 6 Rubén Fernández 2011-01-07 10:37:53 UTC
(In reply to comment #5)
> Hi, Can you try with the debugger branch from
> git://anongit.freedesktop.org/~tstellar/mesa and post the output of
> RADEON_DEBUG=vp ? This branch will probably mis-render a bunch of stuff, but it
> produces more helpful output.  Also, If this branch causes a segfault, can you
> post a stack trace?

I've tried, but it's missing the file "radeon_debugger_result.h"; please add it and I'll test with it as soon as I can.
Comment 7 Tom Stellard 2011-01-07 14:49:54 UTC
Created attachment 41761 [details]
radeon_debugger_result.h

Sorry, Add this file to src/mesa/drivers/dri/r300/compiler
Comment 8 Rubén Fernández 2011-01-07 16:18:30 UTC
(In reply to comment #7)
> Created an attachment (id=41761) [details]
> radeon_debugger_result.h
>
> Sorry, Add this file to src/mesa/drivers/dri/r300/compiler

Done; it doesn't segfault, but aborts due to "cannot allocate memory" before even getting to the point where it renders the characters wrongly; it seems to compile the shaders anyway, so I'll give you the log.
Comment 9 Rubén Fernández 2011-01-07 16:19:29 UTC
Created attachment 41764 [details]
output from Tom's branch with RADEON_DEBUG=vp and MESA_GLS=dump
Comment 10 Tom Stellard 2011-01-07 21:36:51 UTC
Does running mesa master branch with RADEON_DEBUG=noopt fix the issue?  If so, can you post the output of RADEON_DEBUG=noopt,vp ?
Comment 11 Rubén Fernández 2011-01-08 05:52:10 UTC
(In reply to comment #10)
> Does running mesa master branch with RADEON_DEBUG=noopt fix the issue?  If so,
> can you post the output of RADEON_DEBUG=noopt,vp ?

It doesn't - the results are the same. Posting the output anyway, in case it helps.
Comment 12 Rubén Fernández 2011-01-08 05:53:16 UTC
Created attachment 41769 [details]
Log of the misrendering with RADEON_DEBUG=noopt,vp
Comment 13 Rubén Fernández 2011-04-04 22:28:05 UTC
Since I no longer have access to an r300 card, I can't test for this bug anymore; unless somebody else has such a card, and this same game, I guess it's better to mark it as "solved".
