35045 – BUG at ttm_bo.c:272! (ttm_bo_ref_bug -> ttm_bo_list_ref_sub+0x28/0x30)

Bug 35045 - BUG at ttm_bo.c:272! (ttm_bo_ref_bug -> ttm_bo_list_ref_sub+0x28/0x30)

Summary: BUG at ttm_bo.c:272! (ttm_bo_ref_bug -> ttm_bo_list_ref_sub+0x28/0x30)

Status:	RESOLVED MOVED

Alias:	None

Product:	DRI
Classification:	Unclassified
Component:	DRM/Radeon (show other bugs)
Version:	XOrg git
Hardware:	x86-64 (AMD64) Linux (All)

Importance:	medium normal
Assignee:	Default DRI bug account
QA Contact:

URL:
Whiteboard:
Keywords:

Depends on:
Blocks:

Reported:	2011-03-05 14:44 UTC by Dave Gilbert
Modified:	2019-11-19 08:18 UTC (History)
CC List:	0 users

See Also:
i915 platform:
i915 features:

Attachments
Screen shot of crash on display (766.02 KB, image/jpeg) 2011-03-11 15:39 UTC, Kevin DeKorte	no flags	Details
View All

Description Dave Gilbert 2011-03-05 14:44:20 UTC

Hi,
  I've got a repeatable oops that happens when viewing full screen video in flash in chromium, under kwin (with effects enabled) and switching virtual desktop/workspace on ATI Technologies Inc RV710 [Radeon HD 4350].

Hardware: ATI Technologies Inc RV710 [Radeon HD 4350] in an ASRock P55M Pro motherboard, with an i7-860 CPU, and 8GB RAM, connected to Dell S2409W display via DVI.

OS: Ubuntu Natty upto date as of today, 64bit install, running KDE.

Kernel: Daily build from DRM next from http://kernel.ubuntu.com/~kernel-ppa/mainline/drm-next/current/ linux-image-2.6.38-996-generic_2.6.38-996.201103041138_amd64.deb claims to be commit e73f88af66fcc50083fae4b7e1c39b469179a97a

DRM/mesa/etc:
     ii  libdrm-radeon1                2.4.23-1ubuntu3
     ii  libdrm2                       2.4.23-1ubuntu3
     ii  libgl1-mesa-dri               7.10.1~git20110215.cc1636b6-0

I've got a 3x3 virtual desktop setup, and am running Chromium and go to youtube and pop a video full screen; and move around the virtual desktop with ctrl-alt-arrows.  The oops below was produced twice.  I've got a bunch of related symptoms; I installed the daily build because I was getting instances of [drm:radeon_cs_ioctl] *ERROR* Failed to parse relocation -35! (which I think is EDEADLOCK) doing similar combinations of going in and out of full screen flash.
I've also seen when I try to go into full screen rapid flickering as if it can't decide whether to go into full screen or stay out; once that's triggered that flickering can repeat itself when starting other apps.


  This corresponds to Ubuntu bug https://bugs.launchpad.net/ubuntu/+source/linux/+bug/717870
and possibly also ubuntu bug 717889


Mar  5 22:12:17 major kernel: [  495.890854] ------------[ cut here ]------------
Mar  5 22:12:17 major kernel: [  495.890882] kernel BUG at /home/kernel-ppa/COD/linux/drivers/gpu/drm/ttm/ttm_bo.c:272!
Mar  5 22:12:17 major kernel: [  495.890917] invalid opcode: 0000 [#1] SMP
Mar  5 22:12:17 major kernel: [  495.890939] last sysfs file: /sys/devices/system/cpu/cpu7/topology/thread_siblings
Mar  5 22:12:17 major kernel: [  495.890971] CPU 1
Mar  5 22:12:17 major kernel: [  495.890981] Modules linked in: ip6table_filter ip6_tables ebtable_nat ebtables ipt_MASQUERADE iptable_nat nf_nat nf_conntrack_ipv4 nf_defrag_ipv4 xt_state nf_conntrack ipt_REJECT binfmt_misc xt_CHECKSUM iptable_mangle xt_tcpudp iptable_filter ip_tables x_tables bridge stp kvm_intel kvm dm_crypt snd_hda_codec_hdmi snd_hda_codec_via snd_hda_intel snd_seq_midi snd_hda_codec snd_rawmidi snd_hwdep snd_seq_midi_event snd_seq snd_pcm snd_seq_device snd_timer snd ppdev soundcore parport_pc snd_page_alloc lp parport radeon usbhid usb_storage ttm hid firewire_ohci drm_kms_helper uas drm firewire_core r8169 pata_via crc_itu_t i2c_algo_bit configfs
Mar  5 22:12:17 major kernel: [  495.891289]
Mar  5 22:12:17 major kernel: [  495.893682] Pid: 42, comm: kworker/1:1 Not tainted 2.6.38-996-generic #201103041138 P55M Pro/To Be Filled By O.E.M.
Mar  5 22:12:17 major kernel: [  495.896183] RIP: 0010:[<ffffffffa00f3d89>]  [<ffffffffa00f3d89>] ttm_bo_ref_bug+0x9/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  495.898561] RSP: 0000:ffff8802277ebd90  EFLAGS: 00010202
Mar  5 22:12:17 major kernel: [  495.900903] RAX: ffffffffa00f6801 RBX: 0000000000000000 RCX: ffff880222bb3120
Mar  5 22:12:17 major kernel: [  495.903223] RDX: 0000000000000000 RSI: 0000000000000000 RDI: ffff880222bb308c
Mar  5 22:12:17 major kernel: [  495.905545] RBP: ffff8802277ebd90 R08: 0000000000000000 R09: 0000000000000000
Mar  5 22:12:17 major kernel: [  495.907870] R10: ffff8800c7453b58 R11: 0000000000000000 R12: ffff880222bb308c
Mar  5 22:12:17 major kernel: [  495.910371] R13: ffffffffa00f3d80 R14: ffff880222bb3048 R15: 0000000000000000
Mar  5 22:12:17 major kernel: [  495.912659] FS:  0000000000000000(0000) GS:ffff8800c7440000(0000) knlGS:0000000000000000
Mar  5 22:12:17 major kernel: [  495.914975] CS:  0010 DS: 0000 ES: 0000 CR0: 000000008005003b
Mar  5 22:12:17 major kernel: [  495.917310] CR2: 00000000f0969000 CR3: 00000001dc19a000 CR4: 00000000000006e0
Mar  5 22:12:17 major kernel: [  495.919642] DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000
Mar  5 22:12:17 major kernel: [  495.921973] DR3: 0000000000000000 DR6: 00000000ffff0ff0 DR7: 0000000000000400
Mar  5 22:12:17 major kernel: [  495.924274] Process kworker/1:1 (pid: 42, threadinfo ffff8802277ea000, task ffff8802277bc440)
Mar  5 22:12:17 major kernel: [  495.926774] Stack:
Mar  5 22:12:17 major kernel: [  495.929067]  ffff8802277ebdc0 ffffffff812d31be 0000000000000001 0000000000000000
Mar  5 22:12:17 major kernel: [  495.931384]  ffff880222b1a208 0000000000000000 ffff8802277ebdd0 ffffffffa00f5048
Mar  5 22:12:17 major kernel: [  495.933688]  ffff8802277ebe10 ffffffffa00f67c8 01ff8802277ebe10 ffff880222bb3000
Mar  5 22:12:17 major kernel: [  495.936003] Call Trace:
Mar  5 22:12:17 major kernel: [  495.938310]  [<ffffffff812d31be>] kref_sub+0x3e/0x80
Mar  5 22:12:17 major kernel: [  495.940583]  [<ffffffffa00f5048>] ttm_bo_list_ref_sub+0x28/0x30 [ttm]
Mar  5 22:12:17 major kernel: [  495.942967]  [<ffffffffa00f67c8>] ttm_bo_reserve+0x88/0xa0 [ttm]
Mar  5 22:12:17 major kernel: [  495.945209]  [<ffffffffa0154858>] radeon_unpin_work_func+0x28/0xb0 [radeon]
Mar  5 22:12:17 major kernel: [  495.947398]  [<ffffffff810813ce>] process_one_work+0x10e/0x390
Mar  5 22:12:17 major kernel: [  495.949673]  [<ffffffffa0154830>] ? radeon_unpin_work_func+0x0/0xb0 [radeon]
Mar  5 22:12:17 major kernel: [  495.951872]  [<ffffffff8108221d>] worker_thread+0xdd/0x260
Mar  5 22:12:17 major kernel: [  495.954094]  [<ffffffff81082140>] ? worker_thread+0x0/0x260
Mar  5 22:12:17 major kernel: [  495.956341]  [<ffffffff81086277>] kthread+0x97/0xa0
Mar  5 22:12:17 major kernel: [  495.958735]  [<ffffffff8100ce24>] kernel_thread_helper+0x4/0x10
Mar  5 22:12:17 major kernel: [  495.958738]  [<ffffffff810861e0>] ? kthread+0x0/0xa0
Mar  5 22:12:17 major kernel: [  495.958740]  [<ffffffff8100ce20>] ? kernel_thread_helper+0x0/0x10
Mar  5 22:12:17 major kernel: [  495.958741] Code: 48 89 10 48 89 8f e0 00 00 00 48 89 8f d8 00 00 00 c9 89 f0 c3 66 66 66 66 2e 0f 1f 84 00 00 00 00 00 55 48 89 e5 0f 1f 44 00 00 <0f> 0b eb fe 0f 1f 00 55 48 89 e5 0f 1f 44 00 00 48 83 3e 00 48
Mar  5 22:12:17 major kernel: [  495.958754] RIP  [<ffffffffa00f3d89>] ttm_bo_ref_bug+0x9/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  495.958761]  RSP <ffff8802277ebd90>
Mar  5 22:12:17 major kernel: [  495.970338] ---[ end trace eb6ea5ab08ebf6f9 ]---
Mar  5 22:12:17 major kernel: [  495.971011] BUG: unable to handle kernel paging request at fffffffffffffff8
Mar  5 22:12:17 major kernel: [  495.973499] IP: [<ffffffff81085f30>] kthread_data+0x10/0x20
Mar  5 22:12:17 major kernel: [  495.976059] PGD 1a05067 PUD 1a06067 PMD 0
Mar  5 22:12:17 major kernel: [  495.978440] Oops: 0000 [#2] SMP
Mar  5 22:12:17 major kernel: [  495.980762] last sysfs file: /sys/devices/system/cpu/cpu7/topology/thread_siblings
Mar  5 22:12:17 major kernel: [  495.983104] CPU 1
Mar  5 22:12:17 major kernel: [  495.983112] Modules linked in: ip6table_filter ip6_tables ebtable_nat ebtables ipt_MASQUERADE iptable_nat nf_nat nf_conntrack_ipv4 nf_defrag_ipv4 xt_state nf_conntrack ipt_REJECT binfmt_misc xt_CHECKSUM iptable_mangle xt_tcpudp iptable_filter ip_tables x_tables bridge stp kvm_intel kvm dm_crypt snd_hda_codec_hdmi snd_hda_codec_via snd_hda_intel snd_seq_midi snd_hda_codec snd_rawmidi snd_hwdep snd_seq_midi_event snd_seq snd_pcm snd_seq_device snd_timer snd ppdev soundcore parport_pc snd_page_alloc lp parport radeon usbhid usb_storage ttm hid firewire_ohci drm_kms_helper uas drm firewire_core r8169 pata_via crc_itu_t i2c_algo_bit configfs
Mar  5 22:12:17 major kernel: [  495.993045]
Mar  5 22:12:17 major kernel: [  495.995587] Pid: 42, comm: kworker/1:1 Tainted: G      D     2.6.38-996-generic #201103041138 P55M Pro/To Be Filled By O.E.M.
Mar  5 22:12:17 major kernel: [  495.998137] RIP: 0010:[<ffffffff81085f30>]  [<ffffffff81085f30>] kthread_data+0x10/0x20
Mar  5 22:12:17 major kernel: [  496.000687] RSP: 0018:ffff8802277eb9a8  EFLAGS: 00010096
Mar  5 22:12:17 major kernel: [  496.003225] RAX: 0000000000000000 RBX: ffff8802277bc440 RCX: ffff8802277ebb28
Mar  5 22:12:17 major kernel: [  496.005892] RDX: ffff8802277bc440 RSI: 0000000000000001 RDI: ffff8802277bc440
Mar  5 22:12:17 major kernel: [  496.008436] RBP: ffff8802277eb9a8 R08: ffff8800c7456f60 R09: ffff88022762b8a8
Mar  5 22:12:17 major kernel: [  496.010907] R10: ffff88022762b898 R11: 0000000000000001 R12: 0000000000000001
Mar  5 22:12:17 major kernel: [  496.013390] R13: 0000000000000001 R14: ffff8800c7453ac0 R15: 00007ffffffff000
Mar  5 22:12:17 major kernel: [  496.015887] FS:  0000000000000000(0000) GS:ffff8800c7440000(0000) knlGS:0000000000000000
Mar  5 22:12:17 major kernel: [  496.018383] CS:  0010 DS: 0000 ES: 0000 CR0: 000000008005003b
Mar  5 22:12:17 major kernel: [  496.020860] CR2: fffffffffffffff8 CR3: 00000001dc19a000 CR4: 00000000000006e0
Mar  5 22:12:17 major kernel: [  496.023477] DR0: 0000000000000000 DR1: 0000000000000000 DR2: 0000000000000000
Mar  5 22:12:17 major kernel: [  496.025936] DR3: 0000000000000000 DR6: 00000000ffff0ff0 DR7: 0000000000000400
Mar  5 22:12:17 major kernel: [  496.028369] Process kworker/1:1 (pid: 42, threadinfo ffff8802277ea000, task ffff8802277bc440)
Mar  5 22:12:17 major kernel: [  496.030832] Stack:
Mar  5 22:12:17 major kernel: [  496.033291]  ffff8802277eb9d8 ffffffff8107f89a ffff8802277eba48 ffff8802277bc440
Mar  5 22:12:17 major kernel: [  496.035764]  ffff8802277bc7e0 0000000000000001 ffff8802277ebb28 ffffffff815b11e9
Mar  5 22:12:17 major kernel: [  496.038401]  ffff880222f55800 ffff8802277ebfd8 ffff8802277ebb28 0000000000013ac0
Mar  5 22:12:17 major kernel: [  496.040860] Call Trace:
Mar  5 22:12:17 major kernel: [  496.043305]  [<ffffffff8107f89a>] wq_worker_sleeping+0x1a/0x90
Mar  5 22:12:17 major kernel: [  496.045791]  [<ffffffff815b11e9>] schedule+0x549/0x790
Mar  5 22:12:17 major kernel: [  496.048146]  [<ffffffff812c8429>] ? cfq_cic_free+0x19/0x20
Mar  5 22:12:17 major kernel: [  496.050423]  [<ffffffff812cb00a>] ? cic_free_func+0x7a/0x90
Mar  5 22:12:17 major kernel: [  496.052633]  [<ffffffff812caf90>] ? cic_free_func+0x0/0x90
Mar  5 22:12:17 major kernel: [  496.054976]  [<ffffffff812c8294>] ? __call_for_each_cic+0x34/0x50
Mar  5 22:12:17 major kernel: [  496.057143]  [<ffffffff812bb90d>] ? put_io_context+0x4d/0x60
Mar  5 22:12:17 major kernel: [  496.059273]  [<ffffffff8106a302>] do_exit+0x2c2/0x3f0
Mar  5 22:12:17 major kernel: [  496.061397]  [<ffffffff815b4b43>] oops_end+0xf3/0x100
Mar  5 22:12:17 major kernel: [  496.063503]  [<ffffffff8100fc3b>] die+0x5b/0x90
Mar  5 22:12:17 major kernel: [  496.065648]  [<ffffffff815b4200>] do_trap+0x140/0x160
Mar  5 22:12:17 major kernel: [  496.067779]  [<ffffffffa00f3d80>] ? ttm_bo_ref_bug+0x0/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  496.070047]  [<ffffffff8100d905>] do_invalid_op+0x95/0xb0
Mar  5 22:12:17 major kernel: [  496.072160]  [<ffffffffa00f3d89>] ? ttm_bo_ref_bug+0x9/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  496.072163]  [<ffffffff8104bc3f>] ? account_entity_dequeue+0x7f/0xb0
Mar  5 22:12:17 major kernel: [  496.072165]  [<ffffffff812d5e7f>] ? rb_erase+0xbf/0x140
Mar  5 22:12:17 major kernel: [  496.072167]  [<ffffffff8100cc9b>] invalid_op+0x1b/0x20
Mar  5 22:12:17 major kernel: [  496.072173]  [<ffffffffa00f3d80>] ? ttm_bo_ref_bug+0x0/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  496.072177]  [<ffffffffa00f6801>] ? ttm_bo_global_show+0x21/0x30 [ttm]
Mar  5 22:12:17 major kernel: [  496.072181]  [<ffffffffa00f3d89>] ? ttm_bo_ref_bug+0x9/0x10 [ttm]
Mar  5 22:12:17 major kernel: [  496.072184]  [<ffffffff812d31be>] kref_sub+0x3e/0x80
Mar  5 22:12:17 major kernel: [  496.072188]  [<ffffffffa00f5048>] ttm_bo_list_ref_sub+0x28/0x30 [ttm]
Mar  5 22:12:17 major kernel: [  496.072192]  [<ffffffffa00f67c8>] ttm_bo_reserve+0x88/0xa0 [ttm]
Mar  5 22:12:17 major kernel: [  496.072206]  [<ffffffffa0154858>] radeon_unpin_work_func+0x28/0xb0 [radeon]
Mar  5 22:12:17 major kernel: [  496.072209]  [<ffffffff810813ce>] process_one_work+0x10e/0x390
Mar  5 22:12:17 major kernel: [  496.072221]  [<ffffffffa0154830>] ? radeon_unpin_work_func+0x0/0xb0 [radeon]
Mar  5 22:12:17 major kernel: [  496.072223]  [<ffffffff8108221d>] worker_thread+0xdd/0x260
Mar  5 22:12:17 major kernel: [  496.072225]  [<ffffffff81082140>] ? worker_thread+0x0/0x260
Mar  5 22:12:17 major kernel: [  496.072227]  [<ffffffff81086277>] kthread+0x97/0xa0
Mar  5 22:12:17 major kernel: [  496.072229]  [<ffffffff8100ce24>] kernel_thread_helper+0x4/0x10
Mar  5 22:12:17 major kernel: [  496.072231]  [<ffffffff810861e0>] ? kthread+0x0/0xa0
Mar  5 22:12:17 major kernel: [  496.072233]  [<ffffffff8100ce20>] ? kernel_thread_helper+0x0/0x10
Mar  5 22:12:17 major kernel: [  496.072234] Code: 1f 44 00 00 65 48 8b 04 25 40 cc 00 00 48 8b 80 48 03 00 00 8b 40 f0 c9 c3 66 90 55 48 89 e5 0f 1f 44 00 00 48 8b 87 48 03 00 00 <48> 8b 40 f8 c9 c3 66 2e 0f 1f 84 00 00 00 00 00 55 48 89 e5 0f
Mar  5 22:12:17 major kernel: [  496.072246] RIP  [<ffffffff81085f30>] kthread_data+0x10/0x20
Mar  5 22:12:17 major kernel: [  496.072248]  RSP <ffff8802277eb9a8>
Mar  5 22:12:17 major kernel: [  496.072249] CR2: fffffffffffffff8
Mar  5 22:12:17 major kernel: [  496.072250] ---[ end trace eb6ea5ab08ebf6fa ]---
Mar  5 22:12:17 major kernel: [  496.072251] Fixing recursive fault but reboot is needed!

root@major:/home/dg#

Comment 1 Kevin DeKorte 2011-03-11 15:37:01 UTC

Similar crash in gnome using git versions of D-R-T, drm, mesa and DDX as of 3/11/2011. Screen shot attached.

Comment 2 Kevin DeKorte 2011-03-11 15:39:30 UTC

Created attachment 44375 [details]

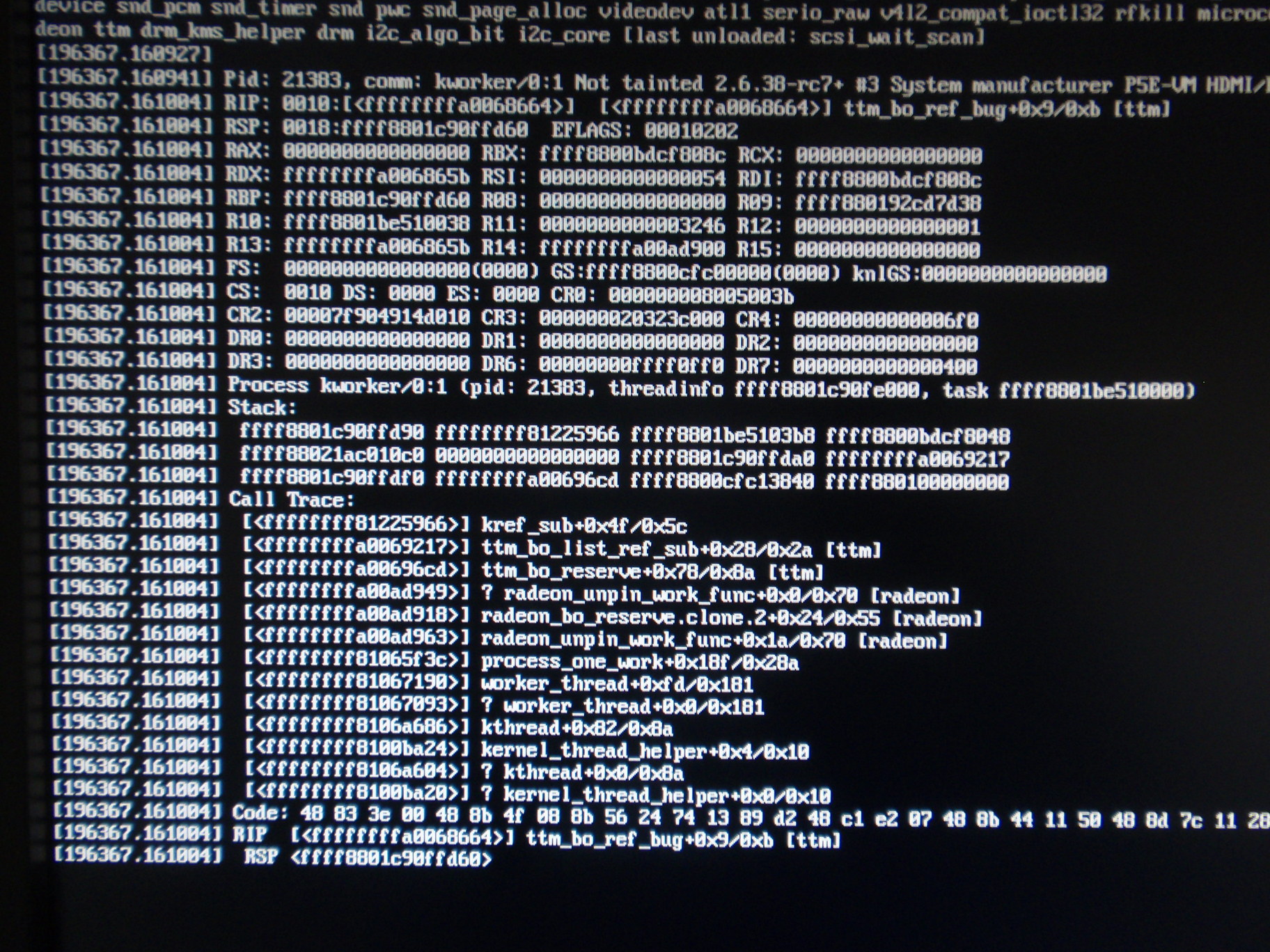

Screen shot of crash on display

Comment 3 Dave Gilbert 2011-03-19 11:14:22 UTC

Seems to be gone on todays drm-next (commit c87a8d8dcd2587c203f3dd8a3c5c15d1e128ec0d ) with current ubuntu xorg-edgers;
seems to be back to my original bug of *ERROR* Failed to parse relocation -35!

Comment 4 Martin Peres 2019-11-19 08:18:47 UTC

-- GitLab Migration Automatic Message --

This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity.

You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/drm/amd/issues/184.
