Bug 39209 - [bisected] Wrong display after "prefer native texture formats when possible" commit - part2
[bisected] Wrong display after "prefer native texture formats when possible" ...
Status: RESOLVED FIXED
Product: Mesa
Classification: Unclassified
Component: Mesa core
git
x86-64 (AMD64) Linux (All)
: medium normal
Assigned To: mesa-dev
:
Depends on:
Blocks:
  Show dependency treegraph

Reported: 2011-07-13 15:33 UTC by Victor Tseng
Modified: 2011-07-20 14:49 UTC (History)
1 user (show)

See Also:


Attachments
window only repaint on resize (2.00 MB, image/png)
2011-07-13 15:34 UTC, Victor Tseng
Details
window only redraw part of itself on maximize (233.91 KB, image/png)
2011-07-13 15:35 UTC, Victor Tseng
Details
Patch (1.08 KB, patch)
2011-07-13 17:40 UTC, Stephane Marchesin
Details | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Victor Tseng 2011-07-13 15:33:32 UTC
After I update to the latest mesa git (85e1fa55066783d2748993810708dee6db7a4993) I found out the some programs (`cairo-dock -o` and gnome-terminal) start not to paint itself.

After some time bisecting, I found the commit which caused the problem is 1a339b6c71ebab6e1a64f05b2e133022d3bbcd15.

A google search #38602 and #38610 indicates 1f544cc58794cffe5d5cac5a83efde91154f1b7d fixes this, but not my case.

Everything was good with 98ce1373e47d05d7150933c391fdeddbc897a3cd.
With 1a339b6c71ebab6e1a64f05b2e133022d3bbcd15, X goes to CPU 100% after cairo-dock started.
With 1f544cc58794cffe5d5cac5a83efde91154f1b7d, X starts to work again, but cairo-dock is not rendering anything (click on the "invisible" icon brings up program, though), and gnome-terminal doesn't render anything in its console part (see attachment).
Going all the way to the latest commit (85e1fa55066783d2748993810708dee6db7a4993) does not help.

I'm on a ATI Mobility Radeon HD 4530 512MB with git-sources-3.0-rc7:
# lspci -nn | grep VGA
02:00.0 VGA compatible controller [0300]: ATI Technologies Inc M92 [Mobility Radeon HD 4500/5100 Series] [1002:9553]
# uname -r
3.0.0-rc7-palatis

xorg-server is 1.10.3 (as shown in `X -version`).
libdrm is at commit 8d055890d90c3d92647e3d8b98d32630ef87c2c8.
xf86-video-ati is at commit e8d0d437957b15252dfad775796a3949ed50dbcf.

However, another computer with a HD 3300 doesn't have the problem, everything was great with this card:
# lspci -nn | grep VGA
01:05.0 VGA compatible controller [0300]: ATI Technologies Inc Radeon HD 3300 Graphics [1002:9614]
Comment 1 Victor Tseng 2011-07-13 15:34:57 UTC

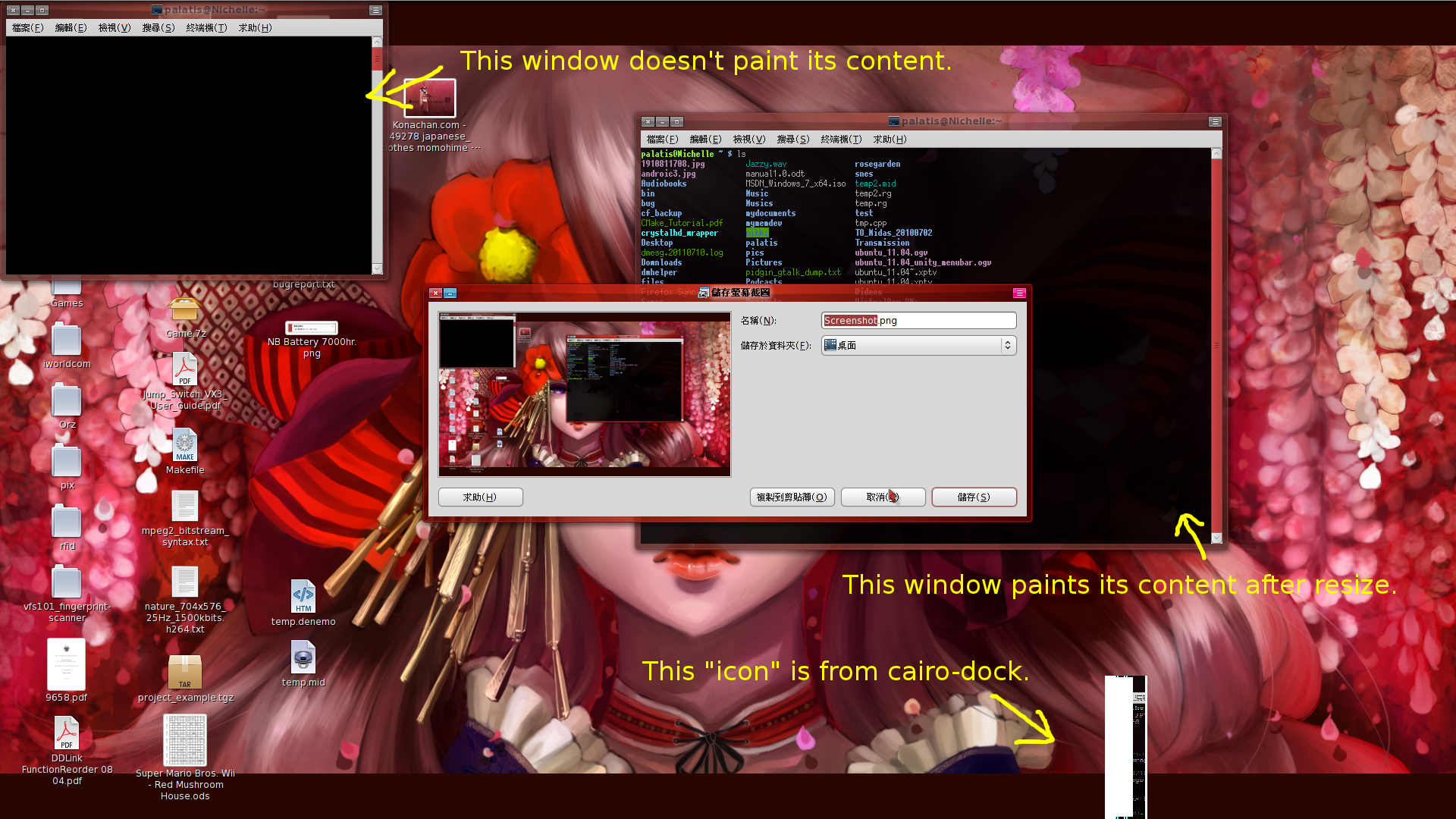

Created attachment 49064 [details]
window only repaint on resize
Comment 2 Victor Tseng 2011-07-13 15:35:47 UTC

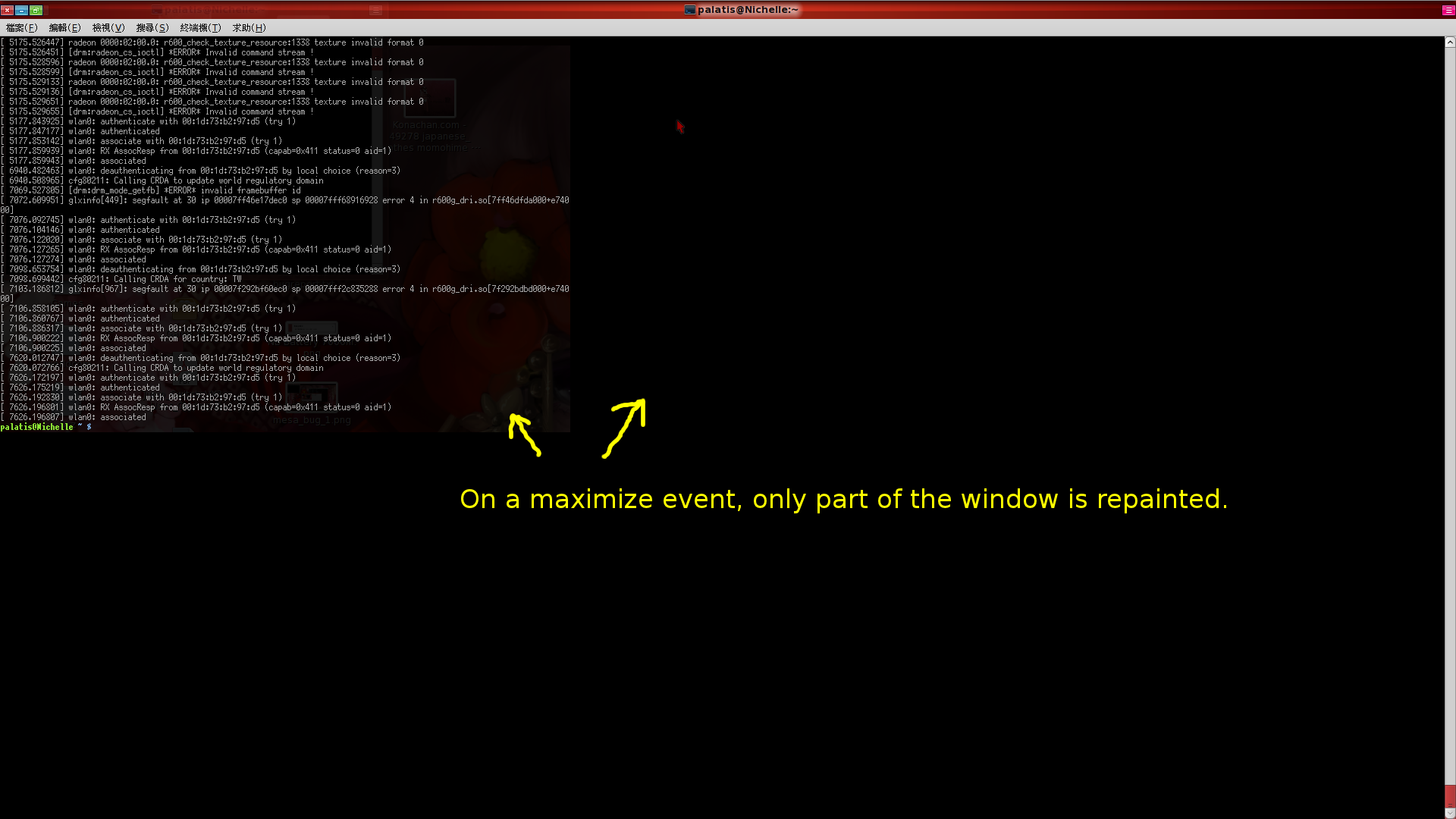

Created attachment 49065 [details]
window only redraw part of itself on maximize
Comment 3 Stephane Marchesin 2011-07-13 17:40:39 UTC
Created attachment 49066 [details] [review]
Patch

Does the attached patch help?
Comment 4 Victor Tseng 2011-07-14 04:15:54 UTC
(In reply to comment #3)
> Created an attachment (id=49066) [details]
> Patch
>
> Does the attached patch help?

nope it doesn't.
Comment 5 Victor Tseng 2011-07-14 04:21:28 UTC
(In reply to comment #4)
> (In reply to comment #3)
> > Created an attachment (id=49066) [details] [details]
> > Patch
> >
> > Does the attached patch help?
>
> nope it doesn't.

btw, there's no src/gallium/drivers/r600/eg_state_inlines.h in my tree (mesa master).
I found that r600_translate_colorformat() is in evergreen_state.c and comment the stuff there.

If I switch to a non-composite window manager (emerald -> metacity) then the windows (both cairo-dock and gnome-terminal) starts to render correctly.
Comment 6 Henri Verbeet 2011-07-14 04:31:35 UTC
I think that's a r700 card, so changing evergreen_state.c probably won't do much.
Comment 7 Victor Tseng 2011-07-14 05:04:44 UTC
Okay, I found it DOES impact my Radeon HD 3300, too.

If I turn on "Loose Binding" option in fusion-icon, both computer have the same problem (not properly rendering itself).
If I turn that option off, both computer starts to render correctly (with commit 7e2827fad95071e04e382be0117c654445764c52).
I previously had "Loose Binding" off on the HD3300 and didn't realize that.

I think this is another problem instead of colorformat.

==========

I added some debug output in st_choose_format() (st_format.c).
With 98ce1373e47d05d7150933c391fdeddbc897a3cd it does print something:
st_choose_format(): return PIPE_FORMAT = 1
st_choose_format(): return PIPE_FORMAT = 19
most of them are 1.

But with commits after that, it doesn't print anything.
I think it's not taking that path anymore.
Comment 8 Victor Tseng 2011-07-15 13:26:44 UTC
(In reply to comment #6)
> I think that's a r700 card, so changing evergreen_state.c probably won't do
> much.

thx for pointing this out.

this time I patched the function "r600_translate_colorformat()" in file "r600_state.c".
and it's all working again now.

and I found the buggy pipe_format is 67 (PIPE_FORMAT_R8G8B8A8_UNORM).
Comment 9 Emil Velikov 2011-07-20 11:08:40 UTC
Hi Victor

Can you please test the latest mesa/master

A patch that should resolve your issue has been pushed [1]

Cheers
Emil

[1] http://cgit.freedesktop.org/mesa/mesa/commit/?id=d84791a72b33f96fab54ff2399e8053c50205454
Comment 10 Victor Tseng 2011-07-20 14:49:19 UTC
commit d84791a72b33f96fab54ff2399e8053c50205454 does address this bug.
