Bug 40103 - Striped screen with CAICOS chip (1002:6779)
Summary: Striped screen with CAICOS chip (1002:6779)
Status: RESOLVED FIXED
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/Radeon (show other bugs)
Version: 7.6 (2010.12)
Hardware: Other All
: medium normal
Assignee: xf86-video-ati maintainers
QA Contact: Xorg Project Team
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2011-08-15 07:28 UTC by Timo Aaltonen
Modified: 2011-10-30 12:13 UTC (History)
3 users (show)

See Also:
i915 platform:
i915 features:


Attachments
X log (37.62 KB, text/plain)
2011-08-15 07:28 UTC, Timo Aaltonen
no flags Details
screenshot (1.60 MB, image/jpeg)
2011-08-15 07:39 UTC, Timo Aaltonen
no flags Details
full dmesg (74.85 KB, text/plain)
2011-08-15 07:53 UTC, Timo Aaltonen
no flags Details
dmesg (73.04 KB, text/plain)
2011-09-06 04:59 UTC, Patrik Kullman
no flags Details
dmesg with ttm dma pool 1.7 patchset (80.67 KB, text/plain)
2011-09-07 05:21 UTC, Patrik Kullman
no flags Details
Don't read from CP ring write pointer registers (5.61 KB, patch)
2011-09-08 03:32 UTC, Michel Dänzer
no flags Details | Splinter Review
dmesg with the patched kernel (52.17 KB, text/plain)
2011-09-08 05:53 UTC, Timo Aaltonen
no flags Details
workaround debugged on my caicos (1.11 KB, patch)
2011-09-30 12:14 UTC, Dave Airlie
no flags Details | Splinter Review
channel remap fix (2.66 KB, patch)
2011-10-04 06:57 UTC, Alex Deucher
no flags Details | Splinter Review

Note You need to log in before you can comment on or make changes to this bug.
Description Timo Aaltonen 2011-08-15 07:28:18 UTC
Created attachment 50234 [details]
X log

I've got a striped screen with a CAICOS 6779 (HD6450), running on kernel 3.0.1 or 3.1rc2, both are the same. Userland is Ubuntu Oneiric devel series, with xserver 1.10.3 and -ati snapshot from last week.

Here's a call trace from dmesg (one of several identical ones):

[   10.633032] WARNING: at /home/tjaalton/linux/drivers/gpu/drm/radeon/radeon_gart.c:177 radeon_gart_bind+0x1ac/0x1c0 [radeon]()
[   10.633034] Hardware name: P5K
[   10.633034] trying to bind memory to unitialized GART !
[   10.633036] Modules linked in: snd_hda_codec_hdmi hid_apple bnep rfcomm bluetooth snd_hda_codec_realtek binfmt_misc snd_hda_intel snd_hda_codec snd_hwdep snd_pcm snd_seq_midi snd_rawmidi snd_seq_midi_event serio_raw snd_seq snd_timer radeon asus_atk0110 snd_seq_device snd ttm drm_kms_helper drm i2c_algo_bit soundcore snd_page_alloc lp parport usbhid hid firewire_ohci ahci firewire_core pata_jmicron crc_itu_t libahci atl1
[   10.633056] Pid: 241, comm: plymouthd Tainted: G        W   3.1.0-0301rc1g72fa599-generic #201108121445
[   10.633057] Call Trace:
[   10.633060]  [<ffffffff8105e79f>] warn_slowpath_common+0x7f/0xc0
[   10.633063]  [<ffffffff8105e896>] warn_slowpath_fmt+0x46/0x50
[   10.633067]  [<ffffffffa00dddc4>] ? ttm_mem_global_alloc_page+0x54/0x60 [ttm]
[   10.633078]  [<ffffffffa0155dec>] radeon_gart_bind+0x1ac/0x1c0 [radeon]
[   10.633089]  [<ffffffffa01537d5>] radeon_ttm_backend_bind+0x35/0xb0 [radeon]
[   10.633094]  [<ffffffffa00de6b0>] ttm_tt_bind+0x50/0x80 [ttm]
[   10.633098]  [<ffffffffa00e0409>] ttm_bo_handle_move_mem+0x169/0x380 [ttm]
[   10.633103]  [<ffffffffa00e14fa>] ttm_bo_move_buffer+0x13a/0x150 [ttm]
[   10.633110]  [<ffffffffa00b209c>] ? drm_mm_kmalloc+0x3c/0xe0 [drm]
[   10.633113]  [<ffffffff8116793f>] ? alloc_file+0x9f/0xd0
[   10.633117]  [<ffffffffa00e15f7>] ttm_bo_validate+0xe7/0xf0 [ttm]
[   10.633122]  [<ffffffffa00e17b8>] ttm_bo_init+0x1b8/0x260 [ttm]
[   10.633133]  [<ffffffffa0154bb6>] radeon_bo_create+0x176/0x2a0 [radeon]
[   10.633144]  [<ffffffffa01548e0>] ? radeon_create_ttm_backend_entry+0x40/0x40 [radeon]
[   10.633147]  [<ffffffff810329b9>] ? default_spin_lock_flags+0x9/0x10
[   10.633160]  [<ffffffffa016d39a>] radeon_gem_object_create+0x5a/0x100 [radeon]
[   10.633173]  [<ffffffffa016d7f8>] radeon_gem_create_ioctl+0x58/0xd0 [radeon]
[   10.633176]  [<ffffffff8127db7a>] ? security_capable+0x2a/0x30
[   10.633182]  [<ffffffffa00a6574>] drm_ioctl+0x3e4/0x4c0 [drm]
[   10.633195]  [<ffffffffa016d7a0>] ? radeon_gem_pwrite_ioctl+0x30/0x30 [radeon]
[   10.633197]  [<ffffffff811a0902>] ? fsnotify+0x1c2/0x2a0
[   10.633199]  [<ffffffff81391abe>] ? tty_ldisc_deref+0xe/0x10
[   10.633202]  [<ffffffff81177d2a>] do_vfs_ioctl+0x8a/0x340
[   10.633204]  [<ffffffff81166200>] ? vfs_write+0x110/0x180
[   10.633207]  [<ffffffff81178071>] sys_ioctl+0x91/0xa0
[   10.633209]  [<ffffffff815f2282>] system_call_fastpath+0x16/0x1b
[   10.633211] ---[ end trace d4bd37cfb6de1754 ]---
Comment 1 Michel Dänzer 2011-08-15 07:39:14 UTC
(II) RADEON(0): GPU accel disabled or not working, using shadowfb for KMS

Check the drm/radeon initialization messages in dmesg. Usually this is due to failing to load a firmware file. I guess we should handle the failure more gracefully though...
Comment 2 Timo Aaltonen 2011-08-15 07:39:22 UTC

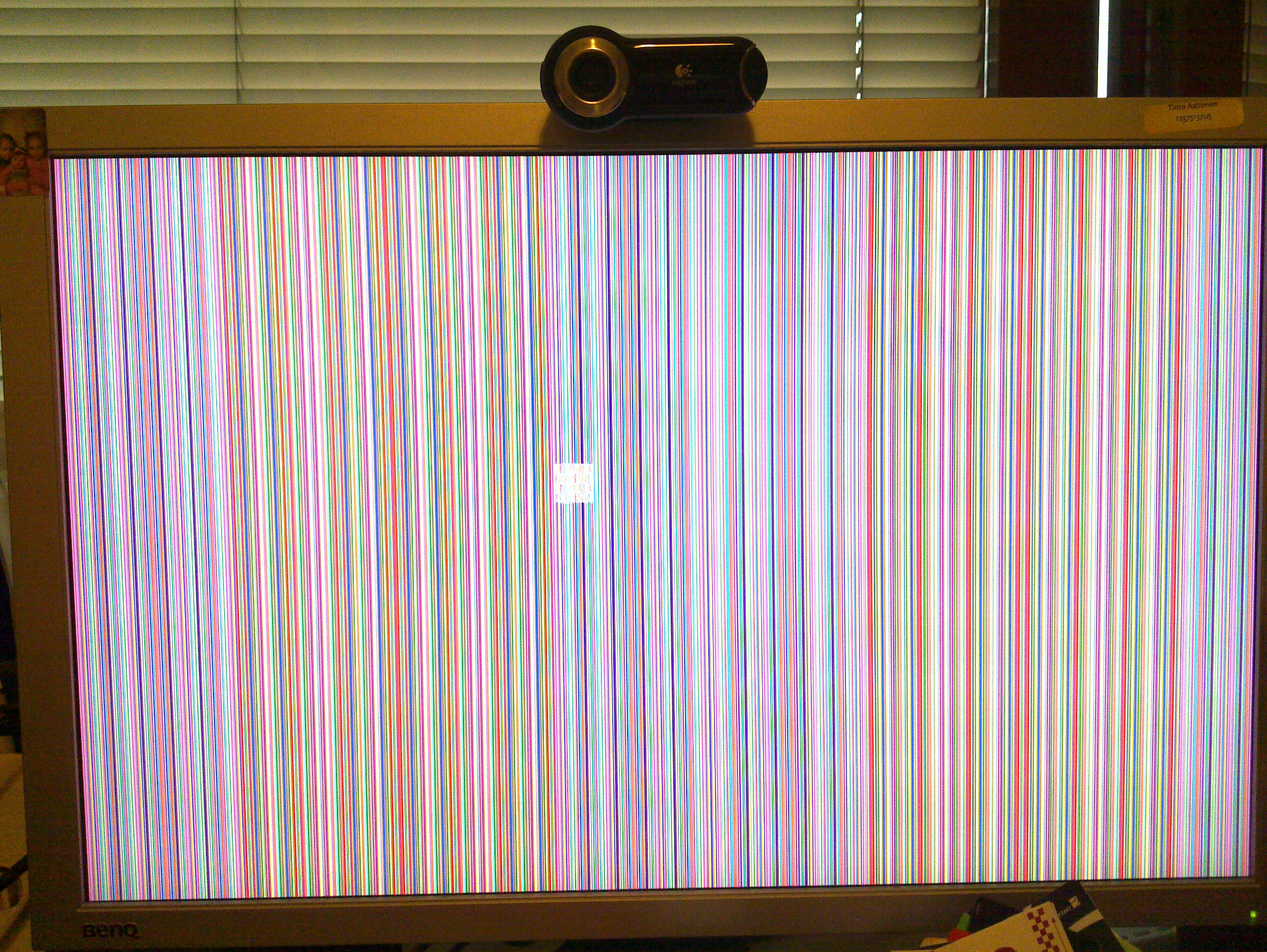

Created attachment 50236 [details]
screenshot

I should probably add that the mouse cursor is a "box" which moves, so the server appears working fine. A photo attached to prove it.
Comment 3 Timo Aaltonen 2011-08-15 07:53:04 UTC
Created attachment 50237 [details]
full dmesg
Comment 4 Timo Aaltonen 2011-08-23 23:59:10 UTC
the interesting bits from dmesg:

[    9.455331] [drm] Initialized drm 1.1.0 20060810
[    9.562808] [drm] radeon defaulting to kernel modesetting.
[    9.562811] [drm] radeon kernel modesetting enabled.
[    9.562865] radeon 0000:01:00.0: PCI INT A -> GSI 16 (level, low) -> IRQ 16
[    9.562870] radeon 0000:01:00.0: setting latency timer to 64
[    9.563019] [drm] initializing kernel modesetting (CAICOS 0x1002:0x6779).
[    9.563062] [drm] register mmio base: 0xFE8C0000
[    9.563064] [drm] register mmio size: 131072
[    9.563377] ATOM BIOS: 6779.13.12.0.0.AS03
[    9.563569] radeon 0000:01:00.0: VRAM: 512M 0x0000000000000000 - 0x000000001FFFFFFF (512M used)
[    9.563572] radeon 0000:01:00.0: GTT: 512M 0x0000000020000000 - 0x000000003FFFFFFF
[    9.564306] [drm] Detected VRAM RAM=512M, BAR=256M
[    9.564309] [drm] RAM width 32bits DDR
[    9.568873] [TTM] Zone  kernel: Available graphics memory: 3062390 kiB.
[    9.568876] [TTM] Zone   dma32: Available graphics memory: 2097152 kiB.
[    9.568878] [TTM] Initializing pool allocator.
[    9.568898] [drm] radeon: 512M of VRAM memory ready
[    9.568899] [drm] radeon: 512M of GTT memory ready.
[    9.568915] [drm] Supports vblank timestamp caching Rev 1 (10.10.2010).
[    9.568917] [drm] Driver supports precise vblank timestamp query.
[    9.568956] radeon 0000:01:00.0: irq 44 for MSI/MSI-X
[    9.568961] radeon 0000:01:00.0: radeon: using MSI.
[    9.568998] [drm] radeon: irq initialized.
[    9.569002] [drm] GART: num cpu pages 131072, num gpu pages 131072
[    9.579091] [drm] Loading CAICOS Microcode
[    9.568998] [drm] radeon: irq initialized.
[    9.569002] [drm] GART: num cpu pages 131072, num gpu pages 131072
[    9.579091] [drm] Loading CAICOS Microcode
[   10.026510] radeon 0000:01:00.0: WB enabled
[   10.204837] [drm:r600_ring_test] *ERROR* radeon: ring test failed (scratch(0x8504)=0xCAFEDEAD)
[   10.204843] radeon 0000:01:00.0: disabling GPU acceleration
[   10.206115] radeon 0000:01:00.0: ffff8801a29c4400 unpin not necessary
[   10.206447] failed to evaluate ATIF got AE_BAD_PARAMETER
<connector info>
[   10.290516] [drm] radeon: power management initialized
[   10.376185] [drm] fb mappable at 0xD0141000
[   10.376187] [drm] vram apper at 0xD0000000
[   10.376189] [drm] size 9216000
[   10.376190] [drm] fb depth is 24
[   10.376191] [drm]    pitch is 7680
[   10.376309] fbcon: radeondrmfb (fb0) is primary device
[   10.376942] Console: switching to colour frame buffer device 240x75
[   10.376993] fb0: radeondrmfb frame buffer device
[   10.376994] drm: registered panic notifier
[   10.377001] [drm] Initialized radeon 2.10.0 20080528 for 0000:01:00.0 on minor 0
<calltrace >
[   10.609455] [drm:radeon_ttm_backend_bind] *ERROR* failed to bind 2250 pages at 0x00000000
[   10.609800] radeon 0000:01:00.0: object_init failed for (9216000, 0x00000002)
[   10.609802] [drm:radeon_gem_object_create] *ERROR* Failed to allocate GEM object (9216000, 2, 4096, -22)
<rinse,repeat>
Comment 5 Patrik Kullman 2011-09-06 03:20:02 UTC
I get the exact same behaviour, with pretty much the same setup.

64-bit Ubuntu Oneiric Beta1, 3.0 kernel, xorg-edgers PPA for latest drivers.
Comment 6 Patrik Kullman 2011-09-06 04:59:20 UTC
Created attachment 50935 [details]
dmesg
Comment 7 Patrik Kullman 2011-09-07 05:21:25 UTC
Created attachment 50959 [details]
dmesg with ttm dma pool 1.7 patchset

After discussion with Dave Airlie he concluded that the chipset (Intel G31 in my case) doesn't have DMAR / IOMMU and that systems with 4GB or more memory enabled SWIOTLB in those cases, which was the problem.

However, booting with mem=3G or with physical memory below 4GB did not solve the problem.

Disabling iommu with iommu=off only disabled the SATA-support without solving the Radeon-issue.

Booting with less than 4GB of memory and iommu=off did not disable SATA-support but did not solve the issue either.

I finally tried compiling the Oneiric kernel with the TTM DMA Pool 1.7 patchset from Konrad for Xen, but the ring test still failed. Reading the source I can conclude that the test writes "0xDEADBEEF" but reads "0xCAFEDEAD".

Not sure how to proceed.

Attaching dmesg from boot with TTM DMA Pool 1.7 patchset.
Comment 8 Alex Deucher 2011-09-07 23:07:10 UTC
Does this patch:
http://lists.freedesktop.org/archives/dri-devel/2011-August/013591.html
adapted for evergreen/ni chips help?
Comment 9 Patrik Kullman 2011-09-08 01:09:05 UTC
I'm not sure how to adapt it for evergreen/ni.

If you'd send me such a patch I'd be happy to try it out and report back.
Comment 10 Timo Aaltonen 2011-09-08 03:06:17 UTC
I tried this:

diff --git a/drivers/gpu/drm/radeon/evergreen.c
b/drivers/gpu/drm/radeon/evergreen.c
index 15bd047..1630423 100644
--- a/drivers/gpu/drm/radeon/evergreen.c
+++ b/drivers/gpu/drm/radeon/evergreen.c
@@ -1404,6 +1404,7 @@ int evergreen_cp_resume(struct radeon_device *rdev)

        rdev->cp.rptr = RREG32(CP_RB_RPTR);
        rdev->cp.wptr = RREG32(CP_RB_WPTR);
+       rdev->cp.wptr &= rdev->cp.ptr_mask;

        evergreen_cp_start(rdev);
        rdev->cp.ready = true;

but it just hung the machine when X had started (before it got to write any
logs).
Comment 11 Michel Dänzer 2011-09-08 03:21:53 UTC
(In reply to comment #10)
> I tried this:
>
> diff --git a/drivers/gpu/drm/radeon/evergreen.c
> b/drivers/gpu/drm/radeon/evergreen.c
> index 15bd047..1630423 100644
> --- a/drivers/gpu/drm/radeon/evergreen.c
> +++ b/drivers/gpu/drm/radeon/evergreen.c
> @@ -1404,6 +1404,7 @@ int evergreen_cp_resume(struct radeon_device *rdev)
>
>         rdev->cp.rptr = RREG32(CP_RB_RPTR);
>         rdev->cp.wptr = RREG32(CP_RB_WPTR);
> +       rdev->cp.wptr &= rdev->cp.ptr_mask;
>
>         evergreen_cp_start(rdev);
>         rdev->cp.ready = true;
>
> but it just hung the machine when X had started (before it got to write any
> logs).

Sounds like the change did make a difference though... can you attach dmesg for that?
Comment 12 Michel Dänzer 2011-09-08 03:32:59 UTC
Created attachment 50969 [details] [review]
Don't read from CP ring write pointer registers

This patch goes further and removes any reliance on reads from those registers. Does it help?
Comment 13 Timo Aaltonen 2011-09-08 05:53:58 UTC
Created attachment 50974 [details]
dmesg with the patched kernel

unfortunately no, VT's still look corrupted, and starting X hangs the machine.
Comment 14 Dave Airlie 2011-09-30 12:14:21 UTC
Created attachment 51806 [details] [review]
workaround debugged on my caicos

please test this patch and tell me if it works for you.

If it does AMD will have to debug things from here, I just got this using old fashion if 0 bisection.
Comment 15 Patrik Kullman 2011-10-02 02:06:34 UTC
This patch, applied to latest Ubuntu Oneiric kernel, works perfectly!

Performance blows fglrx out of the water and the display management is way better than the AMD CCCLE.

Finally a usable desktop, thank you so much!
Comment 16 Patrik Kullman 2011-10-02 02:20:16 UTC
I have some strange issue with XVideo, though.

I started playing a video with Totem and the colors were off and way too dark.
Then I tried playing it with VLC and mplayer with the same result.
But then I tried to play the video with the x11 output (mplayer -vo x11) which showed the correct colors, and the next try with mplayer -vo xv also had the right colors.

This can be better compared in gstreamer-properties, where the test-stream for x11 looks like it should, but for xv, everything white or black is black and the rest of the colors are too dark.

I had similar issues with XVideo on fglrx, where XVideo could turn completely black from time to time.
Comment 17 Alex Deucher 2011-10-02 05:54:22 UTC
(In reply to comment #16)
> I have some strange issue with XVideo, though.

Make sure your Xv attributes aren't adjusted strangely.  Some apps set strange default values.
Comment 18 Alex Deucher 2011-10-04 06:57:20 UTC
Created attachment 51957 [details] [review]
channel remap fix

This patch should fix the issue.
Comment 19 Florian Mickler 2011-10-06 05:49:27 UTC
A patch referencing this bug report has been merged in Linux v3.1-rc9:

commit 12d5180bd7e683a4ae80830b82ba67e7b7fac7b2
Author: Alex Deucher <alexander.deucher@amd.com>
Date:   Tue Oct 4 10:46:34 2011 -0400

    drm/radeon/kms: fix channel_remap setup (v2)
Comment 20 Alex Deucher 2011-10-30 12:13:22 UTC
*** Bug 42373 has been marked as a duplicate of this bug. ***


Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct. How we collect and use information is described in our Privacy Policy.
