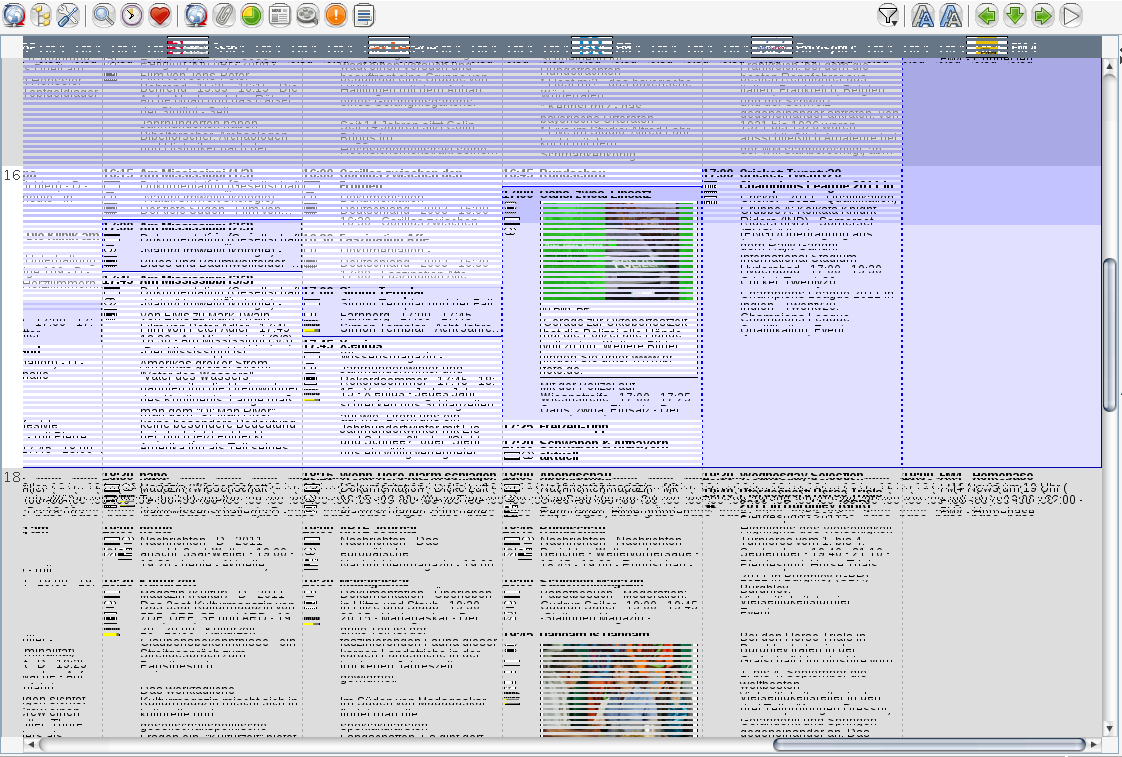

Created attachment 51459 [details] Screenshot showing garbage area after scrolling to the right. Example application for testing: TV Browser (see screenshot) When scrolling to the right, the contents of the scrolled area become garbled. Moving the mouse pointer over elements in the garbled area apparently causes a redraw of that element, fixing the issue, but the other elements are not redrawn. This does not occur when scrolling to the left. If the area is garbled and one scrolls to the left, everything is redrawn and appears correctly again. This may be confined to java applications, and I only noticed this in tvbrowser (http://tvbrowser.org). Unfortunately I don't have any other java applications available to test. Reproducible on the following hardware: ATI Technologies Inc Mobility Radeon HD 3400 Series ATI Technologies Inc Device 6719 (HD 6950 Cayman)
I can't seem to reproduce this on an RS880. Please attach the full Xorg.0.log file.
Created attachment 52006 [details] Xorg.0.log Here you are. For me, it's easily visible when dragging the horizontal scrollbar to the right.
What JRE/JDK are you using, and which rendering backend does it use? Did you make any changes in TV Browser's graphical settings? ... Ideal would be some kind of simple test app or replayable trace which could be used to reproduce the problem independently from all such variables.
> What JRE/JDK are you using, and which rendering backend does it use? I'm using sun-jdk-1.6.0.27 (amd64). > Did you make any changes in TV Browser's graphical settings? ... I've started with a clean profile and did not change any settings. > Ideal would be some kind of simple test app or replayable trace which > could be used to reproduce the problem independently from all such variables. I'm sorry, but I can't provide this. This could of course be a bug in tvbrowser, as I don't have such issues with eclipse, but that may do the rendering in a completely different way after all. I've learned in the tvbrowser forum that the application has some display problems, though nothing that would compare to my issue here. I will try to reproduce this with the nouveau driver *with the same config* and report back, just to be sure. Last time I tried the garbage problem did not occur though that was quite a while ago and may have been with an older version of tvbrowser. Unfortunately, it will take some time until I get to a machine using nvidia hardware. Thanks for your help so far.

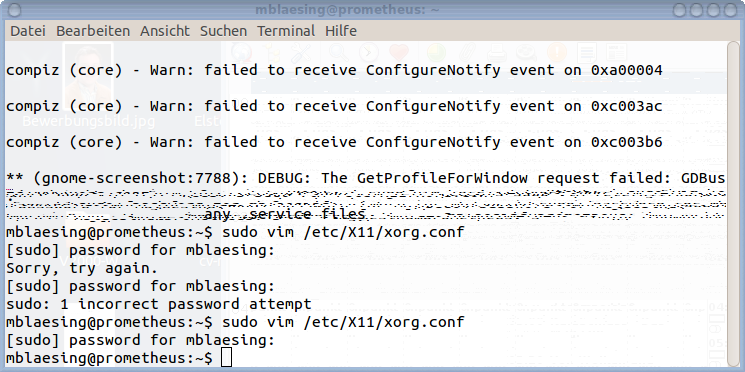

Created attachment 52553 [details] garbadge in gnome-terminal This problem also shows in ubuntu after upgrading from natty+xorg-edgers to oneiric. (See attached screenshot) Then it not only happens in tvbrowser (there also). The corruptions appear randomly all over the screen. What can be done to further investigate - as it is now, I can not seriously work with the system.
(In reply to comment #5) > This problem also shows in ubuntu after upgrading from natty+xorg-edgers to > oneiric. (See attached screenshot) Why do you think it's the same bug? It seems rather unlikely. Please file your own bug with all the relevant information.
>Why do you think it's the same bug? It seems rather unlikely. Because the tvbrowser corruption happens since the upgrade and I saw the described other effect additionally - so the problems both started with the upgrade. But I'll stay away from this bug and just monitor it. Maybe your interested in the fact, that the terminal corruptions are gone after removing some remaining packages from the xorg-edgers PPA und that the tvbrowser corruptions are now still happening, but less often.
No garbage visible with nouveau driver and nVidia Corporation G70 [GeForce 7800 GS] (rev a2). Same versions of JDK and tvbrowser. I changed the title to be a little more specific ;-)
I'm seeing similar corruption with tvbrowser, however I cant make it 'stick'. It corrupts only during the scrolling, and as mentioned, only when scolling sideways to the right. I do however see similar corruption a lot in other apps, that sticks until redraw. And it seems related to text rendering, not especially to scrolling. I suspect its the same issue as the corruption looks quite similar. I see it most often in the bookmarks bar of Chromium, there it shows up usually after 1-2 hovers with the mouse pointer. Just make sure the bar is visible, and add some bookmarks there (with label). Sometimes gnome-terminal also corrupts, and for example the torrent list in Transmission. When I focus the window, the corruption disapears (until it corrupts again), probably gets redrawn? AFAICT it is independent of compositing; it happens in gnome's fallback mode also, and xfce4 w/ compositing disabled. Attaching a screen shot that shows both chromium and gnome-terminal corrupting. Using the same xorg stack I see it on AMD Radeon HD4780, HD5450, HD5770 and HD6670, but not on Intel HD2000 (Sandy Bridge). Verified with kernel 3.0.x, 3.1.x and 3.2-rc5. No xorg.conf, no weird radeon module options. The stack looks like this, its basicly pure builds from git, with xorg core from the 1.11 branch (xorg-edgers PPA on Ubuntu 11.10): libdrm-dev 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libdrm-intel1 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libdrm-nouveau1a 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libdrm-radeon1 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libdrm2 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libegl1-mesa 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libegl1-mesa-dev 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libegl1-mesa-drivers 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libgbm1 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libgl1-mesa-dev 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libgl1-mesa-dri 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libgl1-mesa-glx 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libglapi-mesa 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libglu1-mesa 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric libkms1 2.4.28+git20111207.dd9a5b4f-0ubuntu0sarvatt~oneiric libopenvg1-mesa 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric mesa-common-dev 7.12.0~git20111209.eefff370-0ubuntu0sarvatt~oneiric xserver-common 2:1.11.2.902+git20111209+server-1.11-branch.0ca8869e-0ubuntu0sarvatt~oneiric xserver-xorg-core 2:1.11.2.902+git20111209+server-1.11-branch.0ca8869e-0ubuntu0sarvatt~oneiric xserver-xorg-input-evdev 1:2.6.99+git20111201.a9cdb659-0ubuntu0sarvatt~oneiric xserver-xorg-input-mouse 1:1.7.1+git20111207.8bc8502c-0ubuntu0sarvatt~oneiric xserver-xorg-input-vmmouse 1:12.7.0+git20111109.fd140bfb-0ubuntu0sarvatt2~oneiric xserver-xorg-video-ati 1:6.14.99+git20111207.bc54e415-0ubuntu0sarvatt~oneiric xserver-xorg-video-cirrus 1:1.3.2+git20110912.e4f80ffd-0ubuntu0sarvatt xserver-xorg-video-fbdev 1:0.4.2+git20111109.a8721393-0ubuntu0sarvatt~oneiric xserver-xorg-video-intel 2:2.17.0+git20111209.429a36f7-0ubuntu0sarvatt~oneiric xserver-xorg-video-mach64 6.9.0+git20111109.0de23432-0ubuntu0sarvatt~oneiric xserver-xorg-video-mga 1:1.4.13.dsfg+git20110928.07792ef4-0ubuntu0sarvatt xserver-xorg-video-neomagic 1:1.2.5+git20111109.f2a771c6-0ubuntu0sarvatt~oneiric xserver-xorg-video-nouveau 1:0.0.16+git20111207.3d2a752c-0ubuntu0sarvatt~oneiric xserver-xorg-video-openchrome 1:0.2.904+svn920-1ubuntu0sarvatt xserver-xorg-video-r128 6.8.1+git20111109.67aaa469-0ubuntu0sarvatt~oneiric xserver-xorg-video-radeon 1:6.14.99+git20111207.bc54e415-0ubuntu0sarvatt~oneiric xserver-xorg-video-s3 1:0.6.3+git20111109.381ace93-0ubuntu0sarvatt~oneiric xserver-xorg-video-savage 1:2.3.3+git20111109.8b9c81ba-0ubuntu0sarvatt~oneiric xserver-xorg-video-siliconmotion 1:1.7.5+git20111118.7d9c1a49-0ubuntu0sarvatt~oneiric xserver-xorg-video-sis 1:0.10.3+git20110913.94f23a56+really0.10.3-0ubuntu0sarvatt xserver-xorg-video-sisusb 1:0.9.4+git20111109.02451944-0ubuntu0sarvatt~oneiric xserver-xorg-video-tdfx 1:1.4.3+git20111118.4ea96c22-0ubuntu0sarvatt~oneiric xserver-xorg-video-trident 1:1.3.4+git20111109.6afbfaf6-0ubuntu0sarvatt~oneiric xserver-xorg-video-vesa 1:2.3.0+git20111109.4ba7306f-0ubuntu0sarvatt~oneiric xserver-xorg-video-vmware 1:11.0.99.901+git20111123.abf9cb75-0ubuntu0sarvatt~oneiric Will try to run some more tests tomorrow.. Maybe narrow it down to a particular component and start bisecting it.

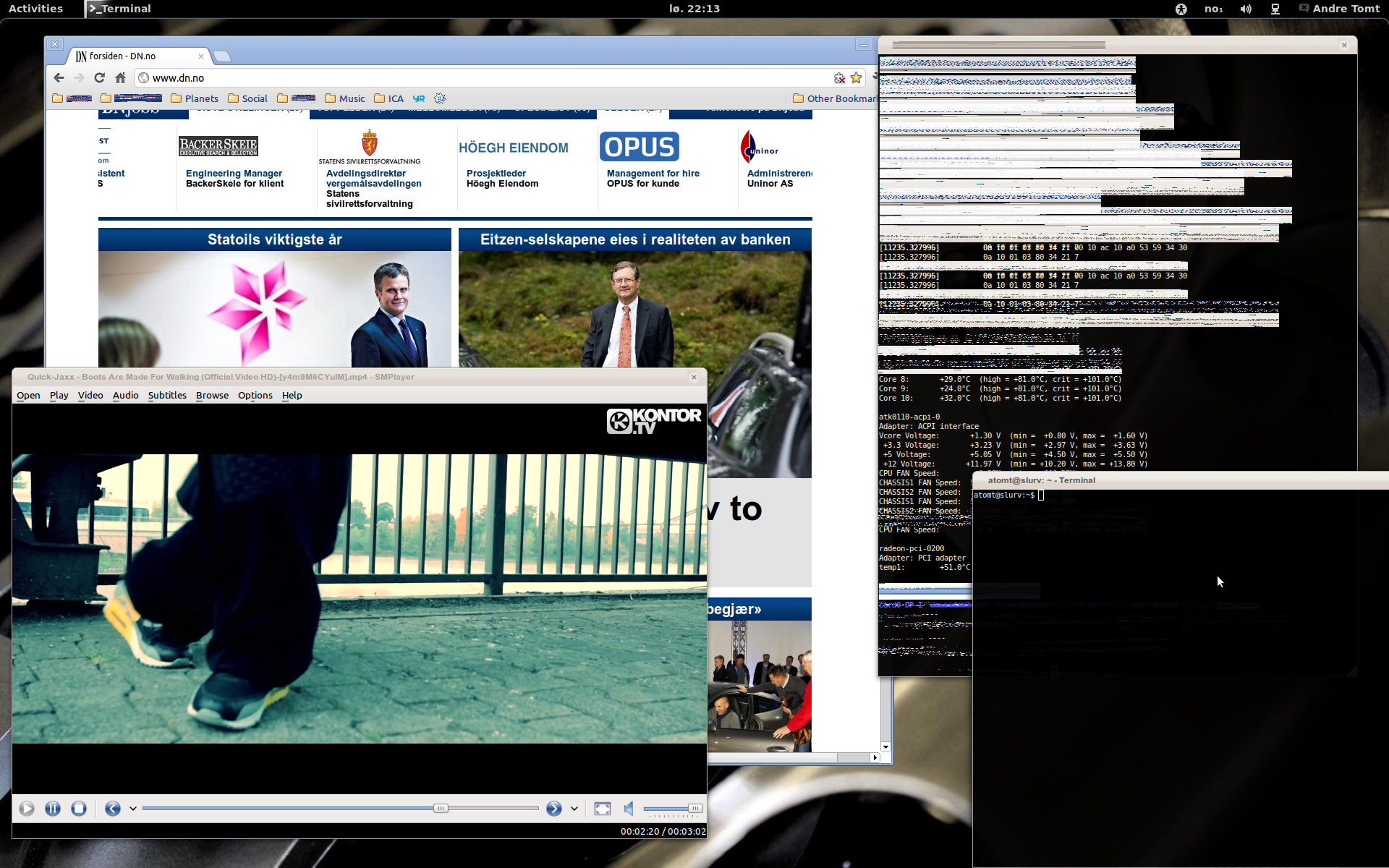

Created attachment 54311 [details] chromium and gnome-terminal corruption
(In reply to comment #9) Ok, so that list wrapped badly. Lets remove redudant information and try again shall we ;-) libdrm-dev 2.4.28+git20111207.dd9a5b4f libdrm-intel1 2.4.28+git20111207.dd9a5b4f libdrm-nouveau1a 2.4.28+git20111207.dd9a5b4f libdrm-radeon1 2.4.28+git20111207.dd9a5b4f libdrm2 2.4.28+git20111207.dd9a5b4f libegl1-mesa 7.12.0~git20111209.eefff370 libegl1-mesa-dev 7.12.0~git20111209.eefff370 libegl1-mesa-drivers 7.12.0~git20111209.eefff370 libgbm1 7.12.0~git20111209.eefff370 libgl1-mesa-dev 7.12.0~git20111209.eefff370 libgl1-mesa-dri 7.12.0~git20111209.eefff370 libgl1-mesa-glx 7.12.0~git20111209.eefff370 libglapi-mesa 7.12.0~git20111209.eefff370 libglu1-mesa 7.12.0~git20111209.eefff370 libkms1 2.4.28+git20111207.dd9a5b4f libopenvg1-mesa 7.12.0~git20111209.eefff370 mesa-common-dev 7.12.0~git20111209.eefff370 xserver-common 2:1.11.2.902+git20111209+server-1.11-branch.0ca8869e xserver-xorg-core 2:1.11.2.902+git20111209+server-1.11-branch.0ca8869e xserver-xorg-input-evdev 1:2.6.99+git20111201.a9cdb659 xserver-xorg-input-mouse 1:1.7.1+git20111207.8bc8502c xserver-xorg-video-ati 1:6.14.99+git20111207.bc54e415 xserver-xorg-video-intel 2:2.17.0+git20111209.429a36f7 xserver-xorg-video-nouveau 1:0.0.16+git20111207.3d2a752c xserver-xorg-video-radeon 1:6.14.99+git20111207.bc54e415
A couple of new data points: Option "NoAccel" "true" shows no corruption. Reverting to an older known good radeon driver version, but on this newer xorg stack still shows corruption. So I will now try to focus on xorg core. I'm starting to think this is an issue with EXA acceleration (which intel is not using, it seems). Setting XAA with KMS didnt work..
Oh, Option "EXAPixmaps" "false" seems to fix/workaround most of the problems. Still seeing some corruption while right-scrolling the tvbrowser app, but everything else seems clean.
Magic worked its way, and this has been fixed recently. I don't know which component it was, but I can exclude with certainty sun-jdk, tvbrowser, the kernel and most probably xf86-video-ati. I think the other types of corruption reported here (chromium, gnome-terminal) are not related to my issue.
This bug is still unsolved for me. I'm having Nvidia graphics card (Macbook 5,1) and using Ubuntu 12.04 with proprietary Nvidia driver.
It is still there in Ubuntu 12.04 LTS (up-to-date). Here, too, is a pretty recent nvidia (GTX 660) at work with proprietary drivers (v304.116). All standard setup coming with the distro, but using the gome classic 2d desktop. See also https://bugs.launchpad.net/ubuntu/+source/openjdk-6/+bug/1032936 and https://netbeans.org/bugzilla/show_bug.cgi?id=243407. A workaround is -Dsun.java2d.opengl=true. The problem is pretty easily reproducible by installing Netbeans und opening the file dialog (native or metal theme), going into a large folder like /usr/share and scrolling right. You see it immediately. You can barely browse ANYTHING AT ALL. One hint: it is *NOT* appearing via "ssh otherUserNotRunningX@localhost -Y .../bin/netbeans", even when explcitily setting sun.java2d.opengl to false.
If the same problem happens with the nvidia driver as well as with open source drivers, the problem must be either in generic X code used in both cases, or in the Java code.
-- GitLab Migration Automatic Message -- This bug has been migrated to freedesktop.org's GitLab instance and has been closed from further activity. You can subscribe and participate further through the new bug through this link to our GitLab instance: https://gitlab.freedesktop.org/xorg/xserver/issues/417.
