Created attachment 51564 [details]

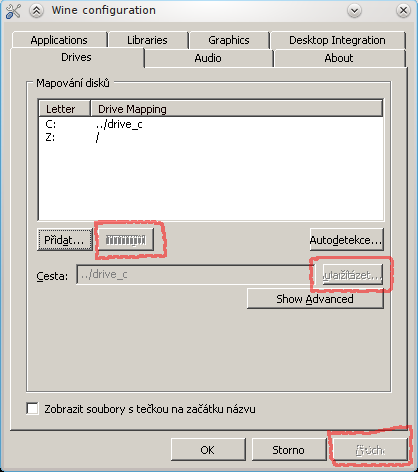

Created attachment 51565 [details]

PS. I don't use compositing in KWin.

If you have a moment, can you double check to see if this is a recent regression?

Note for future self: #define NO_GLYPHS_VIA_MASK 1

IMHO it's not recent regression, at least the MS WORD was "always" broken in SNA, I remember that it was broken even more (whole text area was black)

Will try to change the NO_GLYPHS_VIA_MASK in sna_glyphs.c

I've tried the NO_GLYPHS_VIA_MASK 1.

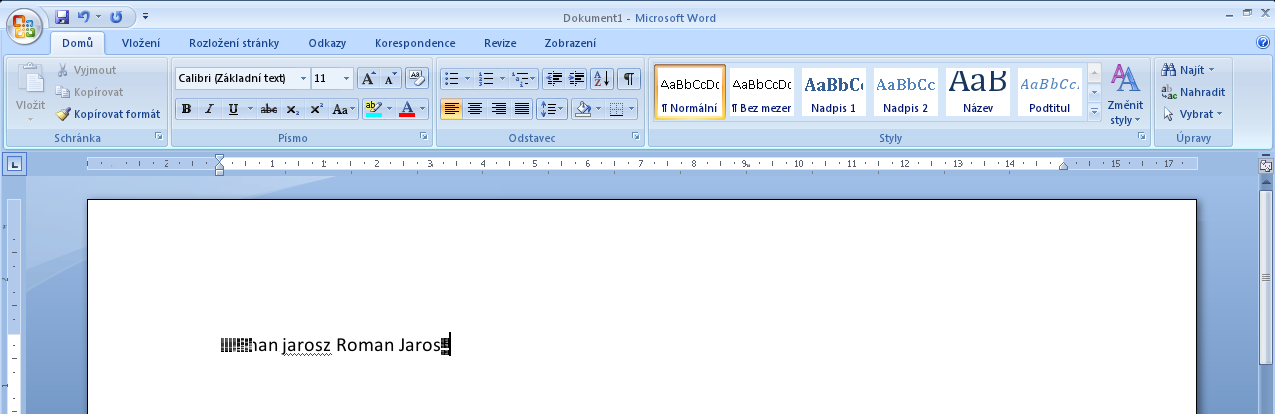

1. The text in WineCfg and WORD is now OK.

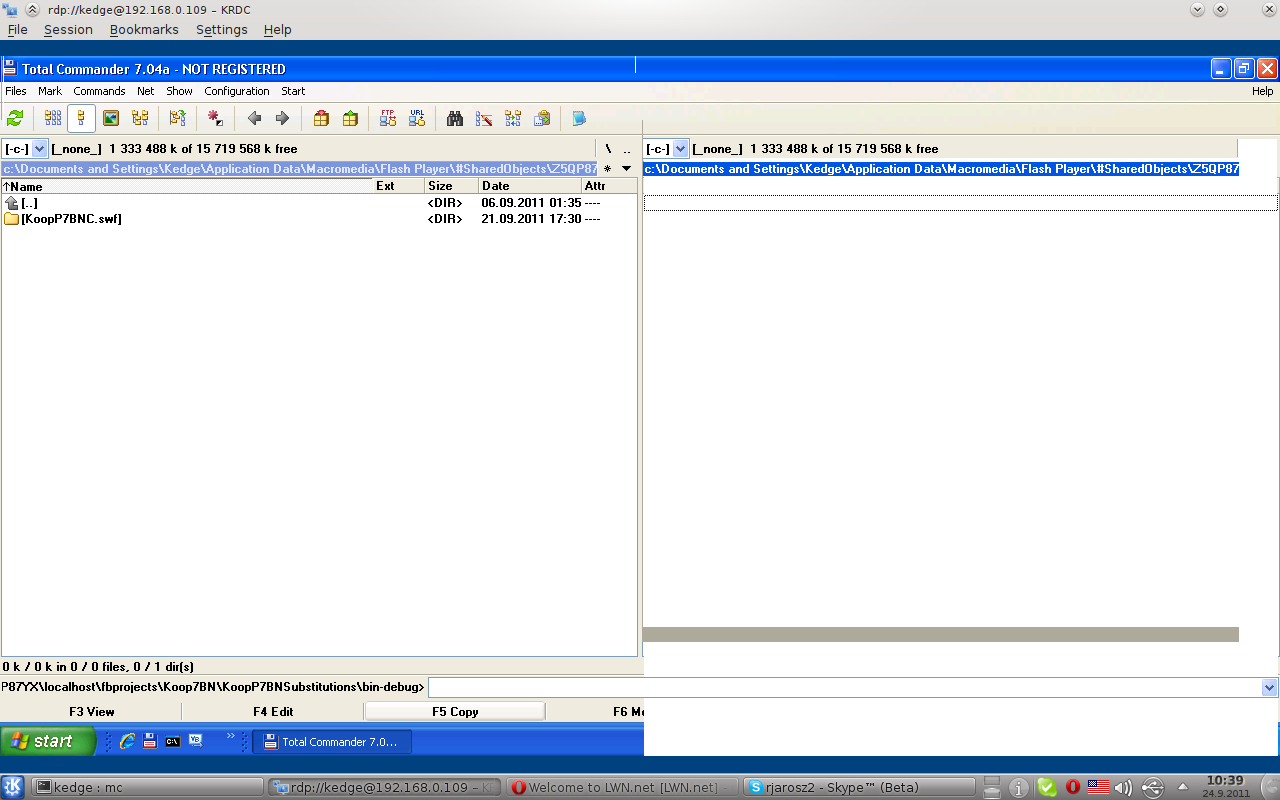

2. The KRDC is still broken as it was.
3. I also get different (bolder, corrupted) text in title bar of KDE windows (screenshot), if I move other window over the title bar sometimes it is rendered correctly sometimes it corrupted even more (no text visible).

Created attachment 51566 [details]
NO_GLYPHS_VIA_MASK 1 and title corruption (only restarted X not whole system)

After system restart it's the same: WINE OK, WORD OK, KRDC broken, +title text broken.

Created attachment 51567 [details]
WORD corruption debug

Don't know if it will help but I've enabled glyph debug and wrote something in MS WORD
#define NO_GLYPHS_VIA_MASK 0
#define DEBUG_GLYPHS (DEBUG_ALL || 1)

I've added tags to log
--------- Started writing ROMANJAROSZROMANJAROSZROMANJAROSZ in MS WORD => corrupted text
--------- Stoped writing ROMANJAROSZROMANJAROSZROMANJAROSZ in MS WORD => corrupted text

The text issue I managed to reproduce and identified the path to investigate. It just happens to be the main path for rendering glyphs so slightly baffling that we've managed to so easily trigger a bug!

Can you explain KRDC, as that is outside my experience and I have no idea what I need to do to reproduce the issue? Alternatively you might be able to find another application that reproduces the same bug. In the meantime an xtrace of the rendering will help me narrow down which paths are in use and so potentially buggy.

Ah, the rendering is also affected by flushing the cache, and in particular submitting a batch for every operation.

Can you try #define DEBUG_FLUSH_BATCH 1 in src/sna/sna.h and see if that helps with KDRC and the other wine applications?

So the text corruption, I have narrowed down to:

diff --git a/src/sna/sna_glyphs.c b/src/sna/sna_glyphs.c
index e0ef313..28f692b 100644
--- a/src/sna/sna_glyphs.c
+++ b/src/sna/sna_glyphs.c
@@ -748,6 +748,8 @@ glyphs_via_mask(struct sna *sna,
                return FALSE;
        }

+       kgem_submit(&sna->kgem);
+
        memset(&tmp, 0, sizeof(tmp));
        glyph_atlas = NULL;
        do {

which leaves me mighty baffled. Nothing new there then. ;-)

And one more clue before I let my subconscious solve this (i.e. sleep), it seems specific to the i965+ architecture - I could not reproduce it on gen3 (i915), but have on gen4 and gen5.

Created attachment 51577 [details]
rdesktop screen corruption xtrace

First just to make it clear in WINE I see only text corruption, not screen corruption (will try if your patch solved it)

In KRDC (rdesktop) I see the screen corruption even with DEBUG_FLUSH_BATCH 1.
To reproduce the bug you can use KRDC or rdesktop ... with rdesktop do
"rdesktop 1.1.1.1" where 1.1.1.1 is ip address of Windows computer with remote desktop enabled, than to reproduce it install/run Total Commander on the Windows computer, happens with other programs (not all) too but it's best visible with Total Commander.

I've captured the xtrace of rdesktop, the corruption should be at the end of log, at the beginning I logged into Windows remote desktop.

Created attachment 51578 [details]
No text with patch

With the kgem_submit(&sna->kgem); in winecfg I see empty text (see screenshoot) and when I'm writing in Word mostly I don't see any text, but when the text sometimes appear it looks ok (no corruption).

One down:

commit 5154e281ed66334a8ff6342236c1203a1e4ac5a3
Author: Chris Wilson <chris@chris-wilson.co.uk>
Date:   Sun Sep 25 09:56:16 2011 +0100

    sna/glyph: Avoid useless attempt at GPU glyph rendering to a1 destinations

    The actual bug is a little involved as we don't damage the temporary
    glyph mask correctly presuming that we only hit GPU paths. However,
    should we fail to prepare the composite operation that paints the mask
    on to the destination, things fail horribly.

    One particular example is that wine like to create its own temporary a1
    buffer for the glyphs (which we render to via another temporary mask...)
    which triggers the delayed fallback and then sw compositing with a random
    buffer.

    Reported-by: Roman Jarosz <kedgedev@gmail.com>
    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=41165
    Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>

Confirming ... commit 5154e281ed66334a8ff6342236c1203a1e4ac5a3 fixed the corruption in winecfg and Word ... thanks a lot!!!

My initial impression of krdc is that it does a lot of 1-bit stippled fills along with back-to-front buffer copies. Didn't see any of my usual bugs (but those are the ones that I already fixed I hope!).

Is KRDC + a remote windows destkop + midnight commander the only way to do this? That's going to be a bit of a hassle for me to reproduce. :|

My guess is that it is going to be an annoying typo somewhere.

Actually the easies way is rdesktop (no KDE app) + remote windows destkop + total commander (it's free to download, http://www.ghisler.com/)

If you don't have computer with Windows I me be able to create access to one ... later this evening.

I was able to get you access to windows box, see mail for access info.

And the second...

commit a53538659d5e18cb5a7a7a7dbd460f35985183fd
Author: Chris Wilson <chris@chris-wilson.co.uk>
Date:   Sun Sep 25 12:40:01 2011 +0100

    sna/accel: Fix s/x/y/ typo in computing relative drawing coordinates

    Reported-by:Roman Jarosz <kedgedev@gmail.com>
    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=41165
    Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>

Works, thanks a lot one more time! ;)
