Bug 41682 - [SNB] Activating rc6 results in render glitches
Summary: [SNB] Activating rc6 results in render glitches
Status: CLOSED FIXED
Alias: None
Product: DRI
Classification: Unclassified
Component: DRM/Intel (show other bugs)
Version: unspecified
Hardware: Other All
: medium normal
Assignee: Eugeni Dodonov
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2011-10-11 06:08 UTC by Florian Ludwig
Modified: 2017-07-24 23:03 UTC (History)
9 users (show)

See Also:
i915 platform:
i915 features:


Attachments

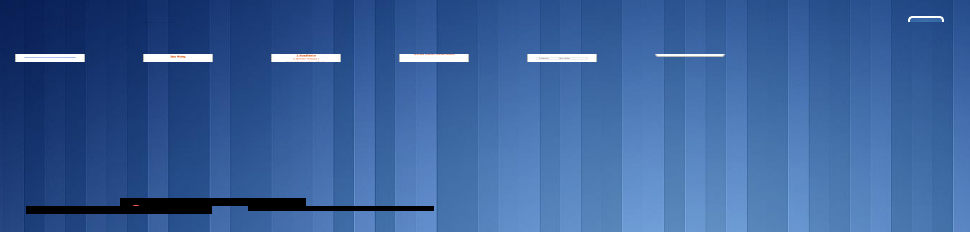

Wallpaper with leftovers (62.62 KB, image/png)
2011-10-11 06:12 UTC, Florian Ludwig
no flags Details

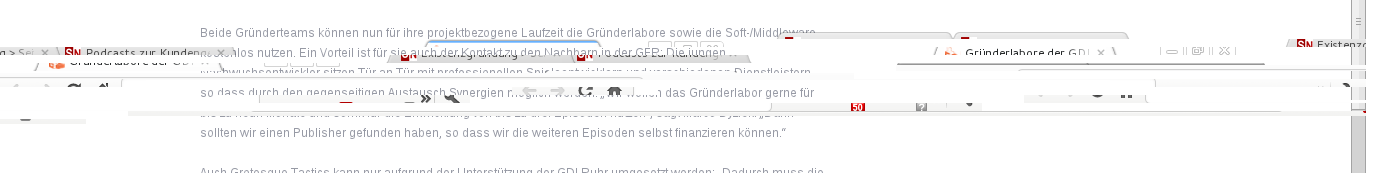

Glitches in Chrome after switching between worspaces in GNOME (28.68 KB, image/png)
2011-10-11 06:13 UTC, Florian Ludwig
no flags Details
Video of rhythmbox, its mostly interesting at about 1:00 (410.23 KB, video/ogg)
2011-10-11 06:20 UTC, Florian Ludwig
no flags Details

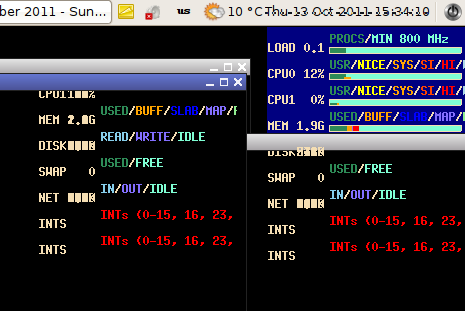

Screen corruption with rc6=1 (14.12 KB, image/png)
2011-10-13 06:37 UTC, Lukas Hejtmanek
no flags Details

Note You need to log in before you can comment on or make changes to this bug.
Description Florian Ludwig 2011-10-11 06:08:39 UTC
Enabling rc6 via kernel parameter: i915.i915_enable_rc6=1 results in render glitches after some usage time (two days without reboot).

Those glitches all seem to be related to redraw problems.

Usage:
 * External monitor through VGA
 * Suspsend-to-ram
 * Software usage, mostly: google chrome, evolution, rhythmbox, pidgin, gnome-terminal and evince
 * no compositing (gnome 3 fallback mode forced)

Problems appear:
 * sometimes when typing in an input field letters disappear
 * the wallpaper collects fragements of other software
 * "animated" widgets, like the progress bar in rhymbox are most prone to glitches

I will attach some screenshots / videos.


Hardware
Thinkpad x220 tablet
Intel(R) Core(TM) i5-2520M CPU @ 2.50GHz
$ lspci
00:00.0 Host bridge: Intel Corporation 2nd Generation Core Processor Family DRAM Controller (rev 09)
00:02.0 VGA compatible controller: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller (rev 09)
00:16.0 Communication controller: Intel Corporation 6 Series/C200 Series Chipset Family MEI Controller #1 (rev 04)
00:16.3 Serial controller: Intel Corporation 6 Series/C200 Series Chipset Family KT Controller (rev 04)
00:19.0 Ethernet controller: Intel Corporation 82579LM Gigabit Network Connection (rev 04)
00:1a.0 USB Controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 (rev 04)
00:1b.0 Audio device: Intel Corporation 6 Series/C200 Series Chipset Family High Definition Audio Controller (rev 04)
00:1c.0 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 (rev b4)
00:1c.1 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 2 (rev b4)
00:1c.3 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 4 (rev b4)
00:1c.4 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 5 (rev b4)
00:1d.0 USB Controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 (rev 04)
00:1f.0 ISA bridge: Intel Corporation QM67 Express Chipset Family LPC Controller (rev 04)
00:1f.2 SATA controller: Intel Corporation 6 Series/C200 Series Chipset Family 6 port SATA AHCI Controller (rev 04)
00:1f.3 SMBus: Intel Corporation 6 Series/C200 Series Chipset Family SMBus Controller (rev 04)
03:00.0 Network controller: Intel Corporation Centrino Advanced-N 6205 (rev 34)
0d:00.0 System peripheral: Ricoh Co Ltd Device e823 (rev 04)


Software
Fedora 15 with:
Mesa 7.11-1
xorg-x11-drv-intel 2.15.0-5
kernel 2.6.40.6-0 (which is, afaik, a renamed 3.0.4 kernel)
Comment 1 Florian Ludwig 2011-10-11 06:12:16 UTC
Created attachment 52213 [details]
Wallpaper with leftovers
Comment 2 Florian Ludwig 2011-10-11 06:13:46 UTC
Created attachment 52214 [details]
Glitches in Chrome after switching between worspaces in GNOME
Comment 3 Florian Ludwig 2011-10-11 06:20:11 UTC
Created attachment 52215 [details]
Video of rhythmbox, its mostly interesting at about 1:00
Comment 4 Eugeni Dodonov 2011-10-11 08:06:14 UTC
Paulo, you have a thinkpad x220, can you reproduce those problems as well?
Comment 5 Eugeni Dodonov 2011-10-11 08:07:45 UTC
Florian, by a chance, do you have SNA enabled?
Comment 6 Florian Ludwig 2011-10-11 08:46:54 UTC
(In reply to comment #5)
> Florian, by a chance, do you have SNA enabled?

I don't think so as I am using the precompiled packages straight out of fedora. But how do I make sure its not?

PS not setting the kernel parameter i915.i915_enable_rc6=1 does produce no problem at all even if the system is running for weeks without reboot.
Comment 7 Gordon Jin 2011-10-11 17:41:33 UTC
(moving to kernel component)
Comment 8 Chris Wilson 2011-10-12 04:46:14 UTC
An odd effect, reminiscent of either a flush going astray and/or a blend state update. (In particular it looks like the flush going missing before a change in blend state ;-)
Comment 9 Daniel Vetter 2011-10-13 02:56:37 UTC
Quick check: Does disabling framebuffer compression help? I.e. please boot with i915.i915_enable_fbc=0 i915.i915_enable_rc6=1
Comment 10 Lukas Hejtmanek 2011-10-13 06:36:51 UTC
(In reply to comment #9)
> Quick check: Does disabling framebuffer compression help? I.e. please boot with
> i915.i915_enable_fbc=0 i915.i915_enable_rc6=1

Does not. Just tried it.

root@anubis:/sys/module/i915/parameters# grep .* *
enable_hangcheck:Y
fbpercrtc:0
i915_enable_fbc:0
i915_enable_rc6:1
lvds_downclock:0
lvds_use_ssc:1
modeset:1
panel_ignore_lid:0
powersave:1
reset:Y
semaphores:0
vbt_sdvo_panel_type:-1


and see attachement..
Comment 11 Lukas Hejtmanek 2011-10-13 06:37:37 UTC
Created attachment 52291 [details]
Screen corruption with rc6=1
Comment 12 Paulo Zanoni 2011-10-13 06:49:03 UTC
(In reply to comment #4)
> Paulo, you have a thinkpad x220, can you reproduce those problems as well?

I'm not sure if I have seen this problem, I'll try to reproduce it and start
paying attention. I use an external VGA monitor but the uptime is always only a
few hours. I'll try to use more sleep and get higher uptimes.

I believe there are more people on our team with x220 laptops (Keith?).
Comment 13 Daniel Vetter 2011-10-13 07:15:45 UTC
For the render corruptions, can you please try the latest git version of
xf86-video-intel, specifically

commit d0184b59095d5b8fab1a65ceba075d29189130d4
Author: Daniel Vetter <daniel.vetter@ffwll.ch>
Date:   Sun Oct 9 18:43:14 2011 +0200

    snb: implement PIPE_CONTROL workaround
Comment 14 Florian Ludwig 2011-10-14 03:20:49 UTC
(In reply to comment #13)
> For the render corruptions, can you please try the latest git version of
> xf86-video-intel, specifically
>
> commit d0184b59095d5b8fab1a65ceba075d29189130d4
> Author: Daniel Vetter <daniel.vetter@ffwll.ch>
> Date:   Sun Oct 9 18:43:14 2011 +0200
>
>     snb: implement PIPE_CONTROL workaround

I checked out git master, compiled and installed it. I still get some corruption. Hope I did all right, though.

$ git log | grep d0184b59095d5b8fab1a65ceba075d29189130d4
commit d0184b59095d5b8fab1a65ceba075d29189130d4

# from Xorg.0.log:
[  1568.266] (II) Loading /usr/lib64/xorg/modules/drivers/intel_drv.so
[  1568.267] (II) Module intel: vendor="X.Org Foundation"
[  1568.267]    compiled for 1.10.4, module version = 2.16.0
[  1568.267]    Module class: X.Org Video Driver
[  1568.267]    ABI class: X.Org Video Driver, version 10.0

$ md5sum /usr/lib64/xorg/modules/drivers/intel_drv.so xf86-video-intel/src/.libs/intel_drv.so
067854b3e477bcd8104cb3d7ca39eccb  /usr/lib64/xorg/modules/drivers/intel_drv.so
067854b3e477bcd8104cb3d7ca39eccb  xf86-video-intel/src/.libs/intel_drv.so

# driver parameters:
fbpercrtc:0
i915_enable_fbc:0
i915_enable_rc6:1
lvds_downclock:0
lvds_use_ssc:1
modeset:-1
panel_ignore_lid:0
powersave:1
reset:Y
semaphores:0
vbt_sdvo_panel_type:-1
Comment 15 Chris Wilson 2011-11-09 12:30:31 UTC
Do you have iommu enabled on this system by any chance, and if so does intel_iommu=off make a difference?
Comment 16 Lukas Hejtmanek 2011-11-10 03:42:15 UTC
(In reply to comment #15)
> Do you have iommu enabled on this system by any chance, and if so does
> intel_iommu=off make a difference?

Personally, I do not enable iommu but I still got corruption with the current git head (as of Nov. 10th). forcewake utility seems to prevent the corruption.

Should I continue here or file another bug?
Comment 17 Chris Wilson 2011-11-10 04:00:26 UTC
(In reply to comment #16)
> (In reply to comment #15)
> > Do you have iommu enabled on this system by any chance, and if so does
> > intel_iommu=off make a difference?
>
> Personally, I do not enable iommu but I still got corruption with the current
> git head (as of Nov. 10th). forcewake utility seems to prevent the corruption.
>
> Should I continue here or file another bug?

That sounds consistent with the original bug description, so I think we are dealing with the same bug and thanks for narrowing down that it does appear to be glitchy only when rc6 takes effect.
Comment 18 Daniel Vetter 2011-11-10 04:15:38 UTC
Eric's recent clock gating fixes might be related. Can you test the latest drm-intel-next from http://cgit.freedesktop.org/~keithp/linux/ please?
Comment 19 Lukas Hejtmanek 2011-11-10 07:22:16 UTC
(In reply to comment #18)
> Eric's recent clock gating fixes might be related. Can you test the latest
> drm-intel-next from http://cgit.freedesktop.org/~keithp/linux/ please?

I cherry picked those two gating patches, but they don't seem to help.
Comment 20 Andy Botting 2012-02-06 08:08:08 UTC
I've been seeing exactly the same problem on my early 2011 Macbook Pro.

Initially, I thought it might have been due to my unsual setup - but it seems not.

I am required to boot in EFI mode to even access the Intel GPU.

There's a bit of trickery required to switch the GMUX from the internal Radeon GPU to the Intel, and also a funky patch to allow me to perform an manual override of the LVDS channels (which I believe is something specific to my type of machine without a traditional BIOS). Without it, the picture never makes it to the screen. It's probably a candidate for another bugzilla entry :)

I'm using an up-to-date Gentoo installation with:

media-libs/mesa-7.11.2
x11-drivers/xf86-video-intel-2.17.0-r3
sys-kernel/vanilla-sources-3.2.2

cd /sys/module/i915/parameters; grep .* *
fbpercrtc:0
i915_enable_fbc:-1
i915_enable_rc6:1
lvds_channels:2
lvds_downclock:0
lvds_use_ssc:0
modeset:1
panel_ignore_lid:0
powersave:1
reset:Y
semaphores:-1
vbt_sdvo_panel_type:-1

Disabling RC6 fixes all the glitches, but also increases my power consumption by approx 10W. It's something like: rc6=0: 26W, rc6=1: 13W.

Would love to get this worked out. Let me know if I can test anything or provide any more information.
Comment 21 Andy Botting 2012-02-06 08:53:36 UTC
Just a little follow-up information

My kernel args look like this:
BOOT_IMAGE=/kernel-genkernel-x86_64-3.2.2 root=/dev/ram0 real_root=/dev/mapper/vg-gentoo init=/linuxrc dolvm rootfstype=ext4 reboot=pci acpi_backlight=vendor pcie_aspm=force i915.lvds_channels=2 i915.modeset=1 i915.lvds_use_ssc=0 intel_iommu=off i915.i915_enable_rc6=1

I'm using kernel 3.2.2, but I require this patch to get the Intel GPU output to the screen:
'Implement manual override of LVDS single/dual channel mode'
http://lists.freedesktop.org/archives/intel-gfx/2011-March/009584.html

To make this patch work, this commit had to be reverted:
4b645f14021871e06ce96c359bbdf0b48248c26e
drm/i915: add PLL sharing support to handle 3 pipes
Comment 22 Eugeni Dodonov 2012-04-02 11:05:06 UTC
Could you please re-test with kernel 3.3 and RC6 enabled? I am pretty certain it should fix the problem for you.
Comment 23 Chris Wilson 2012-04-14 06:34:07 UTC
Believed to be fixed by disabling the deeper rc6 power states (rc6p and rc6pp).
Comment 24 Florian Mickler 2012-04-16 14:33:55 UTC
A patch referencing this bug report has been merged in Linux v3.4-rc2:

commit aa46419186992e6b8b8010319f0ca7f40a0d13f5
Author: Eugeni Dodonov <eugeni.dodonov@intel.com>
Date:   Fri Mar 23 11:57:19 2012 -0300

    drm/i915: enable plain RC6 on Sandy Bridge by default


Use of freedesktop.org services, including Bugzilla, is subject to our Code of Conduct. How we collect and use information is described in our Privacy Policy.
