Created attachment 56809 [details] dmesg After running the game OilRush (or several titles with Wine) window borders in the desktop environment fails to redraw (see screenshot). This only happens when the in game resolution is less then the desktop, so running the desktop in 1680x1050 and the game in 1280x800 results in the bug, running both the desktop and the game in 1680x1050 does not result in the bug. I'm using the GNOME fallback environment so no compositing and it's Metacity that draws the window borders. These messages are repeated in dmesg: [ 161.611967] radeon 0000:01:00.0: evergreen_surface_check_linear_aligned:213 cb pitch 1728 invalid must be aligned with 128 [ 161.611973] radeon 0000:01:00.0: evergreen_cs_track_validate_cb:426 cb[0] invalid (0x000000d7 0x00006f5f 0x00000890 0x01088168) [ 161.611977] radeon 0000:01:00.0: evergreen_packet3_check:1918 invalid cmd stream 465 [ 161.611980] [drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream ! [ 168.020581] radeon 0000:01:00.0: evergreen_cs_track_validate_texture:728 texture bo too small (layer size 7526400, offset 0, max layer 1, depth 1, bo size 7299072) (1792 1050) System environment: -- system architecture: 32-bit -- Linux distribution: Debian unstable -- GPU: REDWOOD -- Model: XFX Radeon HD 5670 1GB -- Display connector: DVI -- xf86-video-ati: e20284409937d784847339b5d466a95012d85940 -- xserver: 1.11.99.901 -- mesa: 192467108b282c19da3b11647a7a802b3d890193 -- drm: 230ec7d7bbf1e8a7e263d471b21afb08c28eba0c -- kernel: 3.3.0-rc2 + streamout and tiling patches

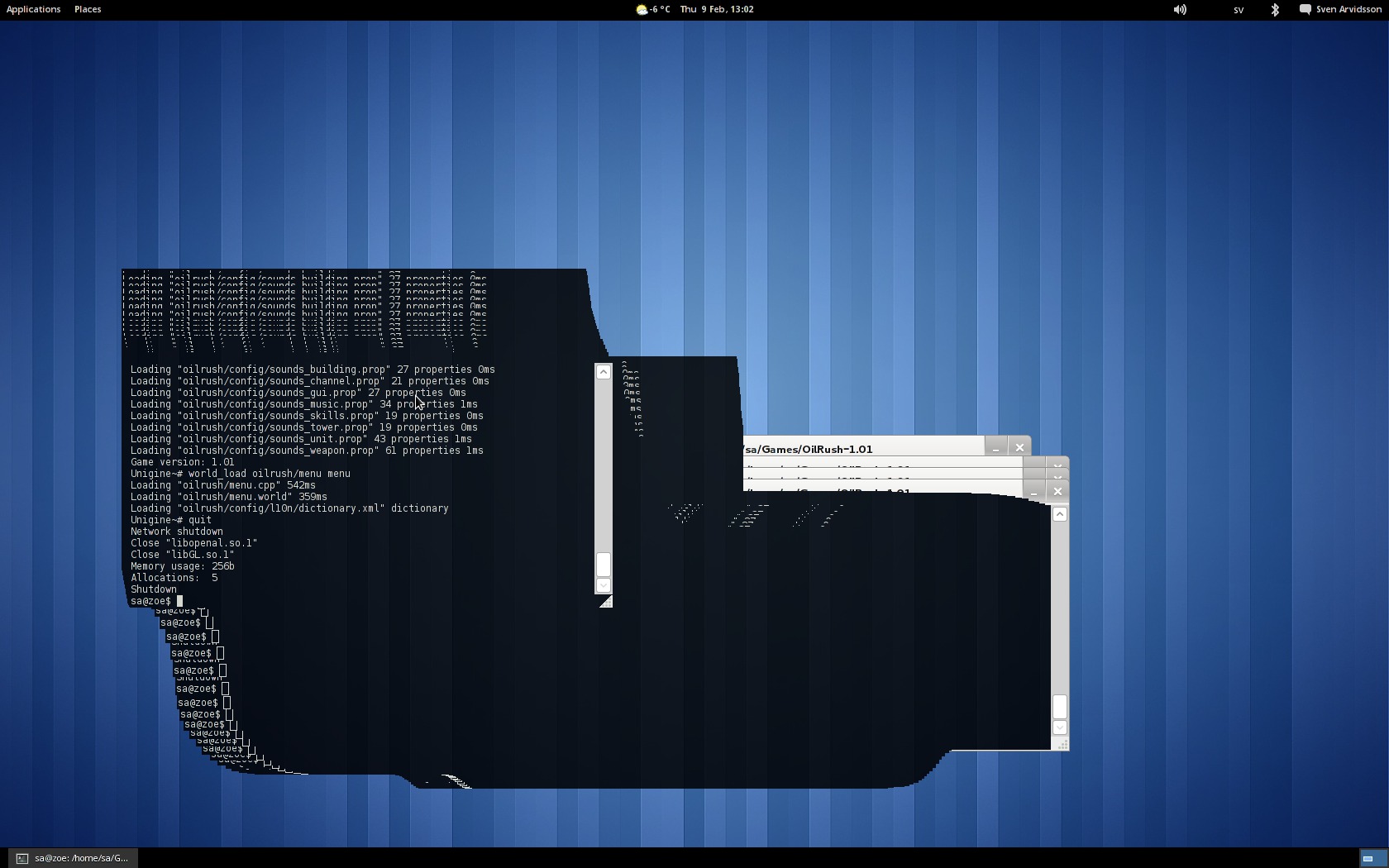

Created attachment 56810 [details] screenshot of bug
Created attachment 56866 [details] [review] Force linear aligned alloc Can you check if this ddx patch fix the issue ?

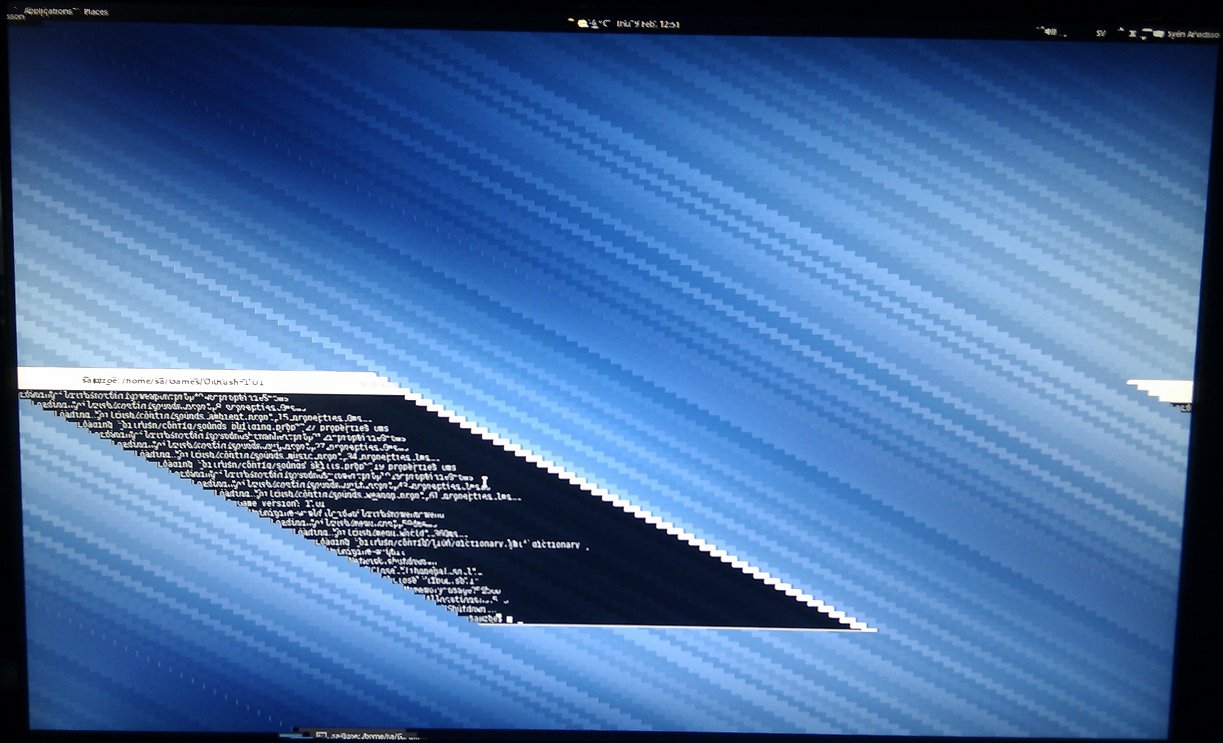

Created attachment 56873 [details] Screenshot of second bug (In reply to comment #2) > > Can you check if this ddx patch fix the issue ? No change with the patch I'm afraid. There's also a second problem which might be related to this one. If ColorTiling2D is turned OFF but I launch the game in 1280x800 (or another resolution different from my desktop) I get a corrupt screen in X. (This does not show up in a screenshot so you'll have to excuse the crappy cell phone photo.)
Please update ddx & libdrm to master, especialy check you have following commit lidrm: 9b3ad51ae5fd9654df8ef75de845a519015150bb radeon: fix pitch alignment for scanout buffer ddx: 2778b56252124ef6f636a493d2e1457b43911c37 radeon: r6xx-eg use linear general when using scratch bo With both of those commit all you issue should be fixed.
Thanks, it seems to be working fine now!
Reopen if any use case you have is still broken
Should this be fixed in x11-libs/libdrm-2.4.33 (installed 29/03/12) and x11-drivers/xf86-video-ati-6.14.4-r1 (installed 26/04/12)? Wondering, because I still get: [ 261.750141] radeon 0000:03:00.0: evergreen_cs_track_validate_texture:796 texture bo too small (layer size 7526400, offset 0, max layer 1, depth 1, bo size 7299072) (1792 1050) [ 261.750151] [drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream ! [ 296.562519] radeon 0000:03:00.0: evergreen_cs_track_validate_texture:796 texture bo too small (layer size 7526400, offset 0, max layer 1, depth 1, bo size 7299072) (1792 1050) [ 296.562530] [drm:radeon_cs_ib_chunk] *ERROR* Invalid command stream !
