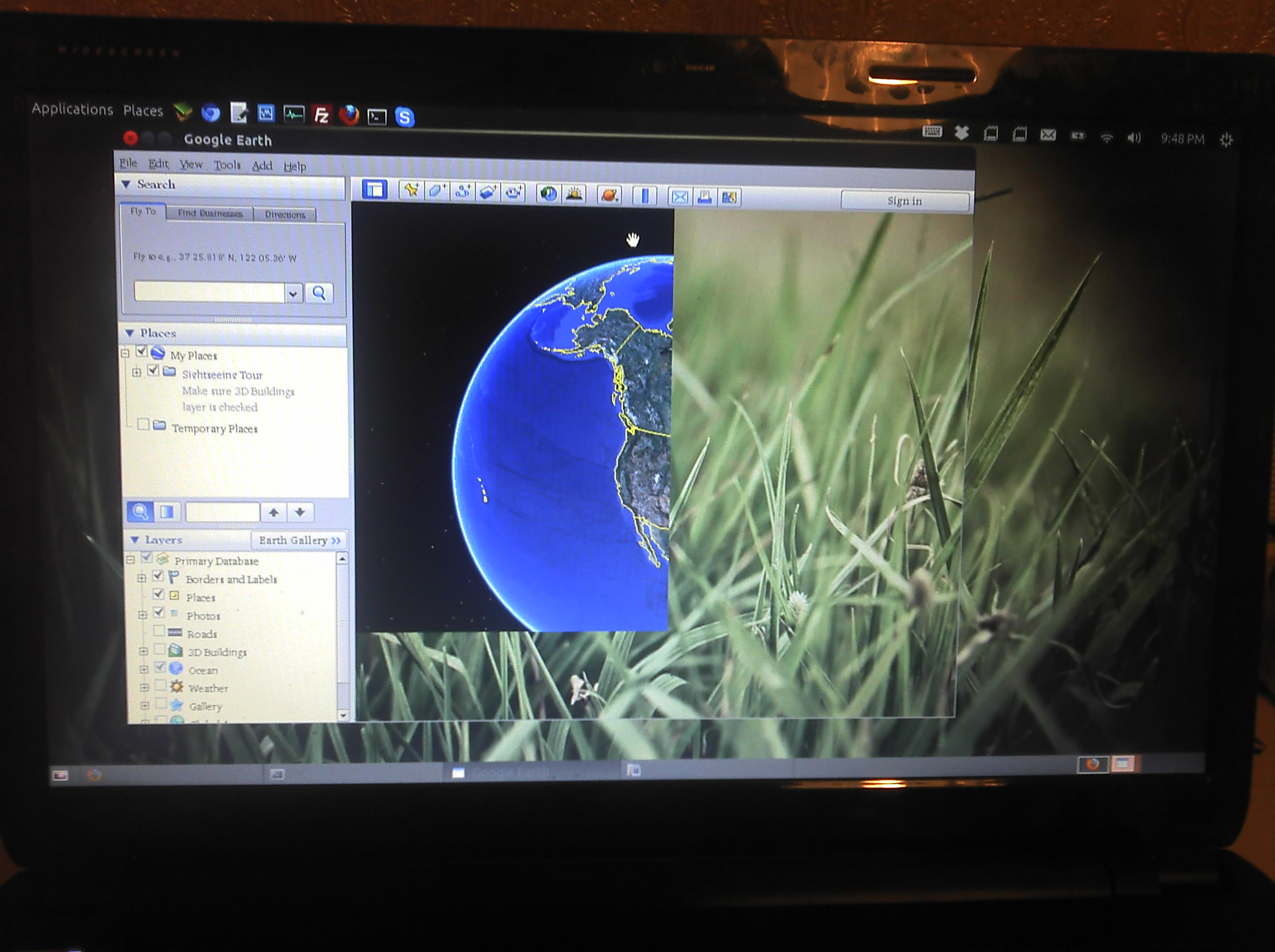

Created attachment 58453 [details] screenshot of Google Earth under Gnome fall-back mode The OpenGL content is not displayed correctly in Gnome fall-back mode. Only right up corner of the content is available. When the window is dragged the position of available content is fixed, and the other part keeps black or nothing. For example, when the Google Earth window is dragged to the right part of the screen there is no 3D content displayed in the window. The same problem happened with glxgears, glxspheres, etc. While glxgears can be seen when the window is inside a very small region of the left up corner of the screen, glxspheres can displayed when the window is inside a much larger part of the left up part of the screen. 1) System environment: -- chipset: Intel HD Graphics 3000 -- system architecture: x86_64 -- xf86-video-intel version: 2.18.0 xserver version: 7.6 Mesa version: 8.0.1 libdrm versoin: 2.4.31 -- kernel version: 3.2.0-18-generic -- Linux distribution: DISTRIB_ID=Ubuntu DISTRIB_RELEASE=12.04 DISTRIB_CODENAME=precise DISTRIB_DESCRIPTION="Ubuntu precise (development branch)" -- Machine or mobo model: Hasee K580P -- Display connector: Laptop LED 2) Reproduce steps: Just run any OpenGL program under Gnome fall-back mode or Unity 2D mode.
Please attach your Xorg.log.
Output of glxinfo would be great as well. Also, how are you getting to GNOME Fallback mode? I've only ever arrived in that environment when my 3D driver is hosed. At which point...well...bug reports don't sound very interesting. :) It sounds like you've explicitly chosen to run in fallback mode though.
Sorry, I can't find any xorg log file under /var/log/ directory. Can it be in some other place? I've installed bumblebee on my system, but I'm sure the opengl doesn't work properly without bumblebee. On Wed, Mar 14, 2012 at 11:08 PM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #1 from Chris Wilson <chris@chris-wilson.co.uk> 2012-03-14 > 15:08:23 PDT --- > Please attach your Xorg.log. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
I use xorg.log as shorthand for /var/log/Xorg.0.log (as the '0' may be any number depending upon your configuration and login manager). Just attach the most recent of /var/log/Xorg.*.log*.
I just choose "Gnome Classic ( no effect )" in GDM login screen. In fact, most of the 3D desktops is very unstable when I run 3D applications in my computer, include Gnome 3, Gnome Classic, Unity 3D, KDE with desktop effect. So I choose Gnome fall-back mode. Though the 3d application doesn't run correctly, it is much more stable. And much more available for my work. What I must figure out is that my cpu is a i7 engineer sample with a D0 step. But I don't think it's an issue, the graphics works very well under Windows 7. for glxgears, glxspheres and 3d game like Nexuiz, It works very well when I use run it with optirun ( discrete graphic card ). But for Google Earth, it the same appearance when I put optirun before it. It's a bit strange, when I was using Ubuntu 11.10, optirun google-earth works well while it's the same issue when I run it without optirun. And for Warzone 2100 under Ubuntu 11.10 in full screen mode, it works very well even without optirun. And for VLC media player, the video output is also not correct when I choose "OpenGL GLX vidoe output". So I have to choose X11 video output, which may be slower. On Wed, Mar 14, 2012 at 11:24 PM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #2 from Kenneth Graunke <kenneth@whitecape.org> 2012-03-14 > 15:24:30 PDT --- > Output of glxinfo would be great as well. > > Also, how are you getting to GNOME Fallback mode? I've only ever arrived > in > that environment when my 3D driver is hosed. At which point...well...bug > reports don't sound very interesting. :) It sounds like you've explicitly > chosen to run in fallback mode though. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
Thank you. I got it. It really under /var/log, I don't known why I didn't find it just now. I'm sorry for that. You can find it in the attachment /var/log/Xorg.0.log : [ 2825.012] X.Org X Server 1.12.0 Release Date: 2012-03-04 [ 2825.012] X Protocol Version 11, Revision 0 [ 2825.012] Build Operating System: Linux 2.6.24-31-xen x86_64 Ubuntu [ 2825.012] Current Operating System: Linux kli-k580p 3.2.0-18-generic #29-Ubuntu SMP Fri Mar 9 21:36:08 UTC 2012 x86_64 [ 2825.012] Kernel command line: BOOT_IMAGE=/vmlinuz-3.2.0-18-generic root=UUID=844e076b-5fd3-4d17-aac5-4703a0c65eb1 ro noapic quiet splash vt.handoff=7 [ 2825.012] Build Date: 08 March 2012 07:12:03AM [ 2825.012] xorg-server 2:1.12.0+git20120308+server-1.12-branch.b1be72c5-0ubuntu0ricotz (For technical support please see http://www.ubuntu.com/support) [ 2825.012] Current version of pixman: 0.25.2 [ 2825.012] Before reporting problems, check http://wiki.x.org to make sure that you have the latest version. [ 2825.012] Markers: (--) probed, (**) from config file, (==) default setting, (++) from command line, (!!) notice, (II) informational, (WW) warning, (EE) error, (NI) not implemented, (??) unknown. [ 2825.012] (==) Log file: "/var/log/Xorg.0.log", Time: Thu Mar 15 11:18:43 2012 [ 2825.013] (==) Using system config directory "/usr/share/X11/xorg.conf.d" [ 2825.013] (==) No Layout section. Using the first Screen section. [ 2825.013] (==) No screen section available. Using defaults. [ 2825.013] (**) |-->Screen "Default Screen Section" (0) [ 2825.013] (**) | |-->Monitor "<default monitor>" [ 2825.013] (==) No monitor specified for screen "Default Screen Section". Using a default monitor configuration. [ 2825.014] (==) Automatically adding devices [ 2825.014] (==) Automatically enabling devices [ 2825.014] (WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist. [ 2825.014] Entry deleted from font path. [ 2825.014] (WW) The directory "/usr/share/fonts/X11/100dpi/" does not exist. [ 2825.014] Entry deleted from font path. [ 2825.014] (WW) The directory "/usr/share/fonts/X11/75dpi/" does not exist. [ 2825.014] Entry deleted from font path. [ 2825.014] (WW) The directory "/usr/share/fonts/X11/100dpi" does not exist. [ 2825.014] Entry deleted from font path. [ 2825.014] (WW) The directory "/usr/share/fonts/X11/75dpi" does not exist. [ 2825.014] Entry deleted from font path. [ 2825.014] (WW) `fonts.dir' not found (or not valid) in "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType". [ 2825.014] Entry deleted from font path. [ 2825.014] (Run 'mkfontdir' on "/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType"). [ 2825.014] (==) FontPath set to: /usr/share/fonts/X11/misc, /usr/share/fonts/X11/Type1, built-ins [ 2825.014] (==) ModulePath set to "/usr/lib/x86_64-linux-gnu/xorg/extra-modules,/usr/lib/xorg/extra-modules,/usr/lib/xorg/modules" [ 2825.014] (II) The server relies on udev to provide the list of input devices. If no devices become available, reconfigure udev or disable AutoAddDevices. [ 2825.014] (II) Loader magic: 0x7f888b4bdb00 [ 2825.014] (II) Module ABI versions: [ 2825.014] X.Org ANSI C Emulation: 0.4 [ 2825.014] X.Org Video Driver: 12.0 [ 2825.014] X.Org XInput driver : 16.0 [ 2825.014] X.Org Server Extension : 6.0 [ 2825.015] (--) PCI:*(0:0:2:0) 8086:0126:152d:0875 rev 7, Mem @ 0xd2400000/4194304, 0xc0000000/268435456, I/O @ 0x00007000/64 [ 2825.015] (II) Open ACPI successful (/var/run/acpid.socket) [ 2825.015] (II) LoadModule: "extmod" [ 2825.016] (II) Loading /usr/lib/xorg/modules/extensions/libextmod.so [ 2825.017] (II) Module extmod: vendor="X.Org Foundation" [ 2825.017] compiled for 1.12.0, module version = 1.0.0 [ 2825.017] Module class: X.Org Server Extension [ 2825.017] ABI class: X.Org Server Extension, version 6.0 [ 2825.017] (II) Loading extension MIT-SCREEN-SAVER [ 2825.017] (II) Loading extension XFree86-VidModeExtension [ 2825.017] (II) Loading extension XFree86-DGA [ 2825.017] (II) Loading extension DPMS [ 2825.017] (II) Loading extension XVideo [ 2825.017] (II) Loading extension XVideo-MotionCompensation [ 2825.017] (II) Loading extension X-Resource [ 2825.017] (II) LoadModule: "dbe" [ 2825.017] (II) Loading /usr/lib/xorg/modules/extensions/libdbe.so [ 2825.018] (II) Module dbe: vendor="X.Org Foundation" [ 2825.018] compiled for 1.12.0, module version = 1.0.0 [ 2825.018] Module class: X.Org Server Extension [ 2825.018] ABI class: X.Org Server Extension, version 6.0 [ 2825.018] (II) Loading extension DOUBLE-BUFFER [ 2825.018] (II) LoadModule: "glx" [ 2825.018] (II) Loading /usr/lib/xorg/modules/extensions/libglx.so [ 2825.018] (II) Module glx: vendor="X.Org Foundation" [ 2825.018] compiled for 1.12.0, module version = 1.0.0 [ 2825.018] ABI class: X.Org Server Extension, version 6.0 [ 2825.018] (==) AIGLX enabled [ 2825.019] (II) Loading extension GLX [ 2825.019] (II) LoadModule: "record" [ 2825.019] (II) Loading /usr/lib/xorg/modules/extensions/librecord.so [ 2825.019] (II) Module record: vendor="X.Org Foundation" [ 2825.019] compiled for 1.12.0, module version = 1.13.0 [ 2825.019] Module class: X.Org Server Extension [ 2825.019] ABI class: X.Org Server Extension, version 6.0 [ 2825.019] (II) Loading extension RECORD [ 2825.019] (II) LoadModule: "dri" [ 2825.020] (II) Loading /usr/lib/xorg/modules/extensions/libdri.so [ 2825.020] (II) Module dri: vendor="X.Org Foundation" [ 2825.020] compiled for 1.12.0, module version = 1.0.0 [ 2825.020] ABI class: X.Org Server Extension, version 6.0 [ 2825.020] (II) Loading extension XFree86-DRI [ 2825.020] (II) LoadModule: "dri2" [ 2825.021] (II) Loading /usr/lib/xorg/modules/extensions/libdri2.so [ 2825.021] (II) Module dri2: vendor="X.Org Foundation" [ 2825.021] compiled for 1.12.0, module version = 1.2.0 [ 2825.021] ABI class: X.Org Server Extension, version 6.0 [ 2825.021] (II) Loading extension DRI2 [ 2825.021] (==) Matched intel as autoconfigured driver 0 [ 2825.021] (==) Matched vesa as autoconfigured driver 1 [ 2825.021] (==) Matched fbdev as autoconfigured driver 2 [ 2825.021] (==) Assigned the driver to the xf86ConfigLayout [ 2825.021] (II) LoadModule: "intel" [ 2825.022] (II) Loading /usr/lib/xorg/modules/drivers/intel_drv.so [ 2825.022] (II) Module intel: vendor="X.Org Foundation" [ 2825.022] compiled for 1.12.0, module version = 2.18.0 [ 2825.022] Module class: X.Org Video Driver [ 2825.022] ABI class: X.Org Video Driver, version 12.0 [ 2825.022] (II) LoadModule: "vesa" [ 2825.022] (II) Loading /usr/lib/xorg/modules/drivers/vesa_drv.so [ 2825.022] (II) Module vesa: vendor="X.Org Foundation" [ 2825.022] compiled for 1.11.99.901, module version = 2.3.0 [ 2825.023] Module class: X.Org Video Driver [ 2825.023] ABI class: X.Org Video Driver, version 12.0 [ 2825.023] (II) LoadModule: "fbdev" [ 2825.023] (II) Loading /usr/lib/xorg/modules/drivers/fbdev_drv.so [ 2825.023] (II) Module fbdev: vendor="X.Org Foundation" [ 2825.023] compiled for 1.11.99.901, module version = 0.4.2 [ 2825.023] Module class: X.Org Video Driver [ 2825.023] ABI class: X.Org Video Driver, version 12.0 [ 2825.023] (II) intel: Driver for Intel Integrated Graphics Chipsets: i810, i810-dc100, i810e, i815, i830M, 845G, 854, 852GM/855GM, 865G, 915G, E7221 (i915), 915GM, 945G, 945GM, 945GME, Pineview GM, Pineview G, 965G, G35, 965Q, 946GZ, 965GM, 965GME/GLE, G33, Q35, Q33, GM45, 4 Series, G45/G43, Q45/Q43, G41, B43, B43, Clarkdale, Arrandale, Sandybridge Desktop (GT1), Sandybridge Desktop (GT2), Sandybridge Desktop (GT2+), Sandybridge Mobile (GT1), Sandybridge Mobile (GT2), Sandybridge Mobile (GT2+), Sandybridge Server, Ivybridge Mobile (GT1), Ivybridge Mobile (GT2), Ivybridge Desktop (GT1), Ivybridge Desktop (GT2), Ivybridge Server [ 2825.024] (II) VESA: driver for VESA chipsets: vesa [ 2825.024] (II) FBDEV: driver for framebuffer: fbdev [ 2825.024] (--) using VT number 8 [ 2825.029] (WW) Falling back to old probe method for vesa [ 2825.030] (WW) Falling back to old probe method for fbdev [ 2825.030] (II) Loading sub module "fbdevhw" [ 2825.030] (II) LoadModule: "fbdevhw" [ 2825.030] (II) Loading /usr/lib/xorg/modules/libfbdevhw.so [ 2825.030] (II) Module fbdevhw: vendor="X.Org Foundation" [ 2825.030] compiled for 1.12.0, module version = 0.0.2 [ 2825.030] ABI class: X.Org Video Driver, version 12.0 [ 2825.031] drmOpenDevice: node name is /dev/dri/card0 [ 2825.031] drmOpenDevice: open result is 9, (OK) [ 2825.031] drmOpenByBusid: Searching for BusID pci:0000:00:02.0 [ 2825.031] drmOpenDevice: node name is /dev/dri/card0 [ 2825.031] drmOpenDevice: open result is 9, (OK) [ 2825.031] drmOpenByBusid: drmOpenMinor returns 9 [ 2825.031] drmOpenByBusid: drmGetBusid reports pci:0000:00:02.0 [ 2825.031] (II) intel(0): Creating default Display subsection in Screen section "Default Screen Section" for depth/fbbpp 24/32 [ 2825.031] (==) intel(0): Depth 24, (--) framebuffer bpp 32 [ 2825.031] (==) intel(0): RGB weight 888 [ 2825.031] (==) intel(0): Default visual is TrueColor [ 2825.031] (II) intel(0): Integrated Graphics Chipset: Intel(R) Sandybridge Mobile (GT2+) [ 2825.031] (--) intel(0): Chipset: "Sandybridge Mobile (GT2+)" [ 2825.031] (**) intel(0): Shadow buffer enabled, 2D GPU acceleration disabled. [ 2825.031] (**) intel(0): Relaxed fencing enabled [ 2825.031] (**) intel(0): Wait on SwapBuffers? enabled [ 2825.031] (**) intel(0): Triple buffering? enabled [ 2825.031] (**) intel(0): Framebuffer tiled [ 2825.032] (**) intel(0): Pixmaps tiled [ 2825.032] (**) intel(0): 3D buffers tiled [ 2825.032] (**) intel(0): SwapBuffers wait enabled [ 2825.032] (==) intel(0): video overlay key set to 0x101fe [ 2825.032] (II) intel(0): Output LVDS1 has no monitor section [ 2825.032] (II) intel(0): found backlight control interface /sys/class/backlight/acpi_video1 [ 2825.032] (II) intel(0): Output VGA1 has no monitor section [ 2825.037] (II) intel(0): Output HDMI1 has no monitor section [ 2825.084] (II) intel(0): Output DP1 has no monitor section [ 2825.084] (II) intel(0): EDID for output LVDS1 [ 2825.084] (II) intel(0): Manufacturer: AUO Model: 22ec Serial#: 0 [ 2825.084] (II) intel(0): Year: 2009 Week: 1 [ 2825.084] (II) intel(0): EDID Version: 1.3 [ 2825.084] (II) intel(0): Digital Display Input [ 2825.084] (II) intel(0): Max Image Size [cm]: horiz.: 34 vert.: 19 [ 2825.084] (II) intel(0): Gamma: 2.20 [ 2825.084] (II) intel(0): No DPMS capabilities specified [ 2825.084] (II) intel(0): Supported color encodings: RGB 4:4:4 YCrCb 4:4:4 [ 2825.084] (II) intel(0): First detailed timing is preferred mode [ 2825.084] (II) intel(0): redX: 0.620 redY: 0.340 greenX: 0.330 greenY: 0.570 [ 2825.084] (II) intel(0): blueX: 0.150 blueY: 0.060 whiteX: 0.313 whiteY: 0.329 [ 2825.084] (II) intel(0): Manufacturer's mask: 0 [ 2825.084] (II) intel(0): Supported detailed timing: [ 2825.084] (II) intel(0): clock: 69.3 MHz Image Size: 344 x 193 mm [ 2825.084] (II) intel(0): h_active: 1366 h_sync: 1398 h_sync_end 1422 h_blank_end 1432 h_border: 0 [ 2825.084] (II) intel(0): v_active: 768 v_sync: 771 v_sync_end 775 v_blanking: 806 v_border: 0 [ 2825.084] (II) intel(0): Unknown vendor-specific block f [ 2825.084] (II) intel(0): AUO [ 2825.084] (II) intel(0): B156XW02 V2 [ 2825.084] (II) intel(0): EDID (in hex): [ 2825.085] (II) intel(0): 00ffffffffffff0006afec2200000000 [ 2825.085] (II) intel(0): 01130103802213780ac8959e57549226 [ 2825.085] (II) intel(0): 0f505400000001010101010101010101 [ 2825.085] (II) intel(0): 010101010101121b5642500026302018 [ 2825.085] (II) intel(0): 340058c1100000180000000f00000000 [ 2825.085] (II) intel(0): 00000000000000000020000000fe0041 [ 2825.085] (II) intel(0): 554f0a202020202020202020000000fe [ 2825.085] (II) intel(0): 004231353658573032205632200a00c0 [ 2825.085] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2825.085] (II) intel(0): Printing DDC gathered Modelines: [ 2825.085] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2825.085] (II) intel(0): Not using default mode "320x240" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "400x300" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "400x300" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "512x384" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "640x480" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "640x512" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "800x600" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "896x672" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "928x696" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "960x720" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "576x432" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "680x384" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "680x384" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "700x525" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "720x450" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "800x512" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "840x525" (doublescan mode not supported) [ 2825.085] (II) intel(0): Not using default mode "840x525" (doublescan mode not supported) [ 2825.086] (II) intel(0): Not using default mode "960x540" (doublescan mode not supported) [ 2825.086] (II) intel(0): Not using default mode "960x600" (doublescan mode not supported) [ 2825.086] (II) intel(0): Not using default mode "1024x768" (doublescan mode not supported) [ 2825.086] (II) intel(0): Printing probed modes for output LVDS1 [ 2825.086] (II) intel(0): Modeline "1366x768"x60.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2825.086] (II) intel(0): Modeline "1360x768"x59.8 84.75 1360 1432 1568 1776 768 771 781 798 -hsync +vsync (47.7 kHz d) [ 2825.086] (II) intel(0): Modeline "1360x768"x60.0 72.00 1360 1408 1440 1520 768 771 781 790 +hsync -vsync (47.4 kHz d) [ 2825.086] (II) intel(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz d) [ 2825.086] (II) intel(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz d) [ 2825.086] (II) intel(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz d) [ 2825.086] (II) intel(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz d) [ 2825.086] (II) intel(0): EDID for output VGA1 [ 2825.091] (II) intel(0): EDID for output HDMI1 [ 2825.136] (II) intel(0): EDID for output DP1 [ 2825.136] (II) intel(0): Output LVDS1 connected [ 2825.136] (II) intel(0): Output VGA1 disconnected [ 2825.136] (II) intel(0): Output HDMI1 disconnected [ 2825.136] (II) intel(0): Output DP1 disconnected [ 2825.136] (II) intel(0): Using exact sizes for initial modes [ 2825.136] (II) intel(0): Output LVDS1 using initial mode 1366x768 [ 2825.136] (II) intel(0): Using default gamma of (1.0, 1.0, 1.0) unless otherwise stated. [ 2825.136] (II) intel(0): Kernel page flipping support detected, enabling [ 2825.136] (**) intel(0): Display dimensions: (340, 190) mm [ 2825.136] (**) intel(0): DPI set to (102, 102) [ 2825.136] (II) Loading sub module "fb" [ 2825.136] (II) LoadModule: "fb" [ 2825.137] (II) Loading /usr/lib/xorg/modules/libfb.so [ 2825.137] (II) Module fb: vendor="X.Org Foundation" [ 2825.137] compiled for 1.12.0, module version = 1.0.0 [ 2825.137] ABI class: X.Org ANSI C Emulation, version 0.4 [ 2825.137] (II) Loading sub module "dri2" [ 2825.137] (II) LoadModule: "dri2" [ 2825.138] (II) Loading /usr/lib/xorg/modules/extensions/libdri2.so [ 2825.138] (II) Module dri2: vendor="X.Org Foundation" [ 2825.138] compiled for 1.12.0, module version = 1.2.0 [ 2825.138] ABI class: X.Org Server Extension, version 6.0 [ 2825.138] (II) UnloadModule: "vesa" [ 2825.138] (II) Unloading vesa [ 2825.138] (II) UnloadModule: "fbdev" [ 2825.138] (II) Unloading fbdev [ 2825.138] (II) UnloadSubModule: "fbdevhw" [ 2825.138] (II) Unloading fbdevhw [ 2825.138] (==) Depth 24 pixmap format is 32 bpp [ 2825.138] (II) intel(0): [DRI2] Setup complete [ 2825.138] (II) intel(0): [DRI2] DRI driver: i965 [ 2825.138] (II) intel(0): Allocated new frame buffer 1408x768 stride 5632, tiled [ 2825.140] (II) UXA(0): Driver registered support for the following operations: [ 2825.140] (II) solid [ 2825.140] (II) copy [ 2825.140] (II) composite (RENDER acceleration) [ 2825.140] (II) put_image [ 2825.140] (II) get_image [ 2825.140] (==) intel(0): Backing store disabled [ 2825.140] (==) intel(0): Silken mouse enabled [ 2825.140] (II) intel(0): Initializing HW Cursor [ 2825.208] (II) intel(0): RandR 1.2 enabled, ignore the following RandR disabled message. [ 2825.209] (==) intel(0): DPMS enabled [ 2825.209] (==) intel(0): Intel XvMC decoder enabled [ 2825.209] (WW) intel(0): Disabling Xv because no adaptors could be initialized. [ 2825.209] (II) intel(0): direct rendering: DRI2 Enabled [ 2825.209] (==) intel(0): hotplug detection: "enabled" [ 2825.210] (--) RandR disabled [ 2825.210] (II) Initializing built-in extension Generic Event Extension [ 2825.210] (II) Initializing built-in extension SHAPE [ 2825.210] (II) Initializing built-in extension MIT-SHM [ 2825.210] (II) Initializing built-in extension XInputExtension [ 2825.210] (II) Initializing built-in extension XTEST [ 2825.210] (II) Initializing built-in extension BIG-REQUESTS [ 2825.210] (II) Initializing built-in extension SYNC [ 2825.210] (II) Initializing built-in extension XKEYBOARD [ 2825.210] (II) Initializing built-in extension XC-MISC [ 2825.210] (II) Initializing built-in extension SECURITY [ 2825.210] (II) Initializing built-in extension XINERAMA [ 2825.210] (II) Initializing built-in extension XFIXES [ 2825.210] (II) Initializing built-in extension RENDER [ 2825.210] (II) Initializing built-in extension RANDR [ 2825.210] (II) Initializing built-in extension COMPOSITE [ 2825.210] (II) Initializing built-in extension DAMAGE [ 2825.217] (II) AIGLX: enabled GLX_MESA_copy_sub_buffer [ 2825.217] (II) AIGLX: enabled GLX_INTEL_swap_event [ 2825.217] (II) AIGLX: enabled GLX_SGI_swap_control and GLX_MESA_swap_control [ 2825.217] (II) AIGLX: GLX_EXT_texture_from_pixmap backed by buffer objects [ 2825.217] (II) AIGLX: Loaded and initialized i965 [ 2825.217] (II) GLX: Initialized DRI2 GL provider for screen 0 [ 2825.217] (II) intel(0): Setting screen physical size to 361 x 203 [ 2825.222] (II) XKB: reuse xkmfile /var/lib/xkb/server-B20D7FC79C7F597315E3E501AEF10E0D866E8E92.xkm [ 2825.223] (II) config/udev: Adding input device Power Button (/dev/input/event3) [ 2825.223] (**) Power Button: Applying InputClass "evdev keyboard catchall" [ 2825.224] (II) LoadModule: "evdev" [ 2825.224] (II) Loading /usr/lib/xorg/modules/input/evdev_drv.so [ 2825.224] (II) Module evdev: vendor="X.Org Foundation" [ 2825.224] compiled for 1.12.0, module version = 2.7.0 [ 2825.224] Module class: X.Org XInput Driver [ 2825.224] ABI class: X.Org XInput driver, version 16.0 [ 2825.224] (II) Using input driver 'evdev' for 'Power Button' [ 2825.224] (**) Power Button: always reports core events [ 2825.224] (**) evdev: Power Button: Device: "/dev/input/event3" [ 2825.224] (--) evdev: Power Button: Vendor 0 Product 0x1 [ 2825.224] (--) evdev: Power Button: Found keys [ 2825.224] (II) evdev: Power Button: Configuring as keyboard [ 2825.224] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/LNXPWRBN:00/input/input3/event3" [ 2825.224] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 6) [ 2825.224] (**) Option "xkb_rules" "evdev" [ 2825.224] (**) Option "xkb_model" "pc105" [ 2825.224] (**) Option "xkb_layout" "us" [ 2825.224] (II) config/udev: Adding input device Video Bus (/dev/input/event9) [ 2825.224] (**) Video Bus: Applying InputClass "evdev keyboard catchall" [ 2825.224] (II) Using input driver 'evdev' for 'Video Bus' [ 2825.224] (**) Video Bus: always reports core events [ 2825.224] (**) evdev: Video Bus: Device: "/dev/input/event9" [ 2825.224] (--) evdev: Video Bus: Vendor 0 Product 0x6 [ 2825.224] (--) evdev: Video Bus: Found keys [ 2825.224] (II) evdev: Video Bus: Configuring as keyboard [ 2825.224] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/device:00/PNP0A08:00/LNXVIDEO:01/input/input9/event9" [ 2825.224] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 7) [ 2825.224] (**) Option "xkb_rules" "evdev" [ 2825.224] (**) Option "xkb_model" "pc105" [ 2825.224] (**) Option "xkb_layout" "us" [ 2825.225] (II) config/udev: Adding input device Video Bus (/dev/input/event8) [ 2825.225] (**) Video Bus: Applying InputClass "evdev keyboard catchall" [ 2825.225] (II) Using input driver 'evdev' for 'Video Bus' [ 2825.225] (**) Video Bus: always reports core events [ 2825.225] (**) evdev: Video Bus: Device: "/dev/input/event8" [ 2825.225] (--) evdev: Video Bus: Vendor 0 Product 0x6 [ 2825.225] (--) evdev: Video Bus: Found keys [ 2825.225] (II) evdev: Video Bus: Configuring as keyboard [ 2825.225] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/device:00/PNP0A08:00/device:2b/LNXVIDEO:00/input/input8/event8" [ 2825.225] (II) XINPUT: Adding extended input device "Video Bus" (type: KEYBOARD, id 8) [ 2825.225] (**) Option "xkb_rules" "evdev" [ 2825.225] (**) Option "xkb_model" "pc105" [ 2825.225] (**) Option "xkb_layout" "us" [ 2825.225] (II) config/udev: Adding input device Power Button (/dev/input/event0) [ 2825.225] (**) Power Button: Applying InputClass "evdev keyboard catchall" [ 2825.225] (II) Using input driver 'evdev' for 'Power Button' [ 2825.225] (**) Power Button: always reports core events [ 2825.225] (**) evdev: Power Button: Device: "/dev/input/event0" [ 2825.225] (--) evdev: Power Button: Vendor 0 Product 0x1 [ 2825.225] (--) evdev: Power Button: Found keys [ 2825.225] (II) evdev: Power Button: Configuring as keyboard [ 2825.225] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/device:00/PNP0C0C:00/input/input0/event0" [ 2825.225] (II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD, id 9) [ 2825.225] (**) Option "xkb_rules" "evdev" [ 2825.225] (**) Option "xkb_model" "pc105" [ 2825.225] (**) Option "xkb_layout" "us" [ 2825.225] (II) config/udev: Adding input device Lid Switch (/dev/input/event2) [ 2825.225] (II) No input driver specified, ignoring this device. [ 2825.225] (II) This device may have been added with another device file. [ 2825.225] (II) config/udev: Adding input device Sleep Button (/dev/input/event1) [ 2825.225] (**) Sleep Button: Applying InputClass "evdev keyboard catchall" [ 2825.225] (II) Using input driver 'evdev' for 'Sleep Button' [ 2825.226] (**) Sleep Button: always reports core events [ 2825.226] (**) evdev: Sleep Button: Device: "/dev/input/event1" [ 2825.226] (--) evdev: Sleep Button: Vendor 0 Product 0x3 [ 2825.226] (--) evdev: Sleep Button: Found keys [ 2825.226] (II) evdev: Sleep Button: Configuring as keyboard [ 2825.226] (**) Option "config_info" "udev:/sys/devices/LNXSYSTM:00/device:00/PNP0C0E:00/input/input1/event1" [ 2825.226] (II) XINPUT: Adding extended input device "Sleep Button" (type: KEYBOARD, id 10) [ 2825.226] (**) Option "xkb_rules" "evdev" [ 2825.226] (**) Option "xkb_model" "pc105" [ 2825.226] (**) Option "xkb_layout" "us" [ 2825.226] (II) config/udev: Adding input device USB Webcam (/dev/input/event6) [ 2825.226] (**) USB Webcam: Applying InputClass "evdev keyboard catchall" [ 2825.226] (II) Using input driver 'evdev' for 'USB Webcam' [ 2825.226] (**) USB Webcam: always reports core events [ 2825.226] (**) evdev: USB Webcam: Device: "/dev/input/event6" [ 2825.226] (--) evdev: USB Webcam: Vendor 0x64e Product 0xe25c [ 2825.226] (--) evdev: USB Webcam: Found keys [ 2825.226] (II) evdev: USB Webcam: Configuring as keyboard [ 2825.226] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.2/1-1.2:1.0/input/input6/event6" [ 2825.226] (II) XINPUT: Adding extended input device "USB Webcam" (type: KEYBOARD, id 11) [ 2825.226] (**) Option "xkb_rules" "evdev" [ 2825.226] (**) Option "xkb_model" "pc105" [ 2825.226] (**) Option "xkb_layout" "us" [ 2825.226] (II) config/udev: Adding input device HDA Intel PCH HDMI/DP,pcm=3 (/dev/input/event10) [ 2825.226] (II) No input driver specified, ignoring this device. [ 2825.226] (II) This device may have been added with another device file. [ 2825.226] (II) config/udev: Adding input device HDA Intel PCH Mic (/dev/input/event11) [ 2825.226] (II) No input driver specified, ignoring this device. [ 2825.226] (II) This device may have been added with another device file. [ 2825.227] (II) config/udev: Adding input device HDA Intel PCH Headphone (/dev/input/event12) [ 2825.227] (II) No input driver specified, ignoring this device. [ 2825.227] (II) This device may have been added with another device file. [ 2825.227] (II) config/udev: Adding input device 2.4G Wireless Optical Mouse (/dev/input/event5) [ 2825.227] (**) 2.4G Wireless Optical Mouse: Applying InputClass "evdev pointer catchall" [ 2825.227] (II) Using input driver 'evdev' for '2.4G Wireless Optical Mouse' [ 2825.227] (**) 2.4G Wireless Optical Mouse: always reports core events [ 2825.227] (**) evdev: 2.4G Wireless Optical Mouse: Device: "/dev/input/event5" [ 2825.227] (--) evdev: 2.4G Wireless Optical Mouse: Vendor 0x1d57 Product 0x8 [ 2825.227] (--) evdev: 2.4G Wireless Optical Mouse: Found 12 mouse buttons [ 2825.227] (--) evdev: 2.4G Wireless Optical Mouse: Found scroll wheel(s) [ 2825.227] (--) evdev: 2.4G Wireless Optical Mouse: Found relative axes [ 2825.227] (--) evdev: 2.4G Wireless Optical Mouse: Found x and y relative axes [ 2825.227] (II) evdev: 2.4G Wireless Optical Mouse: Configuring as mouse [ 2825.227] (II) evdev: 2.4G Wireless Optical Mouse: Adding scrollwheel support [ 2825.227] (**) evdev: 2.4G Wireless Optical Mouse: YAxisMapping: buttons 4 and 5 [ 2825.227] (**) evdev: 2.4G Wireless Optical Mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 [ 2825.227] (**) Option "config_info" "udev:/sys/devices/pci0000:00/0000:00:1d.0/usb2/2-1/2-1.2/2-1.2:1.0/input/input5/event5" [ 2825.227] (II) XINPUT: Adding extended input device "2.4G Wireless Optical Mouse" (type: MOUSE, id 12) [ 2825.227] (II) evdev: 2.4G Wireless Optical Mouse: initialized for relative axes. [ 2825.227] (**) 2.4G Wireless Optical Mouse: (accel) keeping acceleration scheme 1 [ 2825.227] (**) 2.4G Wireless Optical Mouse: (accel) acceleration profile 0 [ 2825.227] (**) 2.4G Wireless Optical Mouse: (accel) acceleration factor: 2.000 [ 2825.227] (**) 2.4G Wireless Optical Mouse: (accel) acceleration threshold: 4 [ 2825.227] (II) config/udev: Adding input device 2.4G Wireless Optical Mouse (/dev/input/mouse0) [ 2825.227] (II) No input driver specified, ignoring this device. [ 2825.227] (II) This device may have been added with another device file. [ 2825.227] (II) config/udev: Adding input device AT Translated Set 2 keyboard (/dev/input/event4) [ 2825.227] (**) AT Translated Set 2 keyboard: Applying InputClass "evdev keyboard catchall" [ 2825.227] (II) Using input driver 'evdev' for 'AT Translated Set 2 keyboard' [ 2825.227] (**) AT Translated Set 2 keyboard: always reports core events [ 2825.227] (**) evdev: AT Translated Set 2 keyboard: Device: "/dev/input/event4" [ 2825.227] (--) evdev: AT Translated Set 2 keyboard: Vendor 0x1 Product 0x1 [ 2825.227] (--) evdev: AT Translated Set 2 keyboard: Found keys [ 2825.227] (II) evdev: AT Translated Set 2 keyboard: Configuring as keyboard [ 2825.227] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio0/input/input4/event4" [ 2825.227] (II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD, id 13) [ 2825.227] (**) Option "xkb_rules" "evdev" [ 2825.227] (**) Option "xkb_model" "pc105" [ 2825.227] (**) Option "xkb_layout" "us" [ 2825.228] (II) config/udev: Adding input device FSPPS/2 Sentelic FingerSensingPad (/dev/input/event7) [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: Applying InputClass "evdev pointer catchall" [ 2825.228] (II) Using input driver 'evdev' for 'FSPPS/2 Sentelic FingerSensingPad' [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: always reports core events [ 2825.228] (**) evdev: FSPPS/2 Sentelic FingerSensingPad: Device: "/dev/input/event7" [ 2825.228] (--) evdev: FSPPS/2 Sentelic FingerSensingPad: Vendor 0x2 Product 0xf [ 2825.228] (--) evdev: FSPPS/2 Sentelic FingerSensingPad: Found 11 mouse buttons [ 2825.228] (--) evdev: FSPPS/2 Sentelic FingerSensingPad: Found scroll wheel(s) [ 2825.228] (--) evdev: FSPPS/2 Sentelic FingerSensingPad: Found relative axes [ 2825.228] (--) evdev: FSPPS/2 Sentelic FingerSensingPad: Found x and y relative axes [ 2825.228] (II) evdev: FSPPS/2 Sentelic FingerSensingPad: Configuring as mouse [ 2825.228] (II) evdev: FSPPS/2 Sentelic FingerSensingPad: Adding scrollwheel support [ 2825.228] (**) evdev: FSPPS/2 Sentelic FingerSensingPad: YAxisMapping: buttons 4 and 5 [ 2825.228] (**) evdev: FSPPS/2 Sentelic FingerSensingPad: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200 [ 2825.228] (**) Option "config_info" "udev:/sys/devices/platform/i8042/serio1/input/input7/event7" [ 2825.228] (II) XINPUT: Adding extended input device "FSPPS/2 Sentelic FingerSensingPad" (type: MOUSE, id 14) [ 2825.228] (II) evdev: FSPPS/2 Sentelic FingerSensingPad: initialized for relative axes. [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: (accel) keeping acceleration scheme 1 [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: (accel) acceleration profile 0 [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: (accel) acceleration factor: 2.000 [ 2825.228] (**) FSPPS/2 Sentelic FingerSensingPad: (accel) acceleration threshold: 4 [ 2825.228] (II) config/udev: Adding input device FSPPS/2 Sentelic FingerSensingPad (/dev/input/mouse1) [ 2825.228] (II) No input driver specified, ignoring this device. [ 2825.228] (II) This device may have been added with another device file. [ 2825.235] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2825.235] (II) intel(0): Printing DDC gathered Modelines: [ 2825.235] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2825.589] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2825.589] (II) intel(0): Printing DDC gathered Modelines: [ 2825.589] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2826.550] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2826.550] (II) intel(0): Printing DDC gathered Modelines: [ 2826.550] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2845.196] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2845.196] (II) intel(0): Printing DDC gathered Modelines: [ 2845.196] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2845.423] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2845.423] (II) intel(0): Printing DDC gathered Modelines: [ 2845.423] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) [ 2845.497] (II) XKB: reuse xkmfile /var/lib/xkb/server-03AF3717FF3AB439A4BAABA686CCB40771CDF520.xkm [ 2866.177] (II) intel(0): EDID vendor "AUO", prod id 8940 [ 2866.177] (II) intel(0): Printing DDC gathered Modelines: [ 2866.177] (II) intel(0): Modeline "1366x768"x0.0 69.30 1366 1398 1422 1432 768 771 775 806 -hsync -vsync (48.4 kHz eP) On Thu, Mar 15, 2012 at 11:47 AM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #4 from Chris Wilson <chris@chris-wilson.co.uk> 2012-03-15 > 03:47:25 PDT --- > I use xorg.log as shorthand for /var/log/Xorg.0.log (as the '0' may be any > number depending upon your configuration and login manager). Just attach > the > most recent of /var/log/Xorg.*.log*. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
Ok, that's a known bug in the Option "Shadow" "true". Your driver and xserver are uptodate and should be stable without that option.
I've searched this issue for a long time, and failed to find any solution. Many thanks for your explanation. Well, for Ubuntu 12.04, the file "/etc/X11/xorg.conf" doesn't exist any more. I'll try to make a new one and switch off the "Shadow" option. On Thu, Mar 15, 2012 at 12:23 PM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #7 from Chris Wilson <chris@chris-wilson.co.uk> 2012-03-15 > 04:23:07 PDT --- > Ok, that's a known bug in the Option "Shadow" "true". Your driver and > xserver > are uptodate and should be stable without that option. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
It should be off by default in 2.18.0.... hmm, what have ubuntu done? After making your change, your should no longer see "(**) intel(0): Shadow buffer enabled, 2D GPU acceleration disabled." in your Xorg.0.log. Hope this helps.
Thank you. I put a new file under /usr/share/X11/xorg.conf.d, which content is Section "Device" Identifier "Card0" Driver "intel" Option "Shadow" "false" EndSection And as you mentioned the line of "(**) intel(0): Shadow buffer enabled, 2D GPU acceleration disabled." disappered. There is a new line: [ 26.890] (**) intel(0): Option "Shadow" "false" And the google-earth can be displayed correctly. But it seems the desktop become unstable. After I dragged the window of glxgears, the desktop stop to response, I can't move my mouse any more. And when I login to Gnome 3 desktop, it changed to fall-back mode automatically. It seems there are still some issue need to be solved. I'll keep run gnome fall-back mode with shadow enabled, and run opengl program with optirun. Still many thanks. On Thu, Mar 15, 2012 at 2:07 PM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #9 from Chris Wilson <chris@chris-wilson.co.uk> 2012-03-15 > 06:07:32 PDT --- > It should be off by default in 2.18.0.... hmm, what have ubuntu done? > > After making your change, your should no longer see > "(**) intel(0): Shadow buffer enabled, 2D GPU acceleration disabled." > in your Xorg.0.log. Hope this helps. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
Watch dmesg for errors, and if the GPU hangs please open a new bug report and attach the dmesg, xorg.log and /sys/kernel/debug/dri/0/i915_error_state.
OK, I will check this later. Thank you very much. On Thu, Mar 15, 2012 at 2:38 PM, <bugzilla-daemon@freedesktop.org> wrote: > https://bugs.freedesktop.org/show_bug.cgi?id=47324 > > --- Comment #11 from Chris Wilson <chris@chris-wilson.co.uk> 2012-03-15 > 06:38:25 PDT --- > Watch dmesg for errors, and if the GPU hangs please open a new bug report > and > attach the dmesg, xorg.log and /sys/kernel/debug/dri/0/i915_error_state. > > -- > Configure bugmail: https://bugs.freedesktop.org/userprefs.cgi?tab=email > ------- You are receiving this mail because: ------- > You reported the bug. > > >
Shadow has been superseded by SNA and removed. Let me know if you encounter any further issues.. Beyond trying to use 845g in the first place.
