Bug 50291 - broken shaders in oil rush
Summary: broken shaders in oil rush
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/DRI/i965 (show other bugs)
Version: git
Hardware: x86-64 (AMD64) Linux (All)
: medium major
Assignee: Kenneth Graunke
QA Contact:
URL:
Whiteboard:
Keywords:
: 52285 (view as bug list)
Depends on:
Blocks:

Reported: 2012-05-23 13:32 UTC by Karol Herbst
Modified: 2012-07-31 05:04 UTC (History)
1 user (show)

See Also:
i915 platform:
i915 features:


Attachments

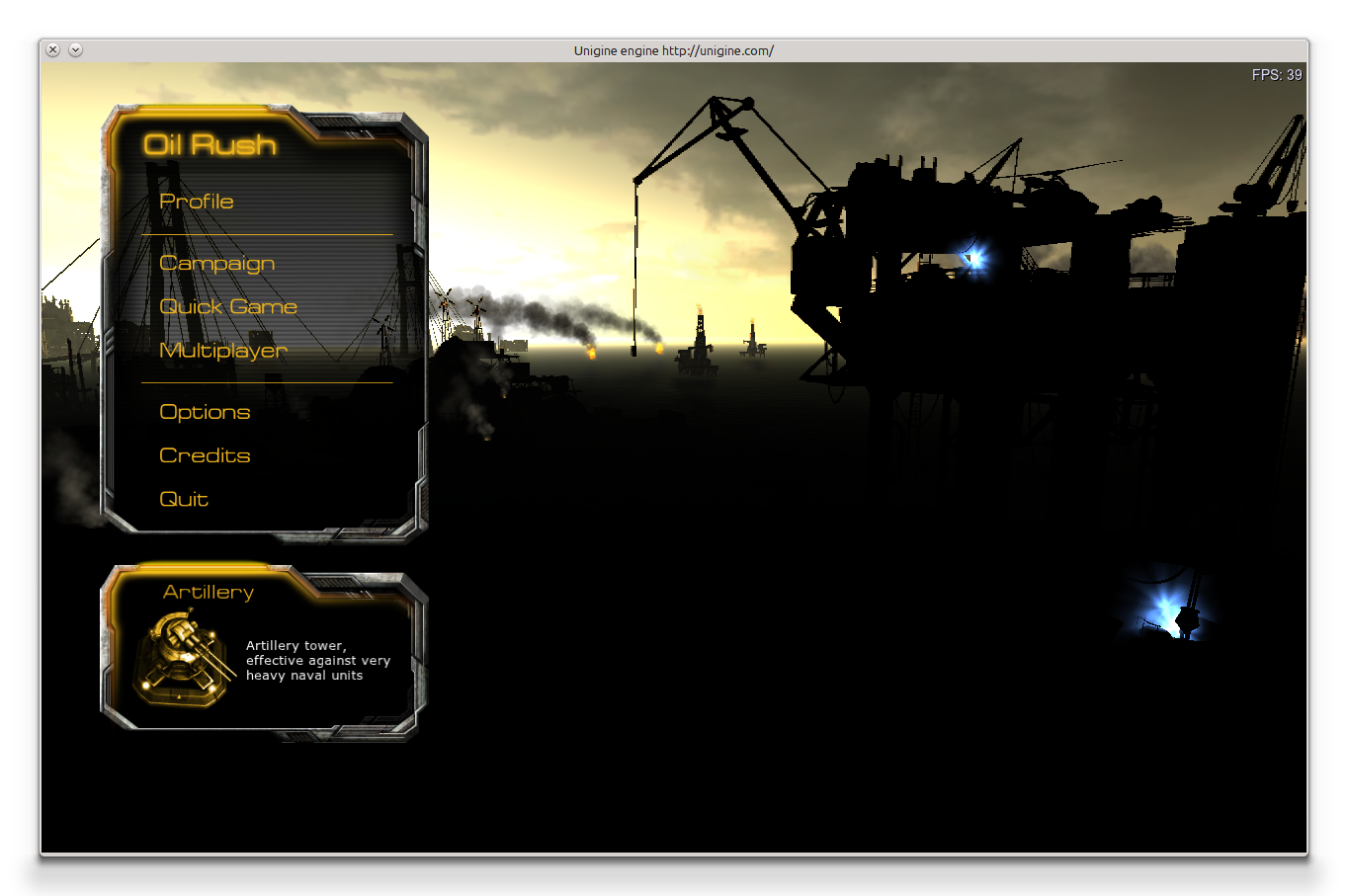

snapshot of bug (459.13 KB, image/png)
2012-05-23 13:32 UTC, Karol Herbst
Details

Description Karol Herbst 2012-05-23 13:32:35 UTC
Created attachment 62034 [details]
snapshot of bug

With newest mesa-git version shaders seems to be broken in oil rush as you see in the screenshot. It worked with mesa-git from 17th May (don't know the commit tag).

OpenGL vendor string: Tungsten Graphics, Inc
OpenGL renderer string: Mesa DRI Intel(R) Sandybridge Mobile
OpenGL version string: 3.0 Mesa 8.1-devel (git-b45052b)
OpenGL shading language version string: 1.30
Comment 1 Kenneth Graunke 2012-06-06 17:13:30 UTC
I'm guessing this is due to Eric's blend_func_extended patches, based on his comments on IRC earlier today.  All Unigine demos seem to be broken.  Reassigning.
Comment 2 Karol Herbst 2012-06-07 15:25:53 UTC
So I found out the commit which produced this error. After reverting this commit, everything seems to be fine.

29362875f2613ad87abe7725ce3c56c36d16cf9b is the first bad commit
commit 29362875f2613ad87abe7725ce3c56c36d16cf9b
Author: Eric Anholt <eric@anholt.net>
Date:   Wed Apr 25 13:58:07 2012 -0700

    i965/gen6+: Add support for GL_ARB_blend_func_extended.

    v2: Add support for gen6, and don't turn it on if blending is
        disabled. (fixes GPU hang), and note it in docs/GL3.txt

    Reviewed-by: Kenneth Graunke <kenneth@whitecape.org>

:040000 040000 8feac6c770ffafaa120afd123dea3344d7760f46 4f89a43d6db59d8a02ab42538d74b330e8db2026 M      docs
:040000 040000 d3caa00ed190df2fc0543833079b97b9bcb61a81 35c407844276eee3aa57b55bbfbd7f26519e1678 M      src



git bisect start
# bad: [529476b5e4cd0591e0ec777b9bc2b5bec136822b] i965: Add forgotten bitcast operations in brw_fs_channel_expressions.
git bisect bad 529476b5e4cd0591e0ec777b9bc2b5bec136822b
# good: [5f7204c3bbc070fce2f3351419a64362fe15a8c6] docs: Add 8.0.2 release notes
git bisect good 5f7204c3bbc070fce2f3351419a64362fe15a8c6
# good: [6fe42b603d0ec9e13a8b7d6c46c6d89da3a6a614] mesa: Include glx tests Makefile.in in tarball
git bisect good 6fe42b603d0ec9e13a8b7d6c46c6d89da3a6a614
# good: [878c69fe540a73011b676ead33ac8d9b8c9e63aa] mesa: use _mesa_dirty_texobj() function
git bisect good 878c69fe540a73011b676ead33ac8d9b8c9e63aa
# good: [16b081f1b0acf3158423c9fbed69c85807ce5276] llvmpipe: add masking support to aos blend
git bisect good 16b081f1b0acf3158423c9fbed69c85807ce5276
# good: [982df3c1a5e99e43f28f849419d4379e6e5d5d05] llvmpipe: Color slot interpolation can be flat or perspective, not linear.
git bisect good 982df3c1a5e99e43f28f849419d4379e6e5d5d05
# bad: [a1a0974401c467cb86ef818f22df67c21774a38c] Revert "r600g: set round_mode to truncate and get rid of tgsi_f2i on evergreen"
git bisect bad a1a0974401c467cb86ef818f22df67c21774a38c
# good: [a0dffe8701cc5dae955ad20a707833f1f42474a2] tests: include mesa headers
git bisect good a0dffe8701cc5dae955ad20a707833f1f42474a2
# bad: [75dac69262481ac26a823a9d06f7f138ec56b01f] ir_to_mesa: Don't set initial uniform values again
git bisect bad 75dac69262481ac26a823a9d06f7f138ec56b01f
# good: [03c9044c2edf8301779fe5d0173d7e6d1e7ee1c2] i915: Drop gen4+ code from the forked clear code.
git bisect good 03c9044c2edf8301779fe5d0173d7e6d1e7ee1c2
# good: [39a91be20d0592af4f93458364d027b7ade6b2ba] i965/gen7: Add CC viewport setup to blorp code.
git bisect good 39a91be20d0592af4f93458364d027b7ade6b2ba
# bad: [29362875f2613ad87abe7725ce3c56c36d16cf9b] i965/gen6+: Add support for GL_ARB_blend_func_extended.
git bisect bad 29362875f2613ad87abe7725ce3c56c36d16cf9b
# good: [68216f35814ab8d292f37b8c0fa0a5f181b7f20d] i965/gen6+: Add support for fast depth clears.
git bisect good 68216f35814ab8d292f37b8c0fa0a5f181b7f20d
# good: [175ad8050e3337f7065306017ea4eb8eae599f6d] mesa: Keep a computed value for dual source blend func with each buffer.
git bisect good 175ad8050e3337f7065306017ea4eb8eae599f6d
Comment 3 Kenneth Graunke 2012-07-19 08:44:12 UTC
It turns out that this is actually a bug in Unigine's engine, not in our driver.

I've added a workaround to disable GL_ARB_blend_func_extended for Unigine.  In addition to updating to master, you'll need to install the new drirc.

Fixed by:

commit 658a63e5d9777e4cf67e0a72848944bc11533cf8
Author: Kenneth Graunke <kenneth@whitecape.org>
Date:   Thu Jul 19 01:40:24 2012 -0700

    drirc: Add disable_blend_func_extended workaround for Unigine OilRush.

    The previous commit implemented the workaround, cited a bug report
    about OilRush, but actually only enabled the workaround for the demos.

    Turn it on for OilRush too.

    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=50291
    Signed-off-by: Kenneth Graunke <kenneth@whitecape.org>

commit 040894391a2cf85035c6ad85f3f85c6efb23324b
Author: Kenneth Graunke <kenneth@whitecape.org>
Date:   Wed Jul 18 00:07:17 2012 -0700

    i965: Add a driconf option to disable GL_ARB_blend_func_extended.

    Unigine Heaven (at least) has a bug where it incorrectly uses the
    GL_ARB_blend_func_extended extension.

    Dual source blending allows two color outputs per render target;
    individual shader outputs can be assigned to be either the first or
    second blending input by setting the 'index' via one of two methods:

    - An API call: glBindFragDataLocationIndexed()
    - The GLSL 'layout' qualifier provided by GL_ARB_explicit_attrib_location

    Both of these only work on user defined fragment shader outputs; it's an
    error to use either on built-in outputs like gl_FragData.

    Unigine uses gl_FragData and gl_FragColor exclusively, and doesn't even
    attempt to use either method to set index == 1.  However, it does set
    the blending function to SRC1 enums, which requires a fragment shader
    output with index == 1 or else rendering is undefined.

    In other words, enabling ARB_blend_func_extended causes Unigine to
    render incorrectly, resulting in an apparent regression, even though our
    driver code (as far as I can tell) is perfectly fine.

    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=50291
    Signed-off-by: Kenneth Graunke <kenneth@whitecape.org>
    Reviewed-by: Chad Versace <chad.versace@linux.intel.com>
    Reviewed-by: Eric Anholt <eric@anholt.net>
Comment 4 Karol Herbst 2012-07-19 16:43:46 UTC
yeah thanks, this fixed it for me too.
Comment 5 Ian Romanick 2012-07-23 18:14:02 UTC
*** Bug 52285 has been marked as a duplicate of this bug. ***
Comment 6 meng 2012-07-31 03:04:17 UTC
(In reply to comment #3)
>  In addition to updating to master, you'll need to install the new drirc.

Hi,can you give me advice how to install drirc?
Comment 7 meng 2012-07-31 05:04:41 UTC
Take the new drirc from mesa source,Unigine demo Heaven and Tropics work well with mesa commit dcf8754cce1.
