you'll have to define what you mean by crappy, i'm afraid.

I have the same problem here or so it sounds. Here is my description of the problem.

I can't get it to work with the radeon or ati drivers. lspci shows me having
(which I do) ATI Technologies Inc Radeon RV100 QY [Radeon 7000/VE]

My left head works great however on the right one all you can see is the
background image but the panels (top and bottom) and skewed with lines running
thru them. Cursor looks great tho. I've tried getting screen shots but all I get
is a solid black image off of any tool I try, with the screen shot the left head
looks good, the right is a black square. I guess I could take a pic with a
digital camera if it would help.

Let me know what you need xconfigs, logs

I can't use Xinerama with modular Xorg at all. The left screen is ok, the
second stays blank. Using the same xorg.conf that worked with 6.8.2 (except my
rgb.txt location has changed).

Section "Module"
    Load          "dbe"
    SubSection    "extmod"
      Option        "omit xfree86-dga"
    EndSubSection
    Load          "freetype"
    Load          "extmod"
EndSection

Section "Files"
    RgbPath       "/usr/lib/X11/rgb"
    FontPath      "/usr/share/fonts/win_fonts"
    FontPath      "/usr/share/fonts/misc"
EndSection

Section "ServerFlags"
    Option        "AllowMouseOpenFail" "true"
    Option        "OffTime" "5"
    Option        "DefaultServerLayout" "Default layout"
EndSection

Section "InputDevice"
    Identifier    "Keyboard1"
    Driver        "kbd"
    Option        "XkbModel" "pc105"
    Option        "XkbLayout" "de"
EndSection

Section "InputDevice"
    Identifier    "Mouse1"
    Driver        "mouse"
    Option        "Protocol" "IMPS/2"
    Option        "Device" "/dev/input/mice"
    Option        "ZAxisMapping" "4 5"
EndSection

Section "Monitor"
    Identifier    "Belinea TFT"
    HorizSync     30 - 81
    VertRefresh   50 - 76
    DisplaySize   338 270
    Option        "DPMS"
EndSection

Section "Monitor"
    Identifier    "Panasonic TV"
    HorizSync     15 - 16
    VertRefresh   49.9 - 50.1
    DisplaySize   718 404
    Option        "DPMS"
    Modeline      "1024x576" 19.750 1024 1056 1152 1264 576 581 586 625
composite interlace +hsync +vsync
EndSection

Section "Device"
    Identifier    "Connect3D Radeon 9250 auf TFT"
    Driver        "radeon"
    Option        "DynamicClocks" "true"
    Option        "MergedFB" "false"
    Option        "VGAAccess" "false"
    BusID         "2:0:0"
    Screen        0
EndSection

Section "Device"
    Identifier    "Connect3D Radeon 9250 auf TV"
    Driver        "radeon"
    Option        "DynamicClocks" "false"
    Option        "MergedFB" "false"
    Option        "ForceMinDotClock" "19MHz"
    Option        "VGAAccess" "false"
    BusID         "2:0:0"
    Screen        1
EndSection

Section "Screen"
    Identifier    "Default screen"
    Device        "Connect3D Radeon 9250 auf TFT"
    Monitor       "Belinea TFT"
    DefaultDepth  24
EndSection

Section "Screen"
    Identifier    "TV screen"
    Device        "Connect3D Radeon 9250 auf TV"
    Monitor       "Panasonic TV"
    DefaultDepth  24
    SubSection "Display"
      Depth       24
      Modes       "1024x576"
    EndSubSection
EndSection

Section "ServerLayout"
    Identifier    "Default layout"
    InputDevice   "Mouse1" "CorePointer"
    InputDevice   "Keyboard1" "CoreKeyboard"
    Option        "Xinerama" "on"
    Screen        0 "Default screen" 0 0
    Screen        1 "TV screen" RightOf "Default screen"
EndSection

I'm using xf86-video-ati-6.5.7.3.tar.bz2 btw.

Created attachment 4583 [details]

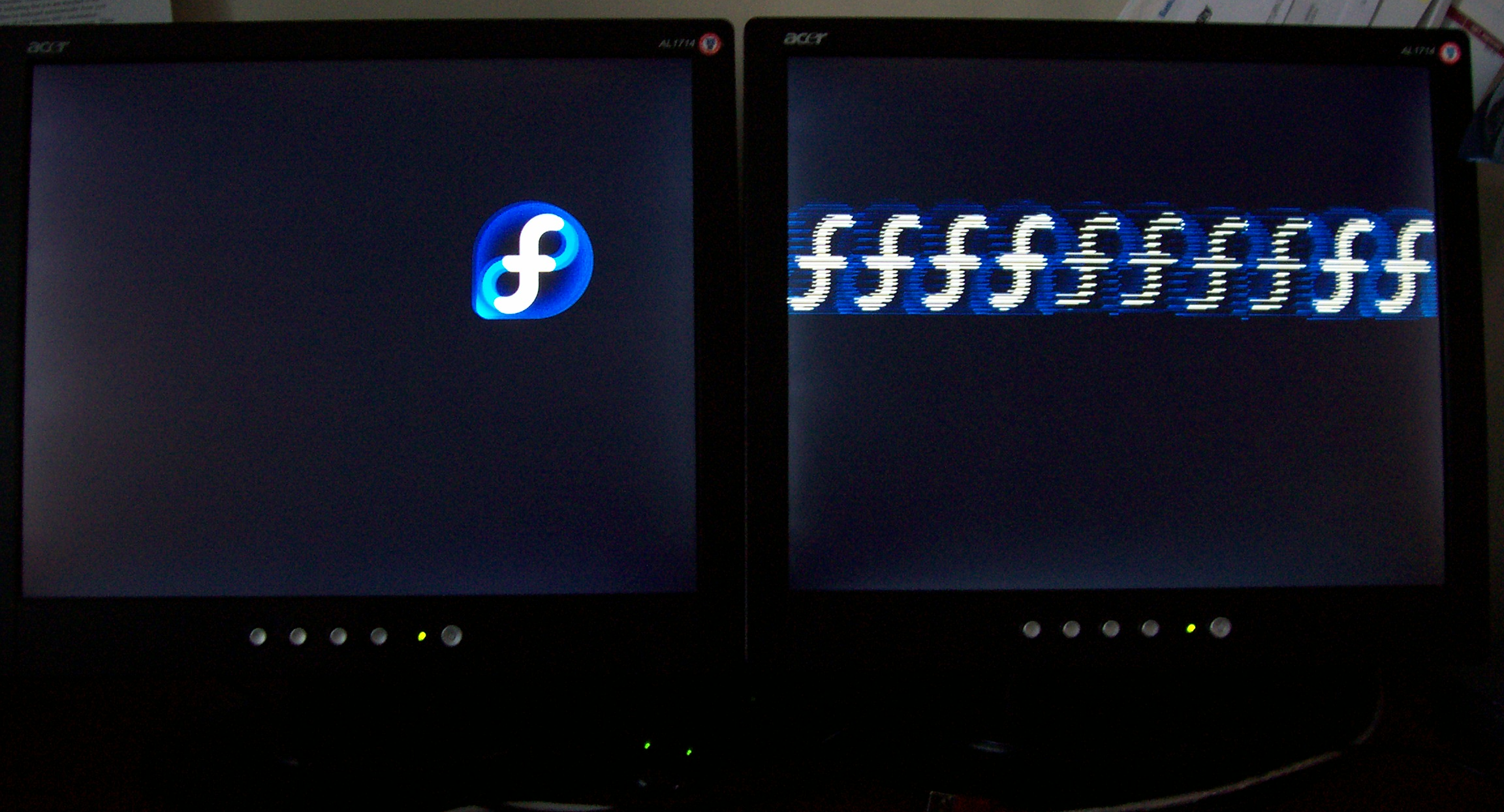

Pic of both heads.

Created attachment 4584 [details]

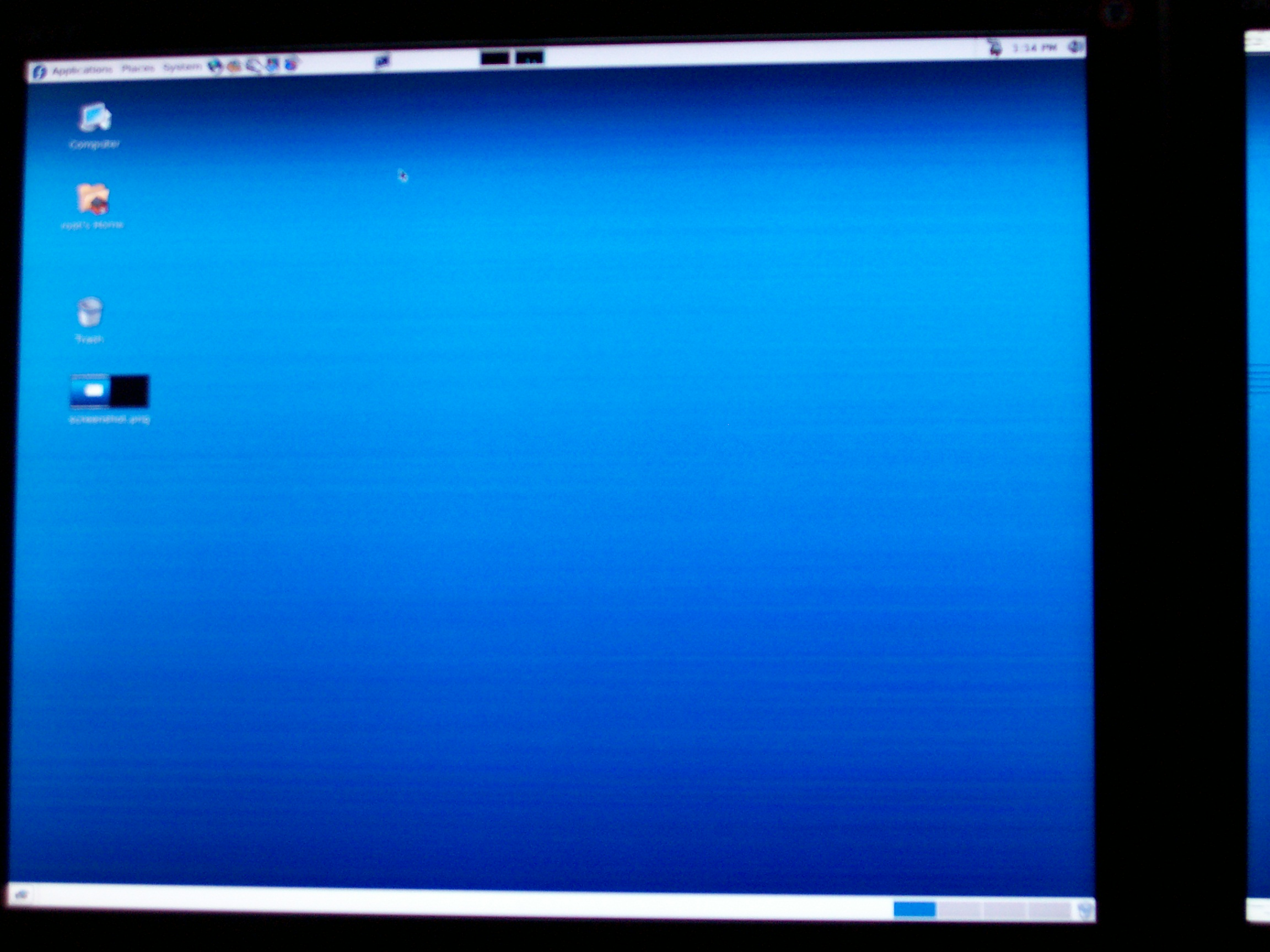

Left head with desktop

Created attachment 4585 [details]

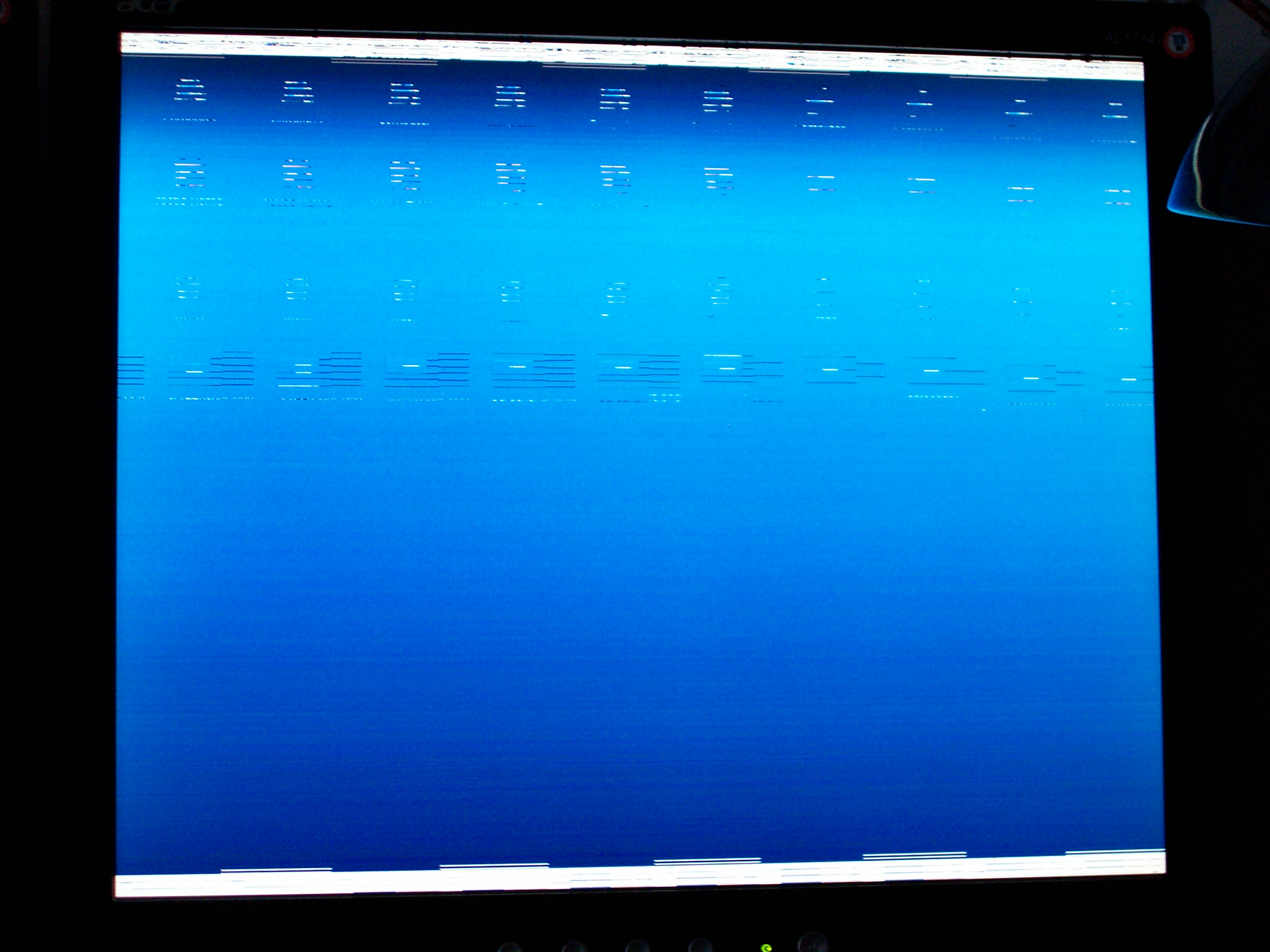

Right head with desktop

Pics of problem for completeness.

The second head being blank or showing corruption might be two separate
issues... in both cases, it would be useful if somebody tried to isolate the CVS
change that caused the regression.

Does Option "ColorTiling" "off" make a difference for anyone? (Shot in the dark,
in the absence of log files)

Option "ColorTiling" "off"  worked for me. However I can't get spanning desktops
:( It will only give me individual desktops. I'll post my xorg.conf file and log
in a few after I tinker with it a bit more.

(In reply to comment #9)
> Option "ColorTiling" "off"  worked for me. However I can't get spanning desktops
> :( It will only give me individual desktops. I'll post my xorg.conf file and log
> in a few after I tinker with it a bit more.

I tried several ways to enable this, the only one which worked for so far is
using the MergedFB-Option, like here:

 Section "Device"
        Identifier  "Videocard0"
        Driver      "ati"
        VendorName  "Videocard vendor"
        BoardName   "ATI Technologies Inc RV280 [Radeon 9200 PRO] (Secondary)"
        Option      "MergedFB"  "on"
        Option      "MonitorLayout" "CRT,CRT"
        Option      "CRT2HSync" "30.0-64.0"
        Option      "CRT2VRefresh" "50.0-100.0"
        Option      "CRT2Position" "RightOf"
        Option      "MetaModes" "1600x1200-1024x768"
        Option      "AGPMode"   "4"
        Option      "AGPFastWrite"      "on"
        Option      "MergedNonRectangular"      "TRUE"
#        Option      "XAANoOffscreenPixmaps"
EndSection

See 'man 4 radeon' for details of the above entered options.

*** Bug 6586 has been marked as a duplicate of this bug. ***

Some people have reported that current xf86-video-ati CVS (HEAD or
ati-1-0-branch) fixes dual head for them. Please verify.

Created attachment 5301 [details]
Working dual-head configuration with separate desktop

I imagine that the latest CVS causes the "radeon" driver to properly make use
of the "MonitorLayout" option, because, with previous versions, specifying
"MonitorLayout" made no difference whatsoever.

This xorg.conf works for me. If I turn on "MergedFB" and uncomment the "Plain"
ServerLayout section, I get Xinerama-like merged desktops after an X server
restart.

> If I turn on "MergedFB" and uncomment the "Plain"
> ServerLayout section, I get Xinerama-like merged desktops after an X server
> restart.

Correction:
If I turn on "MergedFB", comment out "MonitorLayout", and uncomment the "Plain"
ServerLayout section, I get Xinerama-like merged desktops aftern an X server
restart.

Hi,

I just tried CVS Head together with Xorg 7.0 in Debian unstable. I still have
no working 2nd head (is blank) in Xinerama mode. I'm using a laptop here with
an VGA connector for the external monitor.

There is a "successful" message in Debians BTS for this bug
(http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=332548), which implies that
Xinerama dual-head works with 2 VGA connectors. But doesn't with VGA+DVI or
with a laptop.

Andreas

PS: Can't use MergedFB, because the external monitor is smaller and somehow I
can't get the "Virtual"-Desktop-Thing for it with MergedFB.

Hi,

the latest debian package from release 5.8.0 fixes this issue for me.

Andreas

Jason, can you try the xf86-video-ati 6.5.8 release or CVS HEAD or ati-1-0-branch?

I was having the exact same problem.  The second display looked like a fuzzy,
repeating mirror of the first display.  I can confirm that upgrading the ATI
drivers to version 6.5.8 resolved the problem for me.

However, I am using the radeon 7500 with a DVI-VGA adapter, and the secondary
VGA output.  The Debian bug posted by Andreas above seems to indicate that the
problem remains if you use the DVI output without the VGA adapter.

--
Samuel
