Bug 5904 - scaling 1x1 images doesn't have useful results
Summary: scaling 1x1 images doesn't have useful results
Status: RESOLVED FIXED
Alias: None
Product: cairo
Classification: Unclassified
Component: general (show other bugs)
Version: 1.1.1
Hardware: x86 (IA32) Linux (All)
: high normal
Assignee: Carl Worth
QA Contact: cairo-bugs mailing list
URL:
Whiteboard:
Keywords:
Depends on:
Blocks: 3387 10881
  Show dependency treegraph

Reported: 2006-02-16 16:57 UTC by Jeff Muizelaar
Modified: 2008-10-10 11:36 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
1x1 scaling with CAIRO_FILTER_BEST (4.22 KB, image/png)
2006-02-16 16:57 UTC, Jeff Muizelaar
Details

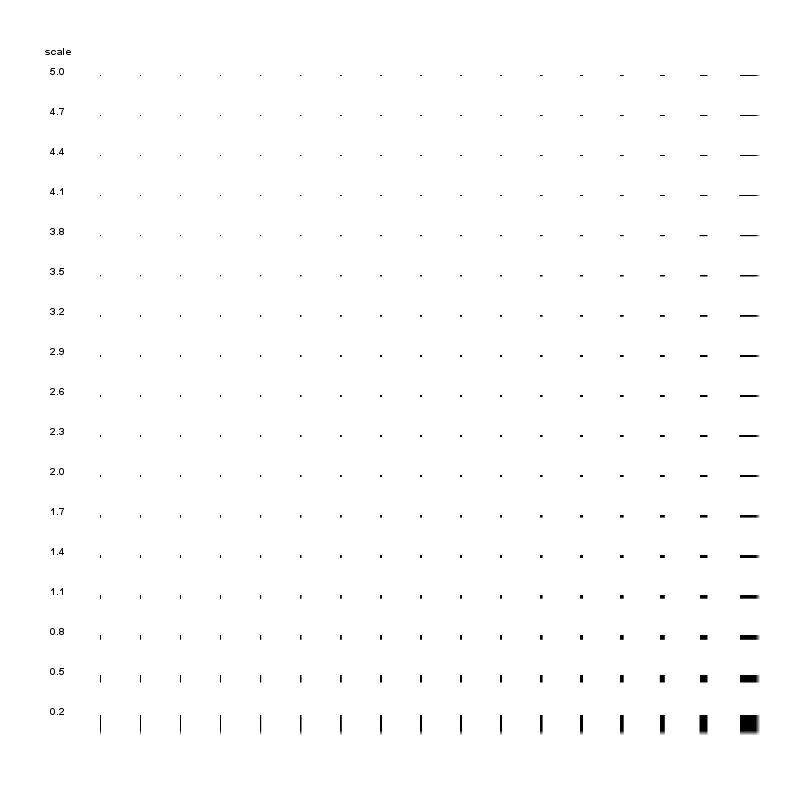

1x1 scaling with CAIRO_FILTER_BEST (13.00 KB, image/png)
2006-02-16 16:59 UTC, Jeff Muizelaar
Details

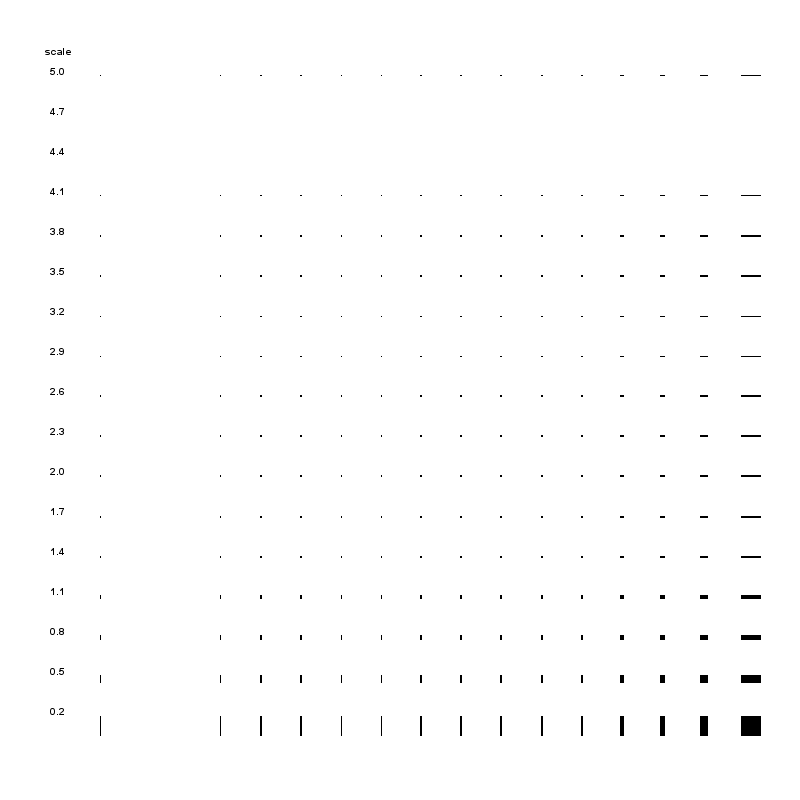

1x1 scaling with CAIRO_FILTER_NEAREST (9.84 KB, image/png)
2006-02-16 16:59 UTC, Jeff Muizelaar
Details
source code for generating the test images (2.02 KB, text/plain)
2006-02-17 04:09 UTC, Jeff Muizelaar
Details

Note You need to log in before you can comment on or make changes to this bug.
Description Jeff Muizelaar 2006-02-16 16:57:09 UTC
It seems that scaling 1x1 images produces bad results for both
CAIRO_FILTER_NEAREST and CAIRO_FILTER_BEST.

CAIRO_FILTER_BEST causes bluring at the edges.

CAIRO_FILTER_NEAREST occasionally causes the image to disapear.

examples of both bad behaviours are attached.
Comment 1 Jeff Muizelaar 2006-02-16 16:57:58 UTC
Created attachment 4629 [details]
1x1 scaling with CAIRO_FILTER_BEST
Comment 2 Jeff Muizelaar 2006-02-16 16:59:20 UTC
Created attachment 4630 [details]
1x1 scaling with CAIRO_FILTER_BEST
Comment 3 Jeff Muizelaar 2006-02-16 16:59:50 UTC
Created attachment 4631 [details]
1x1 scaling with CAIRO_FILTER_NEAREST
Comment 4 Carl Worth 2006-02-17 03:40:29 UTC
Thanks for the excellent report.

Can you contribute a program to draw those images? That would be a nice thing to
throw into the test suite.

It's possible that fixes for a couple of existing bugs will help for this
situation as well. For example:

[cairo] broken pixman bilinear filtering?
http://lists.freedesktop.org/archives/cairo/2006-February/006293.html
might explain the CAIRO_FILTER_BEST behavior and that's fixed with the patch in
bug #2488.

For CAIRO_FILTER_NEAREST, the existing XFAIL filter-nearest-offset case may
capture the failure.

Regardless, it should also be quite easy to workaround this in cairo by
recognizing a 1x1 surface pattern and instead use a solid surface in its place.

-Carl


as well as the existing XFAIL
Comment 5 Owen Taylor 2006-02-17 04:07:34 UTC
I'm puzzled why there isn't a lot *more* blurring of the edges with
the BEST filter ... with EXTEND_NONE, scaling up a 1x1 source image
should give a blur.

(Generally, for scaling images without alpha, you want to use
EXTEND_PAD (1.2 addition), and draw a rectangle the size of the
scaled result.)

It's hard to interpret the images without the source code that draws
them.
Comment 6 Jeff Muizelaar 2006-02-17 04:09:31 UTC
Created attachment 4633 [details]
source code for generating the test images
Comment 7 Chris Wilson 2008-10-10 11:36:47 UTC
The behaviour of the current code appears to be correct, the test suite exercises NEAREST and BILINEAR scaling and the suggestion to swap the 1x1 source with a solid colour has been added to todo.
