Bug 62343 - Incorrect image in vlc if non-default crop factor is selected (XVideo).
Summary: Incorrect image in vlc if non-default crop factor is selected (XVideo).
Status: RESOLVED FIXED
Alias: None
Product: xorg
Classification: Unclassified
Component: Driver/intel (show other bugs)
Version: unspecified
Hardware: Other Linux (All)
: medium normal
Assignee: Chris Wilson
QA Contact: Intel GFX Bugs mailing list
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2013-03-14 15:51 UTC by Roman Elshin
Modified: 2013-03-14 22:05 UTC (History)
0 users

See Also:
i915 platform:
i915 features:

Attachments
Xorg log (31.17 KB, text/plain)
2013-03-14 15:51 UTC, Roman Elshin 		no flags Details
vlc screenshot (398.73 KB, image/png)
2013-03-14 15:55 UTC, Roman Elshin 		no flags Details
View All

Description Roman Elshin 2013-03-14 15:51:48 UTC
Created attachment 76531 [details]
Xorg log

It work right if OpenGL GLX video out is used by vlc.
Comment 1 Roman Elshin 2013-03-14 15:55:22 UTC
Created attachment 76532 [details]

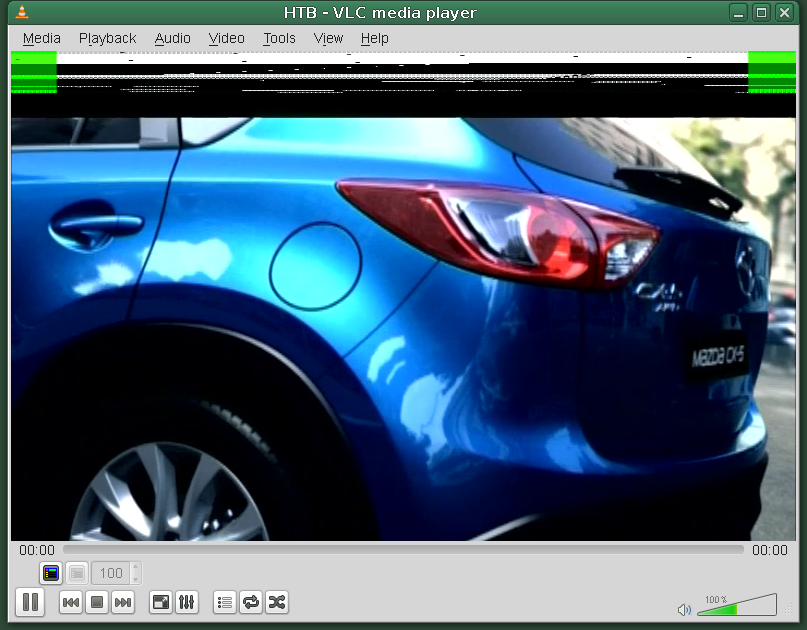

vlc screenshot
Comment 2 Chris Wilson 2013-03-14 16:23:25 UTC
"non-default crop factor is selected" and how does one do that?
Comment 3 Roman Elshin 2013-03-14 16:59:05 UTC
vlc has submenu "crop" in "video" menu that allow to select between default, 16:10,16:9..., selection any other than default giving incorrect result
Comment 4 Chris Wilson 2013-03-14 22:05:05 UTC
Thanks, I was little disturbed because I thought I had fixed it for 2.21.4. As it turns out the fix was missing a vital little cast to avoid an integer division:

commit 94cb10c3f2b9bbb6ae3c76faebe9fc88691224a9
Author: Chris Wilson <chris@chris-wilson.co.uk>
Date:   Thu Mar 14 22:02:09 2013 +0000

    sna/gen5+: Add missing float casts in computation of scaled src offsets

    Without the casts, the division ends up as 0 rather than the fractional
    offset into the texture.

    The casts were missed in the claimed fix:

    commit 89038ddb96aabc4bc1f04402b2aca0ce546e8bf3
    Author: Chris Wilson <chris@chris-wilson.co.uk>
    Date:   Thu Feb 28 14:35:54 2013 +0000

        sna/video: Correct scaling of source offsets

    Reported-by: Roman Elshin <roman.elshin@gmail.com>
    Bugzilla: https://bugs.freedesktop.org/show_bug.cgi?id=62343
    Signed-off-by: Chris Wilson <chris@chris-wilson.co.uk>
