Bug 63520 - r300g regression (RV380): Strange rendering of light sources in Penumbra (bisected)
Summary: r300g regression (RV380): Strange rendering of light sources in Penumbra (bi...
Status: RESOLVED FIXED
Alias: None
Product: Mesa
Classification: Unclassified
Component: Drivers/Gallium/r300 (show other bugs)
Version: 9.0
Hardware: x86 (IA32) Linux (All)
: medium normal
Assignee: Default DRI bug account
QA Contact:
URL:
Whiteboard:
Keywords:
Depends on:
Blocks:

Reported: 2013-04-14 07:29 UTC by PJBrs
Modified: 2013-07-01 14:55 UTC (History)
0 users

See Also:
i915 platform:
i915 features:


Attachments
Bad rendering screen 1 (542.22 KB, image/png)
2013-04-14 07:29 UTC, PJBrs
Details
Good rendering screen 1 (481.48 KB, image/png)
2013-04-14 07:30 UTC, PJBrs
Details
Bad rendering screen 2 (594.65 KB, image/png)
2013-04-14 07:30 UTC, PJBrs
Details
Good rendering screen 2 (526.15 KB, image/png)
2013-04-14 07:31 UTC, PJBrs
Details
First bad penumbra output with RADEON_DEBUG=fp,vp (311.50 KB, text/plain)
2013-04-29 21:18 UTC, PJBrs
Details
Last good penumbra output with RADEON_DEBUG=fp,vp (312.66 KB, text/plain)
2013-04-29 21:19 UTC, PJBrs
Details
Screenshot, maxALU=8, old renderer (352.86 KB, image/png)
2013-05-11 11:45 UTC, PJBrs
Details
Screenshot, maxALU=8, smart renderer (369.23 KB, image/png)
2013-05-11 11:46 UTC, PJBrs
Details
Log RADEON_DEBUG=fp,vp, maxALU=8, old renderer (306.21 KB, text/plain)
2013-05-11 11:47 UTC, PJBrs
Details
Log RADEON_DEBUG=fp,vp, maxALU=8, smart renderer (304.61 KB, text/plain)
2013-05-11 11:48 UTC, PJBrs
Details
Screenshot, maxALU=20, old renderer (446.46 KB, image/png)
2013-05-11 11:49 UTC, PJBrs
Details
Screenshot, maxALU=20, smart renderer (622.86 KB, image/png)
2013-05-11 11:49 UTC, PJBrs
Details
Log RADEON_DEBUG=fp,vp, maxALU=20, old renderer (312.66 KB, text/plain)
2013-05-11 11:50 UTC, PJBrs
Details
Log RADEON_DEBUG=fp,vp, maxALU=20, smart renderer (311.88 KB, text/plain)
2013-05-11 11:51 UTC, PJBrs
Details
Possible Fix (1.13 KB, patch)
2013-05-20 15:06 UTC, Tom Stellard
Details | Splinter Review
Log with possible fix (311.50 KB, text/plain)
2013-05-21 20:29 UTC, PJBrs
Details
Possible fix v2 (1.43 KB, patch)
2013-06-16 03:23 UTC, Tom Stellard
Details | Splinter Review

Description PJBrs 2013-04-14 07:29:44 UTC

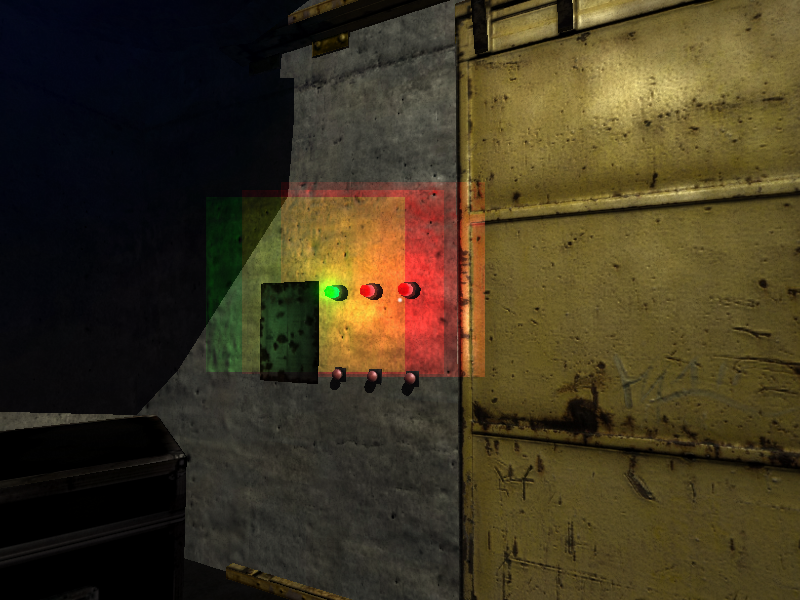

Created attachment 77936 [details]
Bad rendering screen 1

Since mesa-9.0, light is rendered incorrectly in the Penumbra games (Overture, Black Plague, Requiem). I find it hard to describe so I've included two good and two bad screenshots from two scenes to illustrate the problem. For, fixing this bug would mean rendering of light sources as in the "good" screenshots.

I've bisected (between mesa-8.0 and mesa-9.0) and the first bad commit is
134a0a5ff88851c971fb95863317f640b5b9fa3a , r300/compiler: Use the smart scheduler for r300 cards. I then checked out current master and reverting this commit fixes the problem in master.

I compiled mesa with the following options:
--with-dri-drivers="radeon,swrast"
--with-gallium-drivers="r300,swrast"
--enable-gallium-llvm
--enable-texture-float
--enable-gallium-g3dvl
--enable-glx-tls
--enable-motif
--enable-xvmc

My system is Slackware 14.0 with kernel 3.7.6, libdrm-2.4.42 and xf86-video-ati-7.1.0.
Comment 1 PJBrs 2013-04-14 07:30:23 UTC

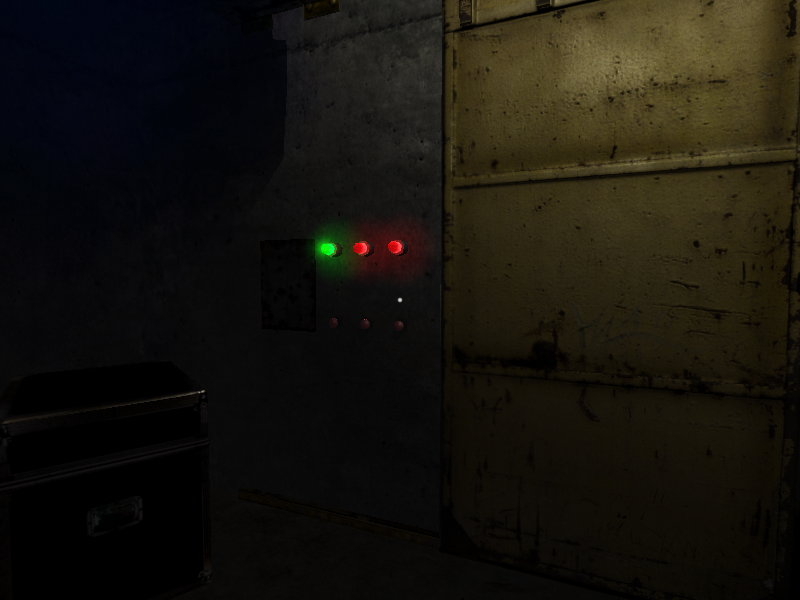

Created attachment 77937 [details]
Good rendering screen 1
Comment 2 PJBrs 2013-04-14 07:30:57 UTC

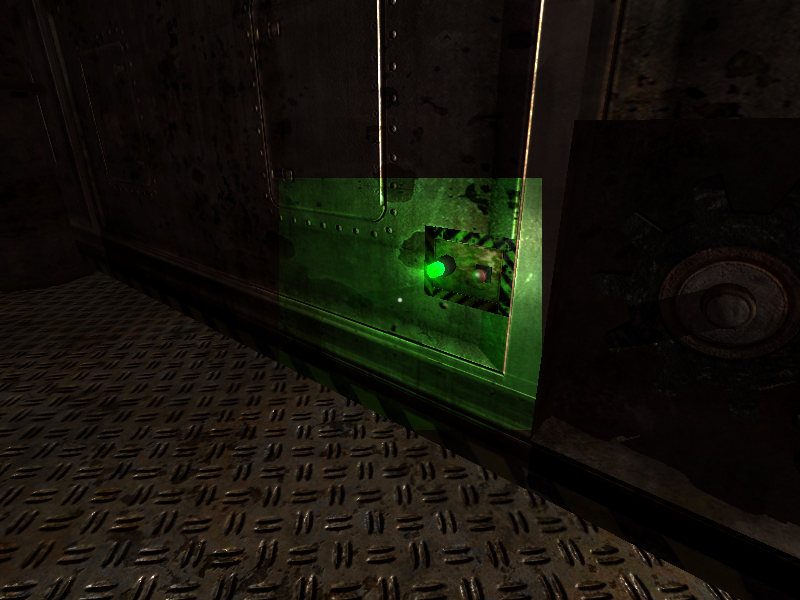

Created attachment 77938 [details]
Bad rendering screen 2
Comment 3 PJBrs 2013-04-14 07:31:27 UTC

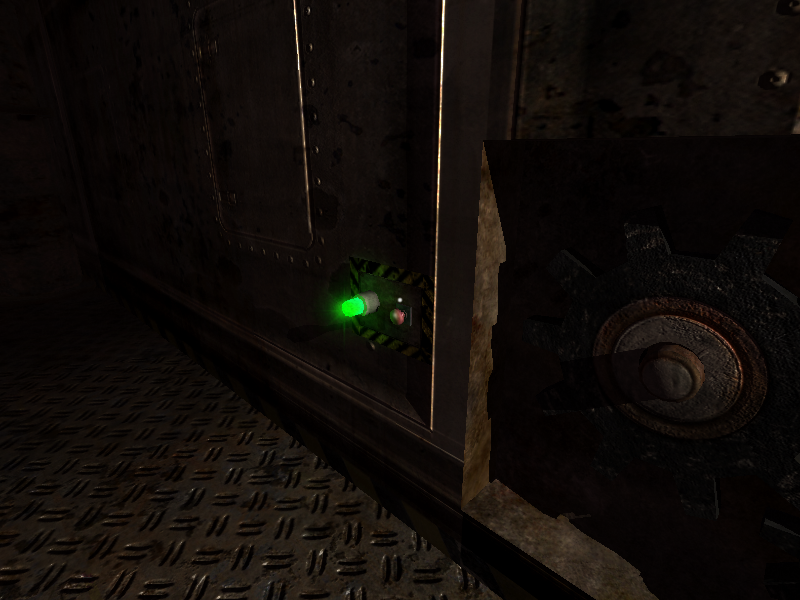

Created attachment 77939 [details]
Good rendering screen 2
Comment 4 PJBrs 2013-04-29 21:17:02 UTC
I've run the Penumbra Requiem game with RADEON_DEBUG=fp,vp and captured the output. I made two attachments. The file named "Goodlog" is the log with mesa version snb_magic_9030_g342cac7 (commit 342cac71669662abad3435fd13ecf28d073874c3). The file named "badlog" is the output with mesa version snb-magic-9031-g134a0a5 (commit 134a0a5ff88851c971fb95863317f640b5b9fa3a). Let me know if any other information is needed.
Comment 5 PJBrs 2013-04-29 21:18:39 UTC
Created attachment 78616 [details]
First bad penumbra output with RADEON_DEBUG=fp,vp
Comment 6 PJBrs 2013-04-29 21:19:26 UTC
Created attachment 78617 [details]
Last good penumbra output with RADEON_DEBUG=fp,vp
Comment 7 PJBrs 2013-05-11 11:42:53 UTC
Tom Stellard suggested that I do a binary search for incorrectly rendered shaders. I first compared debug log differences between old and smart schedulers. The logs show that eight shader programs are compiled differently by the two schedulers (I assume that a shader program is identified by "pc=$number" in the log.) For each of these shader programs I've listed the number of fragment program instructions and the number of hardware program instruction, for both old
and smart scheduler:

#instructions:  fp old: fp smart:       hwp old:        hwp smart:
Shader program:
pc=8            14      12              8               7
pc=9            25      24              19              19
pc=10           22      22              17              18
pc=11           9       8               4               4
pc=15           6       5               3               2
pc=17           26      26              18              18
pc=18           20      19              11              11
pc=19           7       6               3               3

fp=fragment program
hwp=hardware program

I then did a binary analysis by trying different numbers for max_alu_instructions. I started with 15. With max_alu=15, there are some differences in shading between old and smart schedulers. Same with max_alu=8. With lower max_alu (tested 4, 6 and 7), these differences disappear. I did not notice any other differences in rendering between old and smart schedulers for max_alu=<15. However, I did not yet see the bug that I initially noticed when I reported it, so I tested further with max_alu=20.

With max_alu=20, the smart scheduler displays the lighting bug that I initially wanted to report. With max_alu=17 and max_alu=18, rendering is the same as with max_alu=15 for both old and smart schedulars. With max_alu=19, a new difference in rendering between old and smart schedulers is introduced. A final difference  is introduced with max_alu=20, which shows the bug that I originally
saw. So, in sum, at least three shader programs are rendered differently by the old and smart schedulers--the first difference appears with max_alu=8, the second with max_alu=19 and the third difference with max_alu=20.

The first difference suggests that "pc=8" is rendered incorrectly, since it has 7 instructions in the smart scheduler. Apparently, it does not do anything with the old scheduler (which results in 8 instructions), but increasing max_alu does not change those rendering bits rendered incorrectly by the smart scheduler. The second difference is either caused by shader program "pc=17",
which consist of 18 instructions in both schedulers, or by "pc=10" which consists of 17 instructions with the old scheduler and 18 instructions with the smart scheduler. It's hard to say which shader program is rendered incorrectly (if not both are), because, with the old scheduler, there are rendering differences between max_alu=17 and max_alu=18. As the smart renderer shows no differences between max_alu=17 and max_alu=18, these must be caused by "pc=10". The third incorrectly rendered shader program would be "pc=9", with 19 instructions.

What would a good starting point for searching the bug be? I think comparing the compilations for pc=19 and pc=8, because those almost certainly are rendered incorrectly due to changes in the scheduler. I've added screenshots and logs insofar I thought was necessary. I have more available, but I don't want to clog this report. I hope that the filenames speak for themselves :-) Please let me know what else I can do.
Comment 8 PJBrs 2013-05-11 11:45:57 UTC

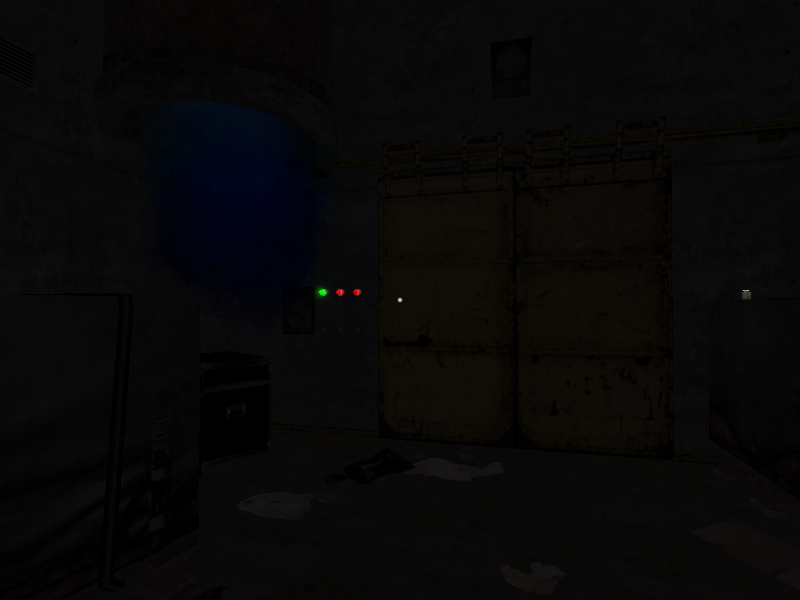

Created attachment 79150 [details]
Screenshot, maxALU=8, old renderer
Comment 9 PJBrs 2013-05-11 11:46:36 UTC

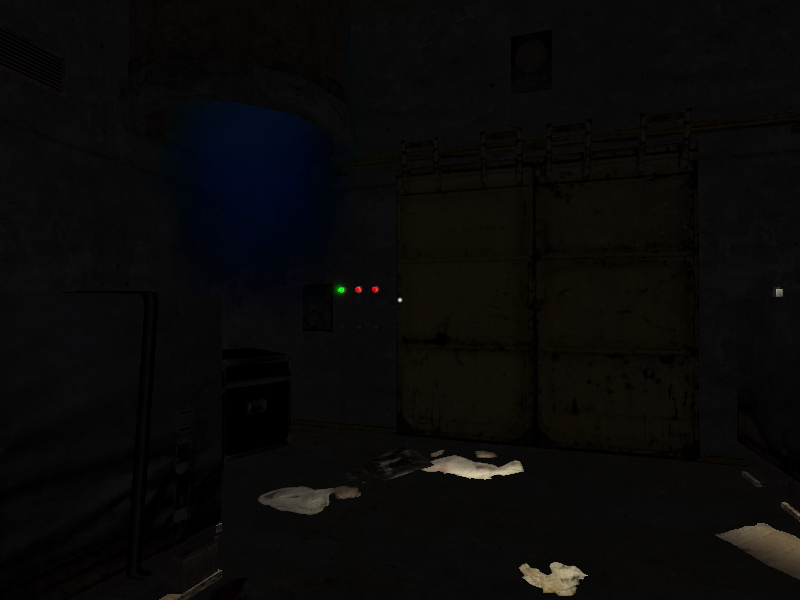

Created attachment 79152 [details]
Screenshot, maxALU=8, smart renderer
Comment 10 PJBrs 2013-05-11 11:47:56 UTC
Created attachment 79154 [details]
Log RADEON_DEBUG=fp,vp, maxALU=8, old renderer
Comment 11 PJBrs 2013-05-11 11:48:23 UTC
Created attachment 79155 [details]
Log RADEON_DEBUG=fp,vp, maxALU=8, smart renderer
Comment 12 PJBrs 2013-05-11 11:49:07 UTC

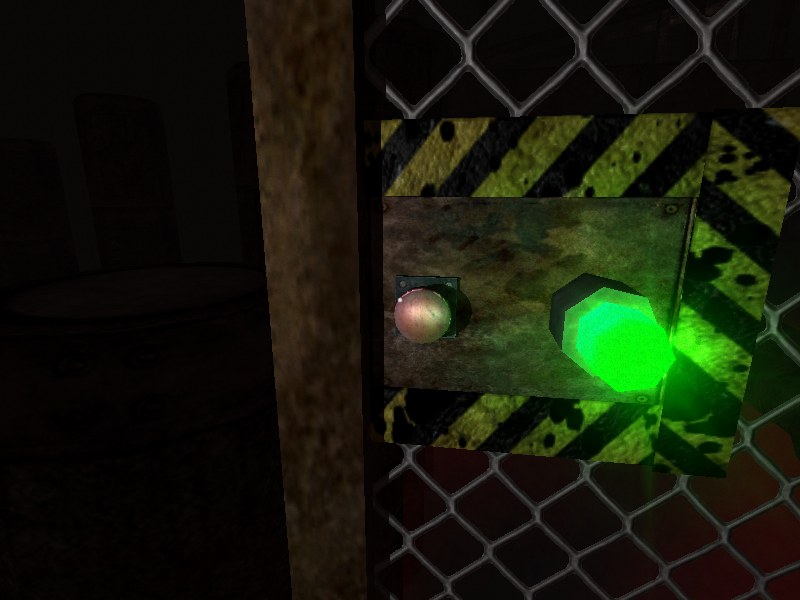

Created attachment 79156 [details]
Screenshot, maxALU=20, old renderer
Comment 13 PJBrs 2013-05-11 11:49:49 UTC

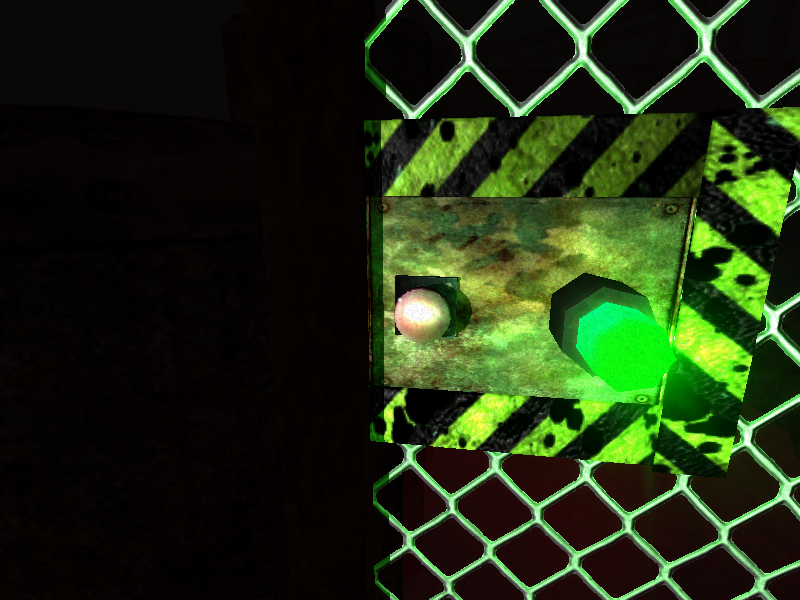

Created attachment 79157 [details]
Screenshot, maxALU=20, smart renderer
Comment 14 PJBrs 2013-05-11 11:50:31 UTC
Created attachment 79158 [details]
Log RADEON_DEBUG=fp,vp, maxALU=20, old renderer
Comment 15 PJBrs 2013-05-11 11:51:02 UTC
Created attachment 79160 [details]
Log RADEON_DEBUG=fp,vp, maxALU=20, smart renderer
Comment 16 PJBrs 2013-05-11 12:00:15 UTC
To be clear-- with "trying different numbers for max_alu_instructions", I mean changing c->Base.max_alu_insts into a number (e.g., 15) in line 157 of the file src/gallium/drivers/r300/compiler/r300_fragprog_emit.c.
Comment 17 Tom Stellard 2013-05-20 14:48:39 UTC
Thanks for identifying the bad shaders, this saved me a lot of work.  I spotted a bug in the "pc=8" shader:

6: TEX temp[1].x, temp[1].z___, 1D[3] SEM_WAIT SEM_ACQUIRE;

This instruction is wrong because TEX instructions can't swizzle their source operands.  For 1D textures, the coordinate is always read from the x component.
Comment 18 Tom Stellard 2013-05-20 15:06:54 UTC
Created attachment 79572 [details] [review]
Possible Fix

Does this patch fix the bug?  If not can you post the output of RADEON_DEBUG=fp,vp with this patch applied.
Comment 19 PJBrs 2013-05-21 20:29:30 UTC
Created attachment 79628 [details]
Log with possible fix

Hi, thanks for the patch! Unfortunately, it does not appear to do anything that I can see, the bug(s?) are still there. I've attached the log as per your request. Let me know if I can help in any other way.
Comment 20 PJBrs 2013-05-21 20:34:51 UTC
P.s., I did a quick glance at the difference between the first bad log and the log with the patch (sdiff badlog  patch-test.log | less). It seems as if shader pc8 now is truncated or something...
Comment 21 Tom Stellard 2013-06-16 03:23:42 UTC
Created attachment 80888 [details] [review]
Possible fix v2

The first patch I posted was incorrect, so it actually had no effect on the shader program.  This new patch should fix the issue with texture swizzles.  Can you test this out?  If the rendering is still incorrect with this new patch, can you repost the output of RADEON_DEBUG=fp,vp with this patch applied.
Comment 22 PJBrs 2013-06-25 21:10:01 UTC
This fixes it!--great, thanks very much! Is this patch already in master? And will it also go in the 9.0 / 9.1 stable branches?

Anyway, thanks very much again for your time, glad I could be of some help too.
Comment 24 madbiologist 2013-07-01 14:55:56 UTC
The fix is now also in Mesa 9.1.
