Setting the fallback to resolution 300,300 for either postscript or PDF back-ends appears to change the matrix used for normal line draw, but not for text rendering. The problem does not occur unless alpha blending is used (forcing the fallback) Using a fallback resolution of 72,72 renders the line draw at the correct locations.
Created attachment 6278 [details] Demonstrating problem with fallback resolution and alpha blends

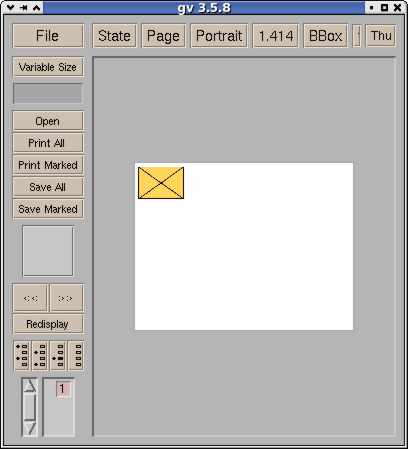

Created attachment 6279 [details] Demonstrates failure case

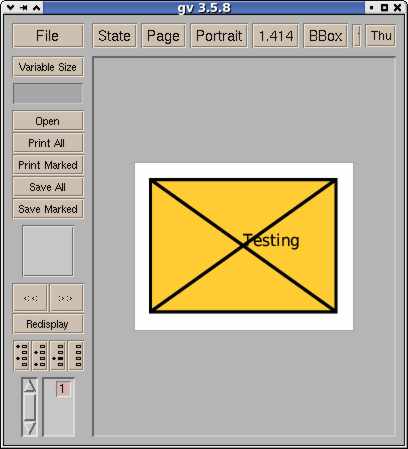

Created attachment 6280 [details] Demonstrates success case
Re-tested against latest git [master] updates which address surface fallback. Problem persists as of 3 August.
*** This bug has been marked as a duplicate of 7533 ***
